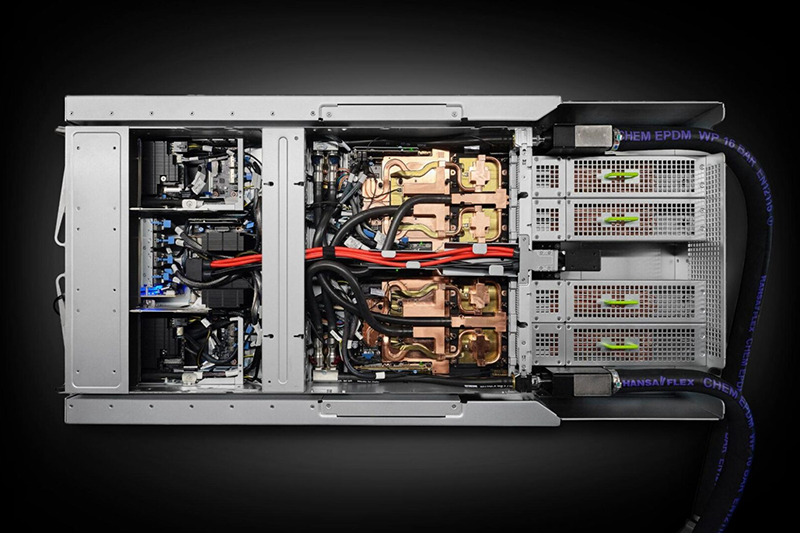

What is Server CPU/GPU Waterblock?

A server CPU/GPU waterblock is a specialized liquid cooling component used in data centers, AI clusters, and high-performance servers. It transfers heat directly from processors through a precision-machined copper or nickel-plated cold plate with microchannels that allow coolant to flow and carry heat away. It can also be applied to standard CPUs and GPUs in consumer systems.

Compared with consumer waterblocks, server-grade designs focus on 24/7 reliability, high thermal efficiency, and compatibility with dense rack environments, ensuring stable operation under heavy workloads while reducing overall energy consumption.

At Kingka Tech, we leverage decades of thermal management expertise and advanced CNC machining to deliver customized server waterblocks for enterprise applications, ensuring both high performance and long-term reliability.
What is Server CPU GPU Waterblock

What is Server CPU/GPU Waterblock?

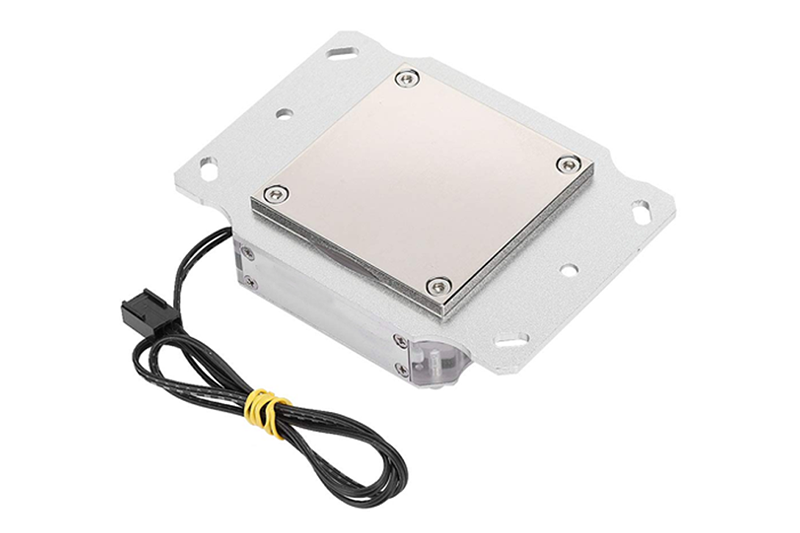

CPU waterblock
CPU Waterblock

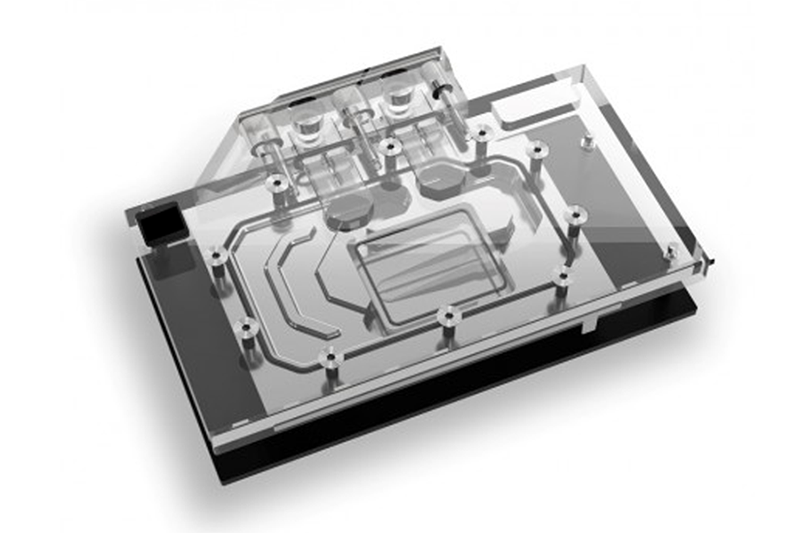

GPU waterblock
CPU Waterblock

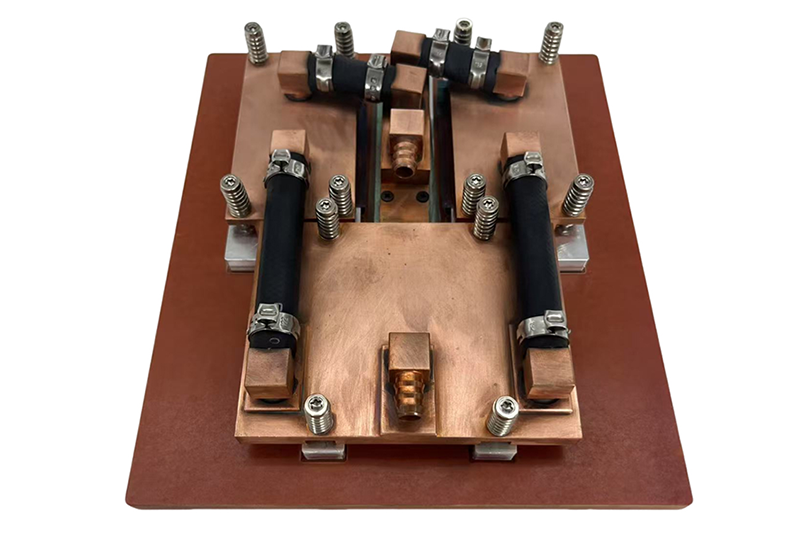

CPU + GPU Combo Waterblock
CPU Waterblock

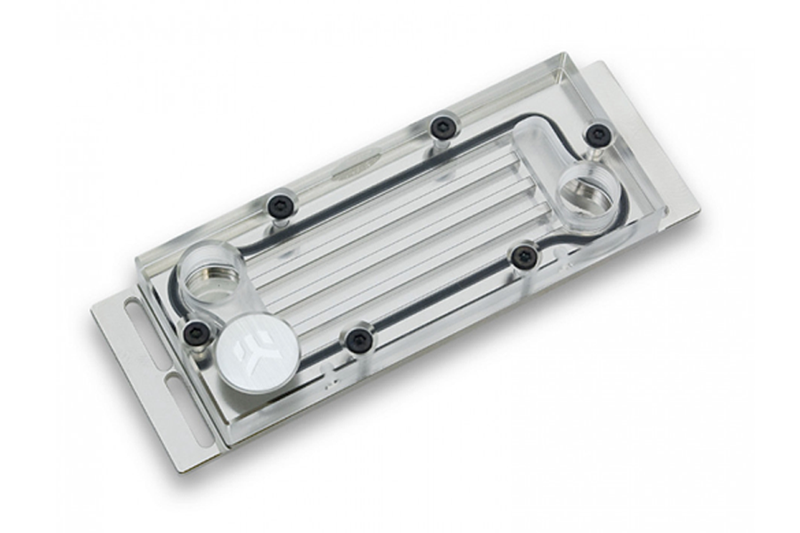

Memory & VRM Waterblock
CPU Waterblock

Waterblock Common Materials

Material Type Features Typical Applications
Bare Copper Excellent thermal conductivity, ideal for high-performance cooling High-power CPU/GPU, core components in liquid cooling systems
Nickel-Plated Copper Copper base with nickel coating, improves corrosion resistance and longevity Data centers, AI servers, HPC systems
Aluminum Alloy Lightweight, cost-effective, suitable for weight/cost-sensitive applications Mid-to-low power devices, budget-conscious systems
Stainless Steel High strength, corrosion-resistant, suitable for high-pressure environments Industrial-grade servers, specialized equipment
POM (Polyoxymethylene) Good mechanical properties and chemical resistance, often used for seals and fittings Watercooling system connectors, sealing components
PMMA (Acrylic) High transparency, allows visual monitoring of liquid flow High-end custom watercooling systems, showcase servers
PPS (Polyphenylene Sulfide) High-temperature and corrosion resistance, suitable for high-heat environments High-temperature industrial equipment, specialized cooling systems


Why Our Server CPU/GPU Waterblock Stand Out

Enterprise-Grade Reliability

Designed for continuous 24/7 operation in data centers and high-performance servers, our waterblocks maintain consistent thermal performance under heavy workloads.

Advanced Manufacturing & Quality Control

Leveraging 25+ years of thermal management expertise and state-of-the-art CNC equipment, each waterblock undergoes multi-stage inspection to guarantee durability and precision.

High Thermal Efficiency

Precision-machined cold plates and optimized microchannel designs ensure maximum heat transfer, reducing CPU/GPU temperatures and lowering overall energy consumption.

Material Versatility

We work with copper, nickel-plated copper, aluminum, and other high-performance materials, optimizing for conductivity, corrosion resistance, and long-term reliability.

Full Customization Capability

Kingka offers tailored solutions in materials, dimensions, and channel design, ensuring perfect compatibility with client-specific server architectures and cooling loops.

Global Enterprise Experience

With extensive experience serving data center and HPC clients worldwide, Kingka ensures that each waterblock meets stringent performance, safety, and regulatory standards.

Server CPU/GPU Waterblock Application Areas

Our expertise in thermal management extends to a wide range of industries where high-power electronics demand advanced cooling solutions. Below are just a few of the critical sectors where our liquid cold plates make a difference.

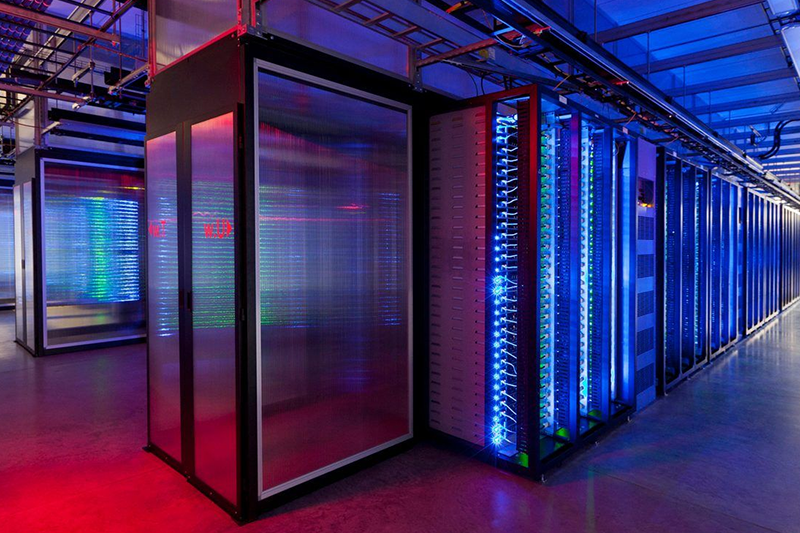

Data Centers

Data Centers

Challenge: High-density servers generate significant heat, and traditional air cooling often fails to maintain optimal temperatures.
Kingka Solution: Our precision-engineered waterblocks provide efficient liquid cooling, ensuring stable 24/7 operation, reducing energy consumption, and enabling higher server density.

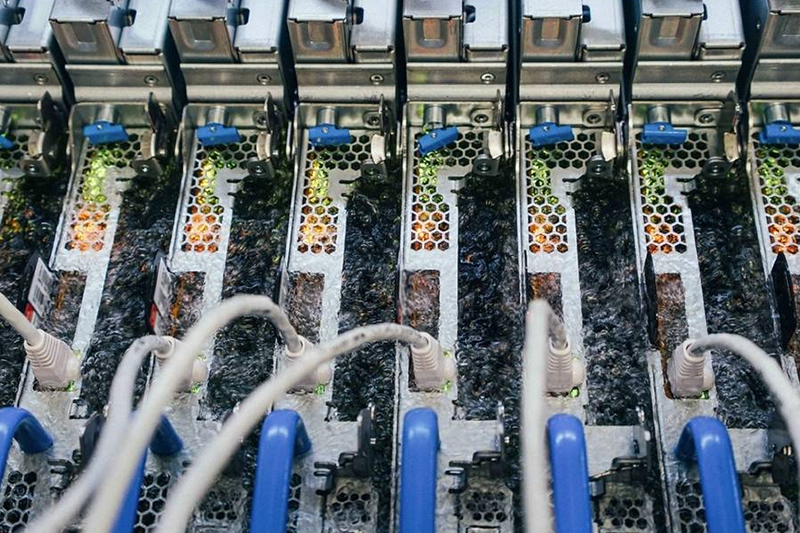

Artificial Intelligence & Deep Learning

Artificial Intelligence & Deep Learning

Challenge: AI workloads and deep learning training require sustained high GPU performance, which generates substantial heat.
Kingka Solution: Kingka’s customized GPU waterblocks maintain optimal thermal conditions, maximizing performance and reliability for AI clusters and HPC workloads.

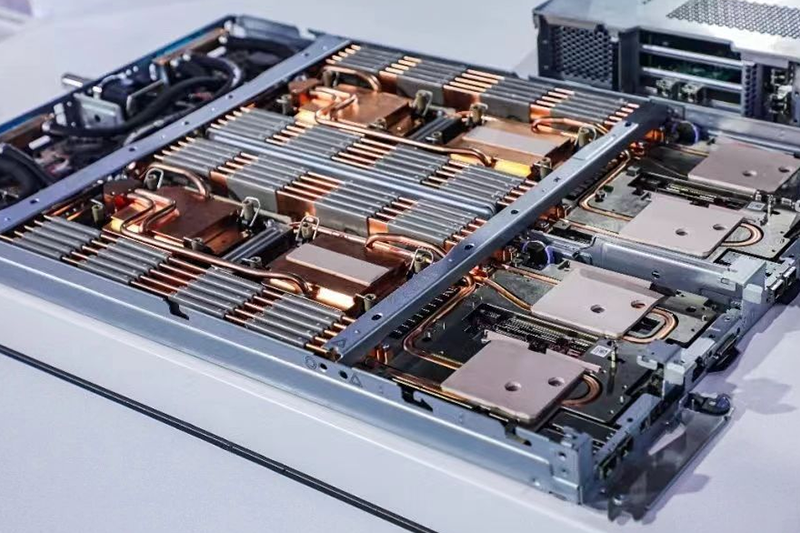

High-Performance Computing

High-Performance Computing

Challenge: HPC systems with multiple high-power CPUs/GPUs demand superior heat dissipation to maintain performance under full load.
Kingka Solution: Our server-grade waterblocks with microchannel cold plates deliver high thermal efficiency, enabling dense deployments and consistent compute performance.

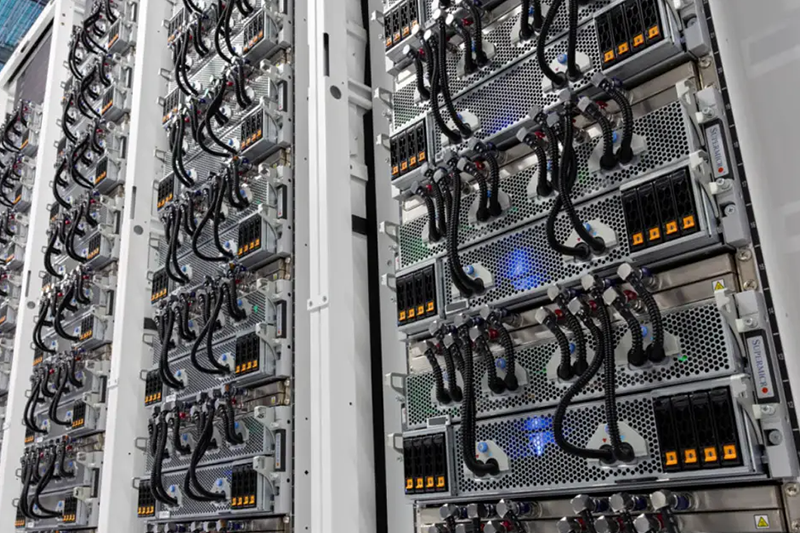

Cloud Computing Infrastructure

Cloud Computing Infrastructure

Challenge: Cloud services require reliable, energy-efficient cooling to support virtualized and containerized environments at scale.
Kingka Solution: Our waterblocks optimize thermal management in cloud servers, reducing energy costs and improving operational efficiency in high-density deployments.

Server CPU/GPU Waterblock Specifications

For a complete technical datasheet or to discuss a custom solution for your specific application, please contact our engineering team directly.
Waterblock Type Material Microchannel Design (Number / Width / Depth) TDP Support (W) Dimensions (L×W×H mm) Inlet/Outlet Recommended Flow (L/min) Max Operating Pressure (MPa) Operating Temperature (°C) Weight (g) Mounting / Compatibility Certification Customization Options
CPU Waterblock Copper / Nickel-plated Copper / Aluminum Varies by CPU, optimized for heat transfer 500–700 116×80×25 G1/4 or M4 1.5–3.5 0.5–1.0 0–60 300–500 CPU socket compatible RoHS, REACH Logo, color, material
GPU Waterblock Copper / Nickel-plated Copper / Acrylic top Full coverage for GPU chip 250–500 Varies by GPU model G1/4 1–3 0.5–1.0 0–60 400–600 GPU PCB compatible RoHS, REACH Logo, color, acrylic top
CPU+GPU Combo Waterblock Copper base + Nickel-plated top Separate CPU & GPU channels 500–1000 150×120×30 Dual G1/4 2–4 0.5–1.0 0–60 600–900 CPU + GPU compatible RoHS, REACH Logo, color, combined design
Memory & VRM Waterblock Copper / Aluminum Small-scale optimized for modules 50–150 Compact, model-specific Mini G1/4 0.5–1.5 0.5 0–60 100–200 Memory / VRM compatible RoHS, REACH Logo, color


Why Partner with KingkaTech?

Choosing the right thermal partner is a critical decision. We invite you to experience the KingkaTech difference, driven by our unique value propositions that ensure your project’s success.

Streamline Your Supply Chain

Our one-stop service handles every stage, from design to mass production. We eliminate the complexity of managing multiple vendors, saving you time and resources.

Experience True Customization

We design and manufacture tailor-made waterblock that perfectly match your unique platform, ensuring optimal thermal performance and seamless integration.

Uncompromised Quality & Reliability

Our advanced manufacturing processes, including vacuum brazing and strict ISO 9001 standards, guarantee zero-leak, high-durability products you can trust.

Accelerate Your Time-to-Market

Our agile team and efficient prototyping process quickly turn your concepts into tangible products, giving you a crucial competitive advantage.

Leverage Our Thermal Expertise

Our team of seasoned engineers provides professional consultation and simulation services to solve your most complex thermal challenges.

Benefit from a Partner-First Approach

We are dedicated to building long-term partnerships. We listen to your specific needs and offer unwavering support throughout the entire project lifecycle.

Server CPU/GPU Waterblock Quality Assurance and Certification

At Kingka Tech, our unwavering commitment to quality and excellence is fundamental to our success. We adhere to the highest international standards to ensure that every liquid cold plate we deliver not only meets but exceeds your most stringent requirements.

FAQ

Looking for a reliable and high-quality thermal solution for your business needs?

Our team of thermal experts is ready to assist you, from providing professional consultation to creating a custom design tailored to your specific needs. Fill out the form below to get a quick quote, upload your design files, or simply get in touch with our team.
