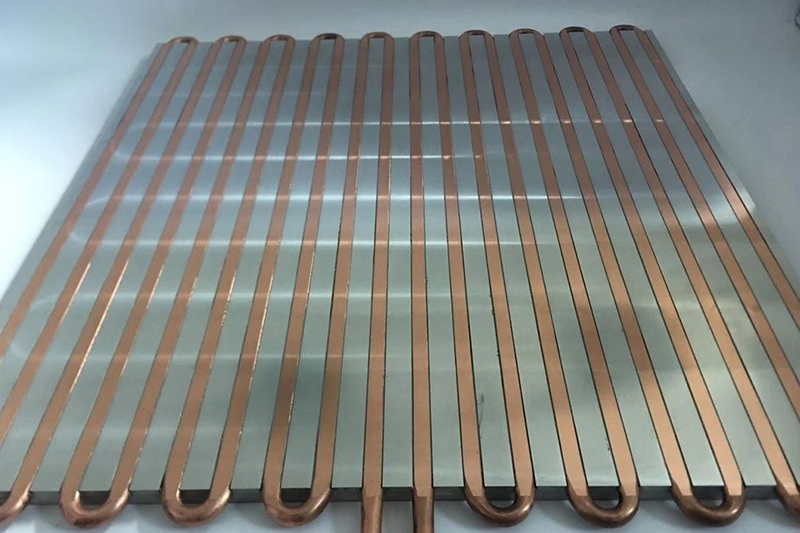

Precision Copper & SUS Tube Liquid Cold Plates

As an IATF 16949 certified direct manufacturer with 16+ years of thermal engineering expertise, KingKa designs and fabricates high-density cooling solutions entirely in-house. Utilizing our proprietary Hi-Contact™ process and a fleet of 50+ advanced CNC centers, we deliver custom, zero-leakage tube cold plates engineered for your most demanding high-power systems.

Request a Free DFM Review

Why Choose Copper/SUS Tube Liquid Cold Plates

As electronic systems reach unprecedented power densities, traditional air cooling often falls short. Copper and Stainless Steel (SUS) tube liquid cold plates provide an exceptionally reliable cooling solution. Copper offers superior thermal conductivity for rapid heat absorption, while SUS tubes ensure outstanding corrosion resistance against specialized coolants or harsh operating environments. This structural design maximizes heat transfer away from high-power components, making it the industry standard for extreme thermal management.

Get A Quote

Our End-to-End Tube Liquid Cold Plate Manufacturing Process

As a fully integrated thermal solutions manufacturer, KingKa controls every step of the production cycle in-house. From raw material inspection to final flow testing, our comprehensive manufacturing process ensures that every custom copper and SUS tube cold plate meets strict ISO 9001:2015 and IATF 16949 standards, delivering uncompromising performance for your high-power systems.

Premium Material Sourcing & Strict IQC

The foundation of a high-performance cold plate is its raw material. Our SQE (Supplier Quality Engineering) and IQC teams strictly evaluate and inspect all incoming metals. We utilize high-grade aluminum alloys (such as AL6061 or AL7075) for the base plates to ensure structural integrity, and high-purity copper or stainless steel (SUS) for the cooling tubes to guarantee optimal thermal conductivity and fluid compatibility.

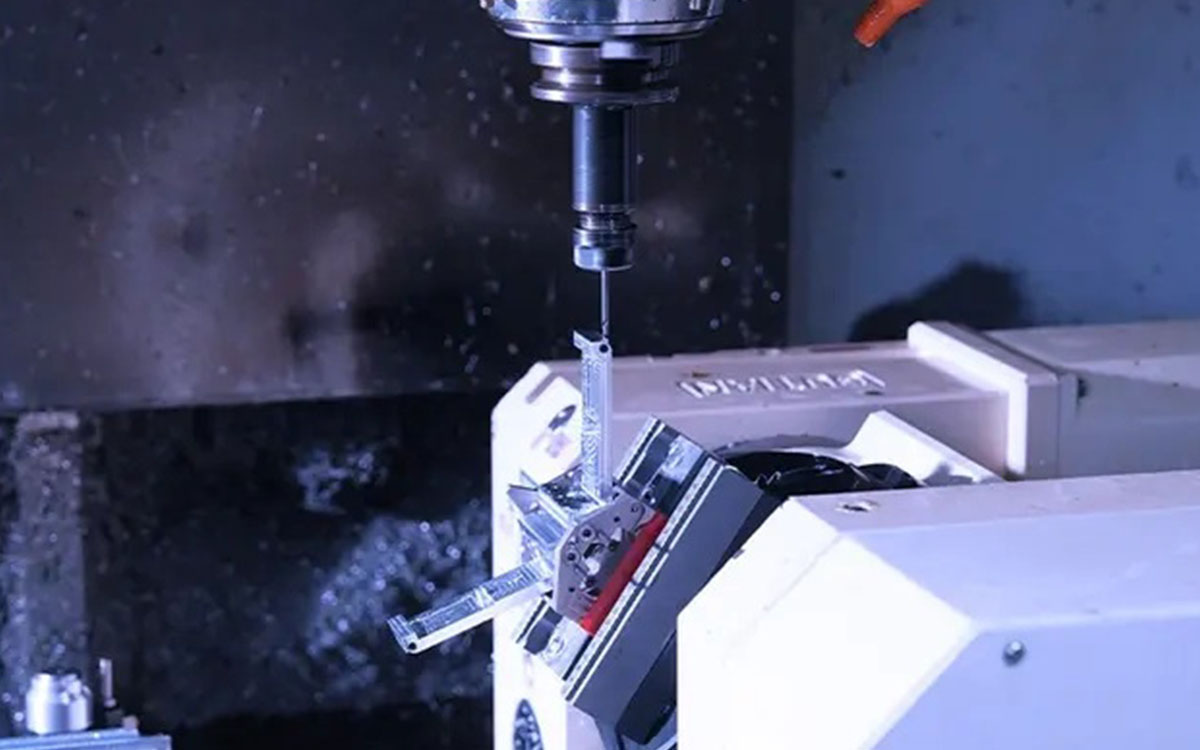

High-Precision CNC Channel Routing

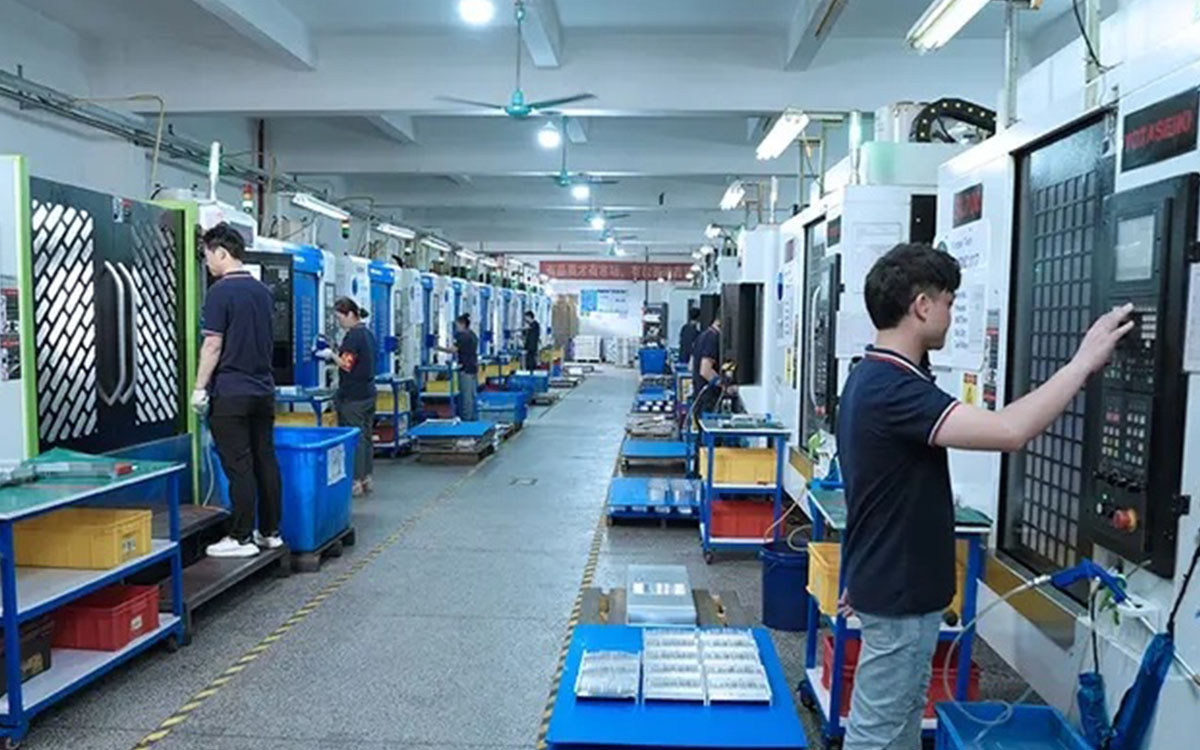

Unlike standard machining, liquid tube routing requires extreme precision to avoid thermal bottlenecks. Utilizing our fleet of 3, 4, and 5-axis CNC machining centers, we mill complex, high-density channel layouts into the aluminum base. We maintain ultra-tight machining tolerances to ensure a perfect mechanical fit for the cooling tubes, which is critical for maximizing heat transfer.

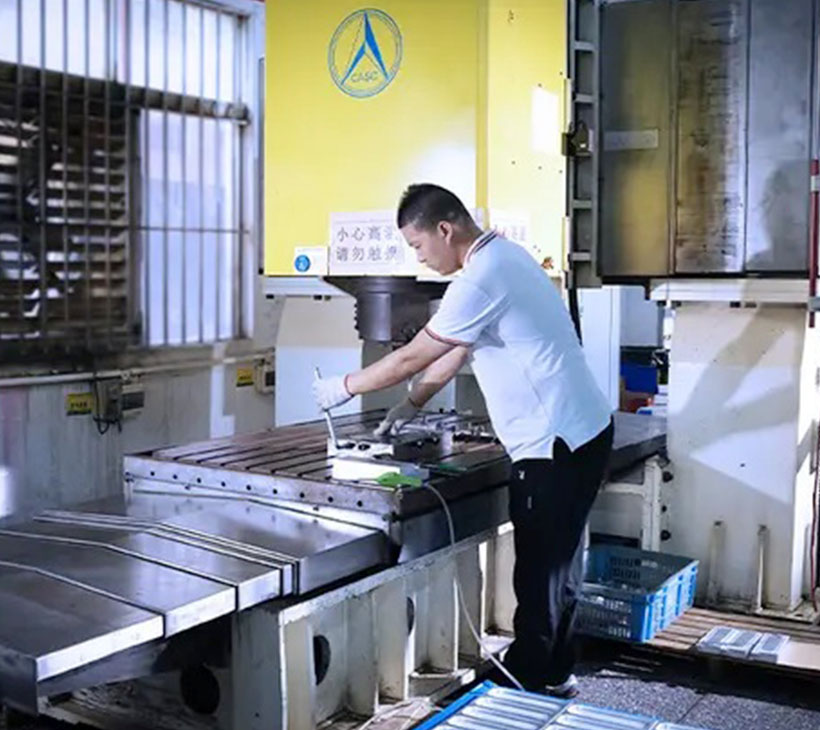

Custom Tube Bending & Proprietary Hi-Contact Pressing

The copper or SUS tubes are custom-bent to match the specific channel architecture. Using KingKa’s proprietary Hi-Contact manufacturing technique, the tubes are forcefully embedded into the base plate. This specialized pressing process significantly increases the tube-to-plate contact area, reducing interface thermal resistance and ensuring the tubes are securely locked in place.

Thermal Epoxy Application & Surface Machining

To eliminate microscopic air gaps that act as thermal insulators, a specialized thermal epoxy is precisely applied at the tube-to-plate joints. Once cured, the entire cold plate undergoes high-precision fly-cutting and surface grinding. This critical step ensures a perfectly flat and smooth contact surface, allowing your high-power electronic components to mount seamlessly for maximum heat absorption.

Rigorous Fluid Validation & Leakage Testing

Liquid cooling systems demand zero margin for error. Before moving to final finishing, every cold plate is sent to our in-house test lab. We conduct 100% airtightness leakage detection and utilize a two-stage flow resistance testing machine. This guarantees that the internal channels are clear of debris and the assembly can withstand high fluid pressure without leaking.

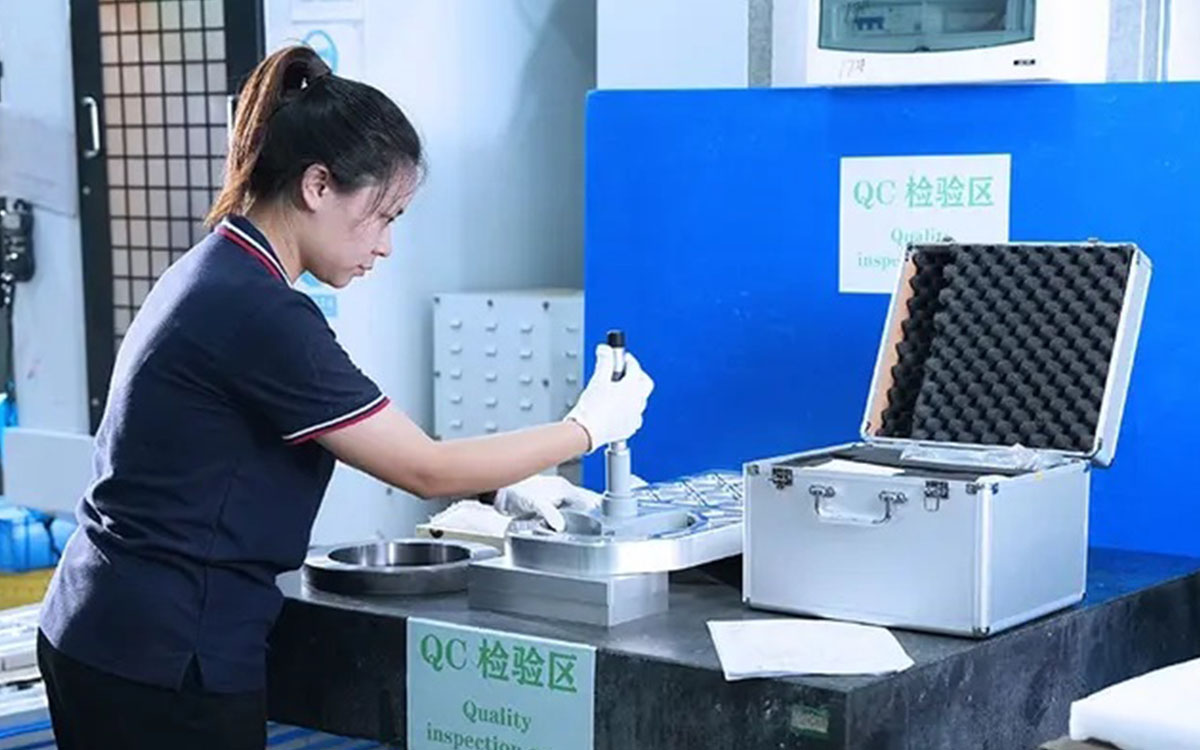

Final FQC/OQC & Dimensional Inspection

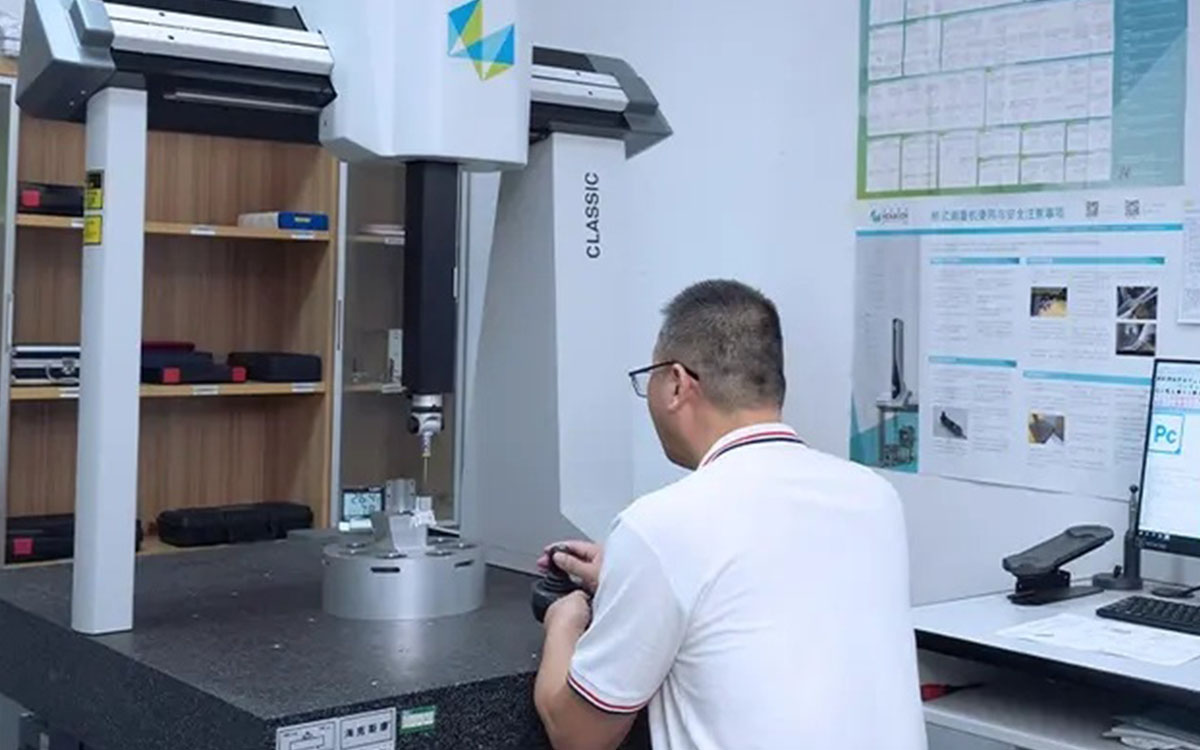

In the final stage, our quality control team performs comprehensive 100% sorting (FQC) and pre-delivery inspections (OQC). We utilize advanced HEXAGON Coordinate Measuring Machines (CMM) and 2.5D optical projectors to verify all geometric dimensions and tolerances. Only parts that perfectly match your CAD drawings are securely packaged for global delivery.

Get A Quote

Explore Our Copper/SUS Tube Liquid Cold Plates

Discover a selection of our standard Copper/SUS Tube Liquid Cold Plates, or leverage our expertise for fully customized solutions to match your specific thermal requirements.

Tube Liquid Cold Plate Technical Specifications

As a certified precision thermal manufacturer, KingKa provides highly customizable specifications to meet the exact thermal, mechanical, and spatial requirements of your projects. Below are the core technical parameters and manufacturing capabilities for our tube liquid cold plates.

Material & Structural Specifications

Specification Category	Technical Details & Parameters
Integration Technology	Proprietary Hi-Contact tube pressing technique
	Specialized thermal epoxy application at joints
	Gap-free thermal interface between tube and plate
Compatible Materials	Base Plate: Aluminum Alloys 1100, 5052, 6061, 6063, 7075
	Cooling Tubes: High-Purity Copper 1100
	Cooling Tubes: Stainless Steel (SUS) 301/303/304
CNC Machining Fleet	50+ High-speed CNC machining centers
	3-Axis, 4-Axis, and 5-Axis configurations
	Japanese Brother, Yatasake & Taiwanese Taikan
Machining Tolerances	CNC Milling: Down to $\pm$0.005 mm
	CNC Turning: Down to $\pm$0.005 mm
	Skiving Fin (Hybrid): Down to $\pm$0.05 mm
Channel Architecture	Precision CNC-milled tube routing channels
	Custom tube bending for complex layouts
	Optimized for maximum tube-to-device contact
Surface Flatness	High-precision post-pressing surface machining
	Minimized interface resistance for contact surfaces
	Film thickness & roughness verified by Kett testers
Engineering & Capacity	CFD Thermal Simulation & 3D Pro/E Design Capability
	Dedicated Dongguan Nancheng R&D center
	Annual part capacity exceeding 60,000 units

Testing, Quality & Surface Finish

Specification Category	Technical Details & Parameters
Dimensional Inspection	Hexagon Coordinate Measuring Machines (CMM) ($\pm$0.001 mm)
	Hexagon 2.5D Optical Projectors ($\pm$0.001 mm)
	Kett Colorimeter & Film Thickness Testers
Leak & Pressure Testing	4 Dedicated LCP Leakage Testers
	100% In-house airtightness leak detection
	Guaranteed leak-proof reliability for fluid systems

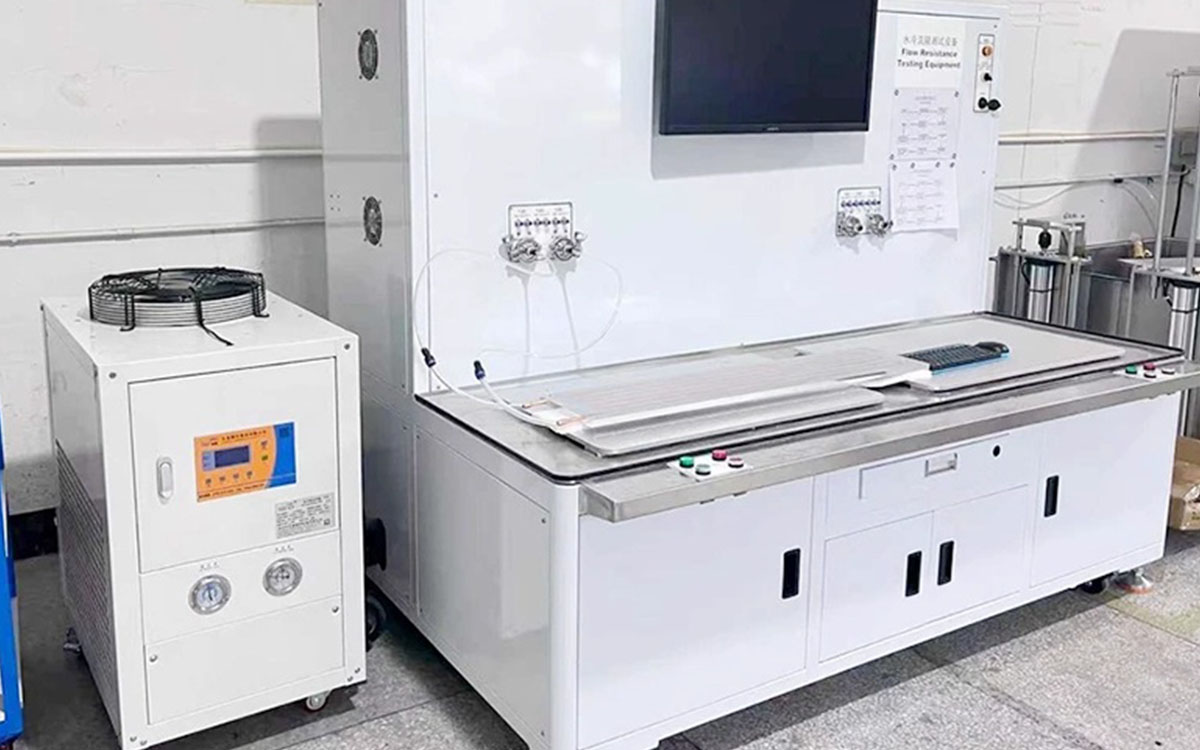

Fluid & Flow Validation	Two-stage flow resistance testing machine
	Comprehensive water-cooling flow measurement
	In-house thermal test lab for quality assurance
Internal Cleanliness	Dedicated airtight cleaning machines
	Guaranteed residue-free internal tube routing
	Safe for diverse fluid cooling systems
Quality System	ISO 9001:2015 Certified (DCI)
	IATF 16949:2016 Automotive Quality Certified
	Upcoming ISO 13485 Medical Device Certification
Process Control	SQE & IQC: Strict raw material supplier management
	IPQC: First Article Inspection (FAI) & process control
	FQC/OQC: 100% sorting and pre-delivery inspection

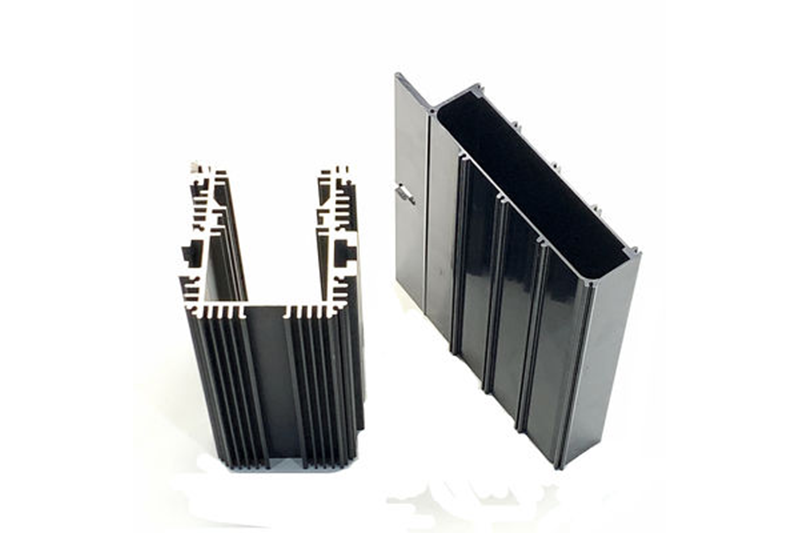

Extrusion Heat Sink Applications

Our CNC machined components are critical to a multitude of industries, supporting innovation and performance across various sectors.

NEV Batteries & Powertrains

Managing extreme heat in EV powertrains requires uncompromised reliability. Our custom tube cold plates ensure optimal operating temperatures and absolute vehicle safety under strict IATF 16949 automotive standards.

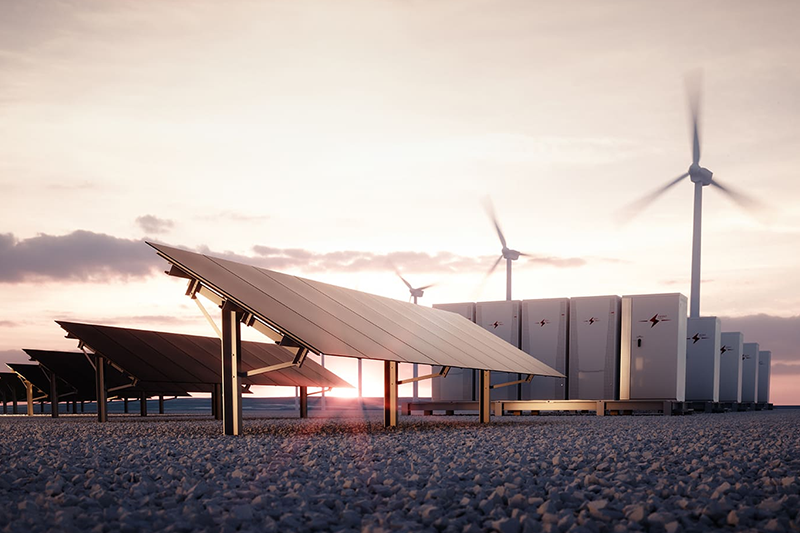

High-Power Energy Storage (ESS)

Utility-scale energy storage demands decades of continuous, leak-free operation. We integrate high-durability Stainless Steel (SUS 304/316) tubes to resist aggressive industrial coolants and eliminate internal corrosion risks.

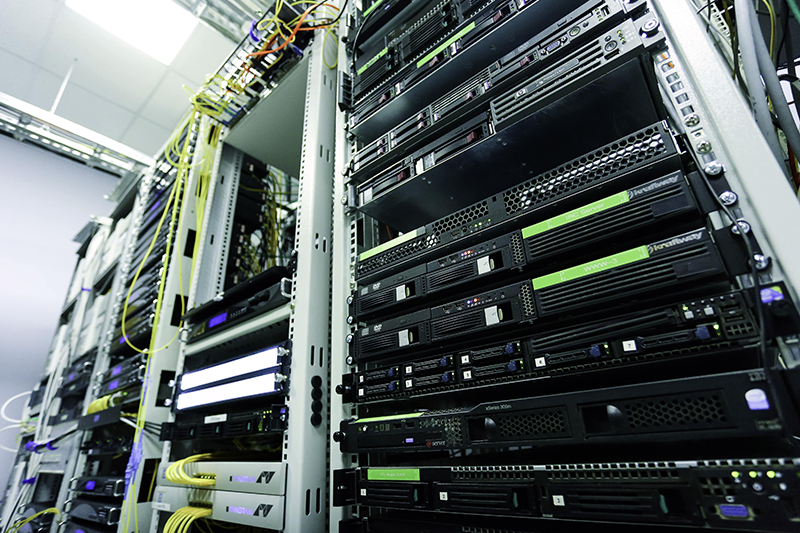

Data Centers & HPC

Next-gen AI servers face severe space and heat flux constraints. Our proprietary Hi-Contact™ copper tube designs maximize thermal transfer efficiency within compact footprints, preventing thermal throttling in high-wattage CPUs/GPUs.

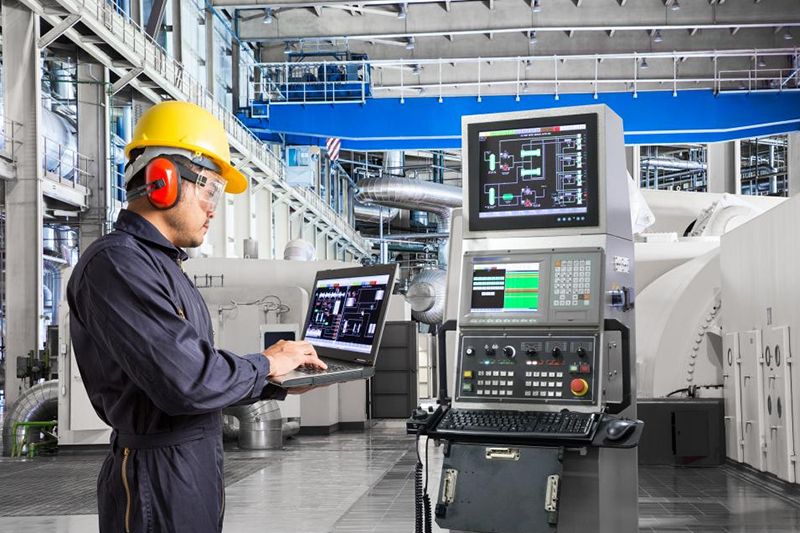

Precision Equipment

Maintaining absolute thermal stability is critical. Pre-machined on our high-speed CNC centers to tolerances as tight as ±0.005mm, our embedded tube plates provide uniform temperature distribution for sensitive sealing and testing equipment.

Power Electronics & Inverters

High-density inverters generate massive localized heat. By strategically embedding highly conductive Copper (1100) tubes directly beneath critical hot spots, we deliver targeted, ultra-low resistance cooling to safeguard expensive components.

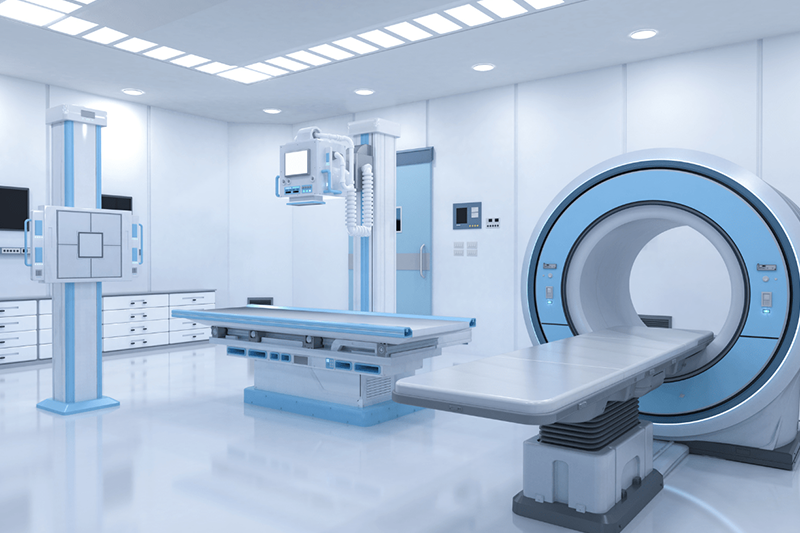

Medical Imaging Devices

Mission-critical medical diagnostics require pristine, zero-leakage thermal control. We manufacture medical-grade tube liquid cold plates with uncompromising quality controls (ISO 13485 upcoming) to ensure flawless, long-term diagnostic operations.

Why Partner with KingkaTech?

Choosing the right thermal partner is a critical decision. We invite you to experience the KingkaTech difference, driven by our unique value propositions that ensure your project’s success.

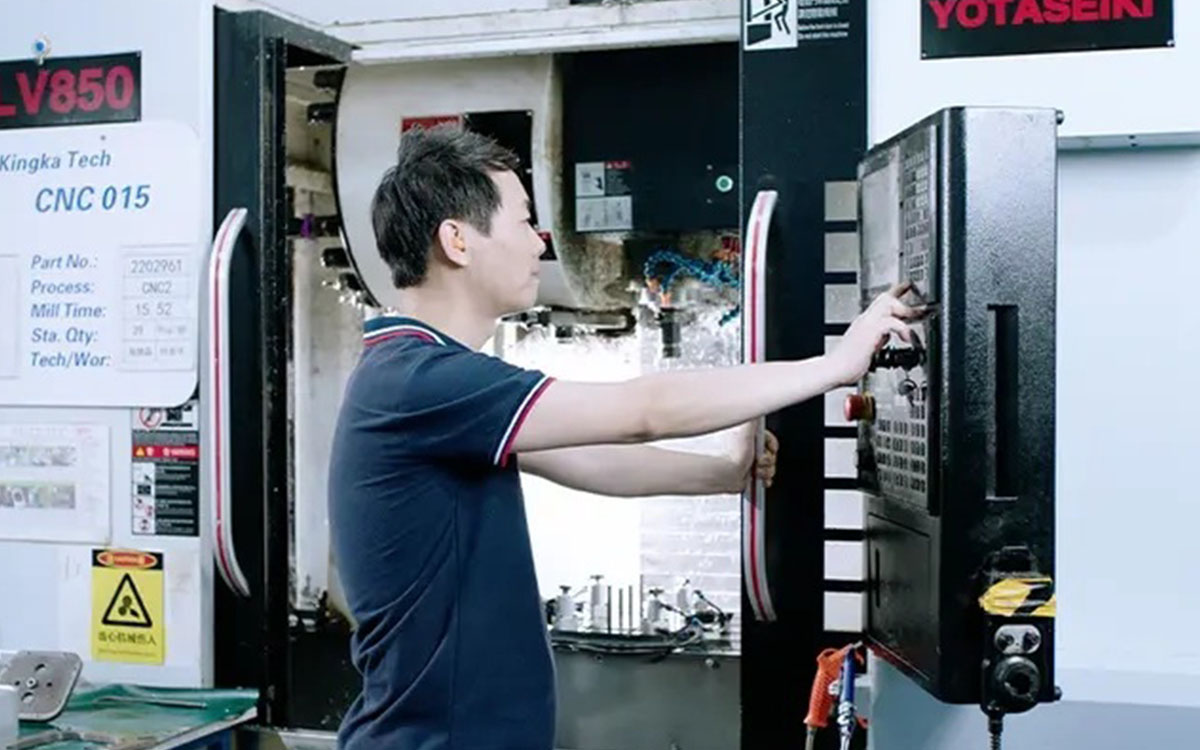

Mastery in Liquid Cooling Integration

We don't just machine metal; we specialize in fluid thermal management. With 16+ years of manufacturing experience, KingKa has perfected the intricate process of embedding high-purity Copper and SUS tubes into aluminum bases. Our dedicated facility produces over 60,000 thermal parts annually, ensuring scalable reliability for your liquid cooling projects.
CFD-Optimized Tube Routing

Fluid dynamics dictate cooling performance. Before any cutting begins, our Dongguan Nancheng R&D center utilizes 3D Pro/E design and CFD thermal simulation to analyze coolant flow. We optimize your tube layouts and routing channels to minimize pressure drop and maximize heat absorption for specific high-power components.
Proprietary Hi-Contact Technology

The biggest challenge in tube cold plates is interface resistance. We overcome this using our proprietary Hi-Contact pressing technique combined with specialized thermal epoxy. This advanced manufacturing method forcefully embeds the cooling tubes into the base, creating a nearly gap-free thermal interface for maximum heat transfer.
Micro-Precision for Leak Prevention

A mismatched tube channel leads to mechanical stress and eventual leaks. That is why we utilize over 50 high-speed 3, 4, and 5-axis CNC centers (including Brother and Taikan) to mill the tube routing channels. By maintaining ultra-tight machining tolerances down to $\pm$0.005 mm, we guarantee a perfect, stress-free fit for every bent tube.
100% In-House Fluid Reliability Testing

When dealing with liquid coolants, trust requires verification. We never outsource quality control. Our in-house testing laboratory is equipped with dedicated airtightness leakage detectors and two-stage water-cooling flow resistance measurement machines. We guarantee that every shipped cold plate is strictly tested for leak-proof performance under high pressure.
Proven by High-Heat-Density Industries

Our tube liquid cold plates are trusted by the world's most demanding tech leaders. Operating under IATF 16949 and ISO 9001 quality systems, we proudly supply highly engineered, leak-proof liquid cooling solutions to Fortune 500 giants across data centers, telecommunications, and medical sectors—including Google, ByteDance, Huawei, and Mindray.

Quality Assurance and Certification

At Kingka Tech, our unwavering commitment to quality and precision is fundamental to our success. We adhere to the highest international machining standards to ensure that every CNC-machined component we deliver not only meets but exceeds your most stringent requirements.

Your Seamless Precision Process

Our optimized, three-tier production protocol guarantees clarity, accelerated project timelines, and strict adherence to your exacting technical specifications.

Design & Quote

Submit Your Requirements. "Simply share your 2D/3D CAD files, material preferences, quantity, and any specific surface finish or tolerance needs.

Precision Manufacturing

Once you approve the design and quote, we take it from there.

Fast Delivery & Support

Your perfect parts are ready for use.Upon successful final inspection, components are professionally packaged and dispatched using reliable logistics partners for on-time delivery.

Design & Quote

Submit Your Requirements. "Simply share your 2D/3D CAD files, material preferences, quantity, and any specific surface finish or tolerance needs.
Precision Manufacturing

Once you approve the design and quote, we take it from there.
Fast Delivery & Support

Your perfect parts are ready for use.Upon successful final inspection, components are professionally packaged and dispatched using reliable logistics partners for on-time delivery.

Copper、SUS Tube Liquid Cold Plate FAQ

Q What makes KingKa's Copper/SUS Tube Liquid Cold Plates superior to traditional finned heat sinks?

A Traditional air-cooled heat sinks reach thermal limits in high-power density applications. KingKa’s Tube Liquid Cold Plates utilize a proprietary Hi-Contact™ manufacturing process. By embedding highly conductive Copper (1100) or Stainless Steel (SUS) tubes directly into precision-extruded or CNC-machined aluminum base plates, we maximize the tube-to-device contact area. Combined with specialized thermal epoxy, this yields a gap-free thermal interface, dramatically reducing thermal resistance and efficiently managing extreme heat loads in highly compact footprints.
Q How does KingKa guarantee zero-leakage reliability for mission-critical liquid cooling systems?

A Coolant leakage is catastrophic in electronics. We eliminate this risk through our ISO 9001 and IATF 16949 certified quality protocols. Depending on the design architecture, we employ advanced vacuum brazing, Friction Stir Welding (FSW), or precision soldering to create hermetically sealed joints. Furthermore, every unit must pass through our in-house testing laboratory, undergoing 100% airtightness leak detection, dynamic flow resistance measurement, and hydrostatic testing before dispatch, ensuring absolute reliability for automotive and data center deployments.
Q Do you provide custom tube routing and manifold designs for complex system architectures?

A Absolutely. We offer comprehensive thermal engineering services, not just build-to-print manufacturing. Our R&D engineers utilize advanced 3D Pro/E modeling and CFD (Computational Fluid Dynamics) thermal simulations to optimize tube routing, pitch, and diameter based on your specific heat dissipation parameters and spatial constraints. We routinely engineer bespoke cooling modules for sophisticated sectors, including EV powertrains, High-Performance Computing (HPC) servers, and semiconductor testing equipment.
Q Which industrial coolants are compatible with your Copper and Stainless Steel (SUS) tubing?

A Material selection is dictated by your specific fluid chemistry. Our Copper (1100) tubes provide peak thermal conductivity, ideal for treated water or Ethylene Glycol/Water (EGW) mixtures. For aggressive coolants, Deionized (DI) water, or dielectric fluids where galvanic corrosion is a concern, we strategically integrate Stainless Steel (SUS 304/316) tubes. This tailored material integration ensures long-term internal corrosion resistance and extends the operational lifespan of your entire liquid cooling loop.
Q What is your production capacity and expected lead time for custom prototypes and mass manufacturing?

A Backed by 16+ years of specialized thermal manufacturing, KingKa operates a modernized facility equipped with 50+ high-precision CNC machining centers, dedicated skiving machines, and FSW lines, yielding an annual capacity exceeding 60,000 units. We offer rapid prototyping with initial DFM (Design for Manufacturability) analysis delivered within 24 hours of CAD submission. Our highly optimized supply chain ensures deeply compressed prototype lead times and a seamless, on-time transition to high-volume mass production.
