As electronic systems continue to miniaturize while simultaneously outputting higher power densities, relying on standard extruded heat sinks often leads to thermal throttling and premature component failure. Selecting the right bonded fin heat sink manufacturing process requires balancing high-density fin geometries, material thermal conductivity, and interfacial bonding technologies to secure maximum heat dissipation without exceeding space, weight, or budget constraints.
Unlike traditional heat sinks that rely on fixed extrusion profiles, bonded fin assemblies provide unparalleled design flexibility. By manufacturing the base plate and the fins as separate components and permanently joining them, engineers can bypass traditional tooling limitations. This enables extreme fin aspect ratios and customized cooling surface areas tailored to specific localized heat loads. However, determining the exact manufacturing pathway demands a rigorous evaluation of thermal targets, structural integrity, and long-term production stability. Choosing an optimized bonded fin heat sink production method prevents costly over-engineering, accelerates time-to-market, and guarantees reliable cooling across the entire product lifecycle.
Table of Contents
The foundational advantage of a bonded fin heat sink lies in its decoupled architecture, allowing manufacturers to create extreme cooling geometries that standard extrusion dies simply cannot physically handle without breaking.
A bonded fin heat sink is manufactured by individually machining a solid base plate with precision grooves and permanently inserting thin metal fins, enabling engineers to bypass extrusion limits and achieve massive heat dissipation surface areas within confined footprints.
Standard aluminum extrusion processes are typically limited to an aspect ratio (fin height to fin gap) of 10:1 or 15:1. When thermal designers require extremely tall fins packed closely together to maximize surface area, extrusion fails. The bonded fin heat sink manufacturing process solves this by separating the components. The base plate is CNC machined or extruded with precise mounting slots. Individual fins—often stamped or sliced from sheet metal—are then seated into these slots and secured.
This modularity allows for incredibly flexible fin geometries. Designers can specify ultra-thin fins to maximize density or integrate mixed materials, such as a highly conductive copper base paired with lightweight aluminum fins. This structural advantage makes bonded fin heat sinks the premier choice for space-limited, high-power applications where standard cooling profiles fall short.
Maximizing cooling surface area through high fin density is highly effective, but it must be meticulously balanced against the aerodynamic drag it creates within the system enclosure.
Specifying the correct bonded fin heat sink manufacturing process requires a precise thermal calculation of fin thickness, fin pitch, and base thickness to maximize heat extraction without creating excessive airflow resistance that chokes system fans.
Increasing the number of fins directly increases the total heat dissipation surface area, but it simultaneously shrinks the fin spacing (pitch). If the fins are packed too tightly, the aerodynamic pressure drop skyrockets. In forced-air environments, the system cooling fan must possess the static pressure required to push air through these narrow channels. If the fan is too weak, the air stalls, and the high-density heat sink becomes a thermal trap.
Engineers must utilize Computational Fluid Dynamics (CFD) to optimize these dimensions before selecting a fabrication method. The base thickness must be sufficient to spread the heat laterally from the concentrated semiconductor junction to the outer edges of the fin array. Once the optimal fin pitch and base thickness are established, the manufacturing process is configured to cut the base grooves and fin sheet thicknesses to match those exact aerodynamic requirements.
The choice of base and fin material dictates the fundamental heat transfer capability, structural weight, and overall cost of the thermal management solution.
Selecting between aluminum and copper for a custom bonded fin heat sink dictates lateral heat spreading speeds and system weight, with copper dominating high-flux hotspots and aluminum providing cost-effective, lightweight cooling for distributed heat loads.
Material selection heavily influences the final bonded fin heat sink production process. Aluminum is the industry standard for most electronic cooling applications due to its excellent balance of lightweight properties, cost-effectiveness, and solid thermal conductivity (roughly 200 W/m·K). It is highly machinable and easily stamped into thin fins.
However, for high heat flux applications where a small silicon die outputs massive power, aluminum cannot spread the heat laterally fast enough. Here, C1100 copper (offering a thermal conductivity of roughly 385 W/m·K) becomes mandatory. Copper absorbs and spreads extreme heat rapidly, but it is significantly heavier and more expensive. A major advantage of the bonded fin process is the ability to create hybrid heat sinks: utilizing a heavy copper base for rapid heat absorption while bonding lightweight aluminum fins to the top to shed the heat into the air, perfectly optimizing both performance and weight.
Material Configuration | Thermal Conductivity | Density / Weight Impact | Ideal Thermal Application |
All-Aluminum (AL6063/AL1070) | ~200 to 225 W/m·K | Lightweight (~2.7 g/cm³) | Standard power modules, telecom equipment, industrial drives. |
All-Copper (C1100) | ~385 to 400 W/m·K | Heavy (~8.9 g/cm³) | Ultra-dense laser diodes, extreme heat flux processors. |

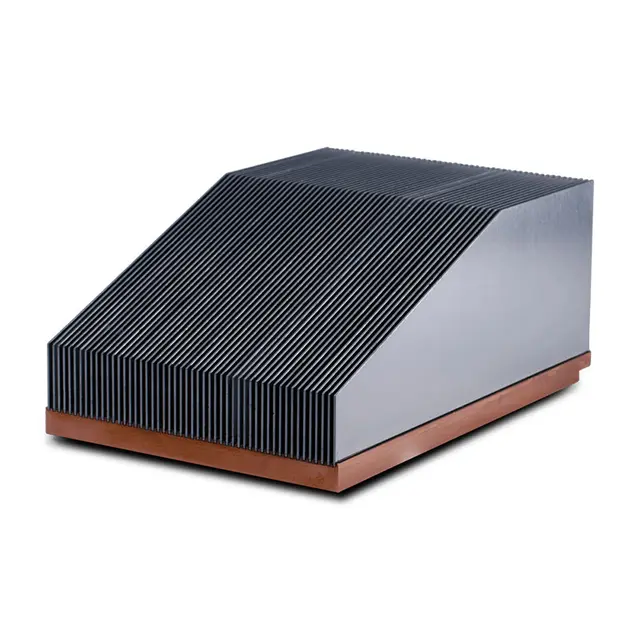

Copper Base + Aluminum Fins | Mixed / Highly Efficient | Medium / Balanced | High-power AI CPUs requiring rapid spreading without massive weight. |
The physical joint where the fin meets the base plate represents a potential thermal bottleneck; if the bonding method is inferior, the massive surface area of the fins is rendered useless.
The thermal integrity of a bonded fin heat sink relies entirely on the bonding interface; manufacturers must utilize high-conductivity thermal epoxies, brazing, or soldering to ensure maximum heat transfer and long-term mechanical durability.
Because the fins and the base start as separate pieces of metal, heat must cross a physical boundary to reach the cooling airflow. If this joint is poorly bonded, microscopic air gaps will form, drastically increasing interfacial thermal resistance. Professional heat sink manufacturing methods employ specific technologies to eliminate this resistance:
Thermal Epoxy Bonding: High-conductivity resins are applied into the base grooves before the fins are inserted. This is cost-effective and provides strong mechanical adhesion for aluminum assemblies.
Soldering and Brazing: For extreme performance, especially in copper-to-copper or mixed-metal assemblies, fins are soldered or brazed into the base in a high-temperature furnace. This creates a true metallurgical bond, offering the lowest possible thermal resistance and exceptional mechanical durability against thermal cycling.
Evaluating the bonding strength and contact quality is paramount. A reliable bonded fin heat sink manufacturer will conduct thermal shock testing to ensure the joint does not crack or degrade over years of continuous expansion and contraction.
The financial viability of a thermal project depends on matching the heat sink fabrication technique to the anticipated lifecycle production volume.
Balancing cooling requirements against budget limitations dictates the manufacturing approach, with low-volume custom runs prioritizing CNC flexibility and high-volume mass production demanding automated bonding and strict cost controls.
Different production scales heavily influence process selection. During the prototyping or low-volume production phase, design flexibility is the highest priority. Manufacturers rely on CNC-assisted secondary processing to machine the base grooves and cut custom fin profiles. This allows for rapid iteration and fast development cycles without requiring expensive, permanent tooling.
When transitioning to high-volume production, process stability, repeatability, and cost control become the primary metrics. High-volume bonded fin heat sink fabrication utilizes automated grooving machines, specialized fin stamping presses, and automated swaging or epoxy dispensing lines. This high-volume infrastructure reduces the per-unit cost significantly but requires upfront tooling investment. A professional thermal management solution provider guides OEMs through this transition, ensuring the prototype's thermal performance remains identical when scaled to mass production.
Even the most optimized thermal design will fail in the field if dimensional accuracy and bonding consistency drift during high-volume manufacturing.
Ensuring long-term product stability requires a custom heat sink supplier to execute micrometer-level quality control, validating base flatness, fin alignment, and bonding consistency before mass deployment.
Quality control directly dictates final product reliability. A bonded fin heat sink must seamlessly interface with the semiconductor component. Critical inspection points during production include:
Base Flatness: The bottom of the heat sink must be CNC face-milled to strict tolerances (often <0.05mm). If the base is uneven, thick thermal paste must be used during assembly, which severely degrades heat transfer.
Fin Alignment and Pitch: Fins must be inserted perfectly parallel. Bent or misaligned fins will obstruct airflow, causing localized hot spots and reducing overall aerodynamic efficiency.
Bonding Consistency: Automated optical inspections and pull-testing ensure that the epoxy or brazing material is uniformly applied across the entire length of the fin groove, guaranteeing no hidden voids trap heat.
Before finalizing a mass production run, physical thermal performance validation—testing the units in a controlled thermal chamber under maximum expected power loads—is required to confirm the manufacturing process accurately replicated the theoretical CFD simulations.
Different high-power sectors impose unique mechanical and environmental demands on thermal management systems, requiring bonded fin structures customized for exact operating conditions.
High-power sectors spanning EV inverters, AI data centers, and industrial automation leverage customized bonded fin heat sinks to achieve lightweight, high-density cooling in environments where liquid cooling is too complex or costly.
Power Electronics and Industrial Automation: Power modules, converters, and servo drives generate continuous heat loads in enclosed factory environments. Bonded fin heat sinks are highly suitable because they provide a massive cooling surface area within a compact structure, drastically improving thermal performance over standard extrusions while requiring zero maintenance.
EV Power Systems: Electric vehicles demand efficient thermal management for inverters and charging modules. Bonded fin heat sinks help achieve the necessary lightweight cooling solutions. The ability to use mixed materials ensures rapid heat extraction from power control systems without adding unnecessary weight to the vehicle chassis.
Data Centers and Communication Equipment: Networking equipment and 1U/2U rack servers require reliable cooling with low maintenance. Bonded fins optimized for the high-velocity airflow of server racks ensure continuous operation.
Medical Equipment: Medical devices demand stable, precise temperature control. The high surface area of bonded fins supports continuous operation and compact equipment design without the noise or vibration associated with oversized cooling fans.
B2B customers rarely know immediately whether bonded fin, extrusion, skiving, or liquid cooling is the absolute best option for their unique constraints; they require an engineering partner to evaluate the entire system.
Securing the right manufacturing process requires partnering with a comprehensive thermal solution provider capable of delivering thermal requirement analysis, design optimization, and a seamless transition from prototype to mass production.
The biggest risk for OEM customers is not securing a working prototype—it is maintaining that precise thermal performance across thousands of units without supply chain delays. A qualified custom bonded fin heat sink manufacturer provides deep engineering support, helping customers avoid both unnecessary over-engineering (expensive liquid cooling when air is sufficient) and under-performing designs.
Customers should prioritize suppliers that possess multiple thermal manufacturing technologies under one roof. A supplier versed in extruded heat sinks, skived fins, bonded fins, and heat pipe solutions will provide an unbiased cost-performance evaluation, recommending the exact manufacturing process your heat density, installation space, and budget require.
Are you evaluating the best thermal management solution for your high-power electronics? Kingka specializes in custom bonded fin heat sink manufacturing and comprehensive thermal design optimization. From advanced CFD thermal analysis and rapid prototyping to stable mass production and strict quality control, we deliver the exact cooling architecture your product demands. Contact our engineering team today to review your thermal requirements and select the optimal manufacturing process.
1. What is the main advantage of a bonded fin heat sink over an extruded heat sink?
An extruded heat sink is limited by the physical strength of the steel die used to form it, restricting how tall and thin the fins can be. A bonded fin heat sink bypasses this limitation by manufacturing the fins and base separately. This allows for vastly taller, thinner, and more densely packed fins, dramatically increasing the cooling surface area.
2. How are the fins attached to the base plate in a bonded fin process?
Fins are inserted into precision-machined grooves on the base plate. Depending on the thermal requirements and materials used, they are permanently attached using highly conductive thermal epoxy resin, soldering, or high-temperature brazing. This ensures a strong mechanical hold and excellent thermal conductivity across the joint.
3. Can I mix materials in a bonded fin heat sink?
Yes. One of the greatest advantages of bonded fin manufacturing is material flexibility. Engineers frequently design heat sinks with a pure copper base plate to rapidly absorb and spread intense heat, paired with lightweight aluminum fins to dissipate that heat, optimizing both thermal performance and total system weight.
4. Will the bonding agent act as a thermal insulator and trap heat?
If manufactured poorly, yes. However, professional custom heat sink suppliers utilize highly specialized thermal epoxies or metallurgical brazing techniques specifically engineered for high thermal conductivity. When applied correctly in precision grooves, the interfacial thermal resistance is negligible.
5. Are bonded fin heat sinks suitable for passive (fanless) cooling?
While they are typically used in forced-air (fan-cooled) environments to take advantage of high fin density, they can be designed for passive cooling. For passive applications, the manufacturing process is adjusted to space the fins much wider apart, allowing naturally buoyant hot air to escape without aerodynamic friction.
6. How do I know if my product needs a bonded fin heat sink or liquid cooling?
If your localized heat flux is extremely high but you still have space for adequate airflow, a bonded fin heat sink is often the most cost-effective and reliable choice. If the heat load exceeds the convective limits of air, or if your electronic enclosure is completely sealed with no internal airflow, you must evaluate liquid cold plate solutions.
