When your electronics get smaller and more powerful, heat becomes the bottleneck. Designers often reach for an extruded heatsink by habit — but cold forging can pack taller, thinner, and denser fins into the same footprint, cutting thermal resistance where it matters most.
This guide walks you through how cold forged heat sinks work, how they compare with extrusion and skived fin, and how to decide whether the process fits your project.
Table of Contents
A cold forged heat sink is one of the most efficient ways to cool compact, high-power electronics. It is already used in LED modules, power supplies, inverters, battery management systems, and multi-chip devices where space is tight and heat is high.
This guide explains what a cold forged heat sink is, how the cold forging process works, how it compares with extrusion and skived fin, which material to pick, how fin shape affects cooling, and how to decide whether it fits your project. If you are sourcing a part, our custom cold forging heat sink manufacturer page shows the process, materials, and quality steps we use.
You will be able to judge, after reading, whether cold forging is the right process for your thermal problem — and which design rules matter most.

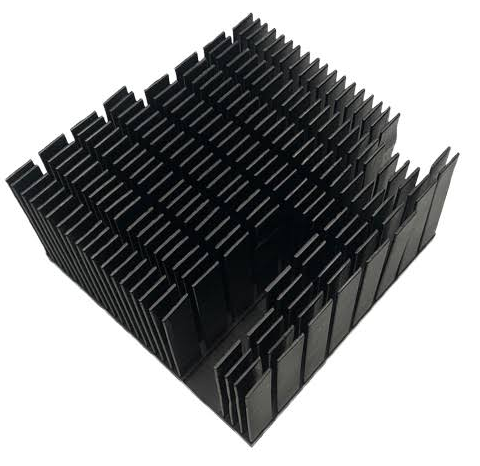

A cold forged heat sink is made by cold forging. The metal flows into every corner of the die cavity, so the fins and the base become one solid piece with no bonded joint.
The press pushes an aluminum or copper blank into a shaped die at high pressure. The material flows plastically and fills the fin cavities. After the press opens, you get a near-net-shape heat sink: fins already formed, base already flat. Little or no cutting is needed afterward.
Cold forging squeezes the metal grain structure tighter. Tighter grains conduct heat slightly better than cast or loosely worked metal. The process also lets the fins be thinner and straighter than extrusion can make them, which raises fin density (more cooling surface in the same height). That is the main reason cold forged sinks cool well in small packages.
Choosing a process is really choosing a trade-off between fin density, cost, lead time, and geometry freedom. The three closest alternatives are extrusion, skived fin, and die casting.
Extrusion pushes heated aluminum through a die to make long profiles; it is cheap and fast for simple, straight fins. But extruded fins have a minimum thickness and cannot be very dense or very thin. Cold forging wins when you need thin, straight, high-density fins in a compact shape. Read the full decision in our cold forging vs extrusion heat sink comparison, and see how skived fin sits between them in our skived vs extruded guide.
Skived fin cuts ultra-thin fins from a solid block in one continuous slice, giving the highest fin density of all. Cold forging cannot match that density, but it forms circular or elliptical pin fins that skiving cannot, and it avoids the single cut line that can be a weak point. Our cold forging vs skived fin comparison breaks down thermal and manufacturing trade-offs.
Die casting pours molten aluminum into a mold. It is fast for complex shapes but the metal cools with air pockets (porosity) that hurt thermal conductivity and can leak if the part later carries fluid. Cold forging stays solid (no melt), so the material keeps better conductivity and the part is denser and stronger. For pure air-cooled sinks, die casting can be cheaper at very high volume; for thermal-critical parts, cold forging is safer.
Aluminum is the default. The two grades you will meet most are AL1070 (purest common grade, best conductivity among workable aluminums) and AL6063 / AL6061 (slightly less conductive but stronger and cheaper to machine). Copper conducts about 50% better than aluminum but is much heavier and costlier, so it is used only when weight and budget allow. Our copper vs aluminum heat sink guide helps you weigh that choice, and the cold forged aluminum heat sink design guide goes deeper on grade selection.
After forming, most aluminum sinks get anodizing for corrosion resistance and a clean look. See the anodized aluminum heatsink guide for finishes and when they matter.
Cold forging's biggest design advantage is fin shape freedom. Extrusion gives straight parallel fins; cold forging can form pin fins, splayed (radial) pin fins, and elliptical or circular fins.
Pin and splayed fins pull air from many directions, not just one axis, so they cool better when airflow is uneven or comes from more than one side. That is why they suit round power supplies, LED COB modules, and enclosed drivers. Our cold forged pin fin heat sink guide for LED, power supply & inverter cooling shows real application logic, and the what is a pin fin heat sink page explains the physics.
Cold forged sinks fit devices that are small, hot, and need reliable passive or fan-assisted cooling:
11. LED modules — COB and high-brightness LEDs run hot; pin fins keep them within temperature limits and extend life.
12. Power supplies and inverters — enclosed drivers and solar/welding inverters benefit from multi-directional pin fins in tight boxes.
13. Battery management systems (BMS) — compact, vibration-prone packs need rigid one-piece sinks.
14. Multi-chip modules — several chips sharing one base; high fin density spreads the load.
15. Consumer and industrial electronics — set-top boxes, controllers, small servers where height is limited.
If your heat source is a single large flat chip with strong one-way fan flow, extrusion may be enough. If you need maximum density in a small height, skived fin may edge ahead. Cold forging sits in the sweet spot of shaped fins + one-piece strength + good cost.
Use this short framework before you ask a supplier for a quote:
Factor | Choose cold forging when | Note |
Space | Height-limited, compact package needed | Thin, high-density fins win |
Fin shape | Need pin / splayed / circular fins | Extrusion cannot make these |
Strength | Need one-piece, joint-free, vibration-resistant | No bonded seam |
Volume | Low-to-high volume | One tooling cost, unit price drops with volume |
Cooling | Mid-to-high power, passive / forced air | For very high power, consider liquid cooling |
Decision rule: choose cold forging when you need thin, shaped, high-density fins in a one-piece part and your volume justifies the tooling. Choose extrusion for simple straight fins at low cost; choose skived fin for the highest density; choose liquid cooling when power density passes what air can remove.
Good cold forged sinks start at the design stage:
16. Fix the fin pitch — too tight and air cannot flow; too open and you lose surface. Match pitch to your fan or natural convection.
17. Keep the base flat — cold forging holds flatness well, which lowers thermal contact resistance to the chip.
18. Plan the tooling — the die is the main cost; share a base shape across variants to cut cost.
19. Add fixings early — threads, clips, or embedded inserts should be in the drawing, not added later.
20. Confirm finish and test — anodizing spec, flatness tolerance, and any thermal check should be agreed before mass production.
Our cold forged aluminum heat sink design guide expands each of these with grade and geometry tables. For a custom run, our custom aluminum heat sink manufacturer page outlines prototyping to mass production.
A cold forged heat sink gives thin, straight, high-density fins and one-piece strength that extrusion cannot match, at a cost below skived fin for most volumes. Pick it when space is tight, fins must be shaped, and reliability matters. Compare it with extrusion and skived fin on your real constraints, choose the aluminum grade by conductivity vs cost, and lock the DFM rules before tooling.
If you have a power density, envelope, and airflow in mind, send them over and we will return a DFM review and thermal analysis — fast, and at no cost.
Q1: Is cold forging the same as cold heading?
Yes. Cold heading is the common name in fastener and sink making; both mean forming metal at room temperature in a die under high pressure.
Q2: Which aluminum grade is best for a cold forged heat sink?
AL1070 conducts best but is soft; AL6063 and AL6061 are stronger and cheaper and are used for most sinks. Pick by how much conductivity you need versus how much strength and cost matter.
Q3: Can cold forging make circular or pin fins?
Yes. Shaped pin, splayed, elliptical, and circular fins are a key strength of cold forging and are hard to make by extrusion.
Q4: Cold forging vs skived fin — which cools better?
Skived fin gives the highest fin density and usually the best air-cooled number. Cold forging wins on shaped fins, one-piece strength, and often cost at volume.
Q5: When should I switch from a heat sink to liquid cooling?
When power density is so high that even a dense fin sink with forced air cannot hold the temperature. At that point a liquid cold plate removes far more heat per volume.
Q6: How long does cold forging tooling take?
Tooling lead time depends on die complexity, but once the die exists, part cycle times are short and unit cost drops with volume.
Q7: Are cold forged sinks good for outdoor or humid use?
Yes, especially with anodizing for corrosion resistance. Confirm the anodizing spec and any salt-spray requirement with your supplier.
