What Factors Influence the Manufacturing Cost of Custom Liquid Cold Plates?

When transitioning from traditional air cooling to liquid cooling, engineering and procurement teams often face a steep learning curve regarding component pricing. While liquid systems are undeniably powerful—delivering 4 to 5 times higher cooling efficiency than forced-air heat sinks—the Liquid Cold Plate Manufacturing Cost can vary drastically based on internal geometry, material selection, and quality requirements.

In high-power electronics, evaluating a cold plate based solely on its raw unit price is a flawed strategy. Instead, modern thermal engineering relies on the "Cost per Watt" metric. A more expensive, highly optimized cold plate might allow you to safely run a 900W IGBT module at peak capacity, ultimately saving thousands in potential hardware failure and system downtime.

To help you navigate Thermal Management Pricing, we have compiled a comprehensive breakdown of the core factors that drive the production costs of a Custom Cold Plate Design.

1. The Primary Cost Driver: Manufacturing Process Complexity

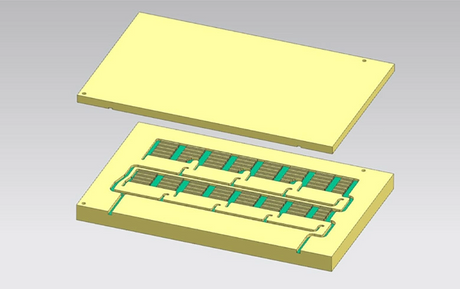

The chosen manufacturing technology dictates the baseline cost of any liquid cold plate. As the internal flow channels become more complex to maximize coolant contact area, the manufacturing difficulty—and price—increases.

Here is how the four main flow channel types impact your budget:

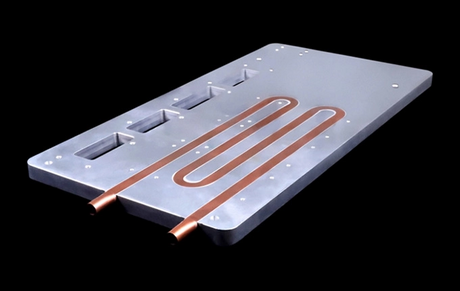

• Tube-in-Plate (Embedded Tube): This is the most cost-effective and fundamental design. We use CNC milling to cut grooves into an aluminum base plate and embed metal tubes (typically copper or stainless steel), securing them with thermal epoxy or mechanical pressing. It offers low machining costs and is ideal for basic liquid cooling requirements.

• Deep Hole Machining (Gun Drilling): This process involves precision drilling intersecting holes through a solid aluminum block and securely plugging specific entry points to create a continuous cooling circuit. Because it eliminates the need for welding, it introduces zero thermal stress, making it easier to maintain perfect base flatness. However, machining complex, multi-pass flow channels is highly time-consuming, which drives up the CNC hour costs.

• Friction Stir Welding (FSW): FSW utilizes modern solid-state welding technology to join an extruded or machined base to a cover plate. It provides exceptionally strong structural rigidity, perfect sealing, and high surface flatness. Because the equipment investment and process parameters are significantly higher than standard mechanical machining, FSW commands a premium, but it is indispensable for large, high-strength applications.

• Vacuum Brazing: This is the most advanced—and most expensive—manufacturing process. Conducted in an oxygen-free vacuum furnace, it melts a braze alloy to seamlessly connect complex, multi-layered internal flow channels. It can join dissimilar metals (like aluminum and stainless steel) and produces zero thermal stress. Vacuum brazing is reserved for applications requiring extremely complex, high-efficiency micro-channels.

Table 1: Manufacturing Process Cost and Application Matrix

2. Material Selection and Multi-Metal Compatibility

The raw materials you choose directly impact both thermodynamic performance and procurement budgets.

• Aluminum vs. Copper: Aluminum is lightweight, highly machinable, and cost-effective, making it the industry standard. Pure copper offers vastly superior thermal conductivity, but it is significantly heavier and the raw material cost is much higher. Furthermore, copper is harder on CNC tooling, increasing machining time and consumable costs.

• Multi-Material Integration: Advanced Liquid Cooling Production Factors sometimes dictate using multiple metals—such as a lightweight aluminum housing with a highly conductive copper contact pad brazed directly beneath the heat source. While vacuum brazing supports this dissimilar metal joining, managing the different coefficients of thermal expansion (CTE) and the complex brazing process notably increases both raw material and processing expenses.

3. Customization, CNC Precision, and Surface Treatments

A cold plate must sit perfectly flush against the heat source to minimize thermal interface resistance. The level of precision required directly influences the cost.

Tightening the surface flatness tolerance requires slower, more precise CNC face-milling passes. Additionally, bare metal is rarely suitable for harsh industrial or fluid environments. Custom surface treatments are unavoidable cost increments:

• Standard & Hard Anodizing: Enhances surface durability and provides basic electrical isolation.

• Nickel Plating: Critical for preventing galvanic corrosion, especially if the internal coolant loop contains other metals (like a copper radiator in an aluminum cold plate loop).

• Electrophoretic Deposition (E-coating): Provides robust, uniform corrosion resistance for complex external geometries.

4. Quality Verification and Compliance Costs

In mission-critical liquid cooling, a leak is catastrophic. Quality assurance is not an optional add-on; it is a fundamental cost center baked into the price of high-tier cold plates.

To guarantee reliability, every single product must undergo a 100% leak and pressure test before shipment. Depending on the industry, compliance documentation adds significant administrative and testing overhead. Providing First Article Inspection (FAI) reports, Production Part Approval Process (PPAP) documentation for automotive clients, RoHS compliance, and certified raw material tracing requires a dedicated QA engineering team, reflecting directly in the final unit price.

5. R&D Lead Times and Production Cycles

Time is money, particularly in rapid product development cycles. The speed at which a manufacturer can transition from a CAD file to a physical part is a hidden cost driver.

A streamlined engineering and manufacturing partner can significantly reduce your time-to-market. For context, Kingka’s standard custom sample development cycle is typically 15 days, while mass production cycles run 25-30 days. If your project is urgent, utilizing advanced, tool-less rapid prototyping (like direct CNC machining of a two-piece bolted plate for initial thermal validation) can save weeks of waiting compared to ordering an FSW extrusion die.

6. Industry-Specific Cost Drivers (Case Studies)

Different industries prioritize different performance metrics, which uniquely shapes their Custom Cold Plate Design costs.

• High-Power Industrial Electronics (IGBT Cooling): Modern IGBT modules generate massive localized heat flux, ranging from 400W to 900W+. To prevent junction failure, these systems require high-precision FSW or Vacuum Brazed cold plates with dense internal fins positioned directly under the die, driving up machining complexity.

• Electric Mobility (eMobility): EV battery cold plates must balance massive surface area with extreme lightweighting. Achieving this requires complex thin-wall machining and FSW to ensure the plate is light enough to preserve vehicle range while remaining structurally sound against road vibrations.

• Medical Equipment (CT & MRI): Cooling systems for medical imaging demand absolute reliability. This "zero-tolerance" for failure means the cost is heavily driven by exhaustive quality control, redundant leak testing, and medical-grade material certifications.

• Cloud Servers & Data Centers: Direct Liquid Cooling (DLC) for CPUs and GPUs must integrate complex flow channels within the ultra-tight confines of a 1U or 2U server blade. Here, the core cost pivot is Space Utilization—engineering highly intricate micro-channels via vacuum brazing to maximize heat extraction in a severely limited volume.

7. Evaluating the True Cost: Price per Unit vs. Cost per Watt

When evaluating a Liquid Cold Plate Manufacturer, do not let the raw unit price blind you to the total system value. A cheaper, poorly machined tube-in-plate design might save you $50 upfront but could cause a $2,000 processor to throttle or fail entirely. Because liquid cooling is 4 to 5 times more efficient than air cooling, investing in complex manufacturing processes like FSW or Vacuum Brazing often yields the lowest Cost per Watt dissipated.

Ready to optimize your thermal management budget?

Our engineering team is ready to review your exact thermal loads, spatial constraints, and production volumes to recommend the most cost-effective manufacturing process for your application. Contact Kingka today for a custom cold plate DFM (Design for Manufacturing) review and rapid prototyping quote.

Frequently Asked Questions (FAQs)

1. Why is vacuum brazing so much more expensive than tube-in-plate manufacturing?

Vacuum brazing requires highly specialized, energy-intensive vacuum furnaces, precise internal tooling (like stamped micro-fins), and expensive braze alloys. However, it allows for incredibly dense, 3D flow channels that tube-in-plate designs physically cannot achieve.

2. Does specifying a tighter surface flatness increase the cost significantly?

Yes. Achieving ultra-tight surface flatness (e.g., 0.02mm per 100mm) requires slower CNC machining feed rates, multiple finishing passes, and rigorous CMM (Coordinate Measuring Machine) inspections, all of which increase machine time and labor costs.

3. Why do EV battery cold plates require Friction Stir Welding (FSW)?

EV cold plates are typically very large and very thin to save weight. FSW provides a continuous, highly rigid, and perfectly sealed joint across large surface areas without warping the thin aluminum, which is difficult to achieve with traditional welding.

4. Are copper cold plates always better than aluminum?

Thermally, yes. However, copper is heavier, far more expensive, and harder to machine. Aluminum is usually preferred unless the heat flux is so concentrated that the superior spreading resistance of copper is absolutely mandatory.

5. What is the typical lead time for a custom liquid cold plate prototype?

For an experienced manufacturer, a custom rapid prototype usually takes about 15 days from design approval to physical delivery, allowing engineers to quickly validate their thermal simulations.

6. Why is nickel plating recommended for aluminum cold plates?

If your facility's cooling loop utilizes copper pipes or brass fittings, the aluminum cold plate can act as an anode and undergo galvanic corrosion. Nickel plating the internal channels of the aluminum plate prevents this destructive chemical reaction.

7. How do manufacturers guarantee a cold plate will not leak?

Reputable manufacturers factor a 100% leak and pressure testing protocol into their costs. This usually involves submerging the pressurized plate in water or using highly sensitive helium leak detectors to ensure zero porosity in the welds or brazed joints.
