In high-performance computing, effective thermal management is crucial for ensuring system reliability and performance. As devices become more powerful, the heat generated by processors and components can significantly affect their longevity and efficiency. At Kingka, we specialize in providing innovative thermal solutions to meet the diverse needs of modern technology. In this article, we'll explore two advanced cooling technologies—vapor chambers and liquid cooling—and offer insights into which solution may be the best fit for your applications.

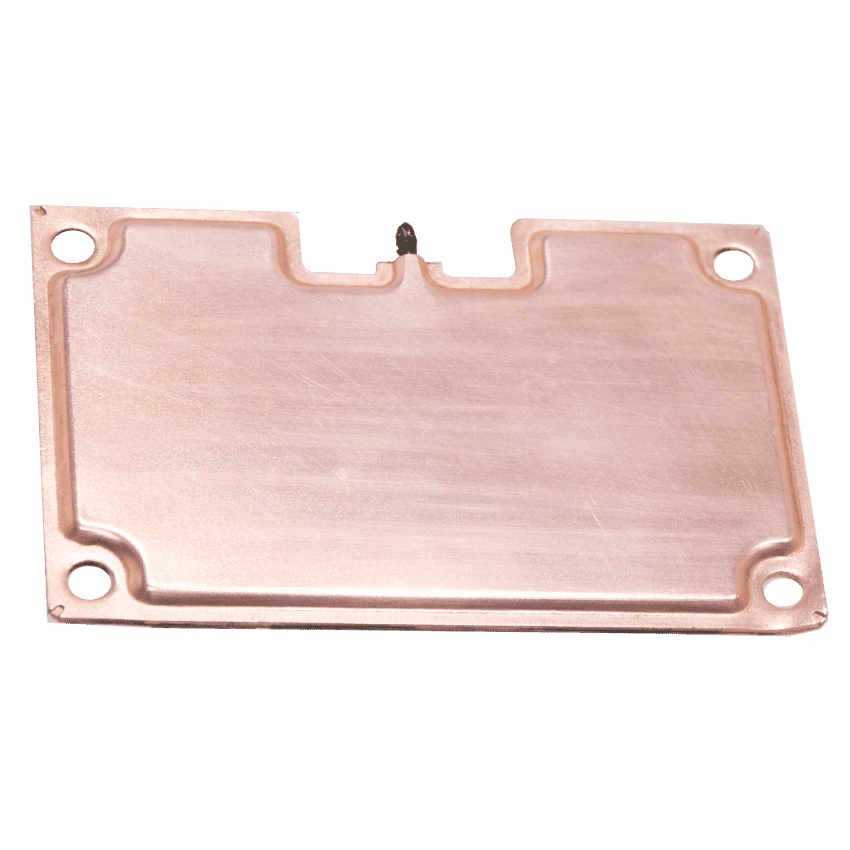

A vapor chamber is a type of phase-change cooling technology that excels in dissipating heat efficiently. The chamber typically consists of a sealed copper enclosure, containing a working fluid that evaporates and condenses to transfer heat from one side of the device to the other. As heat is absorbed, the liquid evaporates, and the vapor moves to cooler regions, where it condenses and releases heat. This cyclical process provides rapid and uniform heat distribution across the surface of the chamber, making it ideal for compact electronics with high heat loads.
Key materials in vapor chambers include:
· Copper for its high thermal conductivity.
· Working fluid (often water) is chosen for its evaporation and condensation properties.

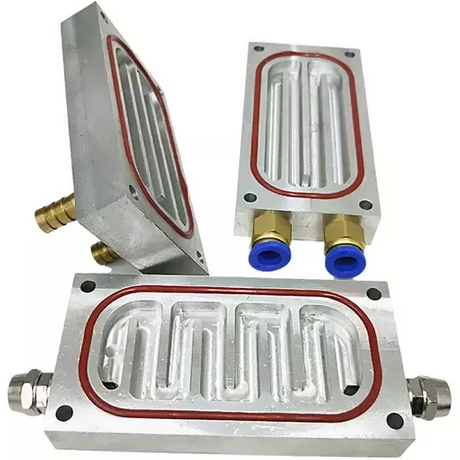

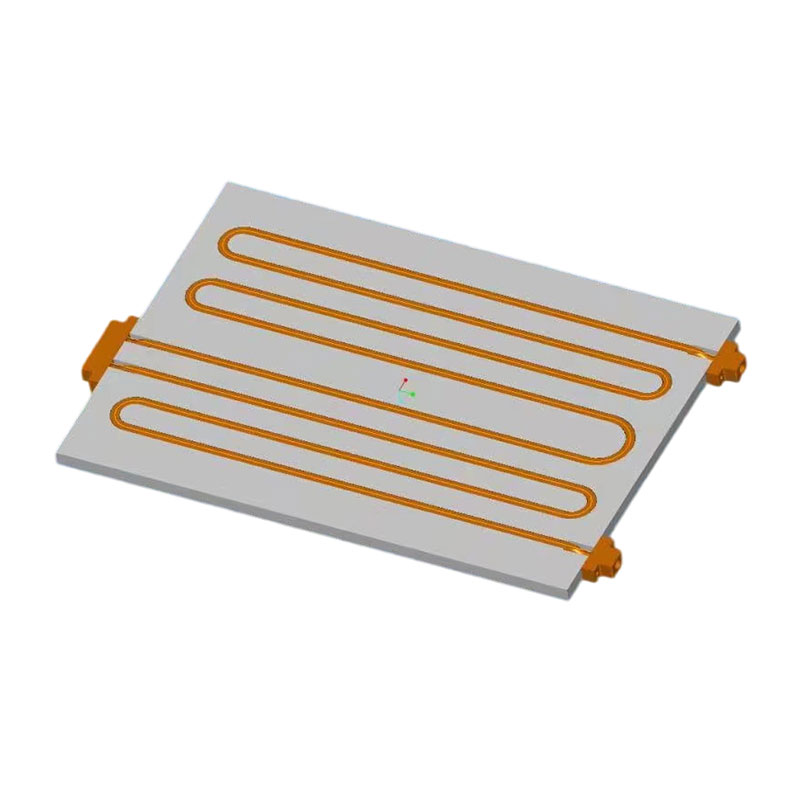

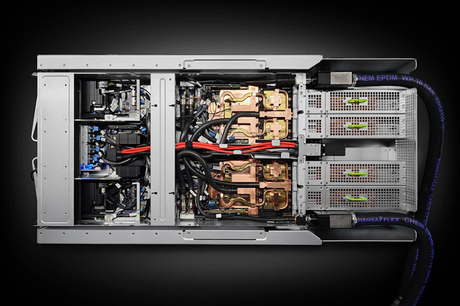

Liquid cooling systems offer a different approach to thermal management, using a network of pumps, tubes, and radiators to circulate a cooling liquid (often water or specialized coolants) around high-temperature components. The heat generated by the system is transferred to the liquid, which is then pumped to a radiator where it dissipates into the air. Liquid cooling has been widely adopted in high-performance computing, gaming, and other industries where intensive workloads generate substantial heat.
Components in liquid cooling systems include:
· Pumps to circulate the coolant.
· Tubes to transport the liquid between components.
· Radiators transfer heat from the liquid to the surrounding air.
Both vapor chambers and liquid cooling systems are designed to manage heat effectively, but they differ in performance characteristics.
· Heat dissipation efficiency: Vapor chambers offer highly uniform heat distribution, which is particularly beneficial for devices with densely packed components. Liquid cooling systems, while effective, can sometimes face challenges like uneven heat removal or restricted airflow in complex setups.
· Response time to temperature changes: Vapor chambers respond quickly to temperature fluctuations because of their phase-change process, making them ideal for applications where thermal loads change rapidly. Liquid cooling systems, while also effective, can take slightly longer due to the time it takes for the liquid to circulate through the system.
Vapor chambers are extremely compact, making them ideal for space-constrained designs such as smartphones, laptops, and other portable electronics. In contrast, liquid cooling systems tend to be bulkier due to the need for external radiators, tubes, and pumps. This can make them less suitable for compact setups but perfect for larger systems where space is less of a concern.
Liquid cooling systems require regular maintenance to ensure optimal performance, including checking for leaks, topping off coolant, and cleaning radiators and fans. This adds complexity for users who prefer minimal upkeep. In contrast, vapor chambers are virtually maintenance-free, as they are sealed units that require no additional intervention after installation.
· Uniform heat distribution: Vapor chambers provide an even spread of heat, preventing hotspots in compact devices.
· Quick response to thermal changes: The phase-change mechanism enables fast adaptation to temperature fluctuations, ideal for dynamic computing environments.
· Established technology: Liquid cooling is a well-known, reliable option for managing heat in high-performance systems.
· Customization options: Users can customize liquid cooling systems for both aesthetics (e.g., colored coolant and transparent tubes) and performance, making it a favorite among enthusiasts and gamers.
· Cost considerations for vapor chambers: While vapor chambers are highly effective, they can be more expensive to manufacture, particularly in large-scale applications.
· Complexity and potential leaks in liquid cooling systems: Liquid cooling setups are more complex, and the risk of leaks or pump failure may be a concern for users seeking long-term, maintenance-free solutions.
Vapor chambers are the ideal choice for applications requiring compact designs and high heat flux management, such as smartphones, laptops, and server components. Their compact form factor and uniform heat distribution make them indispensable in devices where space is at a premium but performance cannot be compromised.
For overclocked systems, gaming PCs, or larger industrial setups, liquid cooling may be the best option. The flexibility in design and enhanced cooling capacity makes liquid cooling well-suited for situations where maximum heat dissipation is needed, especially in larger systems with room for radiators and pumps.
In summary, both vapor chambers and liquid cooling systems offer unique advantages, depending on the application. Vapor chambers excel in compact designs with fast thermal response, while liquid cooling systems are effective for large setups where customization and extensive cooling are required. At Kingka Tech Industrial Limited, we are dedicated to providing cutting-edge thermal management solutions tailored to your specific needs. Contact us today to discover how our advanced vapor chambers and liquid cooling systems can optimize your thermal management strategy.
