From Alloy to Airflow: Key Factors in Extrusion Heat Sink Performance

Views: 0     Author: Site Editor     Publish Time: 2026-02-11      Origin: Site

Selecting the wrong extrusion heat sink profile can lead to overheating, performance throttling, and premature component failure in demanding applications. Many overlook how alloy choice, fin geometry, and airflow interact to determine real-world thermal efficiency. Understanding these key factors—from material conductivity to optimized convection—enables engineers to design extruded heat sinks that deliver reliable cooling, lower costs, and longer system life.

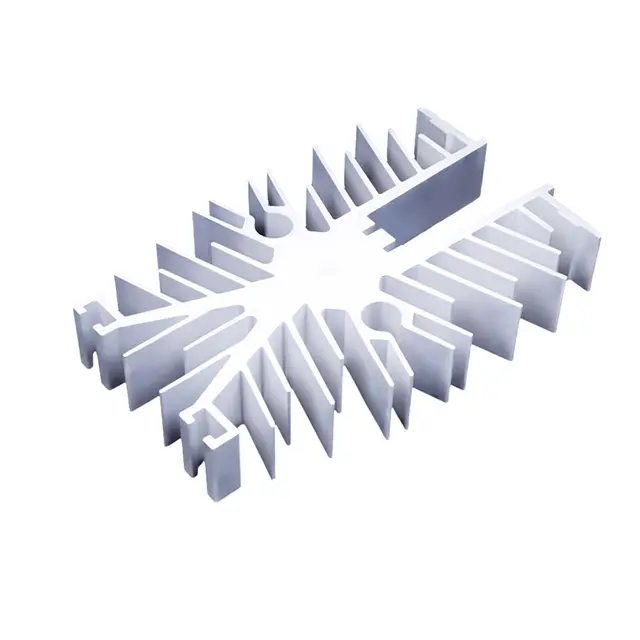

Custom Extruded Aluminum Heat Sink Profiles

Picture crafting a heat sink that keeps a 400W power module stable without excessive fans or bulk—mastering these elements turns good designs into exceptional performers through precise engineering.

Table of Contents

  1. How Does Alloy Selection Influence Thermal Conductivity and Strength?

  2. Why Is Fin Geometry Critical for Convective Heat Transfer?

  3. How Does Fin Spacing and Height Affect Airflow Efficiency?

  4. What Role Do Surface Treatments Play in Enhancing Performance?

  5. How Does Base Thickness and Flatness Reduce Thermal Resistance?

  6. Why Is Airflow Direction and Velocity Optimization Essential?

  7. How Do Manufacturing Tolerances Impact Overall Heat Sink Effectiveness?

1. How Does Alloy Selection Influence Thermal Conductivity and Strength?

Alloy choice forms the foundation of any extruded heat sink, directly affecting how quickly heat moves from the source to the fins.

High-performance extruded heat sinks rely on 6063-T5 or 6061-T6 aluminum alloys for their balance of thermal conductivity (200-220 W/m·K) and mechanical strength, enabling thinner, taller fins that dissipate 200-500W effectively while resisting deformation in vibration-prone environments.

These alloys support reliable long-term operation.

Alloy Comparison and Trade-Offs

Examples: 6063 in LED drivers for superior extrudability and surface finish; 6061 in automotive ECUs for higher yield strength (up to 275 MPa).

Theoretical basis: Conductivity minimizes spreading resistance; tempering enhances tensile properties for fin integrity. Trade-offs: 6063 offers easier extrusion and better finish at slightly lower conductivity; 6061 provides robustness but requires more force during forming. Practical impacts: Proper alloy selection reduces junction temperatures by 10-15°C under load.

Alloy

Conductivity (W/m·K)

Yield Strength (MPa)

Best For

6063-T5

200-220

145

High-volume, smooth

6061-T6

167-180

275

High-stress, durable

Practical advice: Match alloy to application stress levels; verify conductivity with supplier data sheets and test samples under thermal cycling.

2. Why Is Fin Geometry Critical for Convective Heat Transfer?

Fin shape determines how effectively air interacts with the surface to carry away heat.

Optimized fin geometry in extruded heat sinks uses straight or slightly tapered profiles with high aspect ratios (8:1 to 12:1) to maximize convective heat transfer, achieving 30-50% better dissipation in natural convection compared to low-ratio designs.

This geometry enhances boundary layer disruption.

Geometry Optimization Details

Examples: Tall straight fins in power supplies; serrated edges in forced-air telecom applications for turbulence.

Theoretical basis: Fin efficiency (η = tanh(mL)/mL) favors high ratios for extended effective area. Trade-offs: Complex shapes increase die cost but improve h (convection coefficient) by 20-30%. Practical impacts: Supports higher power densities without additional fans.

Geometry Type

Aspect Ratio

Efficiency Gain

Airflow Type

Straight

8-12:1

40%

Natural/Forced

Serrated

10:1+

50%

Forced

Advice: Use CFD to simulate fin profiles; prioritize vertical orientation for natural convection.

3. How Does Fin Spacing and Height Affect Airflow Efficiency?

Spacing and height control airflow resistance and surface exposure.

Ideal fin spacing (8-12mm) and height (30-60mm) in extruded heat sinks balance high surface area with low pressure drop, optimizing natural convection for 100-300W loads and forced convection up to 500W+.

This prevents airflow choking.

Spacing and Height Guidelines

Examples: 10mm spacing in passive LED fixtures; 40-50mm height in server power modules.

Theoretical basis: Optimal spacing follows Rayleigh number for buoyancy; excessive density traps heat. Trade-offs: Taller fins boost area but risk bending; wider spacing suits low-velocity air. Practical impacts: Reduces thermal resistance by 20-40% versus suboptimal layouts.

Parameter

Optimal Range

Effect on Pressure Drop

Dissipation Impact

Spacing

8-12mm

Low

High

Height

30-60mm

Moderate

High

Testing: Anemometer measurements; adjust based on enclosure airflow simulations.

4. What Role Do Surface Treatments Play in Enhancing Performance?

Surface finish influences radiation and corrosion resistance.

Black anodizing or powder coating on extruded heat sinks increases emissivity to 0.85-0.95, boosting radiative heat loss by 15-25% and providing corrosion protection in industrial environments.

Treatments maintain long-term efficiency.

Treatment Benefits

Examples: Anodized profiles in outdoor telecom; powder-coated in chemical plants.

Theoretical basis: Higher emissivity follows Stefan-Boltzmann law. Trade-offs: Minimal added thickness vs. significant radiation gain. Practical impacts: Extends life in humid or corrosive settings.

Treatment

Emissivity

Radiation Gain

Durability

Black Anodize

0.85-0.9

15-20%

High

Powder Coat

0.9-0.95

20-25%

Very High

Advice: Specify MIL specs; test emissivity with infrared cameras.

5. How Does Base Thickness and Flatness Reduce Thermal Resistance?

The base interfaces directly with the heat source.

Thin, flat bases (3-6mm thickness, <0.05mm flatness) in extruded heat sinks minimize spreading and interface resistance, dropping overall thermal resistance to 0.2-0.5°C/W for efficient heat flow.

Precision here is critical.

Base Optimization

Examples: Machined-flat bases in IGBT modules; 4mm thick in consumer power supplies.

Theoretical basis: Low resistance per R = L/(kA). Trade-offs: Thinner bases spread better but risk warping. Practical impacts: Cuts delta-T by 5-10°C at interface.

Base Parameter

Optimal Value

Resistance Reduction

Application

Thickness

3-6mm

20-30%

General

Flatness

<0.05mm

15-25%

High-Power

Advice: Use high-conductivity TIM; verify flatness with profilometers.

6. Why Is Airflow Direction and Velocity Optimization Essential?

Air movement dictates convection effectiveness.

Optimizing airflow direction (parallel to fins) and velocity (5-10 m/s forced) in extruded heat sinks maximizes convection coefficients, increasing dissipation by 40-60% in active systems.

Proper orientation prevents bypass.

Airflow Strategies

Examples: Vertical fins in natural convection; shrouded forced-air in servers.

Theoretical basis: h scales with velocity; parallel flow minimizes recirculation. Trade-offs: Fans add noise/power vs. gains. Practical impacts: Enables higher loads without size increase.

Airflow Type

Velocity (m/s)

Dissipation Boost

Noise Level

Natural

<1

Baseline

Silent

Forced

5-10

40-60%

Moderate

Advice: Use shrouds; test with smoke for flow visualization.

7. How Do Manufacturing Tolerances Impact Overall Heat Sink Effectiveness?

Tight tolerances ensure consistent performance.

Maintaining extrusion tolerances (±0.1mm on fins, ±0.05mm on base) in heat sinks prevents airflow inconsistencies and contact gaps, preserving designed thermal performance across production batches.

Consistency is key.

Tolerance Best Practices

Examples: Precision dies for telecom profiles; post-machining for critical bases.

Theoretical basis: Variations alter local h and resistance. Trade-offs: Tighter tolerances raise cost but reduce variability. Practical impacts: Minimizes field failures.

Tolerance Area

Standard (±)

Tight (±)

Performance Impact

Fin Thickness

0.2mm

0.1mm

10-15%

Base Flatness

0.1mm

0.05mm

20%

Advice: Specify critical dimensions; conduct batch sampling with thermal testing.

Conclusion

From alloy conductivity to airflow optimization, these key factors determine the true performance of extrusion heat sinks. As a trusted one-stop thermal solutions provider with over 15 years of experience, KINGKA specializes in custom extruded aluminum heat sinks, combining advanced die design, CNC finishing, and thermal analysis to deliver peak efficiency. Contact sales2@kingkatech.com for tailored profiles that solve your specific thermal challenges with precision and reliability.
