Relying on physical prototyping for high-density chips risks severe thermal throttling and inflated development costs. A thermal simulation heat sink approach predicts airflow and temperature distribution accurately before manufacturing. At Kingka, we utilize predictive engineering to guarantee reliability and optimize cooling performance.
In the era of high-power electronics, trial-and-error manufacturing is obsolete. As power densities in modern processing and telecommunications skyrocket, engineers must rely on computational fluid dynamics to visualize heat before ever cutting a piece of metal. Let us explore how virtual testing dictates physical success and protects your hardware investment.
Designing coolers for modern processors requires absolute precision to manage extreme heat flux. Blindly cutting metal is no longer a viable engineering strategy for today's high-performance computing and hardware systems.
A thermal simulation heat sink utilizes ANSYS FEM to verify heat radiation efficiency and temperature distribution before physical prototyping. This computational analysis allows engineers to optimize fin structures, airflow paths, and materials, drastically improving CPU cooling performance and preventing silicon failure.
Heat sinks are widely used in CPUs, LEDs, and power electronics, where continuously increasing power density requires advanced cooling solutions and highly optimized thermal design. In the past, engineers would design a heat sink, machine a prototype, test it on a thermal bench, and inevitably discover a bottleneck. This cycle would repeat until the temperatures were acceptable.
Today, we utilize CPU Heat Sink Thermal Simulation. By importing a 3D model into ANSYS-based software, we can apply specific heat loads (e.g., a 250W processor) and simulate the exact airflow generated by the chassis fans.
Multi-Angle Analysis of CPU Simulation:
Airflow Path Optimization: Simulation reveals "dead zones" where air bypasses the fins. We can adjust the shroud design or fin pitch virtually to force air through the hottest sections.
Fin Structure Verification: We can test whether a straight extruded fin or a complex pin-fin array provides the lowest thermal resistance ($R_{th}$) for a specific application.
Real-World Examples: For a high-end desktop CPU cooler, simulation allowed us to stagger the heat pipes within the fin stack to ensure uniform heat distribution. For a compact industrial PC, simulation proved that opening the side vents improved cross-flow convection by 18%.
Through simulation and design optimization, engineers can evaluate airflow, thermal resistance, and temperature distribution before manufacturing, allowing the seamless comparison of different heat sink structures without spending a dime on raw materials.
Selecting the correct alloy is the foundation of any thermal model. Simulating different metals allows procurement teams to balance thermal mass, structural weight, and overall manufacturing budget effectively before committing to tooling.
Simulation software accurately models material limits, showing that aluminum heat sinks provide ~170–220 W/m·K for lightweight efficiency, while copper heat sinks reach ~400 W/m·K. This allows precise comparison of how different metals handle high heat flux in compact electronic systems.
In electronic cooling, material selection is a strict trade-off between performance, weight, and cost. When setting up an ANSYS FEM simulation, the specific thermal conductivity of the chosen alloy is a primary input variable that dictates the entire spreading resistance of the base plate.
Multi-Angle Analysis of Material Simulation:
Aluminum Alloys (AL6063/AL1060): Aluminum heat sinks commonly provide ~170–220 W/m·K thermal conductivity, supporting efficient heat transfer while maintaining lightweight structures. Simulation often shows that aluminum is perfectly adequate for distributed heat loads, such as large LED arrays or standard power supplies, where spreading resistance is not the primary bottleneck.
Pure Copper (C1100): Copper heat sinks used for high-performance applications can reach ~400 W/m·K thermal conductivity, significantly improving heat transfer efficiency in compact electronic systems. When simulating a dense, 50W/cm² chip, aluminum often shows a severe red "hotspot" at the center of the base. Switching the material property to copper in the simulation immediately demonstrates how the superior conductivity spreads the heat evenly across the entire fin array.
Table 1: Simulated Material Performance Comparison
By testing these materials in a virtual environment, procurement managers can avoid over-engineering a system with expensive copper when simulated aluminum proves sufficient.
Telecommunications equipment operates in harsh environments with massive thermal loads. Predicting how these systems will react to continuous, multi-hundred-watt power draws is critical for maintaining global network stability and uptime.
High-power telecom equipment dissipates hundreds of watts using custom heat sinks with copper tubes or high-density fins. Simulation determines the optimal fin spacing and airflow direction, ensuring stable operating temperatures and preventing thermal throttling in critical communication systems.
The telecom industry presents unique thermal challenges. 5G base stations and remote radio units (RRUs) are often passively cooled, meaning they rely entirely on natural convection without the aid of fans. Furthermore, indoor telecom switching gear is packed so densely that ambient air temperatures are significantly elevated.
Multi-Angle Analysis of Telecom Simulation:
Natural Convection Challenges: In a Telecom High-Power Heat Sink Design, simulating natural convection is highly complex. Air becomes buoyant as it heats up. Simulation helps determine the exact fin spacing required so that the rising hot air does not choke itself within the channels.

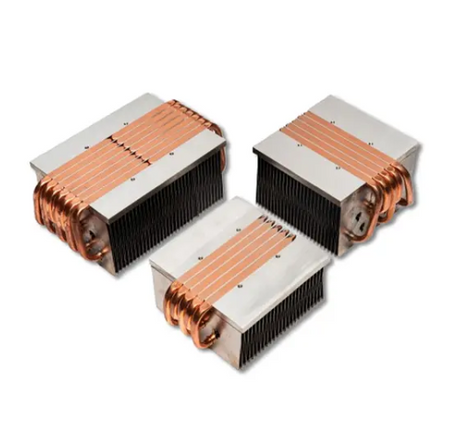

Integrating Heat Pipes: When a telecom ASIC generates hundreds of watts, solid aluminum cannot spread the heat. We simulate the integration of embedded copper tubes (heat pipes) into the aluminum base. The software allows us to track the phase-change heat transfer, proving that the heat pipes effectively move the thermal load to the outer edges of the massive fin array.
Real-World Examples: For an outdoor 5G antenna, simulation revealed that solar loading (heat from the sun) was causing the top fins to become ineffective. By altering the fin angle virtually, we optimized the airflow direction to shed the solar heat while maintaining internal component stability. In an indoor rack-mounted telecom switch, simulation dictated a shift from straight fins to staggered fins to break the thermal boundary layer.
The shape and density of your cooling fins dictate convective efficiency. Computational fluid dynamics allows engineers to push geometric boundaries, testing ultra-thin structures without the cost of physical machining errors.
For high-power electronics, a high-density copper skived fin heat sink maximizes surface area in compact spaces. Simulation evaluates the thermal resistance and airflow pressure drop of these dense arrays, ensuring the geometry can maintain reliability under demanding thermal loads.
When vertical space is constrained (such as in a 1U server or a compact power inverter), engineers cannot simply make the heat sink taller. They must increase the fin density. However, packing fins too tightly increases hydraulic resistance, potentially stalling the airflow.
Multi-Angle Analysis of Geometric Simulation:
The Skiving Advantage: A High-Density Copper Skived Fin Heat Sink is manufactured by slicing fins directly from a solid copper block. This eliminates base-to-fin interface resistance. In our simulation models, this continuous material structure shows a marked improvement in conduction efficiency compared to bonded fin models.
Pressure Drop vs. Surface Area: We use simulation to find the exact "sweet spot." If we model 0.1mm thick fins with a 0.2mm pitch, the surface area is massive, but the simulation will flag a critical pressure drop if the chassis fan is too weak. We iteratively adjust the virtual pitch until the airflow penetrates the entire fin depth.
Real-World Examples: For a specialized power module, we simulated a standard extruded fin and found it resulted in a junction temperature of 95°C. By simulating a skived fin design within the exact same footprint, the increased surface area dropped the predicted temperature to 78°C. Similarly, for an automotive EV controller, simulation proved that adding a slight wave pattern to the skived fins increased air turbulence, improving convective heat transfer by 12%.
Iterative physical prototyping drains budgets and delays market entry. By shifting the trial-and-error phase to a virtual environment, engineering teams can achieve optimal designs on the very first physical run.
Using a thermal simulation heat sink approach eliminates multiple tooling revisions. By analyzing airflow and heat dissipation virtually, Kingka’s R&D team—with over 25 years of machining expertise—helps optimize the design early, drastically reducing overall manufacturing and development costs.
Kingka provides complete thermal management services for electronic cooling, covering the entire lifecycle from custom heat sink design and 3D modeling to advanced thermal simulation analysis using ANSYS FEM.
Multi-Angle Analysis of Cost Reduction:
Tooling Savings: Extrusion dies and cold forging molds cost thousands of dollars. If a physical prototype fails thermal testing, that tooling investment is lost. Simulation ensures the geometry is correct before any steel is cut for molds.
Time-to-Market: Waiting weeks for a physical prototype only to discover it requires a redesign is a massive setback. An ANSYS FEM simulation can be set up and run in a matter of days, allowing for rapid iterations and faster deployment of your final product.
Engineering Expertise: Software is only as good as the engineer operating it. Our company has 15+ years of manufacturing experience, and our technical R&D team possesses over 25 years of combined thermal and machining expertise. This means our simulations are grounded in manufacturing reality; we do not design virtual heat sinks that are impossible to physically machine.
By integrating thermal simulation into the early stages of product development, we support simulation-based design optimization that directly protects your R&D budget.
A virtual model is only as good as its real-world accuracy. Rigorous physical testing is mandatory to confirm that the simulated thermal resistance matches the actual performance of the metal.
While simulation predicts performance, Kingka conducts extensive lab testing and validation to verify these simulation results. This physical confirmation ensures the absolute reliability of CPU, telecom, and other high-power electronic cooling systems before they are deployed into the field.
Simulation is the blueprint, but lab testing is the final quality gate. A thermal simulation heat sink model assumes perfect thermal interface materials and ideal ambient conditions. In the real world, microscopic variations matter.
Multi-Angle Analysis of Validation:
Wind Tunnel Testing: Once the optimized design is manufactured (often via CNC machining for the first prototype), we place it in a calibrated wind tunnel. We apply a dummy heater block that mimics the exact wattage of the CPU or telecom ASIC.
Data Correlation: We measure the temperature at the base and the fins using strategically placed thermocouples. We then compare this empirical data against the ANSYS FEM simulation report. A variance of less than 5% confirms the model's accuracy.
Real-World Examples: During a project for a high-power industrial LED array, the simulation predicted a base temperature of 65°C. Our lab testing recorded 66.2°C, verifying the design. For a liquid-cooled server plate, lab testing revealed that the thermal paste application method was causing a slight variance from the simulation, allowing us to correct the assembly instructions before mass production.
This closed-loop process—design, simulate, manufacture, and test—is what guarantees long-term reliability.
Not every standard extrusion requires deep computational analysis. However, when dealing with expensive silicon and dense packaging, deciding when to simulate is a critical step in the procurement workflow.
You must utilize a thermal simulation heat sink design whenever your component power density exceeds standard air-cooling limits. Simulating the airflow and temperature distribution before manufacturing ensures that custom CPU and telecom cooling solutions will not fail under peak operational stress.
If your engineering team is designing a system where thermal throttling is not an option, simulation is a mandatory prerequisite to manufacturing.
Guidelines for Initiating Thermal Simulation:
High Heat Flux: If your component generates more than 30W/cm², a standard solid metal base will likely suffer from severe spreading resistance. Simulation is required to map this resistance.
Constrained Environments: If your heat sink must fit into a 1U chassis, a sealed NEMA enclosure, or a densely packed telecom cabinet, you cannot rely on generic airflow assumptions.
New Product Development: If you are launching a flagship CPU cooler or a next-generation power module, the upfront cost of simulation is negligible compared to the cost of a product recall due to overheating.
Kingka stands ready to assist. By leveraging our vast manufacturing experience and deep simulation capabilities, we ensure your thermal management strategy is precise, cost-effective, and absolutely reliable.
Ready to validate your thermal design? Contact our engineering team today to initiate an ANSYS FEM simulation and secure the thermal performance of your next high-power electronic system.
1. What is ANSYS FEM in the context of thermal management?
ANSYS FEM (Finite Element Method) is an advanced computational software used to simulate fluid dynamics and heat transfer. It breaks down a 3D CAD model into millions of tiny elements to mathematically predict how heat and airflow will behave across the heat sink.
2. Can thermal simulation predict how loud a heat sink fan will be?
While thermal simulation primarily calculates temperature and airflow, it accurately predicts pressure drop. A high pressure drop indicates that a fan must spin faster and work harder to push air through the fins, which directly correlates to higher acoustic noise.
3. Why do copper heat sinks perform better in simulations than aluminum?
Copper has a thermal conductivity of ~400 W/m·K, compared to aluminum’s ~170–220 W/m·K. In simulations of high-power chips, copper spreads the heat away from the concentrated source much faster, resulting in a lower overall junction temperature.
4. Is physical lab testing still necessary if a simulation is performed?
Yes. Simulation provides a highly accurate prediction, but lab testing validates those results under real-world physical constraints, accounting for variables like actual thermal paste thickness and minor machining tolerances.
5. How does simulation reduce development costs?
It eliminates the need to manufacture multiple physical prototypes. Instead of paying for tooling and machining for three different designs to see which works best, engineers can test dozens of variations virtually at a fraction of the cost and time.
6. What are skived fin heat sinks, and why are they simulated?
Skived fins are carved directly from a solid metal block, offering extremely high fin density and zero interface resistance. They are simulated to ensure that their ultra-tight fin spacing does not create an airflow bottleneck that the system fan cannot overcome.
7. How long does a thermal simulation typically take?
Depending on the complexity of the heat sink geometry and the chassis environment, a professional ANSYS FEM simulation can take anywhere from a few days to a week to set up, compute, and analyze thoroughly.
8. Can simulation help with passively cooled systems?
Absolutely. Simulating natural convection (passive cooling) is highly critical, as the airflow is entirely dependent on the heat sink's geometry and buoyancy. Simulation helps optimize fin spacing to ensure hot air can escape efficiently without the aid of a fan.
