When comparing FSW (Friction Stir Welded) liquid cold plates against traditional brazed cold plates, FSW generally delivers superior thermal performance due to its solid-state joining process, which eliminates filler material and voids, resulting in a denser, more uniform joint with higher thermal conductivity. This translates to lower thermal resistance, enhanced structural integrity, and better heat transfer efficiency, especially for demanding high-power applications where consistent and reliable cooling is paramount.
In the world of high-performance electronics and power management, keeping things cool isn't just a luxury; it's a necessity. As components generate more heat in smaller spaces, the effectiveness of your cooling solution becomes a critical factor in system reliability and lifespan. When it comes to liquid cold plates, two prominent manufacturing techniques stand out: Friction Stir Welding (FSW) and traditional brazing. Both aim to create robust, leak-proof channels for coolant, but they achieve this through fundamentally different processes, leading to distinct advantages and disadvantages in thermal performance. Let's dive into a detailed comparison to see which method truly delivers better heat transfer.
Before we compare, let's establish a clear understanding of how traditional brazed cold plates are made and their characteristics.
Traditional brazed cold plates are manufactured by joining multiple metal components, typically aluminum or copper, using a filler metal with a lower melting point than the base materials. This process involves heating the assembly above the filler metal's melting point, allowing it to flow into the joints by capillary action, creating a sealed internal channel for coolant. While cost-effective for complex geometries, brazing can introduce thermal resistance due to the filler material and potential voids.
Brazing is a well-established metal-joining process that has been used for decades across various industries. When applied to cold plates, it typically involves several key steps:
Component Preparation: Two or more metal plates (e.g., a base plate with machined channels and a cover plate) are cleaned thoroughly.
Filler Metal Application: A filler metal (brazing alloy), often in the form of a foil, paste, or wire, is placed between the components to be joined. This filler metal has a melting point lower than the base materials.
Assembly and Fixturing: The components are assembled and held together with fixtures to ensure proper alignment and contact.
Heating: The entire assembly is heated in a controlled atmosphere furnace (often a vacuum furnace or one with an inert gas like nitrogen) to a temperature above the melting point of the filler metal but below the melting point of the base materials.
Capillary Action: The molten filler metal flows into the gaps between the components due to capillary action, wetting the surfaces and forming a metallurgical bond upon solidification.
Cooling: The assembly is slowly cooled, allowing the filler metal to solidify and create a strong, leak-proof joint.
Material: Commonly made from aluminum alloys (e.g., 3003, 6061) or copper.
Internal Geometry: Can create complex internal fin structures (e.g., folded fins, turbulators) within the channels, which are often pre-formed and then brazed in place.
Joint Type: A metallurgical bond formed by the filler metal.
Advantages:
Complex Geometries: Excellent for creating intricate internal channel designs and integrating multiple components.
High Volume Production: Can be cost-effective for large batches once tooling is established.
Good Strength: Generally provides good mechanical strength.
Disadvantages (relevant to thermal performance):
Filler Material Thermal Resistance: The filler metal itself often has a lower thermal conductivity than the base material, introducing a thermal resistance at the joint.
Voids and Inclusions: The brazing process can sometimes leave microscopic voids, flux inclusions, or un-wetted areas within the joint, which act as thermal barriers.
Heat Affected Zone (HAZ): The entire assembly is heated, which can affect the temper and mechanical properties of the base material, potentially reducing its strength or thermal conductivity in certain areas.
Cleanliness: Requires extremely clean surfaces; any contamination can lead to poor joint quality.
Post-Brazing Cleaning: Flux residues (if used) need to be thoroughly removed, which can be challenging for internal channels.
While brazing is a robust and versatile method, its reliance on a filler material and the high-temperature process can introduce subtle thermal inefficiencies that become critical in high-performance applications.
Now, let's explore the newer, solid-state joining technology: FSW (Friction Stir Welded) liquid cold plates.

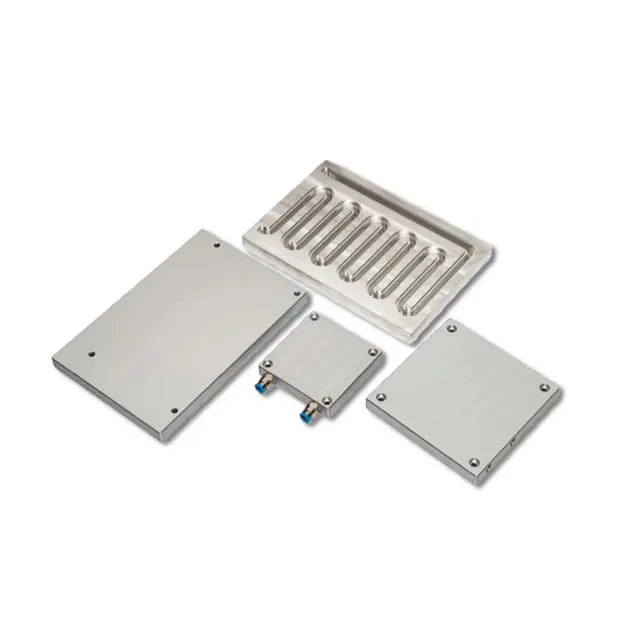

FSW liquid cold plates are manufactured using Friction Stir Welding, a solid-state joining process where a non-consumable rotating tool generates frictional heat to soften and stir the base materials together without melting. This creates a high-quality, homogeneous metallurgical bond free from filler material, voids, or porosity. The result is a dense, strong, and highly thermally conductive joint, making FSW cold plates ideal for demanding applications requiring superior heat transfer and structural integrity.
Friction Stir Welding (FSW) is a relatively newer joining technique, patented in 1991, that has gained significant traction in industries like aerospace, automotive, and increasingly, thermal management. It's a solid-state process, meaning the materials are joined without reaching their melting point.
Component Preparation: Typically, two flat plates (e.g., a base plate with machined channels and a flat cover plate) are prepared and clamped together.
Rotating Tool: A non-consumable, rotating tool with a specially designed pin and shoulder is plunged into the joint line between the two plates.
Frictional Heat and Stirring: As the tool rotates and traverses along the joint, the friction generates localized heat, softening the material around the pin. The pin then "stirs" the softened material from both plates together.
Solid-State Bond: The stirred material consolidates behind the tool, forming a solid-state, metallurgical bond as it cools. No filler material is used.
No Melting: Crucially, the material never reaches its melting point, preventing issues associated with solidification.
Material: Primarily used for aluminum alloys (e.g., 6061, 7075), but can also be applied to copper and other materials.
Internal Geometry: Typically involves machining channels into one plate, then FSWing a flat cover plate over it. This allows for very precise and intricate channel designs.
Joint Type: A solid-state, forged-like metallurgical bond.
Advantages (relevant to thermal performance):
No Filler Material: Eliminates the thermal resistance and potential for voids associated with filler metals. The joint has the same thermal conductivity as the base material.
Dense, Homogeneous Joint: The stirring action creates a very dense, fine-grained microstructure in the weld zone, free from porosity or inclusions. This ensures excellent thermal contact.
Minimal Heat Affected Zone (HAZ): Since the material doesn't melt and heating is localized, the HAZ is much smaller and less detrimental to the base material's properties compared to brazing. This preserves the original strength and thermal conductivity of the surrounding material.
Low Distortion: The lower heat input results in less distortion and residual stress.
Environmentally Friendly: No flux or shielding gases are typically required.
Disadvantages:
Limited Geometry: Best suited for linear or gently curved joints. Complex 3D geometries can be challenging.
Tooling Access: Requires access to both sides of the joint for clamping and tool movement.
Initial Setup Cost: FSW equipment can have a higher initial investment.
FSW offers a fundamentally different approach to joining, one that prioritizes material integrity and eliminates common thermal barriers found in traditional fusion welding or brazing processes.
This is the core of the FSW Liquid Cold Plate vs Traditional Brazed Cold Plate comparison for thermal performance.
FSW liquid cold plates generally exhibit superior thermal conductivity and joint integrity compared to traditional brazed cold plates. FSW's solid-state process creates a homogeneous joint with no filler material or voids, ensuring the thermal conductivity of the base metal is maintained across the interface. Brazing, conversely, introduces a lower-conductivity filler material and potential microscopic voids, which act as thermal barriers, increasing overall thermal resistance and hindering efficient heat transfer.
The efficiency with which heat moves from the cold plate's base to the coolant fluid is paramount. The joint between the base plate and the cover plate is a critical interface in this heat transfer path.
Lower Thermal Conductivity of Filler: Brazing relies on a filler metal that typically has a lower thermal conductivity than the parent (base) material. For example, if you're brazing aluminum with an aluminum-silicon alloy, the silicon content in the filler will reduce its thermal conductivity compared to pure aluminum or the base aluminum alloy. This creates a "bottleneck" for heat flow at every joint.
Voids and Porosity: Despite best efforts, the brazing process can sometimes leave microscopic voids, un-wetted areas, or flux inclusions within the joint. These air pockets or foreign materials are extremely poor thermal conductors, acting as significant thermal barriers. Even small voids can dramatically increase the thermal resistance across the joint.
Non-Uniformity: The filler metal might not flow perfectly uniformly, leading to variations in joint thickness and quality, which translates to inconsistent thermal performance across the cold plate.
No Filler Material: This is the most significant advantage. FSW joins the base materials directly, without any foreign filler metal. The joint essentially becomes a continuation of the parent material.
Base Material Thermal Conductivity Maintained: Because there's no filler, the thermal conductivity across the FSW joint is virtually identical to that of the base material itself. This creates a seamless, highly conductive path for heat.
Dense, Homogeneous Microstructure: The intense stirring and forging action of FSW creates a very dense, fine-grained microstructure in the weld zone. This eliminates porosity, voids, and inclusions, ensuring excellent thermal contact and minimal thermal resistance.
Minimal Heat Affected Zone (HAZ): The localized heating in FSW means the surrounding base material retains its original thermal properties, unlike brazing where the entire assembly is heated, potentially altering the material's temper and conductivity.
Lower Thermal Resistance: The absence of filler material and voids in FSW joints directly translates to lower thermal resistance from the component interface to the coolant channels. This means heat can move more easily and quickly.
Improved Heat Transfer Coefficient: A more uniform and conductive joint ensures that the heat is efficiently transferred to the fluid, maximizing the heat transfer coefficient.
Better Temperature Uniformity: With a more consistent thermal path, FSW cold plates can achieve better temperature uniformity across the component, preventing damaging hot spots.
Verdict: For critical applications where every milliwatt of heat transfer efficiency counts, FSW liquid cold plates offer a clear advantage in thermal conductivity and joint integrity, leading to superior overall thermal performance.
The choice of manufacturing method also impacts the types of materials that can be used and the complexity of the cold plate's internal design.
FSW liquid cold plates excel in material compatibility for specific aluminum alloys, creating robust, high-integrity joints without filler material, but can be limited in complex 3D channel geometries. Traditional brazed cold plates, conversely, offer greater design flexibility for intricate internal fin structures and multi-material assemblies, though they are constrained by the need for compatible filler metals and the thermal properties of those fillers.
Different processes lend themselves to different materials and design approaches.
Material Compatibility: Brazing is highly versatile and can join a wide range of similar and dissimilar metals (e.g., copper to brass, steel to copper, various aluminum alloys). The key is finding a compatible filler metal that wets both surfaces.
Design Flexibility (Internal): This is a strong suit for brazing. It's excellent for creating complex internal geometries, such as:
Folded Fins: Intricate fin structures can be pre-formed and then brazed into the channels, maximizing surface area for heat transfer.
Turbulators: Small features designed to induce turbulence in the fluid flow can be easily integrated.
Multi-Layer Designs: Brazing can join multiple layers of plates to create very complex 3D internal flow paths.
Limitations: While versatile, the need for a compatible filler metal can sometimes limit material choices, especially for very high-performance alloys where a suitable filler might compromise thermal conductivity. The high temperatures also limit the use of heat-treated alloys that might lose their temper.
Material Compatibility: FSW is primarily known for its excellent performance with aluminum alloys (e.g., 6061, 7075, 5083). It can also be used for copper, magnesium, and some other materials, but it's less universally applicable than brazing for dissimilar metals. The advantage is that it joins the same material, preserving its properties.
Design Flexibility (Internal):
Machined Channels: FSW cold plates typically involve machining precise channels into a base plate, then FSWing a flat cover plate over it. This allows for very accurate and repeatable channel geometries.
Limitations: While precise, FSW is generally best suited for linear or gently curved joints. Creating highly intricate, pre-formed internal fin structures (like folded fins) that would then be FSWed in place is more challenging than brazing. However, advanced CNC machining can create complex channel patterns directly into the base plate.
Single-Pass Limitations: The FSW tool needs to traverse the joint. This means that creating complex, multi-layered internal structures with many intersecting joints can be more difficult than with brazing.
Verdict:
Brazing offers greater flexibility for highly intricate internal fin structures and joining a wider range of dissimilar metals.
FSW excels in creating robust, high-integrity joints for specific aluminum and copper alloys, allowing for precise machined channels, but might be less flexible for extremely complex 3D internal fin geometries that rely on pre-formed inserts. However, the superior joint integrity often outweighs the need for such complex internal features.
The integrity of the cold plate's joints is paramount for preventing leaks and ensuring long-term reliability.
FSW liquid cold plates generally offer superior structural strength and leakage reliability due to their solid-state, forged-like metallurgical bond, which is free from porosity and has a fine-grained microstructure. This results in a stronger, more ductile joint less prone to fatigue and cracking. Traditional brazed cold plates, while robust, can be susceptible to leakage from voids, inclusions, or filler material degradation, potentially compromising long-term integrity, especially under thermal cycling or pressure fluctuations.
A cold plate that leaks is a failed cold plate, regardless of its thermal performance.
Joint Strength: Brazed joints are generally strong, often exceeding the strength of the filler metal itself. However, the strength is dependent on the quality of the braze, the filler material, and the absence of defects.
Fatigue Resistance: The filler metal, being a different material, can have different mechanical properties (e.g., ductility, hardness) than the base material. This can create stress concentrations at the joint, potentially making it more susceptible to fatigue cracking under thermal cycling or vibration.
Leakage Points:
Voids and Porosity: As mentioned, microscopic voids or un-wetted areas can act as pathways for coolant leakage, especially under pressure.
Filler Material Degradation: Over time, especially with aggressive coolants or high temperatures, the filler material itself could degrade or corrode, leading to leaks.
Flux Residues: If flux is used and not completely removed, it can lead to corrosion and eventual leakage.
Heat Affected Zone (HAZ): The larger HAZ in brazing can sometimes reduce the mechanical properties of the base material near the joint, making it weaker.
Superior Joint Strength: FSW creates a solid-state, forged-like bond that is often stronger than the parent material itself. The stirring action refines the grain structure in the weld zone, leading to enhanced mechanical properties.
Excellent Fatigue Resistance: The homogeneous nature of the FSW joint, combined with the fine-grained microstructure and minimal HAZ, results in excellent fatigue resistance. This is crucial for applications experiencing frequent thermal cycling or vibration.
Leakage Reliability:
No Voids or Porosity: The forging action of FSW virtually eliminates voids and porosity within the joint, creating an extremely dense and leak-proof seal.
No Filler Material Degradation: Since there's no filler material, there's no risk of filler material degradation or incompatibility with coolants.
Consistent Quality: The FSW process is highly repeatable and controllable, leading to very consistent joint quality and reliability.
Ductility: FSW joints often retain good ductility, making them less prone to brittle fracture.
Both types of cold plates undergo rigorous testing, including:
Leak Testing: Helium leak detection or pressure decay tests are standard.
Pressure Testing: To ensure structural integrity under operating pressures.
Thermal Cycling: To simulate real-world operating conditions and test fatigue resistance.
Verdict: For applications where long-term reliability, resistance to leakage, and structural integrity under demanding conditions (e.g., high pressure, vibration, thermal cycling) are paramount, FSW liquid cold plates offer a significant advantage due to their superior joint quality and mechanical properties.
The choice between FSW and brazing also has significant implications for manufacturing complexity, scalability, and overall cost.
Traditional brazed cold plates often have lower tooling costs and are cost-effective for high-volume production of complex internal geometries, despite requiring precise temperature control and post-brazing cleaning. FSW liquid cold plates, while having a higher initial equipment investment, offer lower per-unit costs for certain designs in high volume due to faster processing and elimination of filler materials, but may incur higher tooling costs for specialized fixtures and have limitations on complex 3D shapes.
It's not just about the final product, but how it gets made.
Process Complexity: Brazing requires precise temperature control in a furnace, often with a controlled atmosphere (vacuum or inert gas). This involves specialized equipment and expertise.
Tooling Costs: For standard designs, tooling for brazing (e.g., fixtures) can be relatively low. For complex internal fin structures, tooling for fin fabrication can add to the cost.
Material Costs: Includes the cost of base materials and the filler metal.
Labor: Requires skilled operators for assembly, filler placement, and post-brazing cleaning.
Scalability: Can be highly scalable for high-volume production once the process is optimized.
Post-Processing: Often requires post-brazing cleaning to remove flux residues (if used), which can be challenging for internal channels and adds to cost.
Yield: Yield can be affected by cleanliness, furnace uniformity, and proper filler flow.
Process Complexity: FSW requires specialized machinery (FSW machine) and precise control of tool rotation speed, traverse speed, and plunge depth.
Tooling Costs: While the FSW machine itself is an investment, the tooling (fixtures to hold the parts) can be custom-designed and might have higher initial costs for complex setups.
Material Costs: Primarily the cost of the base material, as no filler metal is used.
Labor: Requires skilled operators for machine setup and operation. The process itself is highly automated once programmed.
Scalability: Highly scalable for high-volume production, especially for designs well-suited to FSW (linear or gently curved joints). The process is generally faster than brazing cycle times.
Post-Processing: Typically requires minimal post-processing, as there's no flux residue or significant distortion.
Yield: High yield due to the robust and repeatable nature of the solid-state process.
Verdict: For high-volume production of designs well-suited to FSW, the elimination of filler material, faster process times, and higher yield can make FSW liquid cold plates more cost-effective per unit in the long run, despite a higher initial equipment investment. Brazing remains competitive for highly intricate internal geometries or specific multi-material assemblies.
The ultimate choice between FSW liquid cold plates vs Traditional Brazed Cold Plate hinges on the specific demands of your application.
FSW liquid cold plates are ideally suited for high-power density, mission-critical applications demanding superior thermal performance, structural integrity, and long-term reliability, such as electric vehicle battery cooling, high-performance computing, and industrial power electronics. Traditional brazed cold plates remain a viable, cost-effective option for applications with moderate heat loads, complex internal fin geometries, or where material versatility is prioritized over the absolute lowest thermal resistance.
Let's consider where each technology truly shines.
Moderate Heat Loads: Applications where the absolute lowest thermal resistance isn't the primary driver, but good performance is still needed.
Complex Internal Fin Geometries: When intricate folded fins, turbulators, or multi-layered internal structures are crucial for maximizing surface area and turbulence, and these are easier to achieve through brazing.
Multi-Material Assemblies: When joining dissimilar metals is a requirement.
Cost-Sensitive, High-Volume Production: For designs where brazing offers a lower overall unit cost due to tooling or process efficiencies.
Examples: Some automotive electronics, industrial power supplies, certain medical devices, general-purpose heat exchangers.
High Power Density Applications: Where components generate immense heat in a small footprint (e.g., high-end CPUs/GPUs, IGBT modules, power inverters).
Mission-Critical Systems: Where reliability, long-term stability, and prevention of thermal runaway are paramount.
Demanding Environments: Applications requiring superior structural strength, fatigue resistance, and leak-proof integrity under vibration, pressure, or thermal cycling.
Lowest Thermal Resistance Required: When every degree of temperature reduction is critical for component performance and lifespan.
Applications with Aggressive Coolants: Where the absence of filler material reduces the risk of corrosion or incompatibility.
Examples: Electric Vehicle (EV) battery cooling, high-performance computing (HPC) servers, data center cooling, advanced power electronics, aerospace components, high-power laser systems.
Verdict: For the most demanding thermal challenges, where maximizing heat transfer efficiency, ensuring structural integrity, and guaranteeing long-term reliability are non-negotiable, FSW liquid cold plates are increasingly becoming the preferred technology. They represent the cutting edge in high-performance liquid cooling.
The choice between FSW liquid cold plates and traditional brazed cold plates is a critical engineering decision that directly impacts thermal performance, reliability, and cost.
In conclusion, while traditional brazed cold plates offer design flexibility for complex internal geometries and are cost-effective for certain high-volume applications, FSW liquid cold plates generally deliver superior thermal performance and reliability. FSW's solid-state joining process eliminates filler material and voids, resulting in a denser, more thermally conductive, and structurally robust joint. For high-power density, mission-critical applications demanding the absolute lowest thermal resistance, enhanced structural integrity, and long-term leak-proof operation, FSW liquid cold plates are the optimal choice, providing a more efficient and reliable thermal management solution.
We've delved deep into the nuances of both FSW liquid cold plates and traditional brazed cold plates. It's clear that neither is a one-size-fits-all solution, but their strengths lie in different areas.
Traditional Brazed Cold Plates remain a valuable technology, particularly for:
Applications with moderate heat loads.
Designs requiring highly intricate internal fin structures that are easier to braze.
Situations where joining dissimilar metals is necessary.
Cost-sensitive, high-volume projects where brazing tooling is already established.
However, for the most demanding thermal challenges of today and tomorrow, FSW Liquid Cold Plates offer distinct advantages:
Superior Thermal Performance: Lower thermal resistance due to the absence of filler material and voids.
Enhanced Reliability: Stronger, more ductile, and fatigue-resistant joints.
Leak-Proof Integrity: A dense, homogeneous bond free from porosity.
Preserved Material Properties: Minimal heat-affected zone.
Long-Term Durability: Especially under thermal cycling and vibration.
As power densities continue to climb in critical applications like electric vehicles, high-performance computing, and advanced power electronics, the benefits of FSW become increasingly compelling. The ability to create a truly seamless, highly conductive, and robust joint without compromising the base material's properties makes FSW the leading choice for engineers seeking the absolute best in liquid cold plate thermal performance and reliability.
