When a thermal module fails in the field, troubleshooting often traces back to latent manufacturing defects rather than operating overloads. Because heat pipes operate as hermetically sealed, two-phase vacuum vessels, minor deviations in tube cleaning, wick sintering, or pinch-off sealing can trigger progressive thermal degradation months after product launch. For quality and procurement leads, understanding heat pipe failure modes—such as non-condensable gas generation, fluid leaks, wick dry-out, and freeze ruptures—is essential for drafting rigorous purchase order specifications. For an overview of how normal phase change should operate, review our guide on how heat pipes work. For the full system architecture, see our heat pipe thermal system guide.
Table of Contents
Diagnosing heat pipe common failures requires matching physical symptoms observed during thermal testing or field operation to their root manufacturing mechanisms.
When a heat pipe loses performance, it stops transferring heat efficiently, causing localized hot spots and thermal throttling. The matrix below outlines the primary failure modes, underlying physical causes, and field symptoms.
Failure Mode | Root Physical Cause | Observable Symptom | Prevention Control |
Non-Condensable Gas (NCG) | Chemical reaction between fluid and unpassivated metal | Cold dead zone at condenser end; rising temp | Strict vacuum degassing and elevated aging |
Vacuum Leak / Puncture | Defective pinch-off seal or micro-crack in wall | Total loss of phase change; high thermal resistance | 100% helium leak testing and helium sniffer |
Evaporator Dry-Out | Heat load exceeds wick capillary limit under tilt | Sudden thermal runaway under peak load | Upfront sizing check via a heat pipe sizing guide |
Freeze-Thaw Rupture | Ice expansion in rigid, over-charged tubes below 0°C | Cracked copper wall or distorted tube geometry | Controlled fluid fill ratio and thermal shock tests |
A common mistake during root-cause analysis is blaming the heat pipe when the real failure lies in the secondary assembly. High thermal resistance can be caused by solder voiding under the mounting block rather than internal gas generation. Measuring temperature differentials across the evaporator and condenser isolates internal phase-change failures from external interface bottlenecks.
Investigating a heat pipe leak or progressive dry-out reveals that most failures originate upstream during raw tube preparation, chemical cleaning, or final sealing.
Understanding these root causes helps quality engineers ask the right questions during supplier audits:
· Contaminated Copper Tubing: Residual drawing oils or organic residues left inside raw copper tubes react with deionized water at operating temperatures, generating hydrogen gas. This hydrogen forms an insulating gas bubble (NCG) that blocks vapor flow in the condenser.
· Imperfect Pinch-Off Sealing: After vacuum evacuation and fluid charging, the copper tube end is mechanically pinched and cold-welded or brazed. If clamping dies are worn, microscopic micro-channels remain, allowing atmospheric air to seep into the vacuum envelope.
· Wick Delamination: Poor sintering temperature profiles during powder bonding cause copper spheres to detach from the inner wall, collapsing capillary channels and causing premature dry-out.
Preventing heat pipe failures requires enforcing strict engineering controls both when designing the thermal module and during factory production.
Designers must ensure that operating heat fluxes remain safely below capillary and boiling limits, while manufacturing partners must maintain pristine cleanliness standards. To evaluate whether your manufacturing partner maintains these standards, consult our procurement framework on how to choose a heat pipe manufacturer.
· Conservative Sizing Margins: Never design a heat pipe array to operate at 100% of its theoretical Q_max. Maintain a 25% to 40% safety buffer against transient power spikes.
· Orientation and Tilt Modeling: Design wick structures that accommodate worst-case installation angles so gravity never starves the evaporator.
· Acid Passivation and Ultrasonic Cleaning: Chemically treating copper tubes removes all organic contaminants before powder sintering.
· Automated Vacuum Baking: Baking assemblies under high vacuum before sealing drives out adsorbed moisture and trapped gases.

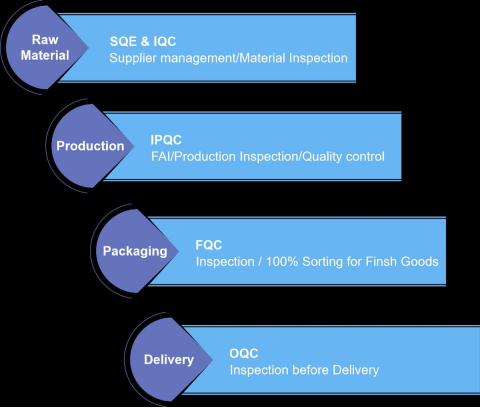

Four-stage quality control: incoming IQC, in-process IPQC, final FQC and outgoing OQC.
To protect your production line from defective assemblies, your incoming quality control (IQC) protocol must go beyond visual dimensional checks.
When a shipment of custom heat pipe modules arrives, quality leads should execute a structured verification checklist before releasing parts to manufacturing:
· Visual and CMM Dimensional Audit: Verify tube outer diameter, bend radii, flatness of mounting pedestals, and coplanarity against 2D drawings.
· Sample Destructive Sectioning: Periodically section sample pipes to inspect sintered wick porosity and thickness along the inner wall.
· Thermal Performance Screening (ΔT Test): Confirm that the supplier tests 100% of production units on a heated test fixture to verify that thermal resistance falls within acceptable specification limits.
You can run Kingka's incoming-inspection checklist against your current supplier, or send a sample batch for an audit of the failure signatures above.
Preventing field failures ultimately depends on partnering with a vertically integrated manufacturer that enforces rigorous quality systems under ISO 9001 and IATF 16949 standards.
Many supply chain issues arise when purchasing agents buy from brokers who outsource tube sintering, CNC base machining, and reflow soldering to disconnected sub-tier shops. A qualified manufacturer controls the entire process under one roof—from raw tube cleaning and powder sintering to CNC machining (supported by 50+ CNC machines) and 100% thermal screening. You can inspect our manufactured modules and quality workflows on Kingka's heat pipe products page.
Protect your company by embedding mandatory test requirements directly into your engineering drawings and purchase orders:
· Helium Leak Rate Limit: Specify a maximum allowable leak rate (e.g., < 10⁻⁹ Pa·m³/s).
· Mandatory 100% ΔT Screening: Require test data or Certificate of Conformance (CoC) confirming every module passed thermal resistance screening.
· NCG and Aging Certification: Demand proof of elevated-temperature aging tests to ensure no hydrogen gas generation occurs.
Mitigating heat pipe failure modes requires a proactive quality strategy that combines sound up-front engineering sizing with strict factory process controls and incoming inspection checklists. By understanding how non-condensable gases, leaks, and dry-outs develop, and by embedding strict helium leak and thermal screening requirements into your supplier purchase orders, you eliminate infant mortality and secure long-term field reliability.
The most common causes of heat pipe failure are gradual vacuum loss due to micro-leaks in the pinch-off seal and non-condensable gas (NCG) generation caused by chemical reactions between unclean inner tube walls and the working fluid.
An NCG failure creates a noticeable cold dead zone at the condenser end of the pipe during operation because trapped gas blocks vapor from reaching the outer cooling fins, causing thermal resistance to rise sharply.
No, a properly manufactured hermetically sealed heat pipe contains no moving parts or degrading chemical compounds, meaning it does not wear out and can operate reliably for over 10 to 20 years.
A helium leak test places finished heat pipes inside a vacuum chamber filled with helium tracer gas to detect microscopic seal defects that standard bubble tests cannot find, ensuring the internal vacuum remains intact.
If a water-charged heat pipe is stored or operated below 0°C without proper fill ratio control or wick engineering, freezing expansion can deform the copper envelope or rupture the tube seam.
Require ISO 9001 certification for general industrial quality management, and IATF 16949 certification if you are sourcing thermal hardware for automotive, electric vehicle, or mission-critical industrial applications.
