A heat pipe thermal system is a passive two-phase cooling assembly that transfers concentrated heat from high-flux electronic components to remote fin stacks through internal vapor evaporation and condensation. When power density exceeds the spreading capacity of solid aluminum or copper, sticking with a conventional block forces thermal throttling and premature silicon degradation. Adopting a properly sized heat pipe assembly bridges tight enclosure geometries without adding pumps or moving parts. This guide breaks down the internal physics, architectural trade-offs, industry applications, failure mechanisms, and vendor qualification criteria required to specify reliable thermal hardware.
Table of Contents
Solid metal heat sinks fail when heat flux concentrates into a small footprint because bulk thermal conduction creates a steep temperature gradient directly beneath the die.
Modern processors, power modules, and optical transceivers pack significant thermal loads into shrinking package areas. Even if an enclosure has enough total airflow to reject the heat, a solid aluminum extrusion or copper baseplate often cannot move that energy away from the heat source fast enough. The thermal resistance of the baseplate itself becomes the primary bottleneck.
When engineers attempt to solve spreading bottlenecks by making a solid copper base thicker, they add dead weight, increase material cost, and run into diminishing thermal returns. A heat pipe thermal system solves this by embedding sealed two-phase vapor conduits directly into the baseplate or routing them to a separate fin stack where airflow is unobstructed.
Selecting a marginal cooling solution rarely fails on day one of lab testing. Instead, the penalties show up during full-load field operation or mass production:
Thermal Throttling: Processors automatically step down clock speeds when junction temperatures approach safety thresholds, reducing compute throughput.
Acoustic and Fan Power Penalties: System architects must spin chassis fans faster to compensate for poor fin utilization, breaching data center or medical acoustic limits and consuming extra board power.
Solder Joint Fatigue: Repeated thermal cycling across uneven baseplate temperatures accelerates mechanical stress between the component package and the PCB.
Late-Stage Enclosure Redesigns: Discovering spreading bottlenecks during system validation often forces costly tooling modifications to fit larger fans or thicker baseplates.

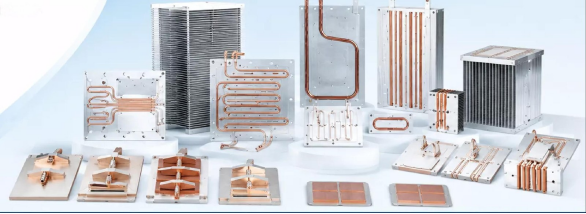

Kingka custom heat pipe modules, liquid cold plates and skived heat sinks for high-flux electronics.
A heat pipe thermal system operates through a continuous, passive liquid-to-vapor phase-change cycle driven by capillary action inside a vacuum-sealed metal tube.
Understanding the heat pipe working principle requires looking past the tube alone and examining the complete thermal path. In a commercial assembly, heat leaves the silicon die, passes through a TIM (thermal interface material, a compliant compound that fills microscopic surface gaps to lower contact resistance), enters a metal mounting block, conducts into the heat pipe evaporator wall, travels as vapor to the condenser section, and finally dissipates into ambient air through bonded cooling fins.
For the deeper physics—fluid thermodynamics and capillary pressure equations—see how a heat pipe works.
Every standard heat pipe relies on three functional zones working in equilibrium:
1. Evaporator Zone: Mounted directly over the heat source. Incoming thermal energy boils the liquid working fluid inside the saturated wick, absorbing latent heat of vaporization without a sharp rise in temperature.
2. Adiabatic (Transport) Zone: The insulated middle section where high-pressure vapor travels rapidly down the hollow core toward the cooler end of the tube.
3. Condenser Zone: Coupled to a fin stack or cold chassis wall. The vapor releases its latent heat, condenses back into liquid, and gets pulled back to the evaporator through the porous wick via capillary suction.
A heat pipe assembly is only as effective as the compatibility between its tube wall, working fluid, and internal wick structure. Mixing incompatible materials generates non-condensable gas that stalls the phase-change loop.
Component Layer | Common Engineering Choices | Primary Function | Operational Trade-Off |
Envelope Material | Copper, aluminum, or stainless steel | Contains vacuum and conducts radial heat | Copper pairs with water while aluminum requires ammonia |
Working Fluid | Deionized water, methanol, acetone, ammonia | Absorbs and releases latent heat during phase change | Water offers high latent heat but freezes at sub-zero temperatures |
Sintered Powder Wick | Fused copper particles along the inner wall | Generates strong capillary suction for return liquid | Works against gravity well but has higher flow resistance |
Grooved / Mesh Wick | Axial extruded channels or woven wire screen | Provides low-resistance liquid return paths | Cost-effective for horizontal runs but sensitive to tilt angles |
Sintered copper powder wicks paired with deionized water inside an oxygen-free copper tube represent the workhorse configuration for electronics cooling. Sintered wicks are suitable for mobile or vertical assemblies because their tight pore structure pulls liquid against gravity; axial grooved wicks are better suited for stationary horizontal servers where gravity assists or remains neutral to fluid return.
Heat pipe assemblies bridge the performance gap between solid metal extrusions and active pumped liquid loops, offering passive two-phase heat transport without mechanical moving parts.
Engineers frequently debate whether an application warrants the tooling and assembly cost of heat pipes compared to a simple extruded sink, a vapor chamber, or a liquid cold plate. The right choice depends on heat flux density, spatial routing constraints, and system reliability budgets. For a direct component-level comparison, see heat pipes vs. heat sinks.
Cooling Architecture | Heat Spreading & Transport | Mechanical Complexity | Ideal Application Fit |
Solid Extruded / Skived Sink | Low spreading; relies on bulk metal conduction | Simple single-piece metal part | Low-to-moderate heat loads with direct overhead airflow |
Heat Pipe Thermal System | High directional transport across long distances | Passive assembly of pipes, base, and fins | Remote fin placement and concentrated heat sources |
Vapor Chamber Assembly | High planar 2D spreading directly under the die | Passive hermetically sealed flat chamber | High heat flux in ultra-thin vertical profiles |
Liquid Cold Plate Loop | Very high thermal capacity over arbitrary distances | Active system requiring pumps, manifolds, and seals | Ultra-dense racks where air cooling hits ambient limits |
Apply these practical boundaries during concept architecture reviews:
Solid aluminum or skived copper sinks are suitable when heat flux is uniform, the fin stack sits directly above the heat source, and baseplate temperature gradients remain within component margin.
A heat pipe thermal system is more appropriate when heat must travel around mechanical obstacles to a remote airflow channel, or when spreading resistance across a wide fin base limits total dissipation.
Vapor chambers are preferred when the enclosure height is severely restricted and heat must spread evenly across a flat footprint before entering short pin or zipper fins.
Liquid cold plates become necessary when cabinet-level air cooling can no longer remove total heat rejected into the room, justifying the cost and maintenance of external coolant distribution units.
Sizing a heat pipe thermal system requires balancing five internal fluid transport limits against external mechanical bends, flattening ratios, and orientation vectors.
A common engineering mistake is selecting heat pipes purely by outer diameter and nominal wattage ratings listed in a catalog. The effective thermal capacity (Q_max) of any pipe drops sharply when you bend it around board capacitors, flatten it to fit a low-profile pedestal, or tilt the evaporator above the condenser.
To calculate exact diameter requirements, bend radii, and derating curves for your layout, consult our heat pipe sizing guide.
Understanding how heat pipes work under thermal stress means keeping the operating point safely below five physical boundaries:
1. Capillary Limit: The maximum rate at which the wick can pump condensed liquid back to the evaporator. If heat input exceeds this rate, the evaporator wick dries out and temperatures spike immediately.
2. Boiling Limit: At high radial heat flux, nucleate boiling occurs inside the wick structure. Vapor bubbles trap against the inner wall and block returning liquid from wetting the evaporator surface.
3. Sonic Limit: Typically encountered during rapid cold startups when vapor velocity at the evaporator exit reaches the speed of sound, choking mass flow.
4. Entrainment Limit: High-velocity vapor rushing toward the condenser shears droplets of liquid out of the counter-flowing wick, starving the evaporator.
5. Viscous Limit: Occurs near the freezing point of the working fluid where viscous forces inside the vapor core prevent pressure differentials from driving flow.
In real PCB layouts, straight round heat pipes rarely fit without modification. Every geometric change introduces a thermal penalty:
Bending Radius: Tight bends deform the internal sintered wick and constrict the vapor core. Engineers should maintain a minimum centerline bend radius proportional to the pipe diameter to prevent wick cracking and pressure drops.
Flattening Ratio: Flattening a round pipe increases contact area with the mounting block, which lowers interface resistance. However, excessive flattening crushes the vapor space and spikes entrainment and sonic limits.
Gravity Orientation: When the condenser sits above the evaporator, gravity assists liquid return and boosts thermal capacity. When the heat source sits above the fin stack (gravity-adverse orientation), the wick must fight hydrostatic head pressure, requiring high-capillary sintered structures and shorter pipe runs.
Commercial heat pipe applications span industries where high reliability, sealed enclosures, or high compute density rule out bulky extrusions or complex liquid plumbing.
Different sectors place very different mechanical and environmental demands on a thermal assembly. An automotive battery pack prioritizes vibration resistance and long-term chemical stability, whereas a telecom base station prioritizes weight reduction on tower mounts.
Electric vehicles generate intense heat across traction inverters, onboard chargers, and dense battery modules. In configurations where routing liquid glycol channels inside the battery compartment poses complexity or weight challenges, heat pipes conduct thermal energy from cell tabs or bottom plates out to an external cold plate or air-cooled chassis rail. Key considerations include shock and vibration compliance, thermal runaway containment, and sub-zero startup capability. Explore heat pipes for EV batteries.
Server blades in 1U and 2U rack form factors leave minimal vertical clearance directly above high-power CPUs, GPUs, and network switches. Server thermal architects use multi-pipe assemblies—often combining a copper base or vapor chamber with four to eight heat pipes—to carry heat forward or backward into taller zipper-fin stacks positioned directly in front of high-static-pressure chassis fans. See heat pipes for server cooling.
Outdoor 5G active antenna units (AAUs), industrial IGBT motor drives, and medical imaging equipment frequently operate in sealed enclosures where internal air cannot mix with outside dust or moisture. Here, heat pipe assemblies transfer heat from internal power amplifiers to exterior die-cast or skived fin housings. Because tower-mounted telecom gear and hospital scanners cannot tolerate routine pump servicing, passive phase-change assemblies remain the preferred design choice. Read more on heat pipes for high-power electronics. For a broader, application-by-application view of ten industries where two-phase cooling fits, see our heat pipe applications guide.
Heat pipe assemblies have no moving parts, yet improper material specification or sub-standard assembly processes can trigger early thermal degradation in the field.
Procurement and quality teams must look beyond initial prototype thermal tests and verify how the assembly handles thermal shock, freeze-thaw cycles, and galvanic contact over years of operation. For a complete diagnostic checklist and reliability test protocol, see common heat pipe failure modes.
Failure Mechanism | Root Physical Cause | Field Symptom | Engineering Prevention |
Dry-Out | Heat load or adverse tilt exceeds wick capillary limit | Sudden evaporator temperature spike under peak load | Switch to sintered wick or increase pipe diameter and count |
Non-Condensable Gas (NCG) | Impure copper or fluid reacts to form trapped hydrogen gas | Cold spot develops at the far end of the condenser | Strict vacuum degassing, high-purity materials, and aging tests |
Freeze-Thaw Rupture | Water expands upon freezing in rigid constrained zones | Cracked tube wall or loss of internal vacuum seal | Control fluid fill ratio and qualify via thermal shock cycling |
Solder Voiding at Base | Poor flux degassing or uneven clamping during reflow | High thermal resistance between baseplate and pipe | X-ray void inspection and controlled solder paste profiles |
Even when individual heat pipes pass factory qualification, the surrounding heat pipe assembly can fail if mechanical interfaces are poorly engineered. Crimping pipes into an aluminum base with excessive press-fit force can collapse the thin copper wall and pinch off internal vapor flow. Conversely, loose tolerances filled with thick, low-conductivity epoxy create an insulating barrier that defeats the purpose of the phase-change loop. High-reliability systems use controlled solder reflow or precision thermal epoxies matched to the thermal expansion coefficients of the base and fin stack.
Consistent thermal performance across production batches depends on tight control over wick sintering, vacuum degassing, secondary pipe forming, and fin-to-pipe bonding.
When evaluating a custom heat pipe manufacturer, engineers should understand how raw tubing transforms into an integrated thermal module. Minor deviations in powder particle size, vacuum levels before sealing, or soldering furnace profiles create unit-to-unit thermal variance that causes intermittent field overheating.
For a step-by-step tour of tube preparation, filling, sealing, and module integration, see heat pipe manufacturing.
Building a complete system combines specialized two-phase tube fabrication with precision metalwork:
1. Wick Formation and Cleaning: High-purity copper tubes undergo acid cleaning before copper powder is sintered onto the inner wall inside a controlled atmosphere furnace, or axial grooves are drawn.
2. Fluid Charging and Vacuum Degassing: The tube is evacuated, charged with a metered volume of working fluid, and purged of dissolved gases before final ultrasonic welding and crimping.
3. Secondary Forming: Sealed pipes are bent and flattened in precision CNC fixtures to match 3D mechanical CAD envelopes without rupturing the internal sintered layer.
4. Base and Fin Integration: Pipes are soldered or epoxied into CNC-machined pedestals, skived copper fins, stamped zipper-fin stacks, or bases joined via friction stir welding (FSW) and vacuum brazing.
To eliminate infant mortality and batch drift, production lines must enforce multi-stage verification rather than relying on end-of-line spot checks. At Kingka, for example, assemblies pass through a 4-stage inspection workflow covering incoming material verification, in-process dimensional and weld checks, thermal performance testing (ΔT screening across every pipe to catch vacuum leaks or dry-out), and final pre-shipment audit. Combining these physical checks with upfront CFD (computational fluid dynamics, software simulation that models airflow and heat transfer before cutting metal) shortens prototyping cycles and prevents costly hard-tooling revisions.
Sourcing a custom heat pipe thermal system succeeds when engineering teams provide complete boundary conditions upfront and audit suppliers on integrated machining and bonding capabilities.
Many procurement delays happen because buyers send a 3D step file of a heat sink without sharing the thermal boundary conditions, or they contract a simple stamping shop that outsources heat pipe production, CNC machining, and soldering to three separate sub-tier vendors. Fragmented supply chains amplify tolerance stack-up errors and finger-pointing when thermal resistance misses target.
Before issuing your next RFQ, review our heat pipe supplier checklist.
To get an accurate thermal simulation and manufacturable DFM (design for manufacturing, engineering review that optimizes part geometry for reliable and cost-effective production) proposal, include these parameters in your technical data package:
Thermal Load and Footprint: Total power dissipation (Watts) per heat source and exact physical dimensions of each contact die or package.
Temperature Limits: Maximum allowable case or junction temperature (T_max) and maximum inlet ambient air temperature.
Airflow or Sink Boundary: Available fan curve, volumetric airflow rate, air flow direction, and maximum allowable pressure drop across the fin stack.
Mechanical and Gravity Envelope: 3D keep-out zones, height limits, mounting hole locations, clamping pressure limits, and operating tilt angles relative to gravity.
Environmental Compliance: Operating temperature extremes (especially sub-zero storage or startup), shock/vibration profiles, and corrosion resistance standards.
When qualifying vendors for automotive, telecom, data center, or medical programs, verify that the supplier maintains vertically integrated capabilities:
Quality Management Certifications: Look for ISO 9001 for general industrial quality and IATF 16949 when sourcing thermal hardware for automotive and EV programs.
In-House Secondary Machining: A supplier with substantial in-house CNC capacity (such as Kingka's 50+ CNC machines alongside skiving, FSW, and vacuum brazing lines) controls flatness tolerances on mounting blocks without outsourcing delays.
Simulation and Prototyping Speed: Confirm that the vendor's thermal engineering team runs CFD simulations to validate pipe count, wick selection, and fin pitch before building soft prototypes.
Specifying a heat pipe thermal system comes down to matching internal capillary limits and wick structures against your enclosure geometry, orientation, and heat flux budget. When solid metal bases bottleneck heat spreading or mechanical layouts force remote fin placement, two-phase heat pipe assemblies deliver passive, long-term thermal control without the complexity of pumped liquid loops.
If you are evaluating thermal options for a new EV, data center, telecom, or industrial electronics platform, start by validating your boundary conditions with thermal simulation before locking in mechanical tooling. You can explore Kingka's heat pipe products. With over 16 years of thermal manufacturing experience under ISO 9001 and IATF 16949 standards, Kingka's engineering team can review your 3D CAD envelope, run CFD thermal simulations, and deliver DFM feedback and functional prototypes for your next project.
To move from concept to a manufacturable part, send us your power budget, enclosure keep-out zones, and airflow profile—Kingka's team will return a thermal proposal with DFM feedback, realistic lead times, and unit pricing.
A properly sealed copper-water heat pipe thermal system operates reliably for over 10 to 20 years because it contains no moving mechanical parts or degrading elastomeric seals. Lifespan depends primarily on maintaining internal chemical purity to prevent non-condensable gas generation and protecting the exterior metal housing from corrosive environments.
Yes, a heat pipe can operate with the heat source positioned above the cooling fins if it uses a sintered copper powder wick designed with sufficient capillary suction pressure. However, operating against gravity reduces maximum heat transport capacity, so engineers must share exact tilt angles during the thermal simulation phase to size the pipes properly.
Standard round heat pipes can be bent to a minimum centerline radius of roughly three times the pipe outer diameter and flattened to about 50% to 60% of their original thickness. Tighter bends or thinner flattening profiles risk cracking the internal sintered wick and constricting vapor flow, which lowers maximum wattage capacity.
Choose a heat pipe assembly when you need to transport heat directionally from a heat source to a remote fin stack or route around PCB obstacles at a lower tooling cost. Choose a vapor chamber when vertical height is tightly constrained and high heat flux must spread evenly across a wide two-dimensional baseplate directly beneath the component.
When deionized water inside a heat pipe freezes, it cannot transfer heat via phase change until the evaporator warms the ice above 0°C, and repeated freeze-thaw expansion can deform poorly designed tubes. For sub-zero outdoor or automotive applications, manufacturers control fluid fill ratios, adjust wick geometry, or switch to lower-freezing-point fluids.
The sealed heat pipes themselves require zero maintenance over their operational service life. System-level maintenance is limited to periodic dust cleaning of the exterior cooling fins in open-air environments and inspecting chassis cooling fans if the system relies on forced convection.
