Deciding on a heat pipe vs heat sink architecture comes down to whether bulk metal conduction can spread your thermal load fast enough without breaking your enclosure weight, airflow, or BOM budget. A solid aluminum extrusion or skived copper sink is the most economical choice when heat flux is moderate and cooling fins sit directly over the chip. However, when concentrated wattage creates a severe baseplate hot spot or mechanical obstacles force remote fin placement, embedding two-phase heat pipes becomes mandatory to prevent thermal throttling. For a broader overview of complete module integration, see our heat pipe system guide.
Table of Contents

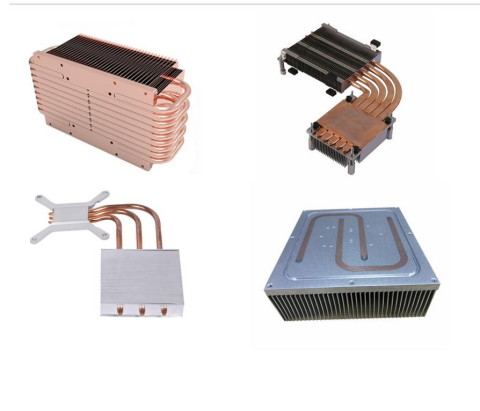

Heat pipe thermal modules: tower, bent-tube and embedded-baseplate designs.
In B2B procurement, evaluating a heat pipe vs heatsink does not mean choosing between two mutually exclusive components—it means deciding between a single-piece solid metal conductor and a hybrid two-phase thermal assembly.
A heat pipe does not dissipate heat into ambient air on its own; it is a sealed passive heat transport conduit. In real electronic enclosures, heat pipes are soldered or epoxied into a metal mounting block at the heat source and bonded to a fin stack at the cooling end. When engineers debate this trade-off during design reviews, they are actually comparing two distinct bill-of-materials (BOM) paths:
· Solid Metal Heat Sink: A monolithic aluminum extrusion, die-casting, cold forging, or skived copper block that relies strictly on solid thermal conduction to move heat from the base into the fins.
· Heat Pipe Thermal Assembly: A composite module that uses sealed copper-water phase-change tubes to rapidly transport heat from the silicon contact pad across wide fin arrays or around board keep-out zones.
Understanding this distinction prevents a common procurement error: trying to price raw heat pipes separately from the CNC-machined pedestals and stamped zipper fins required to make them work.

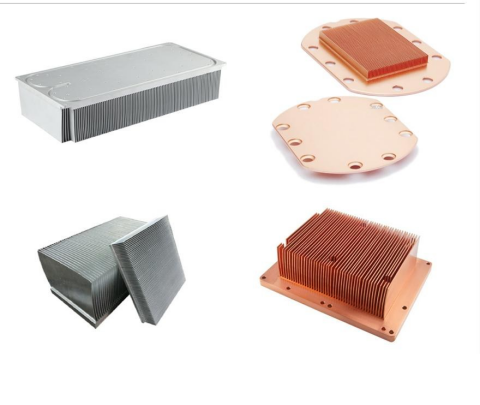

Skived fin heat sinks in aluminum and copper with dense, seamless fins.
The core reason high-power designs outgrow solid heat sinks is baseplate spreading resistance (R_spread), which dominates total heat pipe thermal resistance budgets whenever a small die dumps high heat flux into a wide footprint.
In a solid aluminum or copper baseplate, thermal energy moves via sensible conduction. As heat spreads outward from a small semiconductor package toward the outer perimeter fins, it encounters significant bulk material resistance. The fins sitting directly above the chip run hot, while the outer fins sit relatively cool and underutilized. Making the solid copper base thicker reduces spreading resistance marginally, but adds excessive mass and material cost.
By embedding phase-change tubes directly into the baseplate, you replace slow metal conduction with rapid latent vapor transport. If you need a refresher on the internal capillary and vapor physics, review our breakdown of how heat pipes work.
When calculating total junction-to-ambient thermal resistance (R_th, j-a), engineers look at three serial bottlenecks after heat crosses the TIM (thermal interface material, a compliant layer that fills microscopic surface voids between the chip and baseplate):
· Conduction & Spreading Resistance: In solid aluminum or copper, moving heat laterally beyond a few centimeters creates a steep temperature gradient (ΔT). Heat pipes maintain a nearly isothermal profile along their length, feeding perimeter fins at almost the same temperature as center fins.
· Fin-to-Air Convection Resistance: Because a heat pipe assembly keeps the entire fin array uniformly warm, every square centimeter of fin surface exchanges heat efficiently with the air stream.
· Airflow & Fan Power Savings: Higher overall fin efficiency allows system architects to hit target junction temperatures using lower fan speeds, cutting chassis acoustic noise and parasitic board power.
Conducting an objective heat pipe heat sink comparison requires evaluating thermal spreading, transport distance, mechanical mass, and orientation sensitivity side by side.
Engineering teams frequently over-specify expensive cooling hardware when a skived copper sink would suffice, or under-specify an extrusion that fails during full-load chamber testing. Use the matrix below to benchmark how each architecture behaves inside a real enclosure.
Evaluation Parameter | Solid Aluminum Extrusion | Skived Copper Heat Sink | Heat Pipe Assembly |
Effective Thermal Conductivity | Low bulk conduction | Moderate bulk conduction | Very high axial vapor transport |
Lateral Spreading Distance | Short; drops off past 30 mm | Moderate; drops off past 50 mm | Long; transports 100 mm to 300+ mm |
Assembly Weight | Lightweight | Heavy; high structural mass | Moderate; uses thin aluminum fins |
Gravity Tilt Sensitivity | Zero orientation sensitivity | Zero orientation sensitivity | Moderate; requires sintered wick |
Fin Placement Flexibility | Must sit directly over chip | Must sit directly over chip | Routes around PCB obstacles |
While a heat pipe assembly outperforms solid metal in lateral spreading and remote transport, it introduces two physical constraints that solid metal ignores:
· Gravity Vector Limits: A solid aluminum or copper block performs identically upside down, sideways, or under high G-loads. A heat pipe operating with its evaporator positioned above its condenser must rely on a high-capillary sintered copper powder wick to pull liquid uphill against gravity.
· Geometric Bend Derating: Every time a heat pipe bends around a capacitor or flattens to fit a low Z-height, its maximum wattage capacity drops. To calculate exact derating margins for your layout, consult our heat pipe sizing guide.
In compact 1U servers, EV traction inverters, and tower-mounted 5G radios, mechanical keep-out zones and PCB shock limits dictate thermal architecture just as much as wattage.
When a high-flux processor sits underneath a daughterboard, power supply overhang, or tall connector bank, you cannot place a tall solid fin stack directly over the socket. A solid heat sink trimmed down to clear a low vertical ceiling lacks the fin surface area required to reject the heat.
A heat pipe assembly decouples the heat pickup block from the heat rejection fins. You can clamp a low-profile CNC-machined copper pedestal over the silicon, route flattened copper heat pipes horizontally through a narrow channel, and terminate them into a tall, high-density zipper-fin stack positioned directly in front of the chassis intake fans.
Attempting to cool a high-wattage module with a large solid copper skived or forged sink often creates a mechanical reliability failure before it solves the thermal problem:
· PCB Flex and Solder Ball Cracking: A heavy solid copper block cantilevered over a BGA (ball grid array) processor amplifies shock and vibration forces during shipping or automotive operation, cracking solder joints.
· Hybrid Weight Optimization: A heat pipe assembly uses copper only where it matters—in the thin-walled phase-change tubes and small contact pad—while using lightweight stamped aluminum zipper fins for the bulk of the surface area. This cuts total module mass by 30% to 50% compared to solid copper while delivering superior spreading.
Evaluating heat sink vs heat pipe cost requires looking beyond unit piece price and accounting for non-recurring engineering (NRE) tooling fees, chassis fan savings, and volume scaling curves.
Procurement managers naturally prefer the low piece price of a raw aluminum extrusion. However, once a solid sink requires complex 5-axis CNC machining, solid copper stock, or higher-CFM chassis fans to keep temperatures in check, a custom heat pipe assembly frequently delivers a lower total system cost.
Cost & Sourcing Factor | Extruded / Machined Aluminum | Skived Solid Copper Sink | Custom Heat Pipe Assembly |
Upfront Tooling NRE | Low extrusion die cost | Zero die cost; CNC program only | Moderate bending and stamping dies |
Raw Material BOM Cost | Lowest commodity metal cost | High; sensitive to copper market | Moderate; blends copper and aluminum |
Prototype Lead Time | 1 to 2 weeks via CNC machining | 2 weeks via CNC and skiving | 2 to 3 weeks with soft fixtures |
High-Volume Unit Price | Lowest per-unit cost | High due to raw copper weight | Competitive watt-per-dollar ratio |
Understanding how manufacturing processes drive unit pricing helps you justify the right architecture to finance and management:
· Low-to-Medium Wattage (Simple Enclosures): Aluminum extrusions or CNC-machined plates win on both NRE and unit cost. There is no commercial reason to pay for phase-change tubes if bulk aluminum keeps junction temperatures within margin.
· High-Flux Local Hot Spots (Moderate Volume): Skived copper sinks eliminate hard tooling NRE, making them attractive for low-volume industrial builds. However, as copper weight increases, commodity metal prices push the unit cost above that of a hybrid heat-pipe-plus-aluminum-fin assembly.
· High-Density or Remote Airflow Designs: While a custom heat pipe module involves multi-step assembly (tube sintering, bending, CNC base milling, and solder reflow), it eliminates the need for expensive high-static-pressure fans or pumped liquid loops. You can see how vertically integrated factories control these multi-step costs in our guide to heat pipe manufacturing.
Knowing exactly when to use a heat pipe saves engineering teams from two costly traps: over-designing a simple board or pushing a solid block past its physical conduction limits.
Apply these concrete engineering and procurement thresholds during your concept architecture review:
· Heat Flux Is Uniform and Moderate: Heat spreads evenly across a large package footprint without creating a concentrated hot spot directly under the center of the baseplate.
· Airflow Sits Directly Overhead: You have ample vertical Z-height directly above the heat source to mount straight extruded or skived fins in the primary airstream.
· Strict Ultra-Low BOM Targets Apply: The application is a cost-sensitive module where an off-the-shelf extrusion or simple CNC part meets thermal margins without fan over-speeding.
· Extreme G-Force or Spinning Environments: The device operates on rotating machinery or high-G aerospace vectors where capillary wick return would be overwhelmed.
· Baseplate Spreading ΔT Exceeds 8°C–10°C: Thermal simulation shows a steep temperature drop between the center of your solid baseplate and the outer perimeter fins.
· Enclosure Geometry Blocks Overhead Fins: Vertical height over the chip is restricted, forcing you to transport heat laterally 50 mm to 250 mm to reach an open fan channel or external chassis wall.
· Solid Copper Exceeds Shock and Weight Budgets: Passing MIL-STD or automotive vibration testing requires cutting assembly weight while maintaining copper-level thermal performance.
· Multiple Heat Sources Share One Fin Stack: You need to collect heat from several staggered components on a PCB and consolidate that energy into a single shared cooling array.
The smartest way to avoid biased engineering advice is to partner with a vertically integrated manufacturer that produces extruded, skived, and CNC-machined heat sinks alongside custom heat pipe assemblies under one roof.
If you send your thermal specs to a job shop that only owns aluminum extrusion presses, they will try to force an oversized extrusion into your chassis. Conversely, a broker that only sells heat pipes may talk you into a complex multi-pipe module when a simple skived copper sink with an embedded pipe would cost 30% less.
When auditing suppliers for your thermal RFQ, verify three operational capabilities:
· In-House Machining and Fin Forming Variety: A manufacturer equipped with 50+ CNC machines, skiving lines, friction stir welding (FSW), vacuum brazing, and reflow soldering ovens (such as Kingka, operating under ISO 9001 and IATF 16949 certifications) can objectively quote a solid sink against a heat pipe assembly using real factory cycle times.
· Side-by-Side CFD Thermal Simulation: Ask the supplier's thermal engineering team to run a quick CFD (computational fluid dynamics) comparison modeling a solid skived or extruded sink against a 2-pipe or 4-pipe assembly inside your exact airflow envelope.
· 100% ΔT Screening on Phase-Change Builds: If the simulation proves that heat pipes are necessary, confirm that the factory enforces a 4-stage inspection workflow including 100% thermal performance screening on every pipe and finished module to prevent vacuum leaks or solder voiding. You can explore our complete range of manufactured assemblies on Kingka's heat pipe products page.
Resolving the heat pipe vs heat sink decision is a matter of matching your chip's heat flux density and mechanical keep-out zones against total BOM and tooling costs. Solid aluminum extrusions and skived copper sinks remain the right commercial call when heat loads are uniform, vertical clearance is generous, and bulk conduction keeps baseplate gradients low.
Once concentrated power creates a spreading bottleneck, adds unacceptable copper weight, or requires routing heat to a remote airflow channel, a custom heat pipe assembly delivers the thermal margin you need without the cost and maintenance of active liquid cooling.
If you are weighing whether your current board layout can get by with a solid skived or machined sink or genuinely requires an embedded heat pipe assembly, send your 3D STEP file, chip wattage, and airflow specs to Kingka's engineering team. We will run a free side-by-side CFD simulation and DFM cost comparison so you can confirm the most economical, manufacturable architecture before you commit to prototype tooling.
Yes, combining heat pipes with a standard aluminum extrusion or skived copper fin stack is one of the most cost-effective hybrid designs in B2B cooling. The manufacturer mills precision ball-end grooves into the solid baseplate and solders or epoxies flattened heat pipes directly underneath the heat source to eliminate spreading bottlenecks without paying for custom zipper-fin stamping dies.
At the prototype and low-volume stage, a custom heat pipe assembly typically costs 25% to 60% more than a simple aluminum extrusion due to bending fixtures and solder reflow steps. However, when compared against a heavy solid copper heat sink in medium-to-high production volumes, a heat pipe assembly with lightweight aluminum fins often costs the same or less because it drastically reduces raw copper weight.
Over very short axial distances (under 20 mm to 30 mm), a solid oxygen-free copper pedestal conducts heat almost as effectively as a heat pipe because the heat pipe incurs radial thermal resistance across its tube wall and wick. Once heat must spread laterally across a wide base or travel beyond 40 mm to reach cooling fins, a heat pipe outperforms solid copper by several orders of magnitude.
No, a properly manufactured copper-water heat pipe assembly is a completely passive, hermetically sealed device with a service life exceeding 10 to 20 years. As long as your supplier uses high-purity degassed materials and performs 100% ΔT thermal screening to prevent non-condensable gas generation, a heat pipe assembly matches the long-term field reliability of a solid metal sink.
Move from heat pipes to a two-dimensional vapor chamber when vertical Z-height is tightly restricted and high heat flux must spread evenly across a wide, flat baseplate directly under the chip. Move to an active pumped liquid cold plate only when total rack or enclosure wattage exceeds what ambient chassis airflow can physically reject from the room.
To get an accurate side-by-side thermal simulation and cost comparison, provide your 3D mechanical envelope (STEP file), heat dissipation (Watts) per component, exact chip contact footprint, maximum allowable case or junction temperature, available fan curve or air velocity, mounting orientation relative to gravity, and target annual volume.
