How Does a Heat Pipe Work? A Buyer-Focused Guide to Two-Phase Cooling

When solid aluminum or copper heat sinks can no longer keep your silicon below its thermal throttling limit, you have to evaluate how does a heat pipe work—not as a physics curiosity, but as a sourced component that must survive field conditions and hit your BOM target. A heat pipe moves concentrated heat via a passive liquid-to-vapor phase-change cycle inside a vacuum-sealed metal tube, delivering massive thermal transport without mechanical pumps. Understanding the internal wick, fluid, and vacuum specs prevents costly over-engineering or field dry-out. For full module architectures, see our heat pipe system guide.

1. Why Two-Phase Heat Transfer Outperforms Solid Metal in Tight Enclosures

Switching from bulk metal conduction to two-phase heat transfer is a commercial decision to reduce enclosure weight, avoid fan power penalties, and eliminate hot spots under dense chips.

In a standard extruded or machined heat sink, thermal energy travels by sensible conduction. Moving higher wattage across a baseplate requires either thicker copper—which inflates material cost and fails shock/vibration limits—or accepts a steep temperature drop (ΔT) between the chip and the perimeter fins. When your baseplate spreading resistance consumes most of your thermal budget, adding bigger fans only wastes power and breaches acoustic limits.

A heat pipe bypasses bulk metal resistance by absorbing thermal energy as latent heat of vaporization. Because the internal vapor travels down the hollow tube core driven by a tiny pressure differential, the pipe acts as a nearly isothermal bridge between a cramped processor socket and a remote fin array. If you are weighing whether your wattage density justifies two-phase tooling over a single-piece extrusion, review our commercial breakdown of heat pipes vs. heat sinks.

1.1 Sensible Conduction vs Latent Phase Change in BOM Planning

From a procurement and systems engineering perspective, the heat pipe working principle changes how you allocate space and budget:

· Weight and Structural Savings: Replacing a thick solid copper baseplate with a thin aluminum frame embedded with copper heat pipes cuts assembly weight while improving thermal spreading.

· Flexible Fin Placement: Solid conduction forces you to put the fin stack directly above the heat source. Phase-change vapor transport lets you route heat around PCB capacitors or housing ribs into an unobstructed airflow channel.

· Zero Active Maintenance: Unlike pumped liquid loops that require manifolds, seals, and service intervals, a hermetically sealed heat pipe operates passively for the life of the electronics.

2. Inside the Vacuum Seal: How Sub-Atmospheric Boiling Saves Your Thermal Budget

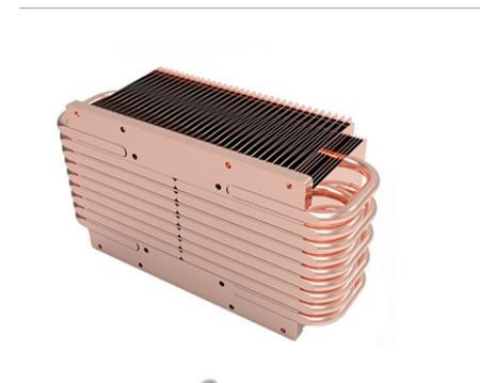

Copper heat pipe tower: evaporator base, wick-lined tubes and a finned condenser stack.

A heat pipe boils liquid at low electronic operating temperatures because the tube is evacuated to a partial vacuum before sealing, matching the fluid's saturation pressure to your chip's thermal margin.

Buyers evaluating water-charged copper heat pipes often ask how water can evaporate when the component case limit sits at 70°C or 85°C, well below the 100°C atmospheric boiling point. If the tube contained normal air at sea-level pressure, the working fluid would remain stagnant liquid until the silicon suffered permanent thermal damage.

During manufacturing, high-vacuum pumping systems evacuate non-condensable air from the metal envelope before charging the metered working fluid. Once hermetically sealed, the internal cavity contains only liquid and its own vapor in thermodynamic equilibrium.

2.1 Why Vacuum Integrity Dictates Supplier Selection

Because the boiling threshold depends entirely on internal saturation pressure, factory vacuum control is the single biggest differentiator between a reliable industrial vendor and a low-grade shop:

· Automatic Load Tracking: In a pure vacuum envelope, internal vapor pressure adjusts automatically along the saturation curve as component power rises or falls, maintaining low thermal resistance across varying workloads.

· Cold Dead Zones from Poor Degassing: If a supplier rushes the vacuum degassing cycle, residual air gets swept to the far end of the condenser by flowing vapor. This trapped gas blocks condensation and shortens the effective cooling length of the pipe you paid for.

· Weld Seal Verification: Ultrasonic weld seams must pass strict helium leak or thermal aging checks so atmospheric air never seeps in over multi-year field deployments.

3. Specifying the Heat Pipe Evaporator and Condenser Zones

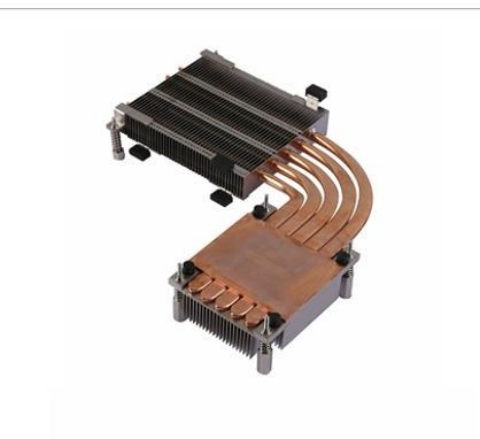

Bent copper heat pipes routing heat from a component block to a remote finned condenser.

Every heat pipe phase change loop operates across three continuous functional regions—and how you mechanically interface with the heat pipe evaporator and condenser directly determines your assembly's total thermal resistance.

A heat pipe is not an isolated superconductor; it is a radial and axial thermal network. Heat must cross the outer mounting block, conduct through the copper tube wall and saturated wick in the evaporator, travel axially as vapor through the adiabatic transport zone, and conduct radially outward through the condenser wall into your cooling fins.



3.1 Minimizing Radial Interface Resistance at Both Ends

Because axial vapor flow down the center core has almost zero thermal resistance, the real bottlenecks happen radially where heat enters and exits the pipe wall:

· Direct Contact vs Pedestal Base: Milling precision grooves into a copper pedestal and soldering flattened pipes into the base distributes concentrated die flux before it hits the evaporator wall, preventing localized boiling lockup.

· Condenser Fin Bonding: Simply pressing aluminum fins onto a pipe leaves microscopic air gaps. Specifying solder reflow through nickel-plated zipper fins lowers contact resistance and prevents loosening under vibration.

Not sure if your evaporator contact area or fin stack length is balanced? Share your heat source footprint and airflow limits with Kingka early in layout. Our thermal engineers will run a free CFD simulation to optimize your evaporator-to-condenser ratio before you freeze your PCB keep-out zones.

4. Selecting the Right Heat Pipe Wick Structure for Your Mounting Orientation

The internal heat pipe wick structure is the passive capillary pump that returns condensed liquid to the heat source, making wick specification the primary driver of orientation tolerance and unit cost.

If you specify a generic heat pipe on a drawing without calling out the internal wick architecture—or without telling the supplier how the enclosure mounts relative to gravity—you risk catastrophic dry-out the moment an end user tilts or wall-mounts the equipment. As liquid evaporates at the heat source, the meniscus recedes into the tiny pores of the wick, creating surface tension curvature that pulls condensed liquid back from the cooler end.



4.1 Buyer Decision Rules for Wick Specification

When reviewing supplier quotes, match the internal wick to your physical deployment conditions:

· Sintered copper powder wicks are suitable for almost all high-flux B2B electronics because their micron-scale interconnected pores generate strong capillary suction against gravity and handle higher radial heat flux before boiling dry.

· Axial grooved wicks are only appropriate when the equipment is permanently bolted in a horizontal orientation or tilted so gravity pulls condensed liquid downhill back into the evaporator.

· Composite wicks are worth the custom NRE investment when you must move high wattage across long transport runs where standard sintered powder creates too much liquid flow resistance.

5. Matching Working Fluids and Tube Metals to Prevent Field Degradation

Long-term reliability requires strict chemical compatibility between the outer metal envelope and the internal working fluid so the assembly never generates non-condensable gas (NCG).

You cannot arbitrarily pair any liquid with an aluminum or copper housing. When an incompatible fluid reacts with the inner metal wall—or when a supplier uses low-purity recycled copper or uncleaned water—a slow chemical reaction generates hydrogen or other non-condensable gases inside the sealed vacuum. Over several months of operation, the flowing vapor pushes this gas into the condenser end, creating an expanding dead zone that permanently degrades cooling capacity and triggers warranty returns.



5.1 Why Oxygen-Free Copper and Water Dominate Commercial RFQs

For electronics operating between 5°C and 150°C, oxygen-free copper paired with high-purity deionized water offers the highest thermal performance per dollar. Water combines a high latent heat of vaporization with strong surface tension, which maximizes both the wattage carried per gram of vapor and the capillary pumping force inside a sintered wick.

If your equipment must start up under heavy load at -40°C in outdoor 5G towers or electric vehicles, your supplier must carefully meter the water fill ratio and wick porosity—or propose a methanol blend—so freezing expansion never ruptures the copper wall. You can see how material passivation and vacuum charging prevent NCG failures in our guide to heat pipe manufacturing.

6. Navigating Internal Transport Limits and Geometry Derating

Understanding how does a heat pipe work under real mechanical constraints means sizing your pipes around five physical transport limits and derating for every bend and flat section.

A major pitfall in procurement is picking a heat pipe diameter solely from a catalog wattage chart. Catalog ratings assume a straight, round pipe tested horizontally in optimal ambient conditions. In a real 1U server or sealed inverter housing, bending the pipe around mounting bosses and flattening it under a low-profile pedestal reduces its maximum heat transport capacity (Q_max).

For detailed diameter charts, bend radius formulas, and wattage derating tables, consult our heat pipe sizing guide.

6.1 The Five Physical Boundaries That Cause Thermal Runaway

Your supplier's thermal simulation must keep your peak operating wattage safely below five internal limits:

1. Capillary Limit: The wick cannot pump condensed liquid back fast enough to match evaporation, causing instant evaporator dry-out.

2. Boiling Limit: High concentrated heat flux under a small silicon die triggers nucleate boiling inside the wick pores, trapping vapor bubbles against the wall and blocking liquid return.

3. Sonic Limit: Vapor leaving the evaporator during rapid cold startups reachessonic velocity, choking mass flow and creating a high temperature gradient.

4. Entrainment Limit: High-speed counter-flowing vapor shears liquid droplets out of the wick surface, starving the evaporator.

5. Viscous Limit: At very low startup temperatures, vapor viscosity prevents pressure differentials from driving axial flow down the core.

6.2 Mechanical Derating Rules for 3D CAD Layouts

Before sending a 3D STEP file out for quotation, apply three practical geometry rules:

· Keep Centerline Bend Radii ≥ 3× Pipe Diameter: Tighter bends stretch the outer wall, crack the internal sintered powder layer, and add vapor pressure drop per 90-degree turn.

· Limit Flattening to 50%–60% of Original Diameter: Flattening a round pipe widens the flat contact area over a chip, but crushing it too thin constricts the central vapor channel and triggers sonic or entrainment limits.

· Account for Adverse Gravity Tilt: Every degree the evaporator sits above the condenser adds hydrostatic head pressure that the sintered wick must overcome, requiring larger pipe diameters or extra parallel pipes.

7. Real Cost Drivers and DFM Levers in Custom Heat Pipe Assemblies

Controlling the unit price and lead time of a custom heat pipe assembly depends on aligning your mechanical tolerances with standard tube diameters and vertically integrated secondary machining.

When procurement teams see high quotes or long lead times on a custom thermal module, the cost rarely comes from the copper heat pipes themselves. Instead, cost overruns come from non-standard raw tube sizes, overly tight flatness tolerances on non-critical surfaces, or fragmented sub-tier supply chains where one shop makes the pipes, a second machines the CNC base, and a third solders the fins.

7.1 Four Practical DFM Levers to Lower Your Unit Cost

Involving a manufacturer's engineering team before locking your mechanical print lets you pull several cost-reduction levers:

· Design Around Standard Outer Diameters: Sticking to stocked 6 mm, 8 mm, or 10 mm copper tubing eliminates custom tube-drawing MOQs and shaves weeks off prototype lead times.

· Match Fin Technology to Annual Volume: Skived copper or aluminum fins require zero hard tooling NRE and are cost-effective for low-to-medium production runs. Stamped zipper fins lower piece price at high volume once progressive die tooling is amortized.

· Apply Tight Flatness Only to Active Die Zones: Specifying tight coplanarity across an entire chassis plate requires slow post-soldering CNC fly-cutting. Restrict tight flatness callouts to the immediate pedestal contact pad.

· Consolidate Secondary Machining Under One Roof: Sourcing from a partner with in-house CNC machining, skiving, friction stir welding (FSW), and vacuum brazing eliminates vendor markups and tolerance stack-up between pipe grooves and mounting blocks.

8. What to Ask Your Supplier Before Sending an RFQ

Qualifying the right manufacturing partner requires auditing how they verify internal vacuum integrity, control solder voiding, and simulate thermal margins before cutting metal.

Because two heat pipes can look identical on the outside while having completely different internal sintered porosity or gas contamination levels, procurement cannot rely on dimensional inspection alone. You need a supplier with documented process controls and in-house thermal verification.

8.1 Supplier Qualification and RFQ Readiness Checklist

When auditing potential vendors and preparing your technical data package, verify these capabilities:

· 100% ΔT Thermal Screening: Does the factory test every single heat pipe and finished assembly across a heated fixture to catch vacuum leaks or wick dry-out, or do they only run random batch sampling? (At Kingka, every unit passes a mandatory 4-stage inspection workflow including 100% thermal performance screening under ISO 9001 and IATF 16949 quality systems.)

· Upfront CFD and DFM Engineering Support: Can the supplier take your heat source wattage, ambient airflow curve, and 3D envelope to run computational fluid dynamics (CFD) simulations before you pay for prototype tooling?

· In-House Machining Scale: Does the vendor own the CNC capacity (such as Kingka's 50+ CNC machines) to mill mounting blocks and soldering fixtures internally, ensuring rapid prototype turnaround?

· Complete RFQ Input Package: To get an accurate quote fast, provide your 3D STEP model, heat dissipation (W) per chip, maximum allowable case temperature (T_case), airflow rate or fan curve, mounting orientation relative to gravity, and target annual volume.

9. Conclusion

Understanding how does a heat pipe work gives engineers and buyers direct control over thermal margin, enclosure weight, and assembly cost. By leveraging sub-atmospheric phase change and sintered capillary wicks, a custom heat pipe assembly moves intense heat loads from cramped silicon footprints to remote cooling fins without moving parts. The key to a successful commercial program is matching internal wick and fluid specs to your mounting orientation, avoiding severe bend or flattening derating, and partnering early with a vertically integrated manufacturer that enforces 100% thermal screening.

To see how raw phase-change tubes are integrated into precision-machined bases, skived sinks, and zipper-fin modules, explore Kingka's heat pipe products.

If you have a high-heat-flux design that needs validation, send your thermal specs and 3D STEP files and we'll run a free DFM review and CFD thermal analysis before you commit to tooling. With 16+ years of thermal manufacturing, 50+ in-house CNC machines, and ISO 9001 plus IATF 16949, Kingka can also quote a build-to-print volume program.

For a broader, application-by-application view of where two-phase cooling is used, explore our heat pipe applications overview.

Frequently Asked Questions

Does the working fluid inside a heat pipe ever run out or need maintenance?

No, the working fluid inside a hermetically sealed heat pipe never runs out or requires maintenance over its 10-to-20-year operational lifespan. As long as the manufacturer uses high-purity oxygen-free copper, properly degassed deionized water, and verified ultrasonic welds, the liquid continuously evaporates and condenses in a closed loop without mass loss.

Why should I specify a sintered powder wick instead of a grooved wick?

You should specify a sintered copper powder wick whenever your equipment may be mounted vertically, tilted, or subjected to mobile shock and vibration. Sintered wicks generate strong capillary suction capable of pulling condensed liquid uphill against gravity, whereas axial grooved wicks lose capacity rapidly when tilted against gravity.

How much does bending or flattening a heat pipe affect its cost and performance?

Simple 2D bends and standard flattening ratios (maintaining 50% to 60% of original diameter and a bend radius at least three times the pipe diameter) add minimal unit cost when formed in dedicated CNC fixtures. However, tight multi-axis bends or aggressive flattening constrict internal vapor flow and reduce wattage capacity, which may require adding an extra pipe to your assembly.

When is it more cost-effective to use heat pipes instead of a solid copper heat sink?

A heat pipe assembly becomes more cost-effective and lighter than solid copper as soon as concentrated heat must spread across a wide baseplate or travel more than a few centimeters to reach unobstructed airflow. Embedding copper heat pipes inside an aluminum base delivers superior thermal performance at a lower raw material weight and cost than machining a thick solid copper block.

How do manufacturers test heat pipes to prevent field failures?

Qualified manufacturers perform 100% thermal performance screening (ΔT testing) by applying a controlled heat load to the evaporator of every pipe and measuring the exact temperature differential to the condenser. Combined with elevated-temperature aging and helium leak checks, this screening catches vacuum loss, wick defects, or non-condensable gas before pipes are soldered into your assembly.

What information do I need to send a supplier to get an accurate heat pipe quote?

To get a fast, accurate quote and DFM review, send your 3D CAD file (STEP format) along with heat source wattage, chip footprint dimensions, maximum allowable case temperature, available airflow (CFM or fan curve), operating orientation relative to gravity, and estimated prototype and annual production volumes.
