When industrial motor drives, renewable energy inverters, and traction systems push insulated-gate bipolar transistors (IGBTs) and silicon-carbide (SiC) power modules past kilowatt switching loads, managing semiconductor junction temperatures becomes the primary barrier to reliability. Thick copper baseplates and standard aluminum extrusions often create severe spreading bottlenecks that trigger thermal throttling or solder fatigue. While direct liquid cold plates provide extreme cooling capacity, they add plumbing complexity and maintenance liability. Integrating heat pipes high power electronics cooling offers a passive, highly efficient thermal bridge that eliminates spreading resistance without introducing pump-driven fluid loops. For complete subsystem assemblies, review our heat pipe system guide.
1. Where High-Power Electronics Overheat: Junction, Case, and Baseplate
2. Heat Pipes vs Thick Baseplates vs Liquid Cold Plates
3. Power-Module Integration and Creepage-Clearance Rules
4. Thermal Derating, Sizing Rules, and Mechanical Tolerances
5. Reliability, High-Voltage Isolation, and Supplier Qualification
6. Conclusion

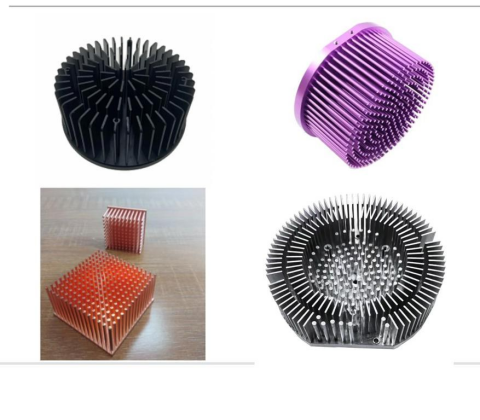

Cold forged pin-fin heat sinks for high-power electronics and multi-chip modules.
High-power switching modules concentrate immense electrical energy into tiny silicon or SiC chip dies, creating rapid thermal transients that test the limits of traditional conduction paths.
As switching frequencies and current densities rise in modern inverters, thermal energy must transfer efficiently from the semiconductor junction through the direct bonded copper (DBC) substrate, baseplate, and thermal interface material into the cooling fins. If spreading resistance across the baseplate is too high, the center of the power module runs significantly hotter than its edges, accelerating thermal fatigue across solder layers. To understand how internal phase-change cycles eliminate baseplate bottlenecks, examine how two-phase cooling works inside a heat pipe.
Failing to control junction-to-ambient thermal resistance (R_th, j-a) triggers immediate hardware penalties:
· Forward Voltage and Switching Loss Spikes: As semiconductor chip temperatures climb, on-state voltage drop and switching losses increase, creating a self-heating feedback loop.
· Solder Joint Delamination: Repeated thermal cycling across uneven baseplate temperature gradients causes thermo-mechanical shear stress, eventually cracking solder joints beneath the DBC substrate.
· Premature Field Failures: Exceeding maximum rated junction temperatures (T_j, max) causes catastrophic semiconductor breakdown and costly warranty recalls.
Evaluating heat pipe power module cooling against thick copper baseplates and liquid cold plates requires balancing thermal performance, weight limits, insulation requirements, and system cost.
Power electronics design engineers must decide whether bulk metal conduction is sufficient or if two-phase vapor transport is necessary to meet junction targets. For a foundational comparison of phase-change transport versus solid conduction, see our analysis of heat pipes vs heat sinks.
Cooling Technology | Thermal Performance Limits | Mechanical Complexity & Leak Risk | Weight & Enclosure Penalty | Best Power Electronics Application Fit |
Thick Copper Baseplate | Moderate; limited by bulk conduction | Zero complexity; simple single metal part | Extremely heavy; prone to PCB flex | Low-to-moderate wattage industrial drives |
Heat Pipe Thermal Module | High; eliminates spreading resistance | Low; passive hermetically sealed assemblies | Moderate; uses lightweight aluminum fins | Renewable inverters, traction drives, and UPS |
Direct Liquid Cold Plate | Extreme heat rejection capacity | High; requires pumps, hoses, and manifolds | Heavy aluminum plates and fluid mass | Mega-watt wind converters and heavy traction |
While thick copper baseplates are mechanically simple, their excessive weight makes them vulnerable to vibration-induced mechanical failure in mobile and wind applications. Liquid cold plates provide powerful cooling but introduce potential coolant leak risks near high-voltage busbars. Heat pipe assemblies deliver high spreading efficiency and remote heat transport without liquid plumbing liability. For detailed sizing rules and geometry limits, consult our heat pipe sizing guide.
Integrating heat pipes into high-voltage power electronics assemblies requires strict adherence to electrical insulation, creepage, and clearance standards to prevent electrical arcing.
Unlike low-voltage computing hardware, industrial inverters and traction drives operate at hundreds or thousands of volts DC. Because standard copper heat pipes are electrically conductive, they cannot touch live module baseplates or busbars directly unless proper dielectric insulation barriers are implemented.
Successful high-voltage module integration relies on rigorous electrical and mechanical design:
· High-Dielectric Thermal Pads: Placing ceramic-filled silicone pads or alumina-filled polyimide films between the power module baseplate and the heat pipe mounting pedestal ensures electrical isolation while maintaining low thermal resistance.
· Creepage and Clearance Distances: Designing housing geometries that maintain required physical distance over insulating surfaces prevents high-voltage tracking and flashover.
When specifying a heat pipe assembly for an IGBT inverter, thermal engineers must account for maximum continuous wattage, peak overload surges, and adverse mounting orientations.
Power modules experience heavy transient loads during motor startup or regenerative braking. The heat pipe array must be sized not only for steady-state operation but to absorb sudden thermal spikes without exceeding the capillary dry-out limit or maximum junction temperature. Furthermore, matching the mounting block groove tolerances to flattened pipe dimensions ensures zero air voids.
When balancing BOM cost, weight limits, and thermal margins during preliminary design reviews, apply these practical decision rules:
· Thick copper baseplates are suitable when heat flux is moderate, transport distances are short, and total module weight is not restricted by structural limits.
· A heat pipe thermal system is the correct choice when concentrated IGBT heat must be spread across a wide enclosure or routed around high-voltage barriers to an exterior fin housing.
· Liquid cold plates should be reserved for ultra-high-power installations where ambient air cooling physically cannot reject the total kilowatt load from the cabinet.
If your IGBT junction temperature is creeping past its limit, forward your electrical datasheet and mechanical envelope so Kingka can spec a module to pull it back into range.
Sourcing thermal hardware for high-power industrial and renewable energy systems requires auditing the supplier's capacity to deliver tight machining tolerances, vacuum integrity, and rigorous quality screening under ISO 9001 and IATF 16949 standards.
Industrial power inverters often carry 10-to-20-year design life expectations in harsh outdoor environments. Qualified suppliers enforce a 4-stage inspection workflow, including 100% thermal performance screening (ΔT testing) to catch vacuum leaks and non-condensable gas defects before modules ship. You can examine our manufactured module capabilities on Kingka's heat pipe products page.
To get an accurate quote and CFD simulation report quickly, provide these parameters:
· Electrical Ratings: Module voltage, continuous operating current, and peak transient power (Watts).
· Thermal Targets: Maximum allowable semiconductor junction temperature (T_j) and ambient inlet temperature.
· Insulation Requirements: Dielectric withstand voltage (Hi-Pot) and required creepage/clearance specs.
· Volume Targets: Prototype quantities and annual production volumes.
Integrating heat pipes for high-power electronics cooling gives power electronics engineers and procurement teams a reliable, passive method to eliminate baseplate spreading resistance and control IGBT junction temperatures without the weight and leak risks of liquid plumbing. By enforcing strict dielectric isolation, applying proper sizing derating, and partnering with an ISO 9001-certified manufacturer for DFM and CFD validation, you ensure your power modules meet demanding industrial reliability standards.
Beyond power electronics, explore our overview of heat pipe use cases across ten industries.
Yes, heat pipes can be used safely near high-voltage modules by incorporating high-dielectric thermal interface pads, ceramic isolation sheets, or anodized aluminum mounting brackets that maintain required creepage and clearance distances while preserving thermal transfer.
Heat pipes eliminate baseplate spreading resistance by transporting thermal energy via phase change rather than bulk metal conduction, offering significantly lower thermal resistance and lighter assembly weight across wide power module footprints.
Industrial heat pipe failures are typically caused by unverified vacuum integrity, improper material pairing that generates non-condensable hydrogen gas, or exceeding the capillary wick limit during prolonged peak overload surges.
No, hermetically sealed heat pipes operate entirely passively with zero moving parts, requiring no fluid refills, pump replacements, or coolant maintenance over their 15-to-20-year operational design life.
Qualified manufacturers perform 100% thermal performance screening (ΔT testing) by applying a controlled heat load to the evaporator of every pipe and measuring the exact temperature differential to the condenser to catch vacuum leaks or wick defects.
To receive an accurate quote and CFD thermal simulation, provide your module 3D STEP files, continuous and peak wattage dissipation, maximum allowable junction temperature, dielectric isolation requirements, and target annual volume.
