Evaluating the heat pipe manufacturing process is one of the most critical steps a procurement engineer or quality lead can take before locking in a thermal supplier. Two heat pipes can look identical on a drawing, yet one may fail within months due to hydrogen gas generation from poor tube cleaning, while the other delivers decades of reliable cooling because of rigorous vacuum degassing and controlled wick sintering. Understanding how raw oxygen-free copper tubing transforms into a finished, vacuum-sealed thermal module helps you separate high-grade manufacturers from risky brokers. For an overview of how internal phase change drives these assemblies, review our guide on how heat pipes work. For the full system architecture, see our heat pipe thermal system guide.
Table of Contents
Every reliable heat pipe manufacturing workflow starts long before powder sintering, beginning with rigorous chemical cleaning of raw oxygen-free copper tubing.
During the extrusion and drawing of raw copper tubes, organic drawing lubricants, rolling oils, and microscopic metal oxides cling to the inner walls. If a factory skips thorough chemical cleaning or cuts corners with weak solvents, those residual hydrocarbons will react chemically with the working fluid at high operating temperatures, generating hydrogen gas. This gas forms an insulating bubble that ruins the vacuum and causes premature thermal failure. To understand how these NCG defects manifest in the field, consult our guide on heat pipe failure modes.
A certified production line subjects raw copper stock to an automated multi-stage wash:
· Degreasing Baths: Removes heavy surface oils using specialized alkaline or solvent solutions.
· Acid Pickling & Passivation: Strips surface copper oxides and passivates the metal lattice to inhibit future oxidation.
· Deionized Ultrasonic Rinsing: Ultrasonic agitation purges microscopic particulate matter from the interior surface, ensuring a pristine substrate for powder bonding.
After cleaning, the inner wall of the copper tube is lined with a porous capillary structure—most commonly sintered copper powder—which dictates the pipe's maximum heat transport limit.
During heat pipe sintering, graded copper spherical powder is poured around a central mandrel inserted into the tube, which is then fed through a controlled-atmosphere reducing furnace. High heat fuses the copper spheres to each other and to the inner tube wall without melting them completely, creating an interconnected network of microscopic pores.
Controlling furnace temperature profiles and conveyor speeds directly affects the finished wick's mechanical strength and capillary performance:
· Pore Size Uniformity: Maintaining consistent particle sizing ensures uniform capillary suction pressure across the entire length of the tube.
· Wick-to-Wall Adhesion: Inadequate sintering temperature causes wick delamination, cutting off liquid return and causing instant evaporator dry-out under load.

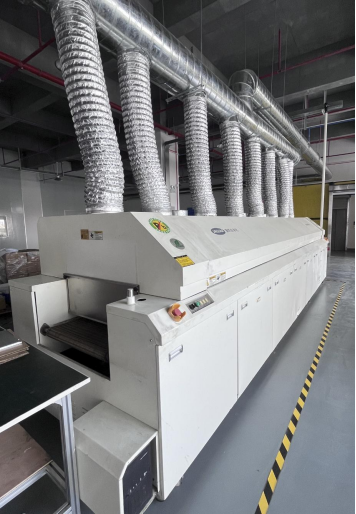

Continuous brazing and soldering line inside Kingka's manufacturing facility.
Once the wick is sintered and the tube is cut to length, it enters the most sensitive phase of how heat pipes are made: vacuum degassing, fluid charging, and hermetic sealing.
The tube is connected to a high-vacuum manifold, heated to drive off adsorbed moisture from the wick, and evacuated until non-condensable air is thoroughly purged. A precise, metered dose of high-purity deionized water is injected, and the open end of the copper tube is mechanically crushed and cold-welded or brazed shut in a pinch-off station.
Rushing the vacuum bakeout or using worn pinch-off dies leaves microscopic leak paths or trapped air:
· Helium Leak Verification: Every sealed pipe must undergo helium mass spectrometry to confirm that the seal exceeds strict vacuum retention standards.
· Charge Ratio Precision: Under-charging leaves dry spots in the evaporator, while over-charging floods the condenser and restricts active fin area.
Raw sintered and charged heat pipes are rigid straight cylinders that must be formed into custom 3D geometries to fit around board components and chassis ribs.
Using automated CNC bending machines and precision matched-die tooling, technicians bend and flatten the pipes to match mechanical CAD envelopes. However, improper tooling force can crush the internal vapor core or crack the sintered wick. For detailed engineering rules on bend radii and flattening limits, refer to our heat pipe sizing guide.
· Centerline Bend Radius: Keeping the radius at or above three times the pipe diameter (3× D) prevents wall wrinkling and wick micro-fractures.
· Controlled Flattening: Flattening pipes down to 50%–60% of original thickness maximizes base contact area without choking axial vapor flow.

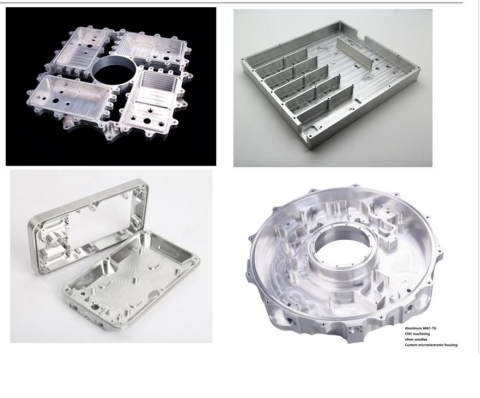

Precision CNC machined aluminum parts for thermal and structural assemblies.
An isolated heat pipe cannot cool a component until it is integrated into a complete thermal assembly, combining the pipes with a CNC-machined mounting base and fin stack.
The manufacturer mills precision grooves into an aluminum or copper pedestal, applies controlled solder paste or brazing foil, clamps the formed heat pipes and stamped or skived fins into alignment, and passes the entire module through a multi-zone reflow furnace or vacuum brazing oven.
Poor solder wetting or uneven clamping pressure creates air pockets between the heat pipe wall and the baseplate, spiking thermal resistance. Quality factories use automated paste dispensing and X-ray void inspection to guarantee seamless metal-to-metal thermal contact.
The final step in a rigorous manufacturing process is multi-stage quality verification before parts are packed for shipment.
Visual inspections and dimensional CMM checks only confirm mechanical form. To guarantee functional reliability, qualified manufacturers enforce 100% thermal performance screening (ΔT testing)—applying a controlled heat load to every finished assembly to verify that internal phase change operates within tight thermal resistance limits.
When you are ready to move from prototype to volume, Kingka's engineering team can walk you through tooling, lead-time and inspection trade-offs for your build. You can review our standard and custom module manufacturing capabilities on our custom heat pipe products page.
Mastering the heat pipe manufacturing process requires strict adherence to multi-stage chemical cleaning, controlled powder sintering, high-vacuum charging, precise CNC forming, and 100% thermal screening. By partnering with a vertically integrated manufacturer that controls every step under one roof—supported by 50+ CNC machines and ISO 9001 and IATF 16949 quality certifications—you eliminate supply chain finger-pointing and secure reliable thermal performance for your platform.
Chemical cleaning removes residual drawing oils and oxides that would otherwise react with the working fluid at operating temperatures to generate non-condensable hydrogen gas, which ruins the internal vacuum and causes thermal failure.
Sintering fuses copper spherical powder to the inner tube wall to create an interconnected porous wick structure that generates capillary pressure, allowing the heat pipe to pump condensed liquid back against gravity.
Manufacturers use high-vacuum helium mass spectrometer leak detectors to test finished seals, verifying that micro-leak rates remain well below acceptable thresholds before parts enter assembly.
Yes, sealed and charged heat pipes are routinely bent and flattened using dedicated CNC fixtures, provided the bend radius and flattening ratio stay within safe engineering limits to avoid damaging the internal wick.
Vacuum brazing joins aluminum fin stacks, baseplates, and heat pipes in a oxygen-free furnace at high temperatures, creating exceptionally strong, corrosion-resistant metallurgical bonds with zero flux residue.
Look for ISO 9001 certification for general industrial quality management, and IATF 16949 certification if you are sourcing thermal modules for automotive, electric vehicle, or mission-critical industrial applications.
