How to Evaluate Thermal Heat Sink Quality Before Mass Production

To evaluate thermal heat sink quality before mass production, OEMs must implement a multi-stage validation process that physically verifies material purity, micrometer-level dimensional flatness, and real-world thermal resistance to ensure the prototype's cooling performance scales consistently across thousands of units. A design that successfully cools a component in a laboratory environment can easily fail in the field if minor variations in manufacturing tolerances, surface treatments, or assembly processes are not strictly controlled during scaling.

For high-power electronics spanning AI servers, electric vehicle power systems, and industrial automation, thermal heat sink quality directly dictates system stability, component lifespan, and overall product reliability. Transitioning from a single functional prototype to high-volume custom heat sink production requires a strategic partnership with a professional thermal management solution provider capable of executing rigorous heat sink quality inspection and process control. Let us break down the critical evaluation stages required to secure a reliable thermal supply chain.

1. Material Verification: Ensuring Baseline Thermal Conductivity

The foundation of thermal heat sink quality begins with absolute verification of the raw base metal, as substituting a lower-grade alloy during mass production will immediately bottleneck heat transfer and cause catastrophic thermal throttling.

Before mass production begins, engineering teams must verify that the bulk material precisely matches the prototype specifications for thermal conductivity, mechanical density, and surface treatment compatibility to guarantee consistent heat dissipation. The selected material directly governs how rapidly thermal energy can be absorbed from the semiconductor and spread laterally across the heat sink base.

In custom thermal heat sink manufacturing, AL6061 aluminum is frequently utilized for its excellent balance of mechanical strength and thermal conductivity (approximately 167 W/m K), making it ideal for structural cooling components. When higher thermal performance is required, AL1070 provides better conductivity. For extreme high heat flux applications, C1100 copper (approximately 385 W/m K) is mandatory to prevent localized overheating.

Furthermore, material verification must include a strict assessment of surface treatments. Proper anodizing or nickel plating is critical for corrosion resistance. When specifying components for corrosive outdoor or industrial environments, engineering teams must verify that the aluminum thermal heat sink receives a minimum anodized layer of 15 microns. This uniform coating prevents long-term galvanic corrosion without acting as a thermal insulator.

Base Material and Surface Treatment Evaluation

2. Dimensional Accuracy: Validating Machining and Manufacturing Consistency

A production-ready heat sink must maintain exceptionally tight dimensional tolerances, as even microscopic deviations across thousands of units will exponentially increase thermal interface resistance and cause catastrophic assembly failures.

Effective heat sink manufacturing quality control requires rigorous micrometer-level inspection of the base surface flatness, fin spacing consistency, and mounting hole accuracy to ensure perfect physical contact with the heat source. Dimensional accuracy is arguably the most critical physical metric during heat sink prototype validation.

The base of the heat sink must make flush, intimate contact with the semiconductor component. If the CNC machining tolerances drift during mass production and the base becomes slightly concave or convex, microscopic air gaps will form. Because air is a highly effective thermal insulator, assembly technicians will be forced to apply excessively thick layers of Thermal Interface Material (TIM) to bridge the gap, completely negating the benefits of an optimized fin design.

During the first article inspection, the contact area surface flatness must be rigorously measured. If the flatness deviates by more than 0.05 millimeters per 100 millimeters of length, the mass production run must be paused until the CNC face-milling process is recalibrated. Proceeding with such a deviation fatally compromises thermal transfer. Additionally, inconsistent fin spacing or fin thickness across production batches will alter the aerodynamic pressure drop, leading to unpredictable airflow distribution and localized hot spots.

3. Thermal Performance Validation: Moving Beyond Theoretical Data

Theoretical thermal simulations provide a strong baseline during the design phase, but they cannot account for real-world manufacturing variables, assembly imperfections, or unpredictable airflow turbulence within a crowded mechanical enclosure.

Proper heat sink thermal performance testing requires physical validation of the final production samples under maximum expected operating power and realistic ambient airflow conditions to confirm the true thermal resistance of the system.

During heat sink design verification, engineers must place the production-grade heat sink in a controlled thermal chamber that mimics the final product's internal environment. Thermocouples must be strategically placed at the heat source junction, the heat sink base, and the fin tips to map the exact temperature distribution. This validates the heat dissipation capability and ensures the selected thermal interface material performs correctly under actual clamping pressure.

Physical thermal resistance testing serves as the ultimate benchmark. If empirical testing yields a temperature delta that is more than 5 percent higher than the initial Computational Fluid Dynamics (CFD) simulation results, engineers must investigate and correct structural assembly flaws or TIM application methods before authorizing full-scale mass production.

4. Manufacturing Process Evaluation: Matching Structure to Production Scale

Different thermal geometries require vastly different manufacturing methods, and a process that successfully yields ten prototypes might be financially ruinous or technically unstable when scaled to ten thousand units.

Choosing the correct manufacturing process balances thermal performance against unit cost, ensuring the chosen technology can support stable, high-volume custom heat sink production. A critical part of heat sink supplier evaluation is ensuring the manufacturer possesses the right equipment for the specific thermal design:

• Extrusion: Highly cost-effective for large-volume aluminum production, but limited by the physical extrusion ratio regarding fin height and spacing.

• Skiving: Ideal for achieving ultra-high fin density and excellent heat dissipation without the interfacial resistance found in bonded fins, making it perfect for spatially restricted optical or server environments.

• Bonded Fins: Suitable for creating massive heat dissipation surfaces by attaching separate fins to a grooved base, often utilized in heavy power inverters.

• Liquid Cooling: Necessary when traditional air cooling reaches its physical limits, transitioning the system to a liquid cold plate to manage extreme thermal densities.

Scaling production efficiently requires aligning the manufacturing method with the order volume. When the required volume exceeds 5,000 units per year and the fin density falls within standard tooling limits, shifting from pure CNC machining to custom profile extrusion is highly recommended to drastically reduce per-unit costs and accelerate lead times.

Manufacturing Process and Scalability Analysis

5. Application-Specific Reliability: AI, EV, and Industrial Testing

A thermal management solution does not operate in a vacuum; it is subjected to continuous thermal cycling, intense mechanical vibration, and harsh environmental contaminants based on its deployment sector.

Validating a thermal heat sink before mass production requires subjecting the component to rigorous, industry-specific environmental stress testing to guarantee long-term mechanical and thermal reliability in the field.

Deployment environments dictate specific validation protocols:

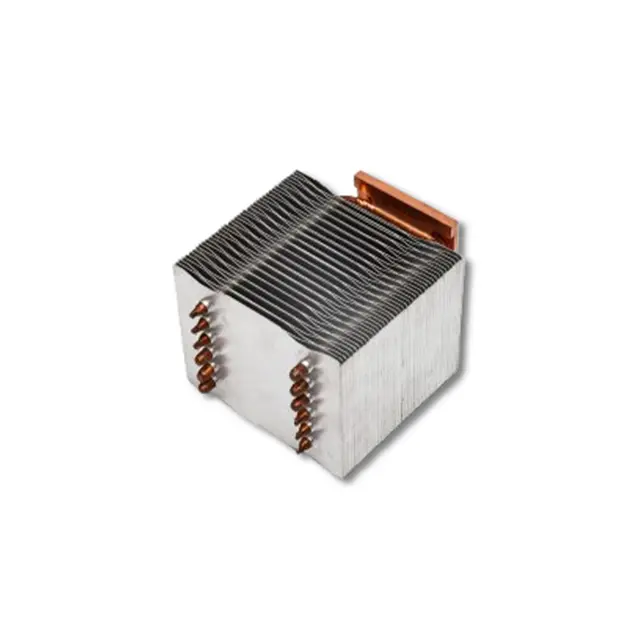

• AI Servers and High-Performance Computing: AI processors generate extreme, continuous heat flux. Validation here focuses on 24/7 thermal consistency and the integration of advanced solutions like heat pipes or vapor chambers to prevent throttling during peak data loads.

• EV Power Electronics: Inverters and battery modules in electric vehicles endure severe mechanical shock and rapid thermal cycling. When validating a custom thermal heat sink for an electric vehicle inverter, the pre-production phase must include multi-axis vibration testing and severe thermal shock cycling to guarantee that mechanical fatigue will not compromise the thermal interface over the vehicle's lifespan.

• Industrial Automation Equipment: Servo drives operate in dusty, enclosed factory environments. Heat sink validation ensures the fin pitch is wide enough to prevent debris clogging while maintaining stable temperature control over multi-year working cycles.

• Medical and Precision Electronics: Diagnostic equipment requires absolute temperature stability to maintain imaging accuracy, demanding strict manufacturing consistency from batch to batch.

6. Evaluating Your Supplier: The Transition to Mass Production

Ultimately, thermal heat sink quality is a direct reflection of the engineering depth, quality control procedures, and manufacturing capabilities of the supplier you choose to partner with.

Securing a reliable transition from prototype to mass production requires partnering with a thermal management solution provider that offers end-to-end engineering support, robust design verification, and multiple in-house manufacturing technologies.

Customers searching for a thermal heat sink manufacturer are rarely just looking to buy a piece of metal. They have an existing product design, are preparing for a massive product launch, and are deeply concerned about cooling performance drops, batch-to-batch quality instability, and supply chain delays. The ideal supplier does not just blindly manufacture according to a drawing; they provide robust engineering support during the design review to optimize fin structures and material selection.

If a current supplier relies entirely on a single manufacturing technology—such as only offering extrusion—and cannot provide in-house thermal performance validation data, procurement teams should evaluate a more comprehensive provider. Partnering with a full-service manufacturer ensures objective recommendations for the best process tailored to specific power densities and production scales.

Conclusion & Next Steps

Evaluating thermal heat sink quality before mass production requires a rigorous, data-driven approach that scrutinizes material purity, micrometer-level machining tolerances, and physical thermal resistance. By executing a strict validation protocol, engineering teams can eliminate thermal bottlenecks and ensure their high-power electronics operate flawlessly in the field.

Key Technical Insights:

• Material conductivity must be precisely matched to the heat flux density, utilizing copper for extreme localized heat and AL6061 for structural cooling.

• Base surface flatness is critical; deviations larger than 0.05 millimeters will require thick thermal paste, effectively destroying cooling efficiency.

• Matching the manufacturing process (extrusion, skiving, or liquid cooling) to the required production volume is essential for commercial viability.

Are you preparing to scale your high-power electronic product? Do not risk your product launch on unverified thermal components. Partner with KINGKA, a professional thermal heat sink manufacturer equipped to handle your entire product lifecycle. From advanced CFD thermal simulations and prototype validation to strict quality control and high-volume custom heat sink production, we provide the integrated manufacturing solutions you need. Contact our engineering team today to schedule a design review and secure a flawless transition into mass production.

Frequently Asked Questions (FAQs)

1. Why is thermal performance testing required if I already have CFD simulation data?

CFD (Computational Fluid Dynamics) simulations are theoretical and assume perfect manufacturing conditions. Physical thermal performance testing is required because it accounts for real-world imperfections, such as microscopic machining deviations, actual thermal interface material thickness, and unpredictable aerodynamic turbulence inside the final device enclosure.

2. How does surface flatness affect thermal heat sink quality?

The base of the heat sink must sit perfectly flush against the semiconductor component. If the surface is wavy or uneven, microscopic air gaps will form. Because air is a thermal insulator, these gaps trap heat. A perfectly flat surface minimizes the need for thick thermal paste, ensuring rapid and direct heat transfer.

3. What is the difference between a prototype heat sink and a mass-production heat sink?

A prototype is often CNC machined from a solid block of metal to quickly prove the thermal concept, which is highly expensive. A mass-production heat sink is optimized for scalable manufacturing processes, such as custom extrusion or cold forging, to drastically reduce the per-unit cost while maintaining the exact same thermal performance established by the prototype.

4. When should I choose a skived fin heat sink over a standard extruded heat sink?

You should specify a skived fin heat sink when your device enclosure is extremely compact and you require a much higher fin density (more cooling surface area) than the extrusion process can physically create without breaking the steel tooling dies. Skiving is ideal for ultra-high heat flux applications like laser diodes and server CPUs.

5. How do manufacturers ensure dimensional consistency across thousands of heat sinks?

Professional thermal heat sink manufacturers utilize advanced quality control procedures, including Coordinate Measuring Machines (CMM), statistical process control (SPC), and automated optical inspections. These systems continuously monitor the CNC machining tolerances on the production line to ensure the first unit and the ten-thousandth unit are dimensionally identical.

6. Can a thermal heat sink manufacturer help optimize my design before production?

Yes. A comprehensive thermal management solution provider like KINGKA offers Design for Manufacturing (DFM) engineering support. We review your initial design and recommend slight structural modifications that maintain or improve cooling performance while making the heat sink significantly faster, easier, and cheaper to produce at scale.
