Specifying overly tight tolerances on a die casting heat sink unnecessarily drives up manufacturing costs and delays production. Conversely, accepting loose tolerances leads to catastrophic assembly failures, thermal interface gaps, and compromised IP sealing. For procurement managers and hardware engineers, understanding standard die cast heat sink tolerances is critical for negotiating contracts and ensuring reliable mass production. This guide details the physical limits of the casting process, the necessity of secondary machining, and an actionable ISO 9001 inspection framework to guarantee your components arrive ready for assembly.
Table of Contents

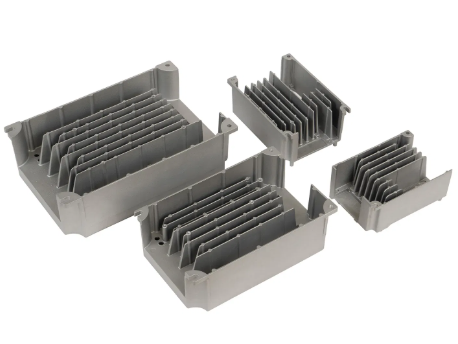

Unlike CNC machining, which cuts a static block of metal, die casting involves injecting molten aluminum into a steel mold. As the metal cools and solidifies, it experiences die cast shrinkage.
The standard shrinkage rate for typical aluminum die-casting alloys is approximately 0.5% to 0.6%. Tooling engineers must calculate this exact volumetric reduction and cut the steel mold slightly oversized. However, shrinkage is rarely uniform across the entire part. A thick baseplate cools slower than thin fins, creating localized variations. This is why ADC12 vs A380 alloy selection for die cast heat sinks matters; ADC12 provides excellent fluidity and highly predictable shrinkage, making it the industry standard for dimensionally stable electronics cooling.
Buyers should expect a standard linear tolerance of ±0.1mm for the first 25mm of dimension, plus an additional ±0.002mm for each additional millimeter.
A common source of conflict between OEM buyers and die-casting foundries involves draft angles. To eject a solidified aluminum part from a steel mold without scratching the surface, every vertical wall and fin must have a slight taper (usually 1 to 2 degrees).
Because of this taper, the width of a fin gap or a mounting boss changes depending on where it is measured. Understanding this is a core component of die cast heat sink design rules. Buyers must establish a clear datum—a specific depth or plane—where the nominal die casting heat sink dimensional tolerance applies. Without an agreed-upon datum, QA departments will measure different points and falsely reject in-spec parts.
Raw die cast flatness is rarely sufficient for direct mounting of high-power semiconductors. As the aluminum shrinks and cools, internal stresses inevitably cause slight warpage across the baseplate.
For standard consumer electronics, an as-cast flatness of 0.1mm to 0.15mm per 100mm might be acceptable with a thick thermal pad. However, for heavy-duty applications like die cast heat sinks for solar inverters, where large IGBT modules generate massive thermal loads, the mating surface flatness must be less than 0.05mm. Any deviation beyond this thickness causes the Thermal Interface Material (TIM) to pool, acting as a thermal insulator rather than a conductor.
To achieve a flatness of < 0.05mm, the part must undergo secondary CNC face-milling.
When a surface requires extreme flatness or a threaded hole requires precise pitch, secondary CNC machining is mandatory. Evaluating die casting vs CNC machining heat sinks reveals that high-volume production is a hybrid process: casting forms the macro-structure, and CNC adds the micro-precision.
To perform secondary machining correctly, the casting tool must be designed with a heat sink machining allowance. This is deliberate extra material left on critical surfaces so the CNC cutting tool has something to mill away.
Typically, a machining allowance of 0.5mm to 1.0mm is optimal.
· 0.5mm to 1.0mm is recommended when surfacing IGBT mounting pedestals, ensuring the cutter gets under the cast skin to create a perfectly flat plane.
· A zero machining allowance is better when the surface is purely cosmetic or non-mating, preserving the dense, naturally corrosion-resistant outer skin of the casting.
If your design requires extreme fin geometries that cannot be cast or machined efficiently, you may need to reconsider your core technology and review die cast vs skived fin heat sinks.
Demanding precision where it is not needed skyrockets part costs. Tight tolerances directly impact tooling wear, requiring the foundry to pause production frequently for mold maintenance.
Reviewing standard die cast heat sink tolerances and dimensional accuracy allows procurement teams to implement cost-saving strategies. For instance, die-cast aluminum heat sinks for servo, LED and automotive applications often require IP65 seals. Instead of tightening the tolerance on the entire enclosure, engineers only specify tight tolerances on the machined O-ring groove.
Understanding this distinction accelerates the die cast heat sink cost and volume breakeven, ensuring you do not pay for CNC precision on non-functional aesthetic surfaces.
Feature Type | As-Cast Tolerance | CNC Machined Tolerance | Recommendation |
Fin Spacing | ± 0.20 mm | Not Applicable | Accept as-cast for cost savings |
O-Ring Grooves | ± 0.15 mm | ± 0.02 mm | CNC machining mandatory for IP seals |
IGBT Flatness | < 0.15 mm | < 0.05 mm | CNC face-milling mandatory for thermal |
Boss Locations | ± 0.10 mm | ± 0.05 mm | CNC pilot holes for precise alignment |
Furthermore, hidden defects impact accuracy. If a casting suffers from internal voids, subsequent CNC machining may expose them. Managing porosity in die cast heat sinks is critical to maintaining the structural integrity of precisely machined features.
Procurement managers should hold their manufacturing partners accountable to an ISO 9001 heat sink quality standard. A robust quality assurance program does not wait until final packing to check dimensions; it monitors the process at every stage.
Here is a standard 4-round inspection protocol buyers should require:
Inspection Phase | Method / Tool | Focus Area | Acceptance Criteria |
1. Raw Casting | Coordinate Measuring (CMM) | Overall shrinkage, draft angles | Meets baseline NADCA tolerance |
2. X-Ray NDT | Industrial X-Ray | Internal porosity detection | No voids >1mm in critical thermal zones |
3. Post-CNC | Optical Comparator | Machined dimensions, O-ring grooves | within ±0.02mm, strict surface finish |
4. Final Audit | 100% Leak Test | Liquid cold plate integrity | Zero pressure drop over defined time |
Achieving reliable dimensional accuracy in die-cast heat sinks requires accepting the physical limitations of metal shrinkage and leveraging secondary CNC machining where precision is non-negotiable. By establishing clear measurement datums, properly setting a machining allowance for critical thermal interfaces, and demanding a rigorous 4-round ISO 9001 inspection process, buyers can eliminate assembly failures and secure a highly reliable supply chain.
