OEM procurement managers face a critical financial hurdle when scaling thermal solutions: justifying the high upfront tooling capital required for a die casting heat sink. If you authorize tooling too early, you burn cash on unproven product lines. If you rely on CNC machining for too long, you surrender massive profit margins on piece prices. This guide details how to calculate your true die cast heat sink cost and volume breakeven, understand tooling amortization, and determine exactly when the transition to mass-production casting becomes financially undeniable.
Table of Contents

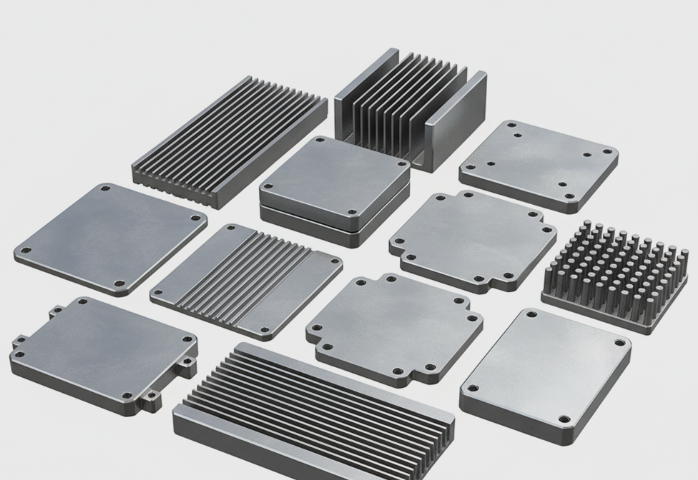

To accurately project the financial impact of transitioning to casting, buyers must separate the Non-Recurring Engineering (NRE) investment from the recurring unit price.
The die casting heat sink tooling cost typically ranges from $10,000 to over $50,000. This steep price stems from the H13 premium tool steel required to withstand the immense thermal shock and pressure of molten aluminum, alongside the EDM (Electrical Discharge Machining) required to cut deep, narrow fin channels into the mold.
However, once the die is commissioned, the high volume heat sink cost plummets. A single die-cast cycle takes 30 to 60 seconds, and multi-cavity dies can produce several parts per shot. By integrating complex 3D features—such as mounting bosses, structural ribs, and IP-rated enclosures—die casting aggressively reduces the overall Bill of Materials (BOM) compared to assembling multiple separate components.
The die cast heat sink breakeven volume is the exact production quantity at which the savings in unit price offset the upfront tooling cost.
While simple math might suggest a breakeven at 2,000 units, industry experience demonstrates that the true breakeven band for complex electronic enclosures sits between 10,000 and 50,000 pieces annually. This higher threshold exists because die-cast parts still require post-casting CNC machining for precision flat surfaces and tapped holes, which keeps the unit cost slightly higher than raw casting estimates suggest.
When comparing processes directly, evaluating die casting vs CNC machining heat sinks is straightforward. A heavy CNC machined heat sink might cost $35 per unit. The die-cast equivalent might cost $8 per unit, yielding a $27 saving per part. If the tooling costs $35,000, the breakeven point against CNC is roughly 1,300 units. However, because most companies bridge the gap with aluminum extrusions first, the breakeven against extrusion happens much later, firmly in the 10k-50k range.
For start-ups or OEMs managing strict quarterly cash flows, paying $40,000 upfront for tooling is often restrictive. In these scenarios, procurement teams utilize die cast mold cost amortization.
Amortization involves the manufacturer financing the tool and baking a fraction of that cost into the piece price over a set volume (e.g., the first 50,000 units).
Tooling Cost | Target Amortization Volume | Added Cost Per Unit | Unit Price Post-Amortization |
$30,000 | 50,000 units | + $0.60 | Reverts to base cast price |
$45,000 | 100,000 units | + $0.45 | Reverts to base cast price |
A standard H13 steel die has a lifespan of approximately 80,000 to 100,000 shots before thermal fatigue causes heat checking (micro-cracks on the tool surface) that degrades the cosmetic finish of the part. Proper tooling maintenance guarantees the tool reaches its full ROI cycle.
The most common financial debate is the die casting vs extrusion cost. Extrusion tooling is incredibly cheap—often between $1,000 and $3,000—because it only requires cutting a 2D profile into a steel die.
Extrusion is recommended when your heat sink is a simple, linear block that only requires cross-cutting. Die casting is better when the design requires integrated 3D features, such as closed ends, internal cable routing, or complex stepped geometries.
If you attempt to create a 3D enclosure from a 2D extrusion, the secondary CNC machining time becomes prohibitively expensive at scale. For applications like die-cast aluminum heat sinks for servo, LED and automotive applications, the need for an integrated chassis makes extrusion financially unviable at volumes over 10,000, rendering die casting the undeniable winner. Furthermore, if you need extreme fin densities beyond extrusion capabilities, you must evaluate die cast vs skived fin heat sinks to balance thermal necessity against manufacturing costs.
A lower piece price is only realized if the scrap rate remains low. Several hidden factors can artificially inflate your die cast heat sink cost if not managed during the design phase.
First, poor alloy selection inflates costs. Choosing between ADC12 vs A380 alloy selection for die cast heat sinks affects how the metal flows. If you select a viscous alloy for a thin-fin design, you will experience cold shuts (incomplete fills), driving up the scrap rate and the amortized unit price.
Second, internal voids destroy yield rates. Uncontrolled porosity in die cast heat sinks leads to thermal failure or coolant leaks, forcing expensive quality-control rejections.
Finally, failing to follow standard die cast heat sink design rules results in excessive secondary machining. While achieving precise die cast heat sink tolerances and dimensional accuracy is possible, over-specifying tolerances on non-critical surfaces forces the manufacturer to CNC machine the entire part, destroying the cost advantage of the near-net casting process.
To assist procurement teams, use this framework to align your manufacturing process with your projected product lifecycle stage. Heavy-duty applications, such as die cast heat sinks for solar inverters, often follow this exact scaling trajectory.
Lifecycle Stage | Annual Volume | Recommended Process | Cost Characteristic |
Prototyping | 1 - 500 | CNC Machining | Zero tooling, high piece price |
Early Ramp-Up | 500 - 10,000 | Extrusion + CNC | Low tooling, moderate piece price |
Mass Production | 10,000 - 50,000+ | Die Casting | High tooling, lowest piece price |
Understanding your die cast heat sink cost structure requires looking beyond the intimidating upfront tooling quote. For complex, multi-feature thermal enclosures, the volume breakeven point typically lands between 10,000 and 50,000 units. Past this threshold, die casting delivers an unbeatable ROI by eliminating secondary assembly steps, reducing raw material waste, and slashing machine time. By leveraging amortization strategies and designing strictly for manufacturability, OEM buyers can secure massive profit margin expansions during mass production.
When your product volume justifies the transition to permanent tooling, organize your specifications using our custom die cast heat sink RFQ checklist. Kingka is a premier precision manufacturer with over 16 years of expertise, holding ISO 9001:2015 certification. Equipped with 50+ advanced CNC machines, we bridge the gap between initial machining and mass-production casting. We provide free DFM and thermal analysis within 24 hours, ensuring your design maximizes tooling ROI. Backed by a 4-round inspection protocol and 100% leak testing for liquid parts, Kingka is your trusted partner for scalable thermal management. Contact us today for a comprehensive cost analysis.
Why is die casting tooling so expensive compared to extrusion?
Extrusion requires a simple 2D steel plate that metal is pushed through, costing a few thousand dollars. Die casting requires a massive, two-part hardened H13 steel mold with complex internal cooling lines and ejector pins to handle molten aluminum at high pressure, which demands extensive EDM machining.
Can I amortize the tooling cost over a small volume, like 5,000 units?
It is generally not recommended. Spreading a $30,000 tool over 5,000 units adds $6.00 to the piece price, which often makes the cast part more expensive than simply CNC machining an extrusion. Amortization works best across 25,000+ units.
What happens when the die cast mold wears out?
Most standard aluminum die-cast molds have a tool life of 80,000 to 100,000 shots. Once it reaches the end of its life, a replacement tool must be machined. However, manufacturers usually offer replacement tooling at a slightly reduced cost since the engineering and CNC programming are already finalized.
Does die casting reduce the total Bill of Materials (BOM)?
Yes, this is its greatest financial advantage. A die-cast heat sink can simultaneously serve as the EMI shield, the structural chassis, and the IP-rated enclosure, replacing three or four separately machined parts and eliminating assembly labor.
Is secondary CNC machining always required for die-cast heat sinks?
Almost always. While die casting produces excellent near-net shapes, it cannot cast perfectly flat surfaces (like those needed for an IGBT module) or fine internal threads. These critical mating surfaces must be faced and tapped on a CNC machine.
If my part is a simple square block with fins, should I die cast it at 50,000 units?
No. If the part is purely a 2D profile with no complex bosses or closed ends, extrusion will remain the most cost-effective manufacturing method, even at 50,000 units, because the continuous extrusion process is incredibly fast and cheap.
