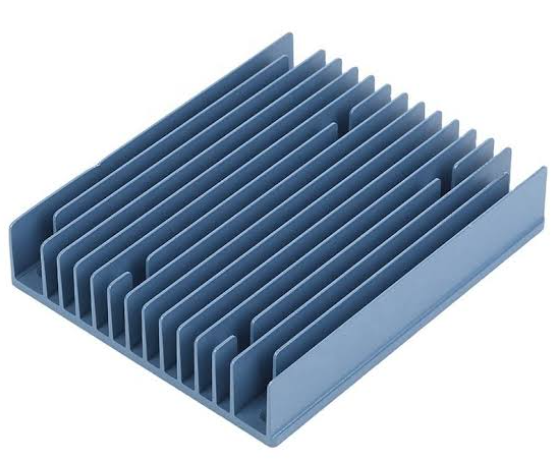

For thermal and mechanical design engineers, choosing between a die casting heat sink and a fully machined aluminum heat sink is a critical decision that locks in your product's thermal performance, unit price, and scalability. While CNC machining offers unmatched precision, rapid prototyping, and high thermal conductivity, it scales poorly due to high per-part machine time. Conversely, die casting requires a massive upfront tooling investment but delivers integrated, near-net-shape components at pennies per unit at scale. This guide examines the exact break-even points, thermal trade-offs, and geometric constraints to help you specify the correct manufacturing process for your product's lifecycle.
Table of Contents
The most decisive factor when evaluating die casting vs CNC machining heat sinks is your expected annual production volume.
CNC machining has zero tooling costs. You pay strictly for the aluminum billet, programming time, and the machine hours required to mill away the excess material. However, because milling out deep fin channels takes significant spindle time, the CNC heat sink cost remains high and static regardless of whether you order 10 or 1,000 units. CNC is the definitive choice for prototyping and low volume heat sink manufacturing.
Die casting requires a custom steel mold (die) that can cost tens of thousands of dollars and take 4 to 8 weeks to fabricate. However, once the tool is ready, a single "shot" of molten aluminum takes mere seconds. The unit price plummets, making it vastly superior for mass production. Understanding your exact die cast heat sink cost and volume breakeven point—which typically lands between 1,000 and 5,000 units depending on part complexity—is essential before committing to a manufacturing method.
A common mistake is assuming all aluminum heat sinks perform identically. The manufacturing process directly dictates which aluminum alloys you can use, fundamentally altering the thermal conductivity of the finished part.
A die cast vs machined heat sink comparison always heavily favors the machined part in raw material performance. CNC machining utilizes extruded or forged solid billets, typically Al 6061 or Al 6063. These pure, highly structured alloys offer excellent thermal conductivity ranging from 167 to 200 W/m·K.
Die casting requires the aluminum to flow like water through the complex channels of a steel mold before it freezes. This requires adding silicon and copper, which disrupts the aluminum's crystal lattice. As detailed in our guide on ADC12 vs A380 alloy selection for die cast heat sinks, standard cast alloys max out around 96 to 120 W/m·K.
Therefore, a die casting vs milled heat sink must be evaluated via simulation. If your thermal load requires a conductivity of 200 W/m·K to keep the junction temperature below critical limits, casting will fail unless you significantly increase the surface area. In cases where extreme fin density is required to compensate, engineers must also consider die cast vs skived fin heat sinks as an alternative high-conductivity process.
The way metal is removed (CNC) versus how it is formed (Casting) dictates entirely different design rulebooks.
Knowing when to CNC machine a heat sink means understanding the limitations of a rotating cutting tool. End mills are cylindrical; therefore, achieving perfectly sharp internal corners is impossible—you must leave a radius. Furthermore, deep, narrow fin gaps are difficult to machine because long, thin cutting tools vibrate (chatter) and deflect, causing poor surface finishes and tool breakage.
Die casting excels at producing highly integrated, 3D shapes. You can seamlessly incorporate structural housings, mounting bosses, cable routing channels, and IP-rated O-ring grooves into a single piece of metal. This is why die-cast aluminum heat sinks for servo, LED and automotive applications are so prevalent—they eliminate secondary assembly steps and reduce the Bill of Materials (BOM).
However, die casting requires adherence to strict die cast heat sink design rules. You cannot have zero-degree vertical walls; every fin and enclosure wall requires a draft angle (taper) of 1 to 2 degrees so the part can be ejected from the steel mold without galling.
A CNC machined heat sink is carved from a solid block of extruded aluminum. The material structure is dense, uniform, and entirely free of internal voids, ensuring a perfectly predictable thermal path from the heat source to the fins.
Die casting is a violent process. Molten aluminum is injected under immense pressure, which inevitably traps microscopic pockets of air and shrinkage gas. Managing porosity in die cast heat sinks is a major engineering challenge. If a large void forms directly beneath a high-power IGBT module, it acts as a thermal insulator, creating a severe hotspot. High-quality die casting requires advanced flow simulation, vacuum-assist technology, and precise gating design to force porosity away from critical thermal zones.
CNC machining holds incredibly tight tolerances, routinely achieving ±0.01mm or better. This precision is ready straight off the machine.
Die casting produces a "near-net" shape. While modern casting is highly accurate, it cannot match the extreme flatness required for a bare semiconductor interface, nor can it cast fine internal threads. Understanding standard die cast heat sink tolerances and dimensional accuracy reveals that secondary operations are almost always required.
Even large, rugged components like die cast heat sinks for solar inverters require post-casting CNC passes. The IGBT mounting pedestal must be fly-cut to a flatness of < 0.05mm, and mounting holes must be precision-tapped. Ultimately, high-volume heat sink production is a hybrid process: die casting forms the complex macro-geometry, and CNC machining adds the micro-precision.
Use the following comparison to guide your procurement strategy.
Factor | CNC Machining | Die Casting | Recommendation |
Volume Sweet Spot | 1 - 1,000 units | 5,000+ units | CNC for low volume; Casting for mass scale. |
Tooling Cost | Zero | High ($10k - $50k+) | Casting requires high upfront capital. |
Thermal Conductivity | Excellent (~170 W/m·K) | Moderate (~100 W/m·K) | CNC for pure thermal performance. |
Geometrical Freedom | Limited by tool reach | Excellent (3D shapes) | Casting for integrated housings. |
Decision Rules:
· CNC Machining is recommended when your production volume is low, your thermal density is extremely high (requiring 6000-series aluminum), or you need rapid prototypes without tooling delays.
· Die Casting is better when your annual volume exceeds 3,000 units, and you want to reduce costs by combining a heat sink, EMI shield, and environmental enclosure into one integrated part.
Both CNC machining and die casting are indispensable tools in thermal management manufacturing. CNC machining offers immediate, high-performance results out of highly conductive billet aluminum, making it the undeniable choice for prototyping and low-volume production. Die casting, while requiring a massive initial investment and accepting a slight penalty in raw thermal conductivity, dominates high-volume manufacturing by offering unmatched geometric integration and a drastically lower unit cost. By calculating your exact volume breakeven and understanding your thermal margins, you can confidently transition from machined prototypes to cast production parts.
When you are ready to evaluate your design for mass production, complete our custom die cast heat sink RFQ checklist. Kingka is a premier thermal solutions manufacturer with over 16 years of expertise and ISO 9001:2015 certification. Operating over 50 advanced CNC machines alongside our high-pressure casting cells, we provide seamless transitions from CNC prototypes to die-cast mass production. We offer free DFM and thermal analysis within 24 hours, backed by a rigorous 4-round inspection protocol and 100% leak testing for liquid applications. Contact Kingka today to optimize your manufacturing strategy.
Is it normal to start with a CNC heat sink and switch to die casting later?
Yes. This is the standard product development lifecycle. Engineers CNC machine the first 50 to 100 units from Al 6061 for beta testing and early market release. Once the design is validated and sales volume increases, they invest in die-casting tooling to slash the unit cost.
How do I compensate for the lower thermal conductivity of die-cast aluminum?
Because die casting allows for complex 3D geometries, engineers compensate by increasing the overall convective surface area. You can add more fins, optimize the airflow path, or integrate the heat sink into a larger structural housing to increase total thermal mass.
Can a CNC machine create the exact same shape as a die casting?
Not always. Die casting easily produces deep, thin-walled cavities and complex draft angles that are difficult, time-consuming, or physically impossible for a rotating CNC end mill to reach without dangerous tool deflection.
Why does a die-cast heat sink still need CNC machining?
Die casting cannot achieve the extreme flatness (often < 0.05mm) required to mount a power component directly to the heat sink. It also cannot form functional internal threads. Secondary CNC milling and tapping are used to finish these critical mating surfaces.
Does a CNC machined heat sink have draft angles?
No. CNC machined heat sinks can feature perfectly straight, 90-degree vertical walls. Draft angles are exclusively required for die casting or forging to allow the part to release from the steel mold.
Is a machined heat sink stronger than a die-cast one?
Generally, yes. A CNC heat sink cut from extruded billet (like 6061-T6) has superior tensile strength and no internal porosity. Die-cast parts can contain microscopic voids that slightly reduce their structural load-bearing capacity compared to solid billet.
