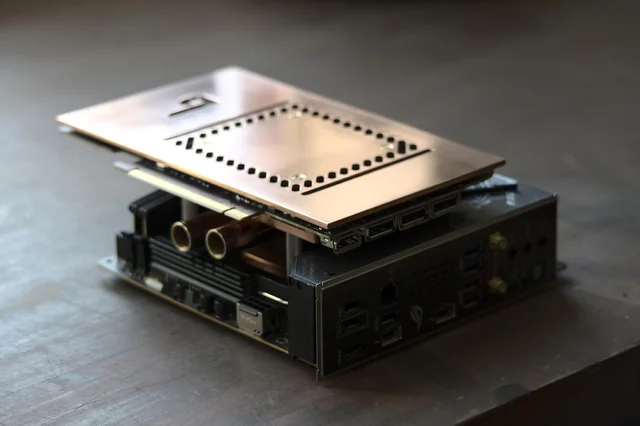

Installing a server CPU/GPU waterblock in a dense rack environment requires meticulous planning, precise mounting, and thorough leak testing to ensure optimal thermal performance and system reliability. Key steps include assessing server requirements, choosing the right waterblock and materials, carefully routing cooling loops, and integrating monitoring systems, all while adhering to best practices to prevent common pitfalls and maximize efficiency in high-density data centers and AI clusters.
The landscape of modern computing is rapidly evolving. Data centers, AI clusters, and high-performance computing (HPC) environments are constantly pushing the boundaries of density, packing more powerful processors into smaller spaces. This drive for compute density creates immense cooling challenges, making traditional air cooling increasingly ineffective. Enter waterblock liquid cooling – a game-changer for dense rack environments. But how do you actually get these sophisticated cooling solutions installed correctly? It's not just about bolting on a part; it's about precision, planning, and understanding the unique demands of a high-density setup. Let's dive into the practical steps and best practices for installing a server CPU/GPU waterblock to ensure your systems run cool, reliably, and efficiently.
ba
The relentless pursuit of more compute power per square foot has brought significant cooling challenges to the forefront, making traditional methods obsolete for dense rack environments.
Cooling challenges in dense rack environments stem from the growing demand for high-density servers in data centers and AI clusters, which generate immense heat. Traditional air cooling struggles to dissipate this concentrated heat effectively due to airflow limitations and hotspots, making waterblock liquid cooling an essential and effective installation choice for maintaining optimal temperatures and ensuring system stability.
The digital age demands more processing power than ever before.
Data Centers: Hyperscale cloud providers are constantly optimizing space, packing more servers into each rack to reduce real estate costs and improve efficiency.
AI Clusters: The rise of Artificial Intelligence and Machine Learning requires massive computational power, often from hundreds or thousands of high-TDP (Thermal Design Power) GPUs. These AI servers are designed to be extremely dense, with multiple GPUs per server and many servers per rack.
HPC Environments: Scientific research and complex simulations also rely on maximum compute density to accelerate discovery.
This trend means that racks are no longer just holding servers; they're holding concentrated powerhouses, each generating significant heat. For example, a single rack might house 10 servers, each with 2 high-end CPUs and 8 powerful GPUs, leading to a total rack power consumption of 30-50kW or even higher.
Traditional air cooling, which relies on moving large volumes of air, quickly hits its limits in dense rack environments:
Airflow Obstruction: With servers packed tightly, there's simply not enough space for air to flow freely and efficiently. Cables, power supplies, and server chassis create blockages.
Hotspots: Air tends to take the path of least resistance, leading to uneven cooling. Some areas of the rack become "hotspots" where components overheat, while others remain relatively cool, wasting cooling capacity.
Limited Heat Capacity: Air is a poor conductor of heat compared to liquid. It requires massive volumes and high fan speeds to dissipate the heat from high-TDP components (e.g., 700W+ GPUs), leading to excessive noise and energy consumption.
Thermal Throttling: When air cooling can't keep up, CPUs and GPUs automatically reduce their clock speeds to prevent damage, leading to wasted compute cycles and reduced performance.
These limitations mean that air-cooled racks often have to be under-populated or run at reduced performance, directly impacting the efficiency and ROI of the data center.
Waterblock liquid cooling emerges as the most effective solution for these cooling challenges in dense rack environments.
Superior Heat Transfer: Liquid (typically a water-glycol mixture) is far more efficient at absorbing and transporting heat than air. It can remove heat directly from the hottest components, such as server CPUs and GPUs.
Targeted Cooling: CPU/GPU waterblocks sit directly on the processors, removing heat precisely where it's generated, preventing hotspots and ensuring stable operating temperatures.
Higher Density Enablement: By efficiently removing heat, liquid cooling allows for significantly higher power densities per rack, maximizing the utilization of valuable data center real estate.
Energy Efficiency: Reduced reliance on power-hungry server fans and massive CRAC/CRAH units leads to substantial energy savings and a lower Power Usage Effectiveness (PUE).
Installing server CPU/GPU waterblocks is therefore not just an upgrade; it's a strategic move to unlock the full potential of high-density computing while managing operational costs effectively.
Before you even think about opening a server chassis, thorough preparation is key. This phase ensures you choose the right components and plan for a smooth, efficient installation of your server CPU/GPU waterblocks.
Preparing for server CPU/GPU waterblock installation involves assessing server requirements like CPU/GPU heat loads and density, then choosing the right waterblock solution (CPU-only, GPU-only, or combined) with appropriate materials (copper vs. nickel-plated) and microchannel layout. Crucially, an infrastructure check for space, power, and rack layout considerations is essential to ensure seamless integration and optimal cooling performance in dense rack environments.
Understanding your server's specific needs is the first step.
CPU/GPU Heat Loads (TDP): Identify the Thermal Design Power (TDP) of your processors. High-end server CPUs can range from 200W to 400W+, while modern AI GPUs can easily exceed 700W per chip. This dictates the cooling capacity required from your custom cold plate.
Server Density: How many CPUs and GPUs are in each server? How many servers per rack? This impacts the overall heat load per rack and the complexity of your cooling loop.
Workload Profiles: Are your servers running constant, heavy loads (e.g., AI training), or bursty, fluctuating loads? This can influence the choice of coolant and the robustness required from the waterblock.
Example: An AI server with 8 NVIDIA H100 GPUs (each 700W TDP) and 2 Intel Xeon CPUs (each 300W TDP) has a total heat load of (8 * 700W) + (2 * 300W) = 5600W + 600W = 6200W per server. This massive heat load absolutely necessitates liquid cooling.
Based on your server assessment, select the appropriate server CPU/GPU waterblock type:
CPU-Only Waterblocks: Designed specifically for server CPUs, often with mounting mechanisms for specific sockets (e.g., Intel EGS, AMD SP3/SP5).
GPU-Only Waterblocks: Tailored for the unique form factors and high heat flux of server GPUs (e.g., NVIDIA H100, AMD Instinct MI300X). These are often full-cover blocks that cool not just the GPU die but also VRAM and VRMs.
Combined/Hybrid Solutions: For servers where both CPU and GPU generate significant heat, or for custom form factors, integrated liquid cold plates can be designed to cool multiple components simultaneously.
KingKa Tech specializes in custom cold plates and can design solutions precisely for your specific server architecture and component layout.
The material and internal design of the waterblock are crucial for performance and longevity.
Copper vs. Nickel-Plated Copper: Copper offers excellent thermal conductivity. Nickel-plated copper provides superior corrosion resistance, which is vital for long-term reliability in enterprise liquid cooling systems, especially in mixed-metal loops or humid environments.
Microchannel Layout: The internal design (microchannels, fin arrays) dictates the thermal efficiency and pressure drop. A well-designed layout maximizes heat transfer while minimizing flow restriction.
Sealing Method: Look for robust sealing methods like vacuum brazing or Friction Stir Welding (FSW) for leak-proof integrity, especially for 24/7 reliable operation.
Practical Advice: Always ensure the waterblock materials are compatible with your chosen coolant to prevent galvanic corrosion.
Before installation, verify your existing infrastructure can support liquid cooling:
Space Availability: Ensure there's enough physical space within the server chassis for the waterblock and tubing, and in the rack for manifolds, CDUs (Cooling Distribution Units), and external plumbing.
Power Requirements: Liquid cooling components (pumps, CDUs) require power. Confirm your rack and data center power distribution can handle the additional load.
Rack Layout: Plan the routing of coolant lines within the rack. Consider hot/cold aisle containment if still using some air cooling, and how the liquid cooling integrates.
Coolant Distribution: Determine how coolant will be supplied to and returned from each rack (e.g., through rear-door heat exchangers, in-row coolers, or direct-to-chip loops).
This comprehensive check prevents costly surprises and ensures a smooth transition to liquid cooling.
Once prepared, the actual installation of server CPU/GPU waterblocks requires precision and adherence to best practices. Rushing this process can lead to costly errors.
Installing server CPU/GPU waterblocks involves five critical steps: First, pre-installation planning to verify hardware compatibility and map cooling loops. Second, carefully mounting the waterblock with proper thermal interface material and even pressure. Third, connecting the cooling loop with correct fitting orientation. Fourth, performing a thorough leak test before power-up. Finally, integrating the system by connecting pumps, radiators, and sensors, ensuring careful tubing routing for optimal performance in dense rack environments.
Even after the initial preparation, a final check before touching hardware is crucial.
Verify Compatibility with Server Hardware: Double-check that your chosen CPU/GPU waterblocks are specifically designed for your server's CPU socket (e.g., Intel EGS, AMD SP5) or GPU model (e.g., NVIDIA H100). Ensure all mounting hardware is present and correct.
Map Cooling Loops and Routing Paths: Visualize or sketch out the coolant flow path within the server and the rack. Identify inlet/outlet ports on the waterblocks, manifolds, and CDUs. Plan how tubing will be routed to minimize bends, avoid sharp edges, and prevent interference with other components or airflow. For dense rack environments, this is critical to prevent kinks and ensure proper flow.
Practical Advice: Lay out all components and tools beforehand. Have a clean, static-free workspace.
This is the most delicate part of the physical installation.
Apply Thermal Interface Material (TIM): Apply a thin, even layer of high-quality thermal paste or a thermal pad to the IHS (Integrated Heat Spreader) of the CPU/GPU. Less is often more; a thin layer ensures optimal heat transfer. Consult the TIM manufacturer's instructions.
Secure Block with Even Mounting Pressure to Avoid Hotspots: Carefully place the CPU/GPU waterblock onto the processor. Use the provided mounting hardware (screws, springs, backplates) and tighten them in a cross-pattern (e.g., diagonally) to ensure even pressure. Uneven pressure can lead to poor contact, creating hotspots and reducing cooling efficiency. Do not overtighten, as this can damage the CPU/GPU die or the motherboard. Follow the manufacturer's torque specifications if provided.
Example: For a server CPU, you might tighten screws in a 1-3-2-4 pattern, making a few turns on each screw sequentially until snug, then a final tightening pass.
With the waterblocks mounted, it's time to connect them to the rest of the liquid cooling system.
Attach Inlet/Outlet Fittings and Tubing: Securely attach the appropriate fittings (e.g., G1/4" threaded fittings, quick-disconnects) to the waterblock's inlet and outlet ports. Then, connect the tubing, ensuring it's cut to the correct length. Avoid excessive tubing length, which increases flow resistance.
Ensure Proper Orientation for Optimal Coolant Flow: Most waterblocks have a designated inlet and outlet for optimal flow through their internal microchannels. Refer to the waterblock's manual to ensure tubing is connected correctly. Incorrect orientation can significantly reduce cooling performance.
Practical Advice: Use hose clamps or compression fittings appropriate for your tubing type to ensure secure, leak-free connections.
DO NOT SKIP THIS STEP. This is critical for preventing catastrophic damage.
Pressure Test the Loop Before Powering the Server: Once all waterblocks and tubing are connected, fill the cooling loop with coolant (or use an air pressure tester if available) and pressure test it.
Visual Inspection: Carefully inspect every connection point for any signs of leaks.
Pressure Hold Test: If using an air pressure tester, pressurize the loop to a safe level (e.g., 0.5-1.0 PSI) and monitor for any pressure drops over a period (e.g., 30-60 minutes).
Paper Towel Test: For liquid fills, place paper towels under all connections and let the system run for a few hours (without powering the server's IT components) to catch any slow drips.
Warning: A leak after powering up the server can short-circuit components, leading to irreversible damage and significant financial loss.
The final step involves connecting the cooling loop to the broader thermal management infrastructure.
Connect Pumps, Radiators, and Monitoring Sensors: Connect the filled and leak-tested server cooling loop to the rack-level manifold, which then connects to the CDU (Cooling Distribution Unit) or external radiators/chillers. Install any flow rate sensors, temperature sensors, and pressure sensors as per your system design.
Route Tubing Carefully to Avoid Airflow Obstruction: Even in a liquid-cooled rack, some components (e.g., memory, VRMs, power supplies) might still rely on residual airflow. Route tubing neatly, using cable ties or clips, to prevent it from obstructing any remaining airflow paths or interfering with other server components. In dense rack environments, neat tubing management is also crucial for future maintenance access.
Practical Advice: Label your tubing for easy identification during future maintenance or upgrades.
Installing server CPU/GPU waterblocks in dense rack environments goes beyond the basic steps; it requires adherence to best practices to maximize efficiency, reliability, and scalability.
Best practices for installing server CPU/GPU waterblocks in dense rack environments include optimizing tubing layout to minimize bends and restrictions, utilizing quick-disconnect fittings for simplified maintenance, planning for scalability to support future hardware upgrades, and continuously monitoring coolant quality and flow rate. These measures ensure efficient thermal management, reduce downtime risks, and enhance the long-term reliability of high-density computing infrastructure.
In a tightly packed rack, every inch of tubing matters.
Shortest Path: Plan the shortest possible tubing runs between components to minimize overall flow resistance.
Gentle Bends: Avoid sharp 90-degree bends, which significantly restrict flow. Use gradual curves or appropriate angled fittings (e.g., 45-degree, 90-degree rotary fittings) to maintain smooth coolant flow.
Proper Tubing Diameter: Ensure the tubing diameter is appropriate for the flow rate requirements of your system. Too small, and you'll have high pressure drop; too large, and it might be difficult to route.
Secure Routing: Use cable ties, clips, or dedicated tubing management systems to secure tubing, preventing kinks, accidental disconnections, and interference with other components.
Example: Instead of a sharp 90-degree bend from a GPU waterblock to a manifold, use a 90-degree rotary fitting to create a smooth, unrestricted turn.
For dense rack environments, where individual server access can be challenging, quick-disconnect (QD) fittings are invaluable.
Hot-Swappable Servers: QDs allow you to easily disconnect a server from the cooling loop without draining the entire system, enabling faster server maintenance or replacement.
Spill Prevention: High-quality QDs are designed to be drip-free upon disconnection, minimizing the risk of coolant spills onto live electronics.
Reduced Downtime: The ability to quickly swap out a server or component significantly reduces maintenance windows and associated downtime.
Practical Advice: Invest in high-quality, enterprise-grade quick-disconnects from reputable manufacturers to ensure long-term reliability and leak-free operation.
Your liquid cooling infrastructure should be forward-looking.
Modular Design: Design your cooling loops with modularity in mind. Use manifolds that can accommodate additional servers or components in the future.
Over-Provisioning: Consider slightly over-provisioning your CDU capacity and pump power to allow for future expansion or higher-TDP components without a complete overhaul of the cooling system.
Standardized Fittings: Use standardized fittings (e.g., G1/4" threads) and tubing sizes where possible to ensure compatibility with future hardware.
This foresight in planning helps reduce future CAPEX and OPEX when upgrading your AI clusters or data center.
Continuous monitoring is crucial for maintaining optimal performance and preventing issues.
Flow Rate Sensors: Install flow rate sensors at critical points (e.g., per rack, per server) to ensure adequate coolant delivery to all waterblocks. A drop in flow rate can indicate a blockage or pump issue.
Temperature Sensors: Monitor coolant inlet and outlet temperatures to assess cooling efficiency and detect any anomalies.
Coolant Quality Sensors: For large-scale deployments, consider sensors that monitor coolant conductivity or pH to detect contamination or degradation, which can lead to corrosion.
Integrated Monitoring System: Integrate these sensors with your data center infrastructure management (DCIM) system for real-time alerts and historical data analysis.
Practical Advice: Regularly check and maintain your coolant (e.g., replenish inhibitors, filter particles) as per manufacturer recommendations to ensure its longevity and prevent corrosion.
Even with careful planning, mistakes can happen. Being aware of common pitfalls during server CPU/GPU waterblock installation can save you significant headaches and costs.
Common pitfalls to avoid during server CPU/GPU waterblock installation include over-tightening mounts, which can damage CPUs/GPUs, and poor tubing management leading to kinks or leaks. Skipping crucial leak tests can result in costly downtime, while using incompatible coolants or mixing metals without protection can cause severe corrosion, all of which compromise the reliability and efficiency of liquid cooling in dense rack environments.
This is a critical and often irreversible mistake.
The Problem: Applying excessive force when securing the waterblock can crack the CPU/GPU die, damage the Integrated Heat Spreader (IHS), or even warp the motherboard. This is especially true for modern, high-TDP processors which are delicate.
The Solution: Always follow the manufacturer's torque specifications (if provided). If not, tighten screws in a cross-pattern until snug, then apply small, even turns until the block is firmly seated. The goal is even pressure, not maximum force. The springs in the mounting hardware are designed to provide the correct pressure.
Example: A cracked CPU due to over-tightening can cost thousands of dollars to replace, plus the downtime for the server.
Messy or improperly routed tubing is a recipe for disaster in dense rack environments.
The Problem: Kinked tubing restricts coolant flow, reducing cooling efficiency and potentially stressing the pump. Tubing rubbing against sharp edges can chafe and eventually lead to leaks. Loose tubing can snag during maintenance or vibrate, causing connections to loosen.
The Solution: Plan tubing runs carefully, using the shortest possible paths with gentle bends. Secure tubing with cable ties or clips. Use protective sleeving where tubing might rub against server chassis edges. Ensure all connections are fully seated and secured with appropriate clamps or fittings.
Practical Advice: In a dense rack, a well-organized tubing layout not only prevents issues but also makes future maintenance much easier.
This is the most dangerous shortcut you can take.
The Problem: A small, undetected leak can slowly drip onto live electronics, causing short circuits, component failure, and potentially a complete server outage. The cost of replacing damaged hardware and the associated downtime far outweighs the time saved by skipping a leak test.
The Solution: Always perform a thorough leak test before powering up the server's IT components. Use an air pressure tester or a liquid fill with paper towels and run the pump for several hours, carefully inspecting all connections. For 24/7 reliable systems, this step is non-negotiable.
Example: A single leak could damage an entire AI server with multiple expensive GPUs, costing tens of thousands of dollars in hardware alone, plus lost compute time.
Material incompatibility can lead to long-term system degradation.
The Problem: Using a coolant that is not compatible with the waterblock materials (e.g., an aggressive coolant with copper) can lead to corrosion. Mixing dissimilar metals (e.g., bare copper waterblocks with aluminum radiators) in the same loop without proper inhibitors can cause rapid galvanic corrosion, leading to sludge formation, blockages, and leaks.
The Solution: Always use coolants specifically designed for liquid cooling systems, containing corrosion inhibitors. If mixing metals is unavoidable, ensure the coolant is specifically formulated to prevent galvanic corrosion, or use nickel-plated copper waterblocks to create a more inert surface.
Practical Advice: Consult with your liquid cooling provider or waterblock manufacturer (like KingKa Tech) for recommendations on compatible coolants and materials.
Deploying server CPU/GPU waterblocks in dense rack environments can be complex, but with the right partner, it becomes a streamlined process. KINGKA is dedicated to simplifying this deployment through specialized solutions and expert support.
KingKa Tech simplifies server CPU/GPU waterblock deployment by offering custom-designed waterblocks optimized for seamless dense rack integration, ensuring perfect fit and thermal performance. We provide material and design options (e.g., nickel-plated copper, microchannel layouts) to fit diverse server architectures, alongside precision CNC machining for reliable sealing. Crucially, our technical support assists with deployment planning and installation, reducing complexity and enhancing reliability for high-density liquid cooling solutions.
One size rarely fits all in high-density computing. KINGKA excels in providing tailored solutions:
Bespoke Engineering: Our R&D team, with over 25 years of experience in thermal management, works directly with clients to design custom cold plates that perfectly match specific server chassis, CPU sockets (e.g., Intel EGS, AMD SP5), and GPU layouts (e.g., NVIDIA H100, AMD Instinct MI300X).
Space Optimization: Designs are optimized not just for thermal performance but also for physical fit within tight server and rack spaces, ensuring easy integration with manifolds and tubing.
Flow Path Efficiency: Our designs consider the entire cooling loop, minimizing pressure drop across the waterblock to ensure efficient coolant flow even in highly dense configurations.
This customization ensures that your server CPU/GPU waterblock is not just a component, but a perfectly integrated part of your dense rack liquid cooling strategy.
We understand that different environments and budgets require different solutions.
Material Flexibility: We offer a range of materials, including high-purity copper for maximum thermal conductivity and nickel-plated copper for superior corrosion resistance and long-term reliability in enterprise liquid cooling systems.
Microchannel Customization: Our internal microchannel designs can be optimized for specific heat flux requirements, balancing thermal performance with pressure drop for your unique workload.
Compatibility Assurance: We ensure material compatibility with common coolants and other loop components, preventing issues like galvanic corrosion.
This flexibility allows you to choose the ideal custom cold plate that meets your performance, reliability, and cost requirements.
The reliability of a server CPU/GPU waterblock hinges on its manufacturing quality.
Micron-Level Accuracy: Our 35 sets of high-end CNC machines produce components with extreme precision, ensuring perfectly flat mating surfaces and intricate internal geometries. This is crucial for optimal thermal contact and leak-proof sealing.
Advanced Sealing: We utilize robust sealing methods like vacuum brazing and FSW (Friction Stir Welding) to create inherently leak-proof waterblocks that can withstand the rigors of 24/7 operation.
Strict Quality Control: Every waterblock undergoes rigorous multi-stage inspection and pressure testing before shipment, guaranteeing its integrity and performance.
This commitment to precision manufacturing directly translates to 24/7 reliable performance and peace of mind for data center operators.
KINGKA doesn't just provide products; we offer expertise.
Free Design Support: Our experienced R&D team provides free technical design support, helping you plan your liquid cooling solution from concept to deployment.
Installation Guidance: We offer guidance on best practices for installation, including mounting procedures, tubing routing, and leak testing, to ensure a smooth and successful deployment.
Post-Installation Support: Our professional sales and technical teams are available to provide ongoing support, addressing any questions or challenges that may arise after installation.
This comprehensive support helps you navigate the complexities of liquid cooling deployment, ensuring your server CPU/GPU waterblocks are installed correctly and perform optimally.
Installing server CPU/GPU waterblocks in a dense rack environment is a critical step towards unlocking the full potential of modern high-performance computing. It's a process that demands precision, foresight, and a deep understanding of thermal management.
In conclusion, proper installation of CPU/GPU waterblocks is paramount for maximizing performance and efficiency in dense racks. Adhering to best practices, from meticulous planning and precise mounting to thorough leak testing and continuous monitoring, significantly reduces downtime risks and extends system reliability. This ensures your high-density data center or AI cluster operates optimally and reliably. Partner with KingKa Tech for tailored waterblock solutions and expert installation guidance to achieve superior thermal management.
By meticulously following the installation steps—from initial assessment and component selection to careful mounting, loop connection, and rigorous leak testing—you lay the foundation for a robust and efficient liquid cooling system. Adhering to best practices, such as optimizing tubing layout, utilizing quick-disconnects, and planning for scalability, further enhances reliability and reduces long-term maintenance costs. Avoiding common pitfalls like over-tightening or skipping leak tests is crucial to prevent costly damage and downtime.
