The relentless march of electronic innovation brings with it ever-increasing component density and power consumption. While these advancements empower smaller, more powerful devices, they also introduce a silent, formidable adversary: heat. Unmanaged heat isn't just an inconvenience; it's a critical threat that can silently degrade performance, reduce reliability, shorten component lifespans, and even lead to catastrophic system failure. For any electronic design, understanding and effectively managing thermal dynamics is paramount, and at the heart of this challenge lies the humble yet indispensable heat sink.
This article will serve as your comprehensive guide to integrating heat sinks into Printed Circuit Board (PCB) designs. We'll explore why thermal management is crucial, delve into the fundamental principles of heat sinks, examine their various types and materials, and provide a step-by-step approach to selecting and integrating the right solution for your specific application. By the end, you'll have a robust understanding of how to keep your electronics cool, reliable, and performing at their peak.

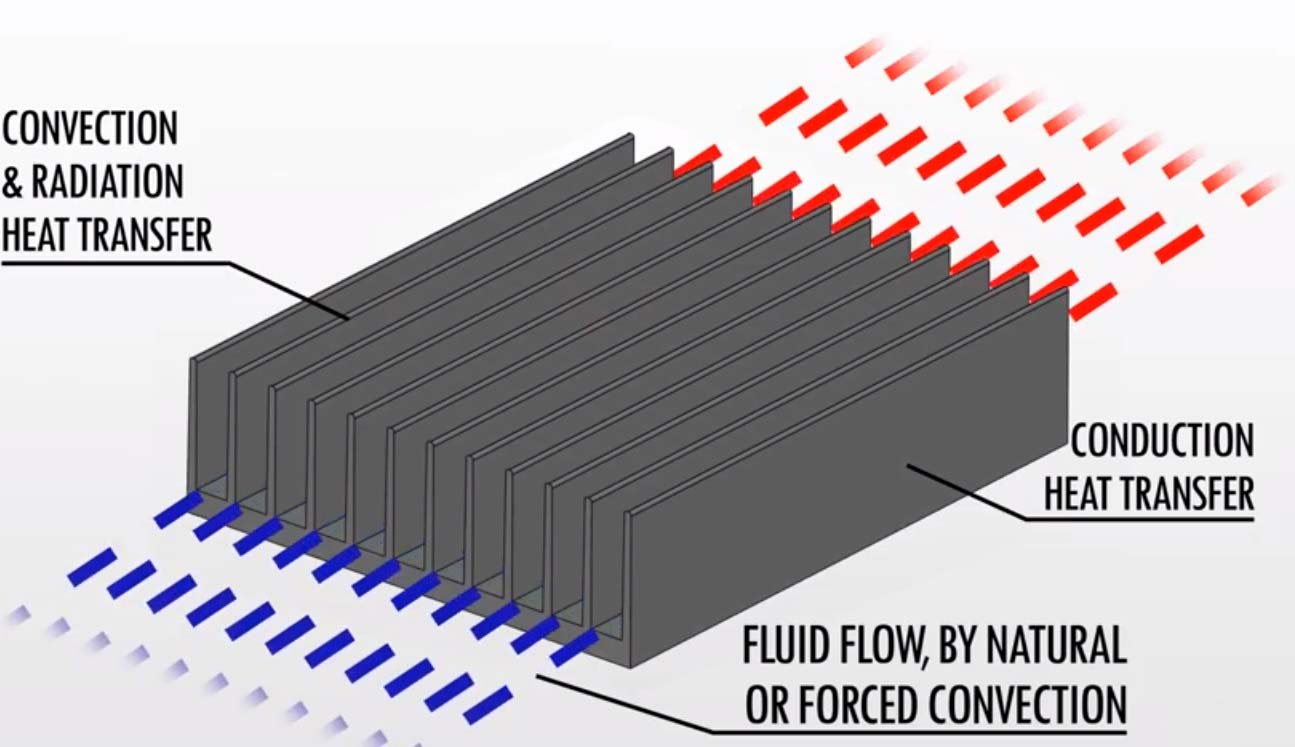

At its core, a heat sink is a passive heat exchanger designed to dissipate heat from a hot electronic component into the surrounding fluid medium, typically air. Its fundamental principle relies on the efficient transfer of thermal energy through three primary modes:

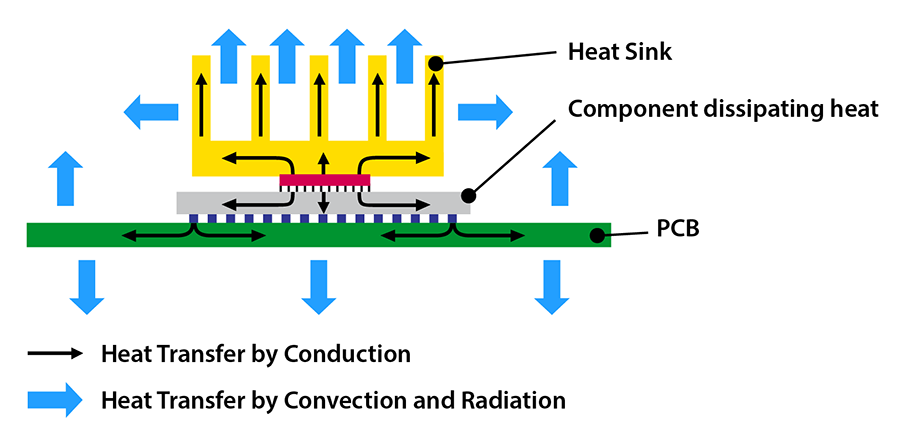

Conduction: Heat moves directly through solid materials from the hotter component to the cooler heat sink base.
Convection: As the heat sink warms up, it heats the adjacent air molecules, causing them to become less dense and rise. Cooler, denser air then flows in to replace them, creating a continuous current that carries heat away. This can be natural (passive) or forced (active).
Radiation: While less significant in most air-cooled systems, the heat sink also emits thermal energy as infrared radiation.
Heat sinks are broadly categorized into two main types based on how they facilitate convection:
Passive Heat Sinks: These rely solely on natural convection and radiation to dissipate heat. They have no moving parts, making them quiet, highly reliable, and requiring no additional power. However, their cooling capacity is limited, dependent on ambient airflow, and often requires larger footprints to be effective. They're ideal for lower-power components or applications where noise and power consumption are critical concerns.
Active Heat Sinks: These incorporate a fan or blower to actively force air over the heat sink fins, significantly enhancing convection. This forced airflow provides superior cooling capacity, allowing for smaller heat sinks to dissipate more power. The trade-offs include added noise, power consumption, potential mechanical failure points (the fan itself), and the need for periodic maintenance (e.g., dust removal). Active heat sinks are indispensable for high-power components like CPUs, GPUs, and high-wattage power supplies.
The necessity of heat sinks on PCBs stems directly from the need to keep sensitive electronic components within their safe operating temperature limits. Exceeding these limits can lead to immediate failure or, more commonly, a gradual degradation in performance and reliability over time.
The effectiveness of a heat sink is largely determined by its material properties and intricate design features.
Aluminum Alloys (e.g., 6063-T5): The most common choice due to an excellent balance of properties. Aluminum offers good thermal conductivity, is lightweight, and highly cost-effective, making it suitable for a vast range of applications. It's easily extruded, allowing for complex fin geometries.
Copper: Possessing superior thermal conductivity compared to aluminum, copper is ideal for applications requiring maximum heat dissipation in a confined space. Its advantages come with trade-offs: copper is significantly heavier, more expensive, and generally harder to fabricate into complex shapes. It's often used for high-performance processors or in hybrid designs.
Hybrid/Composite Materials: To leverage the best of both worlds, some heat sinks use a copper base (for direct contact with the component and excellent conduction) bonded to aluminum fins (for lighter weight and cost-effective surface area). Emerging materials like graphene and advanced composites are also being explored for their impressive thermal properties and lightweight potential, promising even more efficient solutions in the future.
Often overlooked, Thermal Interface Materials (TIMs) are absolutely critical for efficient heat transfer from the component to the heat sink. Even seemingly smooth surfaces have microscopic imperfections and air gaps when placed in contact. Air is a poor thermal conductor, so these gaps act as thermal barriers. TIMs fill these gaps, vastly improving the conductive path.
Common types of TIMs include:
Thermal Greases/Pastes: Applied as a thin layer, offering excellent thermal conductivity and wet-out properties. They're non-curing and can be messy.
Thermal Pads: Pre-formed, compressible pads that are easy to apply and less messy than grease. Their thermal performance can vary widely.
Phase Change Materials: Solid at room temperature, they melt at operating temperatures to fill gaps more effectively, then re-solidify upon cooling.
Thermal Adhesives: Offer both thermal conductivity and mechanical bonding, making them a permanent attachment solution.
The fins are the primary mechanism for transferring heat to the surrounding air via convection. Their design directly impacts the heat sink's performance:
Surface Area: The more surface area exposed to airflow, the greater the heat dissipation.
Fin Height: Taller fins offer more surface area but can increase airflow resistance.
Fin Thickness: Thinner fins allow for more fins in a given volume, increasing surface area, but can be fragile.
Fin Spacing: Optimal spacing is crucial. Too close, and air becomes trapped; too far apart, and surface area is wasted.
Common Fin Types:
Straight Fins: Simple, effective for forced convection.

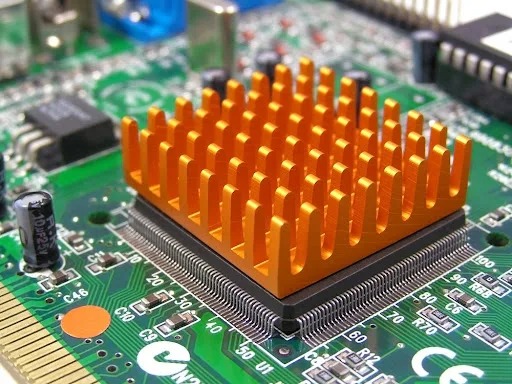

Pin Fins: Allow airflow in any direction, good for omnidirectional cooling.
Skived Fins: Created by "skiving" thin layers from a block of material, allowing for very thin, dense fins.
Bonded Fins: Individual fins bonded to a base, enabling taller, thinner fins than extrusion allows.
Wavy Fins/Serrated Fins: Can increase turbulence and surface area for improved convection.
Selecting the optimal heat sink is a systematic process that requires understanding your component's thermal characteristics and the operational environment.
Component Power Dissipation (PD): This is the amount of heat (in Watts) your component generates during operation. This crucial value is typically found in the component's datasheet.
Maximum Junction Temperature (TJMAX): Also from the datasheet, this is the absolute maximum temperature the semiconductor junction can safely reach without damage or significant performance degradation.
Ambient Temperature (TAMB): The temperature of the air surrounding the heat sink and PCB within the system's enclosure.
Allowable Temperature Rise (ΔT): The maximum permissible temperature difference between the component's junction and the ambient air: ΔT = TJMAX - TAMB.
Thermal resistance, measured in °C/W (or K/W), is a critical metric indicating how effectively a material or interface resists heat flow. A lower thermal resistance means better heat transfer.
The total thermal resistance from the component's junction to the ambient air (RθJA) is the sum of several resistances in the heat path:
Where:
RθJC: Junction-to-Case thermal resistance (from component datasheet).
RθCS: Case-to-Sink thermal resistance (primarily determined by the TIM and mounting method).
RθSA: Sink-to-Ambient thermal resistance (the heat sink's inherent ability to dissipate heat to the air).
To determine the required heat sink thermal resistance (RθSA), we rearrange the fundamental formula derived from Ohm's Law thermal analogy (ΔT = PD * RθJA):
Then, subtract the known resistances:
Your chosen heat sink's RθSA must be equal to or less than this calculated required value.
Available Space (Footprint and Z-height): Perhaps the most common constraint. The heat sink must physically fit within the designated area on the PCB and the overall enclosure.
Airflow Conditions: Crucial for convection. Is there sufficient natural convection? Will a fan provide forced airflow, and if so, what is the airflow direction and velocity across the heat sink?
Mounting Method Compatibility: How will the heat sink be securely attached to the component? This impacts thermal performance and reworkability.
Cost vs. Performance Trade-offs: High-performance, low-RθSA heat sinks typically come at a higher cost. Balancing thermal needs with budget is essential.
Reliability Requirements: For mission-critical or long-life applications, durability and long-term stability of the heat sink and its attachment are paramount.
Integrating a heat sink effectively goes beyond just selecting the right part; it involves strategic PCB design choices.
Achieving good contact pressure and minimizing thermal resistance at the interface are key, regardless of the method.
Thermal Adhesives/Tapes: Offer mechanical bonding and thermal conductivity. Pros: Easy application, low profile. Cons: Often permanent, making rework difficult; proper application is critical to avoid air bubbles.
Clips/Spring Clips: Provide consistent, repeatable clamping force. Pros: Reworkable, no drilling required on PCB. Cons: Can exert significant stress on the component package; clip design must ensure even pressure.
Screws/Hardware: Offer the most secure and highest clamping force. Pros: Very robust, highly reliable. Cons: Requires mounting holes on the PCB and potentially the component; care needed to prevent over-tightening or electrical shorts.
Soldering: For specific heat sink types (e.g., those with a base designed for reflow), soldering provides an excellent, low-resistance thermal path. Pros: Robust, very low thermal resistance. Cons: Permanent, high thermal stress during soldering and de-soldering.
The physical layout of components on the PCB significantly impacts thermal performance:
Spreading vs. Grouping: While it's often intuitive to spread hot components, sometimes grouping them with a shared, large heat sink can be more effective if adequate airflow is ensured. Avoid clustering high-power components without dedicated cooling paths.
Proximity to Airflow: Place heat-generating components and their heat sinks directly in the path of cooling airflow (e.g., near fan intake or exhaust, ensuring unblocked paths).
Avoiding Hotspots: Use thermal simulation tools to identify potential hotspots during the design phase and adjust component placement to distribute heat more evenly.
Isolation: Keep temperature-sensitive components (e.g., precision sensors, crystal oscillators) away from major heat sources to maintain their performance and accuracy.
The PCB substrate and copper layers are valuable tools for thermal management:
Thick Copper Traces and Planes: Using wider, thicker copper traces and dedicated copper pours/planes for power and ground layers acts as an excellent internal heat spreader, distributing localized heat over a larger area.
Thermal Vias and Via Arrays: These are small, plated holes connecting copper layers. Placing arrays of thermal vias directly under a heat-generating component or its thermal pad effectively conducts heat vertically through the PCB layers to internal or external copper planes, which then dissipate it to the air or a heat sink.
Metal Core PCBs (MCPCBs): For very high-power applications (like LED lighting modules or power converters), MCPCBs with an aluminum or copper core offer significantly superior thermal conductivity compared to standard FR-4, acting as an integrated heat sink.
Copper Coins: These are small, solid copper slugs embedded within the PCB directly beneath a component's thermal pad, providing a highly efficient, localized thermal path from the component to an external heat sink or a larger copper plane.
For complex or high-performance designs, more advanced techniques and powerful tools become invaluable.
Heat Pipes and Vapor Chambers: These highly efficient passive devices leverage a phase-change process (evaporation and condensation of a working fluid) to transport large amounts of heat rapidly over relatively long distances, making them ideal for compact systems or those where the heat source is not directly accessible by a conventional heat sink.
Liquid Cooling Systems: While less common for typical PCB-level components, closed-loop liquid cooling systems are used in extreme high-power applications (e.g., server racks, high-end gaming PCs) for their unparalleled heat dissipation capabilities.
Importance: Relying solely on empirical testing after prototyping can be costly and time-consuming. Computational Fluid Dynamics (CFD) software allows engineers to predict thermal performance virtually, identifying hotspots, evaluating different heat sink designs, and optimizing component placement long before physical prototypes are built.
Benefits: Reduces design iterations, saves development time and cost, and leads to more robust, reliable products.
Tools: Various powerful software suites are available, including Altium Designer (with its thermal analysis features), Autodesk Nastran, Ansys Icepak, and COMSOL Multiphysics.
Despite careful planning, designers often face several common challenges when integrating heat sinks:
Space Constraints: Miniaturization demands constantly challenge the physical size required for effective heat sinks. Creative designs, skived fins, or custom solutions are often necessary.
Cost vs. Performance Trade-offs: Achieving optimal thermal performance often involves higher material costs (e.g., copper) or more complex manufacturing (e.g., skived fins). Balancing these factors within budget is a perpetual challenge.
Mechanical Stress: Large or heavy heat sinks, especially those using clip or screw mounting, can exert significant mechanical stress on the PCB or component package, potentially leading to damage over time if not properly designed.
Rework and Repair: Some attachment methods, particularly strong thermal adhesives or soldered heat sinks, make component rework or heat sink replacement extremely difficult without damaging the PCB or component.
Electromagnetic Interference (EMI): While not directly a thermal issue, the presence of large metallic heat sinks can sometimes affect electromagnetic compatibility (EMC) by creating unintended antenna effects or shielding. Careful placement and grounding are necessary.
Effective thermal management, with heat sinks at its forefront, is no longer an afterthought but a foundational pillar of successful electronic design. By understanding the principles of heat transfer, carefully selecting appropriate materials and designs, and implementing best practices in PCB layout, engineers can ensure their electronic devices operate reliably, perform optimally, and achieve their intended lifespan. As electronics continue to miniaturize and increase in power, the innovation in thermal solutions will remain a critical driving force for a cooler, more efficient future.
