Immersion cooling is revolutionizing thermal management in data centers and high-performance computing, where traditional air cooling struggles to keep pace with rising heat loads. By submerging electronic components in dielectric (non-conductive) fluids, immersion cooling dissipates heat more efficiently, slashing energy costs and boosting sustainability. Cooling can account for up to 40% of a data center’s energy consumption, making advanced solutions critical. The two primary methods—single-phase immersion cooling (SPIC) and two-phase immersion cooling (TPIC)—offer distinct approaches, each with unique strengths. This article compares their mechanisms, efficiency, costs, and applications to help you choose the best solution for your needs.

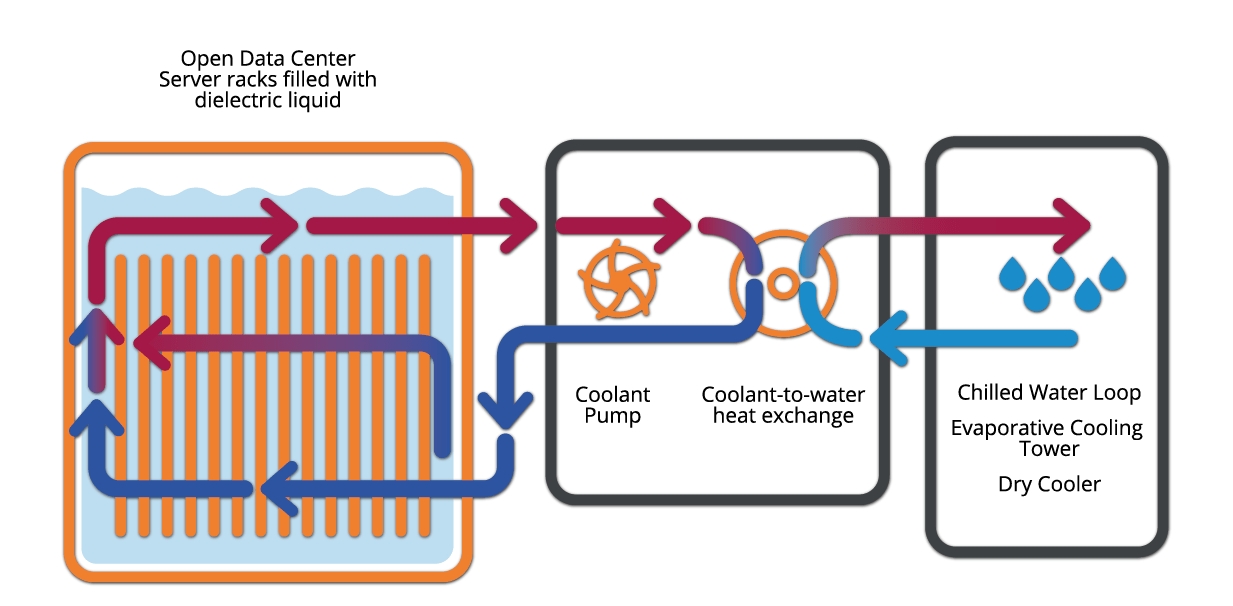

Single-phase immersion cooling involves submerging servers or electronic components in a tank filled with a dielectric liquid, such as mineral oil, synthetic hydrocarbons, or bio-based fluids. The fluid absorbs heat from the components through convection and remains in its liquid state throughout the process.
Heat Absorption: The liquid absorbs heat from hot components, raising its temperature.
Circulation: Pumps or natural convection move the warmed fluid to a heat exchanger.
Heat Dissipation: The heat exchanger transfers heat to a secondary coolant (e.g., air or water), cooling the fluid.
Return: The cooled fluid returns to the tank to repeat the cycle.
No Phase Change: The fluid stays liquid, simplifying system design.
Convection-Driven: Relies on fluid movement for heat transfer.
Equipment: Requires pumps, heat exchangers, and immersion tanks.
Analogy: Think of single-phase cooling like a car’s radiator, where liquid coolant absorbs engine heat and cycles through a radiator to cool down.

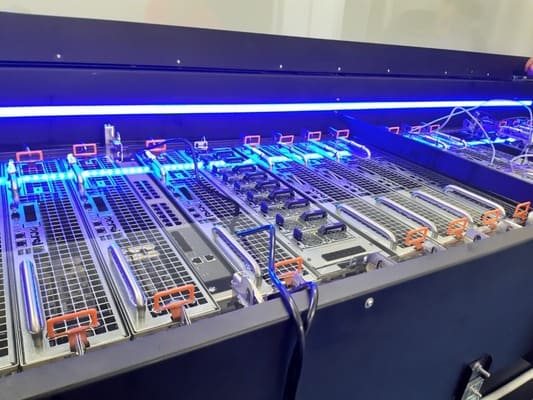

Two-phase immersion cooling uses a dielectric fluid with a low boiling point, such as fluorinated liquids (e.g., Novec or Fluorinert). Heat from components causes the fluid to boil and evaporate, leveraging the latent heat of vaporization for highly efficient heat transfer.
Heat Absorption: Heat from components causes the fluid to boil, forming vapor bubbles that absorb significant thermal energy.
Vapor Movement: The vapor rises to a condenser (typically a cooled coil or plate).
Heat Release: The vapor condenses back into liquid, releasing heat to the condenser, which transfers it to an external cooling system.
Return: The liquid drips back into the tank, restarting the cycle.
Phase Change: Boiling and condensation enhance heat transfer.
Passive Operation: Often relies on natural convection, reducing energy use.
Equipment: Requires sealed tanks, condensers, and sometimes pumps for large systems.
Both immersion cooling methods outperform air cooling, but their efficiency profiles differ significantly:
Single-Phase Immersion Cooling:
Efficiency: Moderate to high, depending on fluid and circulation. Effective for moderate heat loads but less efficient at high densities.
Energy Use: Pumps for fluid circulation consume power, typically resulting in a Power Usage Effectiveness (PUE) of 1.02-1.03.
Strengths: Simpler system design, easier to scale for smaller setups.
Weaknesses: Limited by sensible heat capacity, requiring more fluid flow for high heat loads.
Two-Phase Immersion Cooling:
Efficiency: Very high, thanks to the latent heat of vaporization, which allows small fluid volumes to transfer large heat amounts. Achieves PUEs as low as 1.01-1.02.
Energy Use: Often passive, eliminating pump energy in many designs.
Strengths: Excels at cooling high-density, high-performance systems.
Weaknesses: Complex system design increases engineering demands.
Statistic: Two-phase systems can reduce cooling energy costs by up to 40% compared to air cooling, with single-phase trailing slightly at 20-30% savings.
Cost is a critical factor in choosing between single-phase and two-phase immersion cooling:
Single-Phase Immersion Cooling:
Installation Costs: Lower, due to simpler tank designs and widely available fluids like mineral oil (costing ~$20-$50/gallon). Standard servers often require minimal retrofitting.
Operational Costs: Higher, driven by pump energy and occasional fluid filtration. However, fluids are durable, often lasting 15+ years.
Total Cost of Ownership (TCO): Attractive for small to medium setups with moderate heat loads.
Two-Phase Immersion Cooling:
Installation Costs: Higher, due to specialized sealed tanks, condensers, and costly fluorinated fluids (up to $200-$500/gallon). Servers may need modifications for vapor-tight environments.
Operational Costs: Lower, as passive systems reduce energy consumption. Fluid replacement, though rare, is expensive.
TCO: More economical for large-scale, high-density data centers over time due to energy savings.
Both methods are greener than air cooling, but their environmental and safety profiles differ:
Single-Phase Immersion Cooling:
Environmental Impact: Uses biodegradable or low-GWP fluids like mineral oil or plant-based oils, minimizing ecological harm. Low water usage compared to air-cooled systems with chillers.
Safety: Non-flammable fluids reduce fire risks. Leaks are manageable, as fluids are stable and non-toxic.
Advantage: Aligns with sustainability goals due to recyclable fluids.
Two-Phase Immersion Cooling:
Environmental Impact: Fluorinated fluids often have high global warming potential (GWP), raising concerns under regulations like the EU’s PFAS restrictions. Research into low-GWP alternatives is ongoing.
Safety: Sealed systems prevent vapor leaks, but improper handling poses inhalation risks. Requires trained personnel for maintenance.
Challenge: Environmental scrutiny may limit fluid options in the future.
Trend: Emerging eco-friendly two-phase fluids, such as hydrofluoroethers, promise reduced GWP without sacrificing performance.
Maintenance requirements impact long-term reliability:
Single-Phase Immersion Cooling:
Maintenance: Simple, with easy access to components for upgrades or repairs. Fluid filtration every 1-2 years maintains performance. No sealed systems required.
Reliability: High, with fluids lasting 15-20 years and minimal risk of system failure.
Advantage: Low-maintenance for small teams.
Two-Phase Immersion Cooling:
Maintenance: More complex due to sealed tanks and condensers. Fluid loss from leaks or maintenance increases costs. Requires specialized training for handling vapor systems.
Reliability: High when properly designed, but system integrity is critical to prevent vapor escape.
Example: Microsoft’s Project Natick underwater data center demonstrated two-phase reliability, operating for years with minimal intervention.
Note: Regular inspections for both systems ensure optimal performance, but single-phase is more forgiving for non-specialized operators.
Each method suits specific use cases based on scale, heat load, and priorities:
Single-Phase Immersion Cooling:
Best For: Small to medium data centers, edge computing, university research labs, and crypto mining operations.
Why: Affordable, easy to implement, and effective for moderate heat loads (e.g., 10-50 kW/rack).
Example: A university data center uses single-phase cooling to manage AI research servers, cutting cooling costs by 25%.
Two-Phase Immersion Cooling:
Best For: High-density data centers, high-performance computing (HPC) for AI, cloud providers, and scientific simulations.
Why: Handles extreme heat loads (e.g., 100-250 kW/rack) with unmatched efficiency.
Example: A hyperscale cloud provider adopts two-phase cooling to support AI workloads, achieving a PUE of 1.01.
Use Case Insight: Single-phase is ideal for budget-conscious or smaller setups, while two-phase dominates in performance-driven environments.
Both methods are evolving to meet growing demands:
Single-Phase Immersion Cooling:
Innovations: Biodegradable fluids with enhanced thermal properties, integration with renewable energy sources for heat reuse (e.g., district heating).
Adoption: Expanding to edge computing and modular data centers for rapid deployment.
Two-Phase Immersion Cooling:
Innovations: Development of low-GWP fluids to address environmental regulations, modular tank designs for easier retrofitting.
Adoption: Growing in hyperscale and HPC sectors, driven by AI and 5G infrastructure needs.
Regulatory Note: The EU’s push to phase out high-GWP PFAS fluids by 2030 may accelerate eco-friendly two-phase fluid adoption, leveling the environmental playing field.
Choosing between single-phase and two-phase immersion cooling depends on your priorities:
Choose Single-Phase Immersion Cooling if:
You need a cost-effective, easy-to-maintain solution for small to medium data centers or moderate heat loads.
Budget constraints or simpler infrastructure are key considerations.
Choose Two-Phase Immersion Cooling if:
You require maximum efficiency for high-density, high-performance systems like AI or cloud computing.
Long-term energy savings and scalability outweigh higher initial costs.
Both methods advance the future of sustainable, high-performance data centers, offering greener alternatives to air cooling. At Kingka, our precision manufacturing expertise delivers robust enclosures for immersion cooling systems. Our advanced CNC machines produce durable, high-quality boxes that enhance reliability and performance, supporting your cooling infrastructure with unmatched quality.
