In the relentless pursuit of technological advancement, modern electronic systems are becoming increasingly powerful and compact. This surge in power density, however, brings a formidable challenge: the generation of substantial heat. Unmanaged heat is a silent threat, capable of degrading performance, shortening component life, and even causing catastrophic system failures. This critical juncture highlights the indispensable role of advanced thermal management solutions, particularly the sophisticated Deep Machining Liquid Cold Plate.

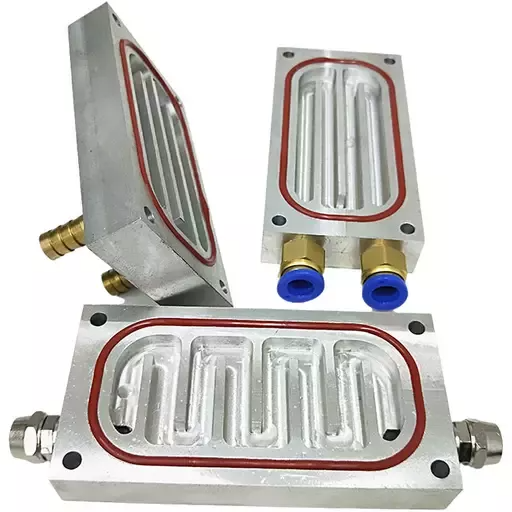

A Deep Machining Liquid Cold Plate is a precision-engineered thermal management device that uses advanced CNC machining to create intricate internal fluid channels within a solid metal block. It is essential for high-performance systems because it efficiently dissipates intense heat loads, ensuring optimal operational stability, preventing performance degradation, and significantly extending the lifespan of critical electronic components.
Modern electronics, from powerful data servers to advanced medical imaging equipment, generate immense heat. Traditional air cooling often falls short, unable to cope with the concentrated thermal energy in increasingly compact designs. This is where liquid cooling, and specifically the advanced Deep Machining Liquid Cold Plate, steps in as a superior solution, offering unparalleled thermal dissipation capabilities.
How Does Deep Machining Elevate Liquid Cold Plate Performance?
What Advanced Manufacturing Techniques Are Used in Deep Machining Liquid Cold Plates?
Which Industries Benefit Most from Deep Machining Liquid Cold Plates?
Why Choose KINGKA for Your Custom Deep Machining Liquid Cold Plate Needs?
Frequently Asked Questions (FAQs) About Deep Machining Liquid Cold Plates
Are you curious about the core technology behind advanced thermal management? A Deep Machining Liquid Cold Plate represents the pinnacle of heat transfer solutions, specifically designed to tackle the most demanding thermal challenges in modern electronics. Understanding its fundamental nature is key to appreciating its critical role.
A Deep Machining Liquid Cold Plate is a highly efficient heat exchanger crafted from a solid block of thermally conductive material, typically aluminum or copper, featuring intricate internal fluid channels precisely carved using advanced CNC machining. Its primary function is to absorb and transfer high heat loads from electronic components to a circulating liquid coolant, which then carries the heat away from the system.
Let's dive deeper into the theoretical basis, design trade-offs, and practical impacts of this sophisticated component.
At its core, a deep machining liquid cold plate operates on the principles of conduction and convection. Heat generated by a component (e.g., a CPU, GPU, or power module) is first transferred by conduction into the baseplate of the cold plate. From there, it is transferred by forced convection to the liquid coolant flowing through the internal channels. The efficiency of this transfer is paramount.
Conduction: The choice of material (e.g., copper for its high thermal conductivity of ~400 W/mK, or aluminum for its lighter weight and cost-effectiveness at ~200 W/mK) directly impacts how quickly heat moves from the component into the cold plate.
Convection: The design of the internal channels (micro-channels, serpentine, parallel flow) and the properties of the coolant (e.g., water, glycol-water mixtures, dielectric fluids) dictate the convective heat transfer coefficient. A higher coefficient means more efficient heat removal. For instance, a well-designed micro-channel cold plate can achieve heat transfer coefficients significantly higher than traditional finned heat sinks.
The performance of a deep machining liquid cold plate is a delicate balance of material properties, channel design, and manufacturing precision.
Material Selection:
Copper: Offers superior thermal conductivity, making it ideal for extremely high heat flux applications (e.g., high-power IGBT modules in electric vehicles). However, it is heavier and more expensive than aluminum.
Aluminum: Lighter, more cost-effective, and offers good thermal conductivity, suitable for a wide range of applications (e.g., server racks, industrial automation). It is also easier to machine.
Stainless Steel: Used in specific applications where corrosion resistance is paramount, even if thermal conductivity is lower (e.g., medical devices where specific fluids are used).
Channel Geometry:
Serpentine Channels: Common for their simplicity and good flow distribution, often used in general-purpose cold plates.
Parallel Channels: Can offer lower pressure drop for high flow rates, suitable for large surface areas.
Micro-channels: Extremely small channels (typically <1mm) that significantly increase the surface area for heat transfer, leading to very high heat flux capabilities. These are crucial for cooling advanced semiconductors.
Pin Fins/Turbulators: Integrated features within channels to disrupt laminar flow and enhance turbulence, thereby increasing the convective heat transfer coefficient.
Example 1: High-Power Server CPU Cooling
For a modern server CPU generating 250-300W, a deep machined aluminum cold plate with optimized serpentine or parallel channels is often used. The precision machining ensures minimal thermal resistance between the CPU and the coolant, maintaining CPU temperatures below critical thresholds (e.g., 85°C).
Example 2: Electric Vehicle (EV) Inverter Cooling
EV inverters can generate kilowatts of heat. Here, a copper deep machined cold plate with complex internal structures, possibly including pin fins or very dense micro-channels, is essential. The high thermal conductivity of copper combined with the optimized flow path ensures efficient cooling of IGBTs (Insulated Gate Bipolar Transistors), preventing thermal runaway and ensuring vehicle reliability.
The practical impact of a well-designed deep machining liquid cold plate is profound:
Enhanced Performance: By maintaining components at optimal operating temperatures, the cold plate prevents thermal throttling, allowing processors and power modules to operate at their peak performance for extended periods.
Extended Lifespan: Reduced operating temperatures significantly slow down material degradation processes, leading to a longer lifespan for expensive electronic components. For every 10°C reduction in operating temperature, the lifespan of a semiconductor device can double.
Increased Power Density: Enables the design of more compact and powerful systems, as heat is no longer a limiting factor for component density.
Reduced Noise: Liquid cooling systems are generally quieter than air-cooling systems, as they rely on pumps rather than high-speed fans.
Testing Methods:
To verify the performance of a deep machining liquid cold plate, several tests are conducted:
Thermal Resistance Measurement: Quantifies the efficiency of heat transfer from the component to the coolant.
Pressure Drop Testing: Measures the resistance to fluid flow, ensuring the cold plate doesn't require excessive pump power.
Leak Testing: Critical for liquid cooling, ensuring the integrity of the fluid channels. This often involves helium leak detection or pressure decay tests.
Are you wondering what makes "deep machining" so crucial for liquid cold plates? It's not just about making a hole; it's about precision, complexity, and the ability to unlock superior thermal performance that other manufacturing methods simply cannot achieve.
Deep machining elevates liquid cold plate performance by enabling the creation of highly intricate, precise, and optimized internal fluid channels within a solid metal block. This level of precision allows for maximized surface area contact between the coolant and the heated material, optimized flow paths for efficient heat transfer, and superior structural integrity, leading to significantly enhanced thermal dissipation capabilities.
Let's explore the specific ways deep machining contributes to this elevated performance.
The core advantage of deep machining, particularly using advanced CNC milling, lies in its ability to create complex internal geometries that are impossible or impractical with other methods like stamping, extrusion, or even some forms of brazing.
Micro-channels: Deep machining allows for the creation of extremely small channels (down to sub-millimeter widths) with high aspect ratios. These micro-channels dramatically increase the wetted surface area per unit volume, leading to very high heat transfer coefficients. For example, a cold plate with 0.5mm wide micro-channels can dissipate significantly more heat than one with 5mm wide channels, given the same footprint.
Optimized Flow Paths: CNC machining enables the design of non-linear, curvilinear, or branching flow paths that can be tailored to specific heat source locations and fluid dynamics. This ensures uniform flow distribution and minimizes pressure drop while maximizing heat pick-up.
Integrated Features: Features like turbulators, pin fins, or flow distributors can be precisely machined directly into the channel walls, further enhancing turbulence and heat transfer without adding separate components.
Example 1: High-Performance Computing (HPC) Clusters
In HPC, CPUs and GPUs generate immense, localized heat. Deep machined cold plates with precisely engineered micro-channels are critical to extract this heat efficiently. The ability to customize channel layouts for specific chip geometries ensures optimal thermal contact and fluid flow across the entire die, preventing hot spots and enabling sustained peak performance.
Example 2: Semiconductor Manufacturing Equipment
Equipment used in semiconductor fabrication (e.g., plasma etchers, deposition systems) often requires precise temperature control of critical process chambers or components. Deep machined cold plates can be integrated directly into these components, providing highly localized and stable temperature regulation, which is vital for process yield and quality.
Deep machining provides a superior internal surface finish compared to methods like casting or even some forms of brazing.
Reduced Flow Resistance: A smoother internal surface reduces friction between the fluid and the channel walls, leading to a lower pressure drop across the cold plate. This means less pump power is required, or higher flow rates can be achieved with the same pump, both contributing to better thermal performance.
Minimized Fouling: Smoother surfaces are less prone to fluid-side fouling (accumulation of deposits), which can degrade heat transfer efficiency over time.
Enhanced Material Integrity: By machining from a solid block, the material's inherent strength and thermal conductivity are preserved. There are no weak points introduced by joining methods (like brazing seams or welding lines) that could compromise thermal performance or lead to leaks under pressure. This is particularly important for high-pressure or high-temperature applications.
Practical Impact:
Consider a cold plate for a high-power laser diode array. Any imperfection in the internal channels could lead to localized flow stagnation, creating hot spots that degrade laser performance or even cause failure. Deep machining ensures the necessary precision and surface quality for such critical applications.
Deep machining offers unparalleled flexibility in design customization and rapid prototyping.
Tailored Solutions: Every high-performance system has unique thermal requirements. Deep machining allows for the creation of truly custom cold plates, precisely designed to fit specific component layouts, heat loads, and space constraints. This contrasts sharply with off-the-shelf solutions that often compromise on performance or fit.
Rapid Iteration: For new product development, deep machining enables quick iteration of designs. Engineers can test different channel geometries or material thicknesses with relative ease, accelerating the R&D cycle. This agility is crucial in fast-paced industries like aerospace or telecommunications.
Integrated Features: Beyond just fluid channels, deep machining can integrate mounting features, sensor ports, or manifold connections directly into the cold plate, reducing assembly complexity and potential leak points.
Example: Custom Power Electronics Module
A company developing a new generation of power electronics for renewable energy might require a cold plate with specific mounting patterns for IGBTs, integrated temperature sensor wells, and a unique manifold connection to their existing cooling loop. Deep machining allows KINGKA to produce such a highly customized solution efficiently.
Are you curious about the sophisticated processes that bring these high-performance thermal solutions to life? The creation of a Deep Machining Liquid Cold Plate involves more than just basic milling; it leverages cutting-edge manufacturing techniques to achieve unparalleled precision and quality.
Advanced manufacturing techniques used in Deep Machining Liquid Cold Plates primarily include multi-axis CNC milling, specialized tooling, and stringent post-machining processes like deburring, cleaning, and precision leak testing. These methods enable the creation of complex internal geometries, ensure superior surface finishes, and guarantee the structural integrity and leak-proof performance critical for high-reliability applications.
Let's delve into the specific techniques and their importance.
The cornerstone of deep machining liquid cold plates is multi-axis Computer Numerical Control (CNC) milling. Unlike traditional 3-axis milling, which moves along X, Y, and Z axes, multi-axis machines (typically 4-axis or 5-axis) allow the cutting tool or the workpiece to rotate, enabling access to complex geometries from multiple angles without re-fixturing.
Complex Channel Creation: 5-axis CNC machines can create highly intricate, non-linear, and three-dimensional fluid channels, including curved paths, varying channel depths, and integrated features like turbulators or flow distributors. This level of complexity is vital for optimizing fluid flow and maximizing heat transfer surface area within a compact footprint.
Precision and Repeatability: CNC machines offer extremely high precision (often within microns) and excellent repeatability, ensuring that every cold plate produced meets exact specifications. This is crucial for consistent thermal performance across batches.
Material Removal Efficiency: Advanced tooling and high-speed machining strategies employed with multi-axis CNC can efficiently remove large amounts of material while maintaining tight tolerances, reducing manufacturing time and cost.
Example 1: Aerospace Avionics Cooling
In aerospace, space and weight are critical. A cold plate for an avionics system might require complex, interwoven channels to cool multiple heat sources within a very constrained volume. A 5-axis CNC machine can precisely carve these channels from a single block of aluminum, ensuring optimal thermal performance and structural integrity for demanding flight conditions.
Example 2: High-Power Laser Systems
Cooling the gain medium or optics in a high-power laser requires extremely uniform temperature distribution. Deep machining allows for the creation of cold plates with highly optimized flow fields that ensure even cooling across the entire surface, preventing thermal lensing or stress that could degrade laser performance.
Achieving deep, narrow, and precise channels requires more than just a multi-axis machine; it demands specialized tooling and sophisticated machining strategies.
Long Reach End Mills: To create deep channels, specialized long-reach end mills are used. These tools are designed to maintain rigidity and minimize deflection even when extending far into the material, ensuring accuracy at the bottom of deep pockets.
Small Diameter Cutters: For micro-channels, extremely small diameter cutters (e.g., 0.2mm to 1mm) are employed. These require very high spindle speeds and precise feed rates to prevent tool breakage and achieve the desired surface finish.
Coolant Management: Effective coolant delivery is vital during deep machining to dissipate heat generated by cutting, lubricate the tool, and evacuate chips. This prevents tool wear and ensures a clean, accurate cut.
Adaptive Machining: Advanced CAM (Computer-Aided Manufacturing) software can implement adaptive machining strategies that adjust tool paths based on material conditions, optimizing material removal rates and extending tool life.
Practical Advice: When evaluating a manufacturer, inquire about their tooling capabilities and their approach to deep pocket machining. A company like KINGKA, with 35 sets of high-end CNC machines, indicates a strong investment in the necessary equipment for such complex work.
Once the machining is complete, a series of critical post-processing steps and rigorous quality control measures are essential to ensure the cold plate's performance and reliability.
Deburring: Machining can leave small burrs, especially in intricate channels. These must be meticulously removed to prevent flow obstruction, particle contamination, and potential leaks. Techniques include abrasive flow machining, vibratory finishing, or manual deburring.
Cleaning: After machining and deburring, the cold plate must be thoroughly cleaned to remove any residual chips, cutting fluids, or contaminants. This often involves multi-stage ultrasonic cleaning with specialized detergents, followed by rinsing and drying. Cleanliness is paramount to prevent clogging of micro-channels and ensure fluid compatibility.
Precision Leak Testing: This is perhaps the most critical post-machining step. Since liquid cold plates operate under pressure, even a microscopic leak can lead to system failure.
Helium Leak Detection: A highly sensitive method where the cold plate is pressurized with helium, and a mass spectrometer detects any escaping helium molecules. This can identify leaks as small as 10^-9 mbar.l/s.
Pressure Decay Testing: The cold plate is pressurized with air or nitrogen, and the pressure is monitored over time. A significant pressure drop indicates a leak.
Surface Treatment: Depending on the application, cold plates may undergo surface treatments like anodizing (for aluminum, to enhance corrosion resistance and dielectric properties) or passivation (for stainless steel).
Example: Medical Imaging Equipment
Cold plates for MRI or CT scanners must be absolutely leak-proof and free of contaminants to ensure patient safety and equipment reliability. Rigorous helium leak testing and multi-stage cleaning are standard procedures to meet these stringent medical industry requirements.
Are you wondering where the cutting-edge capabilities of deep machining liquid cold plates are making the biggest impact? These advanced thermal solutions are not just a luxury; they are a necessity in sectors where unmanaged heat can compromise performance, safety, or even mission success.
Deep Machining Liquid Cold Plates are most beneficial for industries characterized by high power density, stringent thermal management requirements, and the need for compact, reliable, and high-performance electronic systems. Key sectors include high-performance computing, electric vehicles, renewable energy, medical devices, aerospace, and industrial automation, where traditional air cooling is insufficient to dissipate intense heat loads.
Let's explore the specific applications and benefits within these critical industries.
The relentless demand for faster processing in HPC, AI, and data centers generates enormous heat loads from CPUs, GPUs, and high-speed memory.
Application: Cooling of server racks, supercomputers, AI accelerators, and cryptocurrency mining rigs.
Benefit: Deep machined cold plates enable higher component density, allowing more processing power in a smaller footprint. They prevent thermal throttling, ensuring sustained peak performance for complex computations and data processing. Liquid cooling also significantly reduces data center energy consumption by lowering cooling fan power and enabling higher ambient temperatures.
Example: A modern AI server rack might contain dozens of high-power GPUs, each generating 300-500W of heat. A custom deep machined cold plate for each GPU, connected to a central liquid cooling loop, is essential to keep these components within safe operating temperatures, preventing performance degradation and extending the lifespan of these expensive assets.
EVs and hybrid vehicles rely heavily on power electronics (inverters, converters, battery modules) that generate substantial heat, directly impacting vehicle performance, range, and safety.
Application: Cooling of IGBT modules in inverters, battery thermal management systems, and on-board chargers.
Benefit: Deep machined cold plates provide highly efficient and compact cooling for power electronics, which are critical for converting and managing high currents. This prevents thermal runaway, improves efficiency, extends component life, and contributes to overall vehicle reliability and safety. The precision allows for direct cooling of individual power modules.
Example: The inverter in an EV converts DC battery power to AC for the motor. This process generates significant heat in the IGBTs. A deep machined copper cold plate, often with integrated flow features, is directly mounted to the IGBTs to efficiently transfer this heat to the vehicle's coolant loop, ensuring the inverter operates reliably under varying load conditions.
Similar to EVs, renewable energy systems utilize high-power electronics to convert and manage energy, often operating in harsh environments.
Application: Cooling of power inverters for solar farms, converters in wind turbines, and energy storage systems.
Benefit: Ensures the reliable operation and longevity of critical power conversion components, maximizing energy harvesting efficiency and reducing maintenance costs in remote or challenging locations. The robust nature of deep machined plates is well-suited for outdoor or industrial environments.
Example: A large-scale solar inverter converts DC power from solar panels into AC for the grid. These inverters can handle megawatts of power, generating substantial heat. Deep machined cold plates are integrated to cool the internal power modules, ensuring continuous operation and preventing downtime due to overheating, which directly impacts energy production.
Precision, reliability, and patient safety are paramount in the medical industry, making advanced thermal management crucial for diagnostic and therapeutic equipment.
Application: Cooling of X-ray tubes, MRI gradient coils, laser systems for surgery, and high-power diagnostic equipment.
Benefit: Enables compact, high-performance medical devices by efficiently removing heat from sensitive components. Ensures stable operation, precise control, and long-term reliability, which are critical for accurate diagnoses and effective treatments. The ability to use specific materials (e.g., stainless steel) and ensure absolute leak-proof designs is vital.
Example: An MRI machine's gradient coils generate significant heat during operation. Deep machined cold plates are integrated into these coils to maintain precise temperature control, which is essential for image quality and patient comfort. The high precision ensures no internal fluid contamination or leaks that could compromise the sterile environment.
In aerospace and defense, systems operate under extreme conditions, where reliability, weight, and performance are non-negotiable.
Application: Cooling of avionics, radar systems, directed energy weapons, and satellite communication equipment.
Benefit: Provides robust, lightweight, and highly efficient cooling solutions for mission-critical electronics in demanding environments (e.g., high altitude, vibration, extreme temperatures). Enables higher power density in compact designs, crucial for size, weight, and power (SWaP) optimization.
Example: A fighter jet's radar system generates immense heat from its high-power transmit/receive modules. A custom deep machined aluminum cold plate, designed for minimal weight and maximum thermal performance, is integrated directly into these modules to ensure the radar operates reliably during critical missions.
Are you searching for a reliable partner to deliver high-quality, customized thermal solutions? Choosing the right manufacturer for deep machining liquid cold plates is crucial for the success of your high-performance systems. KINGKA stands out as a premier choice, offering a unique blend of experience, advanced capabilities, and unwavering commitment to quality.
KINGKA is your trusted one-stop thermal solution provider, specializing in high-quality customized liquid cold plates and heat sinks, backed by over 15 years of expertise in thermal management and precision CNC machining. We offer comprehensive design support, advanced manufacturing capabilities with 35 sets of high-end CNC machines, rigorous quality control, and a dedicated R&D team, ensuring superior performance and reliable delivery for your most demanding applications.
Let's explore the core advantages that make KINGKA an industry leader.
With over 15 years of experience in thermal management and precision CNC machining, KINGKA has cultivated deep expertise in designing and manufacturing complex liquid cold plates.
Proven Track Record: KINGKA has a long history of serving diverse industries including automotive, medical, electronics, and consumer goods, demonstrating a broad understanding of varied application requirements and challenges. This extensive experience means they can anticipate potential issues and provide robust solutions.
Expert R&D Team: KINGKA boasts a powerful technical R&D team whose members possess over 25 years of solid theoretical and practical foundation in mechanical processing and thermal fields. This deep knowledge base allows for innovative design solutions and optimization for even the most challenging thermal loads. They offer free, highly technical design team support, including thermal design and airflow simulation.
One-Stop Solution Provider: KINGKA's core positioning as a "one-stop thermal solution provider" means they handle everything from initial design consultation and thermal analysis to manufacturing, surface treatment, and assembly. This streamlines the supply chain, reduces risks, and ensures seamless project execution.
Example 1: Complex Automotive Battery Cooling
An automotive client needed a highly customized liquid cold plate for a new EV battery module, requiring specific material compatibility and complex internal flow paths to manage rapid temperature changes. KINGKA's R&D team leveraged their 25+ years of experience to propose an optimized design, perform thermal simulations, and then precisely manufacture the cold plate, meeting stringent automotive reliability standards.
Example 2: Industrial Automation Control Cabinet
A customer in industrial automation required a compact, high-efficiency cold plate to cool sensitive electronics within a sealed control cabinet. KINGKA's experience with diverse industrial applications allowed them to quickly understand the environmental constraints and design a robust, maintenance-free solution that integrated seamlessly into the existing system.
KINGKA's commitment to quality is evident in its state-of-the-art manufacturing facilities and rigorous quality control processes.
Cutting-Edge Equipment: Equipped with 35 sets of high-end CNC machines, KINGKA can handle complex deep machining tasks with exceptional precision and efficiency. This extensive machinery allows for high-volume production while maintaining tight tolerances.
Comprehensive Manufacturing Capabilities: Beyond deep machining, KINGKA offers a full suite of manufacturing processes including CNC milling, turning, skiving, stamping, forging, welding, die-casting, and polishing. This versatility ensures that the most appropriate and cost-effective manufacturing method is chosen for each component.
Strict Quality Control: All products undergo at least 4 times strict inspection using advanced testing equipment such as automatic CMM (Coordinate Measuring Machine), projectors, micrometers, and colorimeters. This multi-stage inspection process guarantees dimensional accuracy, surface finish, and overall product integrity.
On-Time Delivery: Through their one-stop service model, KINGKA shortens the supply chain and reduces risks, committing to timely delivery of high-quality products.
Practical Advice: When selecting a supplier, always inquire about their quality control procedures and the specific testing equipment they utilize. KINGKA's transparent approach to showing their inspection capabilities provides confidence in their product quality.
KINGKA operates with a "customer first" business philosophy, ensuring high-efficiency and high-quality service from initial contact to after-sales support.
Simple Collaboration Process: KINGKA simplifies the engagement process into just 4 easy steps: upload your design, receive design analysis, get professional team support, and proceed to manufacturing. This makes it easy for clients to get started.
24/7 Production Support & Fast Global Delivery: Understanding the urgency in modern industries, KINGKA offers continuous production support and ensures rapid global delivery of heat sinks and liquid cold plates.
Active Industry Participation: KINGKA actively participates in major industry exhibitions like PCIM Europe 2025 and 2024 Electronica Munich Expo, demonstrating their commitment to staying at the forefront of thermal management technology and engaging with clients worldwide.
Comprehensive After-Sales Service: Their commitment extends beyond delivery, providing responsive and effective after-sales support to ensure complete customer satisfaction.
Choosing KINGKA means partnering with a company that not only possesses the technical prowess and manufacturing capabilities but also prioritizes customer success through dedicated support and a streamlined process.
Have more questions about Deep Machining Liquid Cold Plates? Here are some common inquiries and their concise answers to further enhance your understanding of this critical thermal management technology.
Deep Machining Liquid Cold Plates are typically made from highly thermally conductive metals such as aluminum alloys (e.g., 6061-T6) or copper. Aluminum is favored for its lighter weight and cost-effectiveness, while copper offers superior thermal conductivity for extremely high heat flux applications. Stainless steel is used in specific cases requiring high corrosion resistance.
Deep Machining Liquid Cold Plates are machined from a solid block, offering superior internal channel complexity, surface finish, and structural integrity without the need for joining. Brazed Liquid Cold Plates involve joining two or more plates with a brazing material, which can introduce thermal resistance at the joints and limit channel complexity, though they can be more cost-effective for simpler designs.
Liquid cooling offers significantly higher heat transfer capabilities than air cooling, enabling the dissipation of much greater heat loads from smaller areas. This allows for higher power density, more compact system designs, quieter operation, and more stable component temperatures, leading to enhanced performance and extended lifespan for high-power electronics.
Yes, Deep Machining Liquid Cold Plates are highly customizable. Their manufacturing process allows for precise tailoring of internal channel geometries, mounting features, material selection, and overall dimensions to meet the exact thermal and mechanical requirements of specific electronic components and system layouts, making them ideal for unique or challenging applications.
A well-designed and properly manufactured Deep Machining Liquid Cold Plate, made from high-quality materials and subjected to rigorous leak testing, can have a very long lifespan, often exceeding 10-15 years. Its solid construction minimizes potential failure points compared to designs that rely on multiple joined parts, contributing to exceptional long-term reliability.
In the rapidly evolving landscape of high-performance electronics, effective thermal management is no longer an afterthought but a fundamental pillar of system design. The Deep Machining Liquid Cold Plate stands as a testament to this necessity, offering an unparalleled solution for dissipating the intense heat generated by increasingly powerful and compact components. Its ability to create intricate, precise, and highly efficient internal fluid channels from a solid block of metal ensures optimal thermal performance, extends component lifespan, and enables the continued advancement of technology across critical industries.
From the demanding environments of high-performance computing and electric vehicles to the precision requirements of medical devices and aerospace, Deep Machining Liquid Cold Plates are proving indispensable. By choosing a partner like KINGKA, with over 15 years of specialized experience, advanced manufacturing capabilities, a dedicated R&D team, and a rigorous
