As electronic components continuously shrink while their power outputs surge, thermal engineers are constantly battling spreading resistance and restricted airflow. When standard extrusions can no longer meet the required convective surface area, the decision usually narrows down to two advanced manufacturing techniques: skiving or bonding.

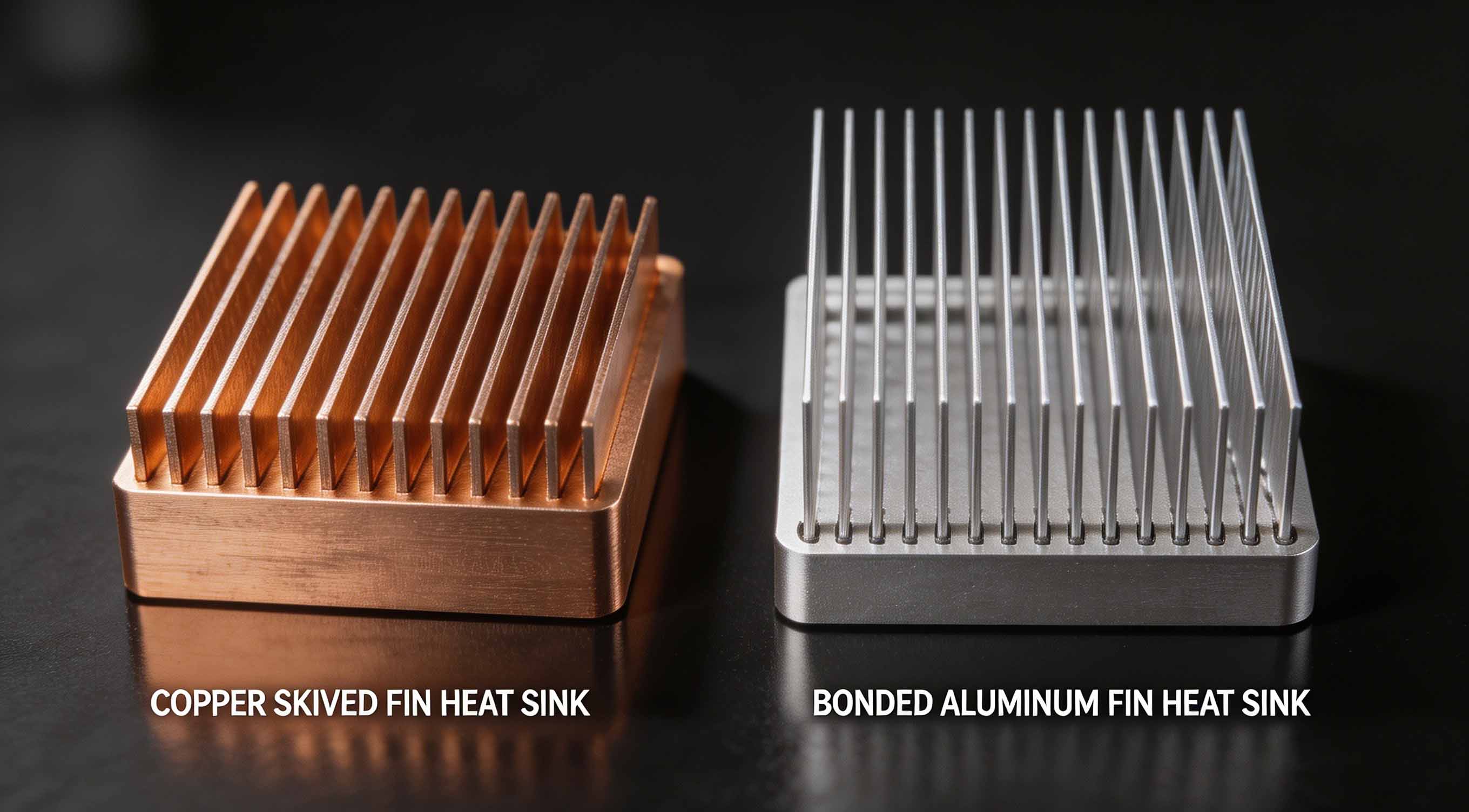

In this Thermal Performance Review, we will objectively compare Skived Fin vs Bonded Fin architectures. Understanding the geometric limits, thermal interface properties, and ideal application scenarios of both methods is essential for protecting your high-power components from catastrophic thermal failure.
To evaluate thermal performance, we must first look at how these heat sinks are built. The manufacturing process directly dictates the physical and thermal limitations of the final product.
Skiving is a subtractive mechanical process. A specialized CNC blade shaves a precise layer of metal from a solid block of extruded aluminum or pure copper and bends it completely upright. Because the fin is peeled directly from the base, the entire heat sink remains a single, monolithic piece of metal.
A Bonded Fin Heat Sink is an assembled product. The base plate (typically aluminum or copper) is CNC-machined with tight-tolerance grooves. Individual fin sheets are then inserted into these grooves. Using a proven manufacturing process refined over decades of experience, these fins are permanently secured using high-performance thermal epoxy or advanced soldering techniques, creating a highly rigid mechanical and thermal joint.
The primary goal of both technologies is to pack as much surface area as possible into a constrained footprint. However, they achieve this in different ways.
Bonded Fin Geometry:
Bonded fin manufacturing completely bypasses the aspect ratio limits of traditional thin fin extrusions.
Thickness: The individual fins can be stamped or rolled from sheet metal, allowing for ultra-thin profiles down to 0.008 inches (approx. 0.2 mm).
Height: Because the fins are manufactured separately and inserted into the base, the fin height can easily exceed 2 inches (approx. 50.8 mm), unlocking exceptional aspect ratios for massive heat dissipation.
Skived Fin Geometry:
Thickness: Skiving is also capable of extreme precision, with fin thicknesses reliably reaching 0.1 mm to 0.2 mm.
Height: The limitation of skiving lies in the cutting stroke of the machine blade. While highly dense, skived fins generally max out around 40 mm to 50 mm in height. If your chassis allows for very tall fins (e.g., a deep telecom enclosure), bonded fins often provide a distinct volumetric advantage.
The path the heat takes from the component die to the fin tip determines the overall thermal resistance of the module.
The Skived Advantage:
Because a skived fin heat sink is carved from a single block of metal, there is absolutely zero interface resistance between the base and the fins. The thermal conductivity path is 100% continuous, making it highly effective for concentrated, high-power ICs.
The Bonded Reality:
Historically, engineers worried about the joint in a Bonded Fin Heat Sink acting as a thermal insulator. However, with decades of experience and modern material science, this concern has been largely mitigated. By utilizing highly specialized, high-performance thermal epoxy or precision soldering techniques, the joint creates a near-perfect thermal bridge. While technically a microscopic interface exists, the massive increase in total surface area (due to taller fins) often easily offsets any localized joint resistance.
Engineering Metric | Skived Fin Heat Sink | Bonded Fin Heat Sink |
Manufacturing Method | Monolithic (CNC sliced from solid block) | Assembled (Fins embedded into a grooved base) |
Fin-to-Base Joint | Zero thermal resistance | Extremely low (Soldered / Thermal Epoxy) |
Minimum Fin Thickness | ~0.1 mm – 0.2 mm | ~0.008 inches (0.2 mm) |
Maximum Fin Height | Typically limited to ~50 mm | Exceeds 2 inches (50.8 mm) |
Aspect Ratio | High (Up to 50:1) | Extremely High (Better than thin fin extrusions) |
Material Flexibility | Uniform (Solid Al or Solid Cu) | Hybrid Capable (e.g., Cu base with Al fins) |
Choosing between these technologies depends entirely on your specific thermal load, chassis constraints, and operational environment.
Telecommunications Equipment: Cooling telecom systems and dense server racks often involves deep chassis designs. A Bonded Fin Heat Sink is frequently the top choice here because its ability to exceed 2 inches in fin height maximizes the convective surface area required to manage hundreds of watts.
High-Power Electronics: For power supplies, motor controllers, and large semiconductor devices, hybrid bonded designs (copper bases for spreading, tall aluminum fins for convection) provide the ideal thermal balance.
Automotive Electronics: Efficient thermal management in electric vehicles (EVs) and fast-charging stations requires robust, high-surface-area solutions. The rugged soldering techniques used in premium bonded fins withstand the harsh vibrations of automotive environments.
LED Lighting: To ensure the optimal performance and longevity of high-power LED arrays, cooling modules must quickly shed heat into the ambient air. Tall bonded fins are excellent for passive, natural convection setups common in stadium or street lighting.
Consumer Electronics: Gaming systems and high-performance workstations require compact but aggressive cooling. Here, skived fins (often pure copper) are heavily favored because their zero-interface monolithic structure rapidly pulls intense heat away from small, highly overclocked processors.
In modern industrial procurement, thermodynamic performance must be matched by supply chain reliability and environmental compliance.
Whether you opt for a skived or bonded architecture, all materials utilized—from the high-performance thermal epoxy to the raw aluminum and copper billets—must be fully compliant with RoHS standards. This ensures the safety, reliability, and global export readiness of your final application.
Furthermore, moving a theoretical thermal design into physical reality requires a partner with a proven manufacturing process. A comprehensive thermal provider will guide your project through the entire lifecycle: starting with expert thermal consultation, moving swiftly into rapid prototyping for physical validation, and scaling securely into flawless mass production.
In the ultimate Skived Fin vs Bonded Fin debate, there is no single winner—only the right tool for your specific thermal bottleneck.
If your design is heavily vertically constrained and requires zero thermal interface resistance for a concentrated hotspot, skiving is your best option. However, if your chassis allows for taller fin geometries and you need to maximize raw convective surface area beyond the limits of standard extrusions, a Bonded Fin Heat Sink is unmatched.
Are you facing a thermal bottleneck in your latest high-power design? Our engineering team leverages decades of experience in custom thermal management. Contact us today to discuss your specific heat load, and let us help you transition from concept to prototyping and mass production with absolute confidence.
1. What is the primary difference between a Skived Fin and a Bonded Fin heat sink?
A skived fin is carved directly from a solid block of metal, making it a single monolithic piece with zero joint resistance. A bonded fin heat sink is assembled by inserting individual fin sheets into a grooved base plate and bonding them using epoxy or solder.
2. Are bonded fin heat sinks structurally reliable?
Yes. When manufactured using a proven process with high-performance thermal epoxy or advanced soldering techniques, the mechanical bond between the fin and the base is incredibly robust and capable of surviving harsh industrial vibration and thermal cycling.
3. Why choose a bonded fin heat sink over a standard extruded heat sink?
Standard thin fin extrusions are limited by the physical constraints of the extrusion die, meaning fins cannot be extremely thin or tall. Bonded fins can be as thin as 0.008 inches and taller than 2 inches, providing a vastly superior aspect ratio and total cooling surface area.
4. Does the epoxy or solder in a bonded fin act as a thermal insulator?
No. High-performance thermal epoxies and industrial solders are specifically engineered to conduct heat. While they introduce a microscopic interface, the massive gain in surface area from the taller, denser fins far outweighs this minor interface resistance.
5. Can I use different materials for the base and the fins in a bonded design?
Yes, this is a major advantage of bonded fins. You can create a hybrid heat sink—for example, using a pure copper base plate to instantly spread the heat from a localized hotspot, bonded to lightweight aluminum fins to save overall module weight and cost.
6. Which technology is better for 1U server racks?
Because 1U servers have strict height constraints (under 1.75 inches), skived fin heat sinks are often preferred. They maximize fin density in short spaces and eliminate the interface joint, pulling heat away from dense CPUs rapidly.
7. Are both manufacturing processes RoHS compliant?
Yes. When working with a reputable manufacturer, all raw metals, high-performance epoxies, and soldering materials used in both skived and bonded fin heat sinks are fully compliant with RoHS environmental and safety standards.
