Failing to manage severe heat flux in high-power electronics leads directly to component throttling and catastrophic hardware failure. Relying on an inadequate thermal heat sink or an improperly designed heat pipe cooling module drives up both replacement costs and system downtime. By matching the correct thermal architecture to your specific power density, you ensure maximum continuous performance.
As power components shrink and wattage scales up, thermal management transitions from a secondary concern to the primary engineering bottleneck. At KingKa Tech, our in-house R&D team leverages over 25 years of combined expertise in thermal engineering and CNC machining to help procurement managers navigate this exact dilemma.
With over 15 years of experience designing and manufacturing tailored thermal management solutions, we understand the distinct engineering boundaries of both technologies. Below is an in-depth analysis to guide your cooling architecture selection.
Understanding how heat moves away from the silicon die is the first step in designing a reliable thermal management system for high-density components.

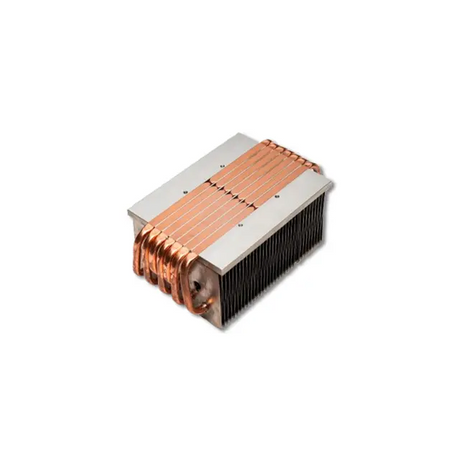

A thermal heat sink relies entirely on solid metal conduction to absorb and distribute heat to its fins. Conversely, heat pipe cooling utilizes the continuous vaporization and condensation of an internal fluid, acting as a superconductor to move extreme heat instantaneously without relying on solid metal spreading.
In standard electronics, a solid metal block is sufficient to move heat from the source to the ambient air. However, as heat flux ($W/cm^2$) increases, solid metal exhibits "spreading resistance." The heat gets trapped directly above the small silicon die because it cannot conduct outward to the fins fast enough.
Conduction Limitation: A solid metal heat sink is bound by the theoretical limits of its base alloy. Heat transfer is strictly linear and decays over distance.
Phase Change Advantage: Heat pipes are hollow copper vessels containing a wick and a working fluid (usually purified water). When the heat source boils the fluid, the vapor travels at near sonic speeds to the cooler end of the pipe, condenses, and returns via capillary action. This bypasses the spreading resistance of solid metal entirely.
Table 1: Conduction vs. Phase Change Mechanics
The base material of your cooling module dictates its baseline performance limit, structural weight, and overall manufacturing cost.
High-purity aluminum heat sinks provide ~170–226 W/mK thermal conductivity, ideal for balancing weight and cost. Pure copper heat sinks deliver ~400 W/mK, significantly promoting rapid heat transfer away from concentrated components like power ICs, making them mandatory for high-flux environments.
The decision between aluminum and copper is rarely based purely on thermal performance; it is a multi-angle engineering trade-off involving weight restrictions and budget ceilings.
High-Purity Aluminum (e.g., Anodized 6063/6061): This is the industry standard for general electronics, LED driver housings, and automotive enclosures. It is highly machinable and lightweight. However, its thermal conductivity peaks around 226 W/mK, which can create a severe bottleneck when cooling compact, high-wattage processors.
Pure Copper (e.g., C1100): Copper offers nearly double the thermal conductivity of aluminum. It acts as an aggressive heat spreader, instantly pulling heat away from small, intense heat sources to prevent localized die throttling.
When clients approach us with weight-sensitive applications (such as drone payloads or telecom mast equipment), we often engineer hybrid solutions. We embed a pure copper base plate directly over the processor to eliminate the initial spreading resistance, while utilizing aluminum fins to keep the overall module lightweight and cost-effective.
When chassis space is heavily constrained, standard extrusion processes fail to provide the required convective surface area to cool high-power electronics.
Skived fin technology enables significantly higher fin density and thinner fins compared to traditional extruded or bonded fin designs. This precision manufacturing process multiplies the available surface area, drastically improving cooling efficiency without increasing the module's overall volume.
Standard extrusion dies cannot push metal through microscopic gaps. Typically, extrusion is limited to a fin aspect ratio of roughly 15:1. If you need more surface area in a 1U server chassis, extrusion cannot deliver it.
Skiving, however, uses a specialized CNC blade to slice fins directly from a solid metal block.
Zero Interface Resistance: Because the fins and the base are a single, monolithic piece, there is no thermal epoxy or solder to impede heat flow.
Case Example: Kingka Tech regularly manufactures skived fin copper heat sinks to maximize surface area and heat dissipation in limited space. For our clients in LED lighting and telecom equipment, this high-density fin approach is especially beneficial where high heat flux requires superior convection performance to maintain system uptime.
By packing fins as thin as 0.1mm with pitches as tight as 0.2mm, skived thermal heat sinks maximize the convective heat transfer coefficient within the available airflow, pushing the boundaries of what solid metal cooling can achieve.
There is a definitive thermal threshold where a solid block of metal, regardless of its fin density, can no longer prevent a component from overheating.
You must transition to heat pipe cooling when the component's thermal load exceeds the base material's conductive limits, resulting in high junction temperatures. Heat pipe integrated solutions are specifically designed to handle thermal loads of hundreds of watts for LEDs, telecom, and industrial electronics.
As a general engineering rule, when the power density of a component exceeds 50 W/cm², a solid aluminum or copper base will trap heat directly under the die. The heat simply cannot move fast enough to the outer fins, rendering the periphery of the heat sink useless.
By integrating heat pipes, we create "thermal highways" that bypass the solid metal. The heat pipes are embedded directly over the heat source (often flattened using Hi-Contact technology to reduce interface gaps). They absorb the extreme heat flux and transport it instantly to the furthest edges of the fin stack, ensuring that every square millimeter of convective surface area is utilized effectively.
If your system generates over 150W from a small footprint, a heat pipe cooling module is no longer an optional upgrade; it is a strict mechanical requirement for continuous operation.
Compact, high-lumen LED arrays generate intense, highly localized heat that rapidly degrades optical performance and lifespan if not managed aggressively.
A custom 350W zipper fin heat sink integrated with 5 heat pipes successfully cools high-power LED systems. Combining lightweight zipper fin stacking with heat pipes dramatically boosts thermal transfer, making it the ideal architecture for compact, high-heat scenarios like industrial lighting and servers.
A major client in the industrial LED sector approached Kingka Tech with a severe weight and thermal constraint. A solid copper heat sink could handle their 350W load, but it was far too heavy for the lighting fixture's mounting bracket. Standard aluminum extrusions were light enough but failed thermally.
Our engineering team designed a hybrid solution:
Heat Transport: We embedded five precisely bent copper heat pipes into a small copper contact block. These pipes acted as the primary thermal transport mechanism, instantly pulling the 350W of heat away from the LED array.
Heat Dissipation: Instead of skived or extruded fins, we soldered the heat pipes to a high-density "zipper fin" stack. Zipper fins are stamped from thin aluminum sheets and interlocked. They provide massive surface area but are incredibly lightweight and hollow.
The result was a highly efficient, 350W-capable thermal module that maintained safe junction temperatures while satisfying the strict weight limitations of the industrial mounting hardware.
Industrial power conversion equipment, such as variable frequency drives and railway traction modules, generate extreme thermal loads that can cause catastrophic system failure.
Zipper stacked fin heat sinks customized with robust heat pipes enhance cooling performance for 550W LED and IGBT modules. The precise integration of heat pipes reduces junction temperature significantly more effectively than standalone fin arrays, ensuring critical system reliability.
When dealing with IGBT (Insulated-Gate Bipolar Transistor) modules generating 550W or more, thermal cycling is brutal. Heat must be managed aggressively to prevent the silicon die from fracturing due to thermal stress.
For a client in the power electronics sector, we engineered a heavy-duty customized 550W heat pipe heat sink.
The Architecture: We utilized thick, 8mm sintered copper heat pipes to handle the massive vapor flow required by a 550W load. These pipes were deeply embedded into a thick copper base plate to absorb the initial thermal shock.
The Fin Stack: The heat pipes routed the thermal energy into a massive, interlocking zipper fin array designed specifically to interface with high-velocity industrial cooling fans.
Without the heat pipes, the base plate would have reached critical failure temperatures within seconds of a full-load power surge. The heat pipe integration provided the thermal headroom required for the IGBT modules to operate safely at maximum continuous output.
Selecting the right thermal architecture is a complex balance of heat flux, spatial constraints, weight limits, and manufacturing budgets.
At KingKa Tech, our in-house R&D team brings over 25 years of combined expertise in thermal engineering and CNC machining. With over 15 years of experience in designing and manufacturing high-power thermal management solutions, we do not rely on guesswork. We provide a complete end-to-end service, from initial CFD thermal simulation to precision manufacturing and final assembly testing.
Whether your project requires the monolithic density of a skived thermal heat sink or the extreme dissipation capacity of a 550W heat pipe cooling module, we tailor the geometry and materials to guarantee your system's stability.
Ready to eliminate your thermal bottlenecks? Send us your CAD models and thermal load requirements for a comprehensive engineering review, and let us build a solution that performs under pressure.
1. What is the actual thermal conductivity of a heat pipe?
While solid pure copper conducts heat at ~400 W/mK, a heat pipe utilizes phase-change vaporization. Its effective thermal conductivity can range from 10,000 W/mK to over 100,000 W/mK, depending on length and temperature, effectively eliminating spreading resistance.
2. When should I choose skived fins over extruded fins?
You should choose skived fins when your system space is severely limited (e.g., a 1U server) but your heat load is high. Skiving allows for significantly higher fin density and thinner fins, increasing surface area beyond what traditional extrusion can achieve.
3. Are copper heat sinks always better than aluminum?
Thermally, yes, as copper (~400 W/mK) conducts heat nearly twice as fast as high-purity aluminum (~170–226 W/mK). However, copper is roughly three times heavier and more expensive, so aluminum is preferred when weight and budget are strict constraints.
4. What are zipper fins, and why use them with heat pipes?
Zipper fins are stamped from thin metal sheets (aluminum or copper) and mechanically interlocked into a stack. They provide massive surface area at a fraction of the weight of a solid heat sink. Soldering them to heat pipes creates an ultra-light, high-performance cooling module.
5. How does KingKa Tech ensure the reliability of heat pipe modules?
Our in-house R&D and CNC machining teams rigorously test all heat pipe assemblies. We ensure perfect mating between the heat pipe and the base (often using Hi-Contact technology) and test the modules under simulated thermal loads to guarantee performance before mass production.
6. Can heat pipes work if mounted upside down?
It depends on the internal wick structure. High-quality sintered powder wicks (which we commonly use) provide strong capillary action capable of returning the fluid to the heat source against gravity, though performance is always optimal when gravity assists the return flow.
7. Can a solid thermal heat sink handle a 300W load?
It is highly unlikely, unless the heat source is physically very large (distributing the heat) and the heat sink is massive with high-velocity airflow. For concentrated 300W+ loads, heat pipes or vapor chambers are generally required to prevent the junction temperature from spiking.
