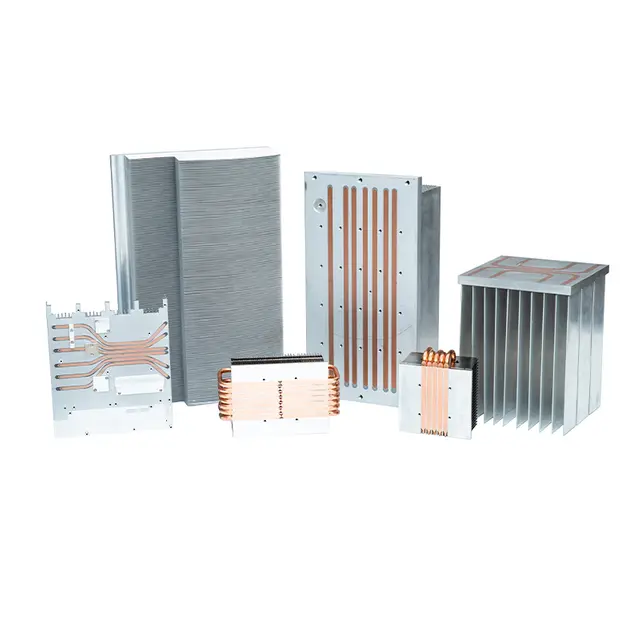

As electronic components shrink and power densities surge, simply attaching a larger piece of aluminum to a processor is no longer a viable cooling strategy. Thermal heat sink performance is governed by a complex, interconnected system of 30 critical factors—ranging from the base metal's thermal conductivity and micrometer-level surface flatness to fin aerodynamic spacing and the physical limitations of the manufacturing process. Navigating these variables requires moving beyond off-the-shelf catalog parts and deeply understanding how custom thermal management solutions perform under strict, real-world operating conditions.
For high-power applications spanning AI servers, electric vehicle (EV) inverters, and industrial automation, an optimized thermal heat sink requires a rigorous balance of thermodynamic physics and manufacturing reality. A professional custom heat sink manufacturer understands that ignoring even one variable—such as installation orientation or interfacial bond line thickness—will bottleneck heat transfer and cause catastrophic component failure. To help you engineer the ultimate cooling solution, we have broken down the exact 30 factors that dictate heat dissipation efficiency.
Table of Contents
Base material selection dictates the raw thermal transfer capacity of your cooling solution; engineers must evaluate absolute conductivity, structural density, machining yield, surface emissivity, and bulk thermal resistance to establish a viable thermal foundation. Many thermal failures occur because designers assume a higher conductivity metal automatically guarantees better overall performance, ignoring the mechanical, environmental, and financial trade-offs.
The inherent capability of a metal to conduct heat is measured in Watts per meter-Kelvin (W/m·K). According to Wikipedia's data on the List of thermal conductivities, standard AL6061 aluminum operates at approximately 167 W/m·K, while pure C1100 copper reaches roughly 401 W/m·K. While it might be tempting to automatically specify copper for its superior conductivity, doing so unnecessarily increases costs. For distributed heat loads, such as large LED arrays, aluminum remains highly effective. Copper should be strictly reserved for dealing with extreme, localized heat fluxes (e.g., >50 W/cm²) where aluminum's thermal limit is breached.
Material density dictates the final weight of the thermal management solution. Aluminum has a density of roughly 2.7 g/cm³, whereas copper is vastly heavier at approximately 8.96 g/cm³. For aerospace, automotive EV systems, or PCBs with strict mechanical weight limits, heavy copper heat sinks can cause structural warping or fail high-frequency vibration testing. In weight-sensitive applications, designers should opt for aluminum bases integrated with lightweight vapor chambers to simulate copper's thermal performance without the severe mass penalty.
Different alloys respond differently to manufacturing stress. AL6063 has excellent extrusion properties, while pure copper is notoriously "gummy" and rapidly wears down CNC tooling, making it difficult to extrude into complex shapes. When designing ultra-dense fin structures, it is crucial to select an alloy optimized for the specific manufacturing process. If your design requires ultra-thin, high-density fins in copper, skiving is often the only commercially viable mass-production method that prevents tooling breakage.
Emissivity is the measure of an object's ability to emit infrared energy. Bare polished aluminum has a very low emissivity (around 0.05), while black anodized aluminum has an emissivity of roughly 0.85, according to Wikipedia's reference on Emissivity. If your custom thermal heat sink relies on passive natural convection (operating without cooling fans), specifying a black anodized surface treatment is mandatory. The increased radiative heat transfer significantly lowers the thermal resistance in passive environments.
Every solid metal has a physical ceiling on how fast it can move heat via conduction before a temperature gradient builds up within the metal itself. Once your processor's thermal design power (TDP) exceeds the bulk spreading limit of solid metal, simply making the heat sink thicker will not solve the problem. At this threshold, engineers must transition to two-phase cooling solutions like embedded heat pipes or vapor chambers to bypass the solid metal's thermal resistance.
Material Specification | Thermal Conductivity | Density (g/cm³) | Ideal Manufacturing Process | Recommended Application |
AL6063 Aluminum | ~200 W/m·K | ~2.70 | Extrusion | Telecommunications, LED cooling, commercial electronics. |
AL1070 Aluminum | ~225 W/m·K | ~2.70 | Cold Forging | High-performance passive cooling, pin-fin arrays. |
C1100 Copper | ~401 W/m·K | ~8.96 | Skiving | Laser diodes, high-density AI CPUs, TEC cold sides. |
A heat sink base must feature optimized thickness, micron-level surface flatness, strategic mounting placement, and embedded two-phase technologies to prevent thermal bottlenecks directly at the semiconductor junction. If the base is improperly designed, heat will never effectively reach the fin array.
A base that is too thin cannot spread heat laterally, causing the outer fins to remain cold and useless. Conversely, a base that is too thick adds unnecessary vertical thermal resistance. Engineering teams should utilize Computational Fluid Dynamics (CFD) simulations to determine the optimal thickness. The base should only be thick enough to establish a 45-degree lateral heat spreading angle from the edge of the heat source to the outer extremities of the fin array.
At a microscopic level, machined metal is rough. If the base is concave or convex, air gaps form between the processor and the heat sink. Since air acts as a massive thermal insulator (with a thermal conductivity of just 0.024 W/m·K), these microscopic valleys trap heat directly at the junction. To ensure intimate metal-to-silicon contact, engineers must specify CNC face-milling for the contact area, enforcing a flatness tolerance of less than 0.05 millimeters. This precision minimizes the system's reliance on thick thermal paste.
This is the structural ability of the base to push a highly concentrated heat flux (like a small GPU die) to the extreme edges of a much larger fin array. If the heat source footprint covers less than 30 percent of the total heat sink base area, solid aluminum will fail to spread the heat fast enough. In these scenarios, specifying a copper base insert or integrating a vapor chamber into the base is required to achieve a uniform fin temperature across the entire component.
The physical location of screws and springs dictates how clamping pressure is distributed across the semiconductor die. Mounting hardware must be positioned symmetrically around the heat source. Asymmetrical mounting causes uneven clamping pressure, which squeezes thermal paste out of one side and lifts the heat sink slightly off the other side. This uneven contact causes immediate thermal throttling and potential mechanical damage to the silicon.
Heat pipes utilize the latent heat of vaporization of a working fluid to move heat at near-supersonic speeds, boasting an effective thermal conductivity ranging from 10,000 to over 100,000 W/m·K. When routing embedded heat pipes through an aluminum base, it is critical to ensure the pipes run directly over the hottest zones of the chip and curve gently into the fin array. Sharp or aggressive bends in heat pipes severely degrade their internal capillary pumping action, crippling their heat transport capacity.
Fin performance is dictated by an exact engineering ratio involving fin height, fin thickness, fin pitch, total surface area, and the maximum manufacturable aspect ratio for the chosen cooling airflow. Simply cramming more fins onto a base does not guarantee better performance if it severely chokes the airflow.
Taller fins increase total cooling surface area, providing more metal to dissipate heat into the air stream. However, fin height is strictly limited by the available Z-axis space in your chassis and the static pressure strength of the system fan. Taller fins create a longer aerodynamic channel, which significantly increases drag. Engineers must ensure the system blower has the static pressure required to push air all the way through tall fin channels without stalling.
Thinner fins allow for a higher total number of fins (higher density) within the exact same physical footprint. While thin fins maximize surface area, they simultaneously reduce the cross-sectional area available to conduct heat from the base to the fin tip. If a fin is too thin relative to its height, the tip will remain cold and contribute nothing to cooling. Fin efficiency equations must be calculated to ensure the fin thickness supports full-height heat transfer.
Fin pitch is the gap between individual fins, governing the flow rate and pressure drop of the cooling air. This is often the most miscalculated factor in thermal design. For passively cooled, natural convection systems, fin pitch must be wide (typically >6 millimeters) to allow buoyant hot air to escape without friction. Tightly packed fins (pitch <2 millimeters) should be strictly reserved for high-pressure forced-air systems where a fan can overcome the aerodynamic resistance.
This is the aggregate square millimeter measurement of all metal exposed to the cooling fluid or air. According to Newton's law of cooling, the convective heat transfer rate is directly proportional to this surface area. However, maximizing wetted surface area must be done within the bounds of aerodynamic limits. A heat sink with massive surface area but completely choked airflow will perform far worse than a smaller heat sink that allows air to flow freely.
The aspect ratio is the fin height divided by the gap between the fins. Standard aluminum extrusion maxes out at roughly a 10:1 to 15:1 aspect ratio before the steel extrusion dies risk breaking under immense hydraulic pressure. If your thermal design requires an extreme aspect ratio (e.g., 30:1) to fit massive surface area into a 1U telecom server blade, you must specify a skived fin heat sink or a bonded fin assembly, as traditional extrusion simply cannot manufacture it.
Real-world cooling efficiency is severely altered by the choice of natural versus forced convection, available volumetric airflow, aerodynamic pressure drop, ambient temperature maximums, and the physical effects of gravity. A custom thermal heat sink perfectly optimized in a laboratory wind tunnel will frequently fail in the field if the actual installation environment is ignored.
Heat transfer coefficients (denoted as h) vary wildly depending on the environment. Natural convection (operating without fans) typically yields an h of 5–25 W/(m²·K), while forced air convection yields 25–250 W/(m²·K) (Source: Wikipedia, Convective heat transfer). Engineers must explicitly design for the intended convection type. A dense skived fin heat sink that works perfectly with a 10,000 RPM server fan will overheat in minutes if deployed as a passive cooler on an outdoor industrial control box.
Cubic Feet per Minute (CFM) measures the exact volume of air passing through the fin array. Never rely solely on a cooling fan's rated maximum CFM, as that rating is measured in "free air" with zero resistance. Once the fan is mounted directly to a dense heat sink, the actual CFM drops significantly. Always calculate system cooling capacity based on the impeded airflow curve, not the fan's theoretical maximum.
This is the resistance the fin array creates against the incoming air stream. The denser the fins, the higher the pressure drop. To ensure adequate cooling, engineers must work closely with their custom heat sink manufacturer to map the system fan's PQ curve (Pressure vs. Flow rate) against the heat sink's impedance curve. The intersection of these two curves dictates your actual, real-world cooling airflow.
For heat to dissipate naturally, there must be a temperature delta between the heat sink and the surrounding air. If the ambient air inside an enclosure is 45°C, the heat sink can never cool the chip below 45°C. Always design your thermal management solution using the worst-case ambient temperature (e.g., a non-ventilated factory floor in summer). If the ambient delta is too small, you must transition to active liquid cold plates or sub-ambient TEC cooling.
Gravity affects both natural air buoyancy and the internal fluid dynamics of two-phase cooling systems. If utilizing passive convection, fins must be oriented vertically so hot air can naturally rise and escape. If utilizing embedded heat pipes, be aware that while they use internal capillary action, fighting gravity (placing the evaporator section above the condenser section) reduces a heat pipe's heat transport capacity by up to 50 percent.
Microscopic air gaps destroy thermal transfer. Engineers must optimize interface conductivity, bond line thickness, clamping pressure, void fraction, and galvanic corrosion prevention to secure the semiconductor junction. The physical connection between the heat source and the heat sink base is where the highest concentration of thermal resistance often occurs.
Thermal Interface Materials (TIM) such as greases, phase-change pads, and liquid metals fill microscopic air gaps. Their conductivities range from 1 W/m·K (basic silicone pads) to over 70 W/m·K (liquid metal). However, do not blindly buy the highest conductivity TIM. High-conductivity pastes are often highly viscous and difficult to compress. In many cases, a highly conformable 3 W/m·K pad performs better than a stiff 10 W/m·K pad because it wets the microscopic surface valleys much more thoroughly.
This is the physical thickness of the TIM layer after the heat sink is fully mounted and torqued down. Thinner is always better. TIM is meant strictly to fill microscopic voids, not to act as a structural spacer. Ensure your CNC machining tolerances are tight enough to achieve a BLT of less than 0.05 millimeters. A thick layer of thermal paste will actively insulate the chip rather than cool it.
TIM requires physical pressure to compress, spread out evenly, and squeeze trapped air bubbles out of the interface. Specify mounting hardware with calibrated, spring-loaded screws to guarantee the exact pounds per square inch (PSI) required by the TIM manufacturer. Under-torquing leaves air gaps that block heat flow, while over-torquing risks cracking the fragile silicon die.
This is the percentage of microscopic air bubbles trapped within the thermal paste application during final assembly. Standard manual thermal paste application (such as the traditional "pea drop" method) often traps air pockets. For high-power OEM production, it is highly recommended to specify automated silk-screen stencil printing of the TIM to ensure 100 percent void-free coverage across the entire processor surface.
When dissimilar metals (such as a copper cold plate and an aluminum chassis) are in direct contact in the presence of an electrolyte (like high-humidity air), galvanic corrosion occurs. This chemical reaction degrades the metal and destroys the thermal pathway. When designing mixed-metal hybrid heat sinks, ensure your custom heat sink supplier applies an isolating surface treatment, such as electroless nickel plating, to the copper components to prevent long-term corrosion failure in the field.
Mass production reliability depends entirely on selecting the correct manufacturing process—such as extrusion or skiving—while enforcing strict machining tolerances, rigid fin consistency, and batch-to-batch repeatability. The most mathematically perfect thermal heat sink design is entirely useless if it cannot be manufactured consistently or cost-effectively at scale.
Extrusion, skiving, cold forging, CNC machining, and bonding all have distinct mechanical limits regarding fin thickness, aspect ratios, and material compatibility. Partner with a supplier that offers multiple technologies under one roof. If a supplier only owns extrusion machines, they will try to force an extruded design onto your project, even if a skived fin heat sink would perform vastly better and fit tighter constraints for your high-power application.
Post-process CNC machining is required to face-mill the base perfectly flat, tap mounting holes accurately, and cut O-ring grooves for liquid cold plates. You must specify exact geometric dimensioning and tolerancing (GD&T) on your engineering drawings. A heat sink base that warps by just 0.1 millimeters during the final CNC pass will create a massive thermal bottleneck and fail thermal validation on the assembly line.
Fins must remain perfectly parallel. If fins are bent during manufacturing, packaging, or shipping, they will physically block the aerodynamic channels. When specifying ultra-thin skived fins or delicate copper fins, require the manufacturer to use specialized structural packaging. A dropped box of heat sinks with bent fins will cause localized hot spots and system throttling when installed in the final server chassis.
A full CNC-machined process that easily yields 10 beautiful prototypes might be financially ruinous or technically unstable when scaled to 10,000 units per month. Always design for manufacturability (DFM). Work closely with your supplier to transition complex, fully machined prototypes into scalable custom extruded profiles, skived arrays, or forged parts to slash per-unit costs and accelerate lead times for mass production.
Thermal performance cannot drift over a multi-year OEM supply contract. Demand strict Quality Control (QC) documentation from your thermal solution provider, including first article inspection (FAI) reports, Coordinate Measuring Machine (CMM) dimensional checks, and statistical process control (SPC) data. These stringent protocols ensure that the ten-thousandth unit performs identically to the highly scrutinized first unit.
Different high-power industries push distinct heat sink performance factors to their breaking points, requiring highly specialized thermal management solutions rather than generic catalog parts.
AI Servers and High-Performance Computing: AI processors generate extreme, continuous heat fluxes. Heat sink performance here relies heavily on embedding vapor chambers and heat pipes into ultra-dense skived fin arrays to manage massive thermal loads within restricted 1U and 2U rack server dimensions.
EV Power Electronics: Electric vehicle inverters and DC/DC converters demand high thermal performance combined with intense mechanical durability. Thermal solutions must survive continuous road vibration and rapid environmental temperature shifts. When standard bonded fins fail mechanical shock tests, automotive OEMs shift to advanced liquid cold plates.
Industrial Automation Systems: Robotics and servo drives operate continuously in enclosed, dust-filled factory cabinets. Custom heat sink designs for automation prioritize wide fin spacing (to prevent debris clogging) and robust aluminum bases to ensure stable, maintenance-free temperature control over multi-year lifespans.
B2B procurement is not just about purchasing a piece of milled aluminum; it is about mitigating engineering risk. To fully optimize these 30 critical factors, you need more than a basic machine shop—you need a dedicated thermal engineering partner.
A professional thermal heat sink manufacturer like KINGKA reviews your design to optimize fin geometries, selects the appropriate alloy, and utilizes advanced thermal simulation to recommend whether an extruded heat sink, a skived fin heat sink, or a liquid cold plate offers the best performance-to-cost ratio for your specific high-power application.
By offering comprehensive manufacturing capabilities under one roof—from precision CNC machining and vapor chamber integration to final surface treatments and strict quality control—Kingka ensures rapid prototype-to-mass production cycles, eliminating supply chain fragmentation and safeguarding your product's reliability in the field.
Ready to optimize your high-power electronic cooling? Contact Kingka's engineering team today to review your thermal requirements, access DFM support, and secure a customized thermal management solution built for mass production.
1. Does a larger thermal heat sink always provide better cooling performance?
No. While a larger heat sink possesses more surface area, its effectiveness is strictly limited by its base heat spreading capability and the available airflow. If the heat cannot spread laterally to the outer edges of a massive base, or if the large fins create too much aerodynamic drag and choke the system's fan, a smaller, highly optimized heat sink with embedded heat pipes will easily outperform it.
2. Why is thermal resistance a better metric than thermal conductivity?
Thermal conductivity only measures a raw material's inherent ability to transfer heat. Thermal resistance measures the actual, real-world performance of the entire engineered heat sink assembly, accounting for fin geometry, airflow dynamics, surface area, and interface resistance. A lower total thermal resistance translates directly to superior cooling.
3. What is a skived fin heat sink, and when should I specify it?
A skived fin heat sink is manufactured using a precision CNC blade to slice and bend fins directly from a solid block of aluminum or copper. This creates a unibody structure with zero interface resistance and allows for incredibly thin, tightly packed fins. It is the ideal manufacturing choice for high-power electronics where maximum cooling surface area is required within a severely restricted mechanical space.
4. How does base flatness impact overall heat sink performance?
If the heat sink base is wavy or uneven (failing micrometer tolerances), microscopic air gaps form between the heat sink and the electronic die. Because air is a highly effective thermal insulator, these gaps trap heat. To fill these gaps, thick layers of thermal paste must be applied, which drastically increases thermal resistance and degrades overall cooling efficiency.
5. When should I transition from standard air-cooled heat sinks to liquid cooling solutions?
You must transition to liquid cold plates when your component's localized heat flux exceeds the physical limits of forced air cooling (typically above 100-150 Watts per square centimeter), or when your system enclosure is completely sealed (e.g., an IP67 rating) and cannot utilize mechanical fans to draw in ambient cooling air.
6. How do I ensure my custom heat sink prototype is scalable for OEM mass production?
The most effective strategy is to partner with a comprehensive thermal heat sink manufacturer during the early conceptual design phase. A professional supplier provides Design for Manufacturing (DFM) engineering reviews to ensure your fin aspect ratios, mounting features, and material choices can be reliably and cost-effectively produced at high volumes without sacrificing the thermal performance validated during prototyping.
