Heat pipes are highly efficient, passive thermal management devices that transfer heat with minimal energy loss. By leveraging the phase-change properties of a working fluid, they outperform traditional conduction-based cooling methods, making them indispensable in electronics, aerospace, industrial systems, and more. With various types of heat pipes tailored to specific needs, this comprehensive guide explores their designs, functionalities, and applications to help you select the ideal solution for your thermal challenges.

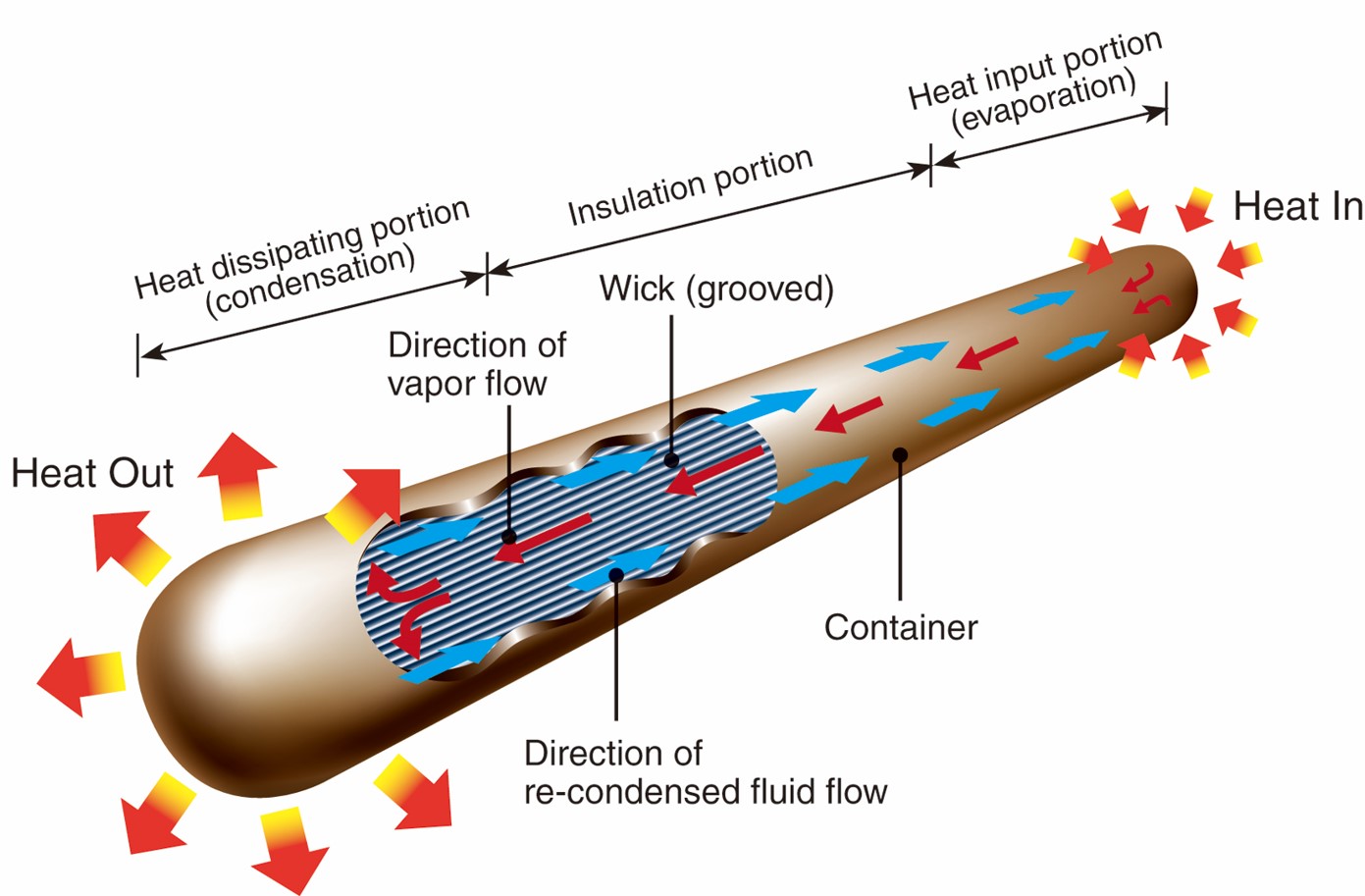

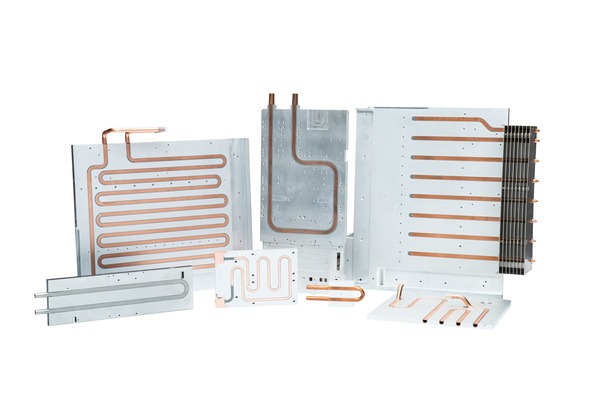

A heat pipe is a sealed, hollow tube containing a working fluid (e.g., water, ammonia) and, typically, a wick structure. The heat pipe operates in three main sections:
Evaporator: Absorbs heat, causing the fluid to vaporize.
Condenser: Releases heat as the vapor condenses back into liquid.
Adiabatic Section: Transports vapor between the two ends.
The wick, often made of sintered metal or mesh, uses capillary action to return the condensed liquid to the evaporator, ensuring a continuous cycle. This process achieves thermal conductivity up to 100,000 W/m·K, far surpassing materials like copper (~400 W/m·K).
Heat pipes come in several designs, each optimized for specific applications:
Standard Heat Pipes: Versatile, wick-based solutions.
Vapor Chambers: Flat, heat-spreading devices.
Variable Conductance Heat Pipes (VCHPs): Temperature-regulating systems.
Thermosyphons: Gravity-driven cooling.
Loop Heat Pipes (LHPs): Long-distance heat transfer.
Rotating Heat Pipes: For rotating machinery.
Oscillating Heat Pipes (OHPs): Compact, wickless designs.
Each type addresses unique thermal management challenges, from compact electronics to large industrial systems.
Standard heat pipes are cylindrical tubes with an internal wick structure (e.g., sintered powder, grooved, or mesh). Heat applied to the evaporator vaporizes the fluid, which travels to the condenser, releases heat, and condenses. The wick returns the liquid via capillary action.
High Efficiency: Exceptional heat transfer with minimal temperature gradient.
No Moving Parts: Maintenance-free and reliable.
Cost-Effective: Simple design for widespread use.
Electronics: Cooling CPUs, GPUs, and power modules.
HVAC: Heat recovery in air handling units.
Solar Energy: Enhancing thermal collectors.

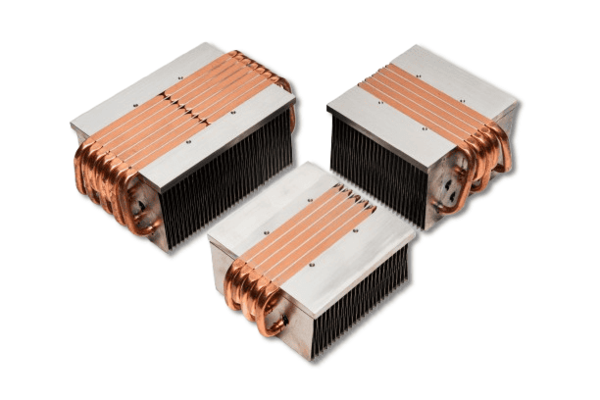

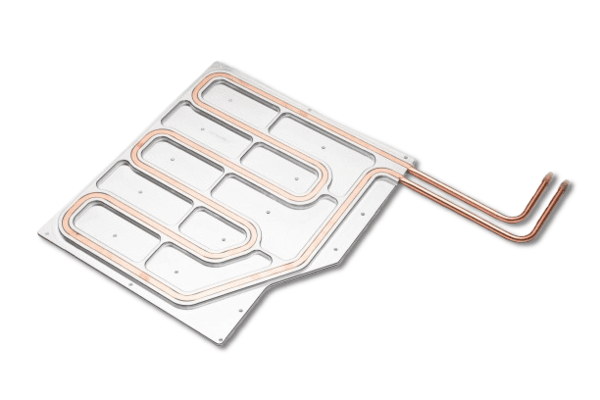

Example: In a gaming PC, a standard heat pipe cools the CPU by transferring heat to a finned heatsink, maintaining performance during intense workloads.
Vapor chambers are flat, two-dimensional heat pipes that spread heat across a surface. Like standard heat pipes, they use a wick and fluid but operate in a planar configuration, ideal for distributing heat evenly.
Uniform Heat Spreading: Reduces hotspots in high-flux devices.
Compact Design: Thin profiles fit tight spaces.
Customizable: Shapes tailored to specific components.
High-Performance Computing: Laptops and servers.
LEDs: Managing heat in high-power lighting.
Electric Vehicles: Battery thermal management.
Example: In gaming laptops, vapor chambers cool GPUs by spreading heat across a larger surface, enabling thinner designs without overheating.
VCHPs include a non-condensable gas (e.g., nitrogen) in the condenser, which adjusts the active condenser area to regulate temperature. As heat load increases, the gas compresses, exposing more condenser surface for cooling.
Temperature Stability: Maintains consistent output under varying loads.
High Reliability: Ideal for critical systems.
Adaptable: Handles dynamic thermal conditions.
Spacecraft: Stabilizing satellite electronics.
Avionics: Cooling in fluctuating environments.
Medical Devices: Precision temperature control.
Thermosyphons are wickless heat pipes that rely on gravity to return condensed liquid to the evaporator. They require a vertical or near-vertical orientation for optimal performance.
High Capacity: Handles large heat loads in vertical setups.
Simple Design: No wick reduces cost and complexity.
Scalable: Suitable for large systems.
Power Plants: Heat exchangers for steam systems.
Solar Heating: Water heating systems.
Cryogenics: Cooling superconducting magnets.
Note: Thermosyphons are less versatile due to orientation constraints but excel in specific scenarios.
Loop heat pipes (LHPs) separate the evaporator and condenser with dedicated vapor and liquid lines, enabling heat transfer over meters. A small wick in the evaporator drives the fluid cycle.
Long-Distance Transfer: Efficient over extended lengths.
High Heat Flux: Handles intense thermal loads.
Flexible Layout: Adapts to complex geometries.
Satellites: Cooling distant components.
Data Centers: Server rack thermal management.
Lasers: High-power optical systems.
Example: In satellites, LHPs transfer heat from solar-exposed panels to radiators, maintaining stable temperatures.
Rotating heat pipes use centrifugal force, rather than a wick, to return liquid to the evaporator. They are designed for systems with rotational motion.
Dynamic Operation: Functions in high-speed environments.
Simplified Design: No wick for rotating applications.
Turbines: Blade and bearing cooling.
Motors: Heat dissipation in electric vehicles.
Aerospace: Rotating machinery in aircraft.
Oscillating heat pipes (OHPs) feature a serpentine channel where the working fluid oscillates between liquid and vapor phases, driven by pressure differences. They lack a traditional wick.
Compact Size: Fits miniaturized devices.
Orientation Flexibility: Operates in any position.
Lightweight: Ideal for portable systems.
Smartphones: Cooling processors in tight spaces.
Wearables: Thermal management for smartwatches.
Microelectronics: Small-scale heat dissipation.
Example: In smartphones, OHPs keep processors cool during gaming, enabling slim designs without fans.
Selecting a heat pipe depends on:
Heat Load: Vapor chambers or LHPs for high flux; standard pipes for moderate loads.
Size Constraints: OHPs for compact devices; vapor chambers for thin profiles.
Orientation: Avoid thermosyphons if non-vertical; others are flexible.
Temperature Control: VCHPs for precision; standard pipes for general use.
Distance: LHPs for long-range transfer; standard pipes for short distances.
Cost: Thermosyphons and standard pipes are budget-friendly; VCHPs and LHPs are pricier.
Tip: Consult a thermal engineer or use simulation tools to model performance for your specific application.
Heat pipes use a wick and capillary action for fluid return, working in any orientation. Thermosyphons rely on gravity, requiring vertical alignment.
Most heat pipes (standard, VCHPs, LHPsiteral
Common fluids include:
Water: General-purpose, 30-100°C.
Ammonia: Low temperatures, -60 to 10°C.
Sodium: High temperatures, 500-1000°C.
Heat pipes, from standard designs to advanced oscillating systems, offer tailored solutions for diverse thermal challenges. Understanding their types and applications empowers you to optimize cooling in everything from smartphones to satellites.
