What is an Inverter Heat Sink and Why Does It Matter?

Views: 32     Author: Site Editor     Publish Time: 2025-05-24      Origin: Site

Overheating can cripple your inverter, leading to system failures and costly downtime. Inverters power everything from solar panels to electric vehicles, but heat is their enemy. Inverter heat sinks efficiently dissipate this heat, ensuring reliable performance and longevity for your critical systems.

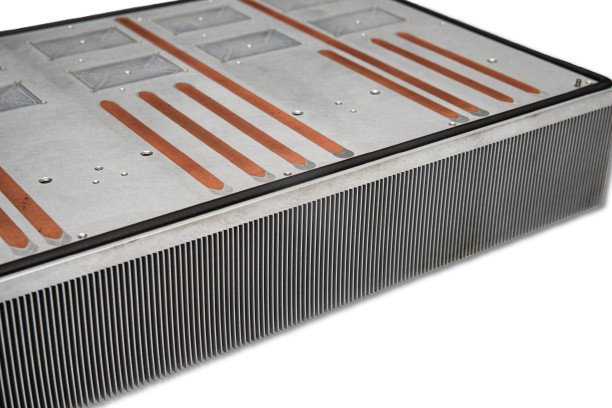

Custom Aluminum Inverter Heat Sink

I once worked on a solar project where an inverter failed mid-summer, halting energy production. The culprit? Poor thermal management. This experience drove me to explore inverter heat sinks, revealing their critical role in modern technology. Let’s dive into how these unsung heroes keep inverters cool and efficient.

Table of Contents

What is an Inverter Heat Sink?

Ever wondered how your solar panels or electric vehicle keeps running smoothly? Inverter heat sinks are key to preventing overheating in these systems.

An inverter heat sink is a cooling device that absorbs and dissipates heat from an inverter, which converts DC to AC power. Made from materials like aluminum, it ensures inverters in solar systems or EVs operate reliably by preventing thermal damage.

Inverter Heat Sink

Role in Inverters

Inverters are essential for converting direct current (DC) to alternating current (AC) in applications like solar power systems and electric vehicles. However, they generate significant heat due to high power density. A heat sink, typically attached to the inverter’s power components, transfers this heat to the surrounding air, preventing failures. For example, in a solar inverter, a heat sink keeps the system operational under intense sunlight.

Component

Function

Example Application

Base Plate

Conducts heat from inverter

Attached to IGBT in solar inverter

Fins/Pins

Increase surface area for cooling

Pin fin heat sink in EV inverter

Importance of Thermal Management

Without effective cooling, inverters can overheat, leading to reduced efficiency, component damage, or system failure. Heat sinks are critical for maintaining performance, especially in high-power applications where heat generation is intense.

How Do Inverter Heat Sinks Work?

Curious about the science behind keeping inverters cool? Let’s break down the mechanics of heat sinks.

Inverter heat sinks work by conducting heat from the inverter’s components to a base plate and fins, where it’s dissipated through convection into the surrounding air. This process prevents overheating and ensures efficient operation.

Heat Transfer Principles

Heat sinks operate through conduction (heat moving through the material) and convection (heat transferred to air). The base plate absorbs heat from the inverter’s components, like transistors, and the fins or pins increase the surface area for air to carry heat away. For instance, in an electric vehicle inverter, a pin fin heat sink enhances cooling by creating airflow turbulence.

Mechanism

Role

Example

Conduction

Transfers heat to fins

Heat from IGBT to aluminum base

Convection

Dissipates heat to air

Airflow over fins in solar inverter

Passive vs. Active Heat Sinks

Passive heat sinks rely on natural convection, making them simple and cost-effective but less efficient in high-heat scenarios. Active heat sinks use fans or liquid cooling for enhanced performance, ideal for high-power inverters but more complex and costly.

What Are the Different Types of Inverter Heat Sinks?

Inverter heat sinks come in various designs, each suited to specific needs. Let’s explore the options.

Inverter heat sinks include extruded, bonded fin, and pin fin types. Extruded heat sinks are cost-effective, bonded fin offer high performance, and pin fin excel in omnidirectional airflow, catering to diverse inverter applications.

Extruded Heat Sinks

Made by extruding aluminum or copper into shapes with fins, these are cost-effective and customizable. They’re widely used in solar inverters due to their ability to handle moderate heat loads efficiently.

Bonded Fin Heat Sinks

These consist of a base plate with fins bonded to it, offering excellent thermal performance for high-power inverters, such as those in industrial machinery.

Pin Fin Heat Sinks

Featuring an array of pins, these heat sinks maximize surface area and work well with variable airflow, making them ideal for compact systems like EV inverters.

Type

Material

Best Use Case

Extruded

Aluminum, Copper

Solar inverters

Bonded Fin

Aluminum

Industrial inverters

Pin Fin

Aluminum, Copper

EV inverters

How to Design an Effective Inverter Heat Sink?

Designing a heat sink for an inverter requires careful planning to ensure optimal cooling. Here’s what matters.

Effective inverter heat sink design involves selecting materials like aluminum or copper, optimizing size and shape for airflow, using thermal interface materials, and validating performance through simulation.

Material Selection

Aluminum is preferred for its high thermal conductivity, lightweight nature, and cost-effectiveness. Copper offers superior conductivity but is heavier and pricier, used in high-performance applications like EV inverters.

Size and Shape Optimization

The heat sink must be large enough to dissipate the inverter’s heat load but compact to fit space constraints. Shapes like pin fins or vertical fins enhance airflow, as seen in photovoltaic inverters.

Thermal Interface Materials (TIM)

TIMs, such as thermal paste or pads, ensure efficient heat transfer from the inverter to the heat sink. For example, thermal paste is commonly used in solar inverters for reliable contact.

Design Factor

Consideration

Example

Material

Thermal conductivity, cost

Aluminum for solar inverters

Size/Shape

Airflow, space constraints

Pin fins for compact EVs

TIM

Heat transfer efficiency

Thermal paste in industrial inverters

How to Choose the Right Heat Sink for Your Inverter?

Picking the perfect heat sink can make or break your inverter’s performance. Let’s simplify the process.

Choose an inverter heat sink based on power rating, operating environment, and space constraints. Ensure it matches your inverter’s thermal needs for optimal performance and longevity.

Power Rating

The heat sink must handle the inverter’s heat output, measured in watts. For example, a 5kW solar inverter requires a heat sink with low thermal resistance to manage high heat loads.

Operating Environment

Consider ambient temperature and airflow. Outdoor solar inverters need durable heat sinks to withstand temperature fluctuations, while indoor inverters may use simpler designs.

Factor

Importance

Example

Power Rating

Matches heat load

5kW inverter needs low thermal resistance

Environment

Affects durability

Outdoor solar inverter needs robust design

Why Are Inverter Heat Sinks Crucial for Photovoltaic Systems?

Solar inverters face unique challenges, making heat sinks indispensable. Let’s explore why.

Inverter heat sinks in photovoltaic systems manage high heat loads from solar power conversion, ensuring reliability in outdoor conditions with varying temperatures.

Photovoltaic Module Brazing Liquid Cold Plate

Challenges in Solar Inverters

Solar inverters convert DC from panels to AC, generating significant heat. Outdoor exposure and high power density increase thermal stress, requiring robust heat sinks.

Design Considerations

Heat sinks for solar inverters must be durable, with designs like extruded or pin fin to handle temperature swings. For example, a 10kW solar inverter may use an aluminum extruded heat sink for efficient cooling.

What Are Common Heat Sink Issues and How to Fix Them?

Even the best heat sinks can face issues. Here’s how to spot and solve them.

Common issues with inverter heat sinks include overheating, dust buildup, and poor TIM performance. Regular maintenance and proper design can prevent these problems.

Overheating

Signs include inverter shutdowns or reduced efficiency. Causes may include inadequate heat sink size or blocked airflow. Solutions involve upgrading to a larger heat sink or improving ventilation.

Maintenance Tips

Clean dust from fins regularly and check TIM for degradation. For example, replacing thermal paste every few years can maintain performance in solar inverters.

Issue

Cause

Solution

Overheating

Inadequate heat sink

Upgrade to larger design

Dust Buildup

Poor maintenance

Regular cleaning

What Are the Latest Trends in Inverter Heat Sink Technology?

The heat sink industry is evolving rapidly. Let’s look at what’s new in 2025.

In 2025, inverter heat sink trends include advanced materials, hybrid cooling systems, smart thermal management with IoT, and eco-friendly manufacturing.

Advanced Materials

New alloys and composites offer better thermal conductivity and lighter weight, improving efficiency in EV and solar inverters.

Smart Cooling Systems

IoT-enabled heat sinks monitor temperatures in real-time, adjusting cooling dynamically for optimal performance in high-power inverters.

Conclusion

Inverter heat sinks are vital for ensuring the reliability and efficiency of inverters in applications like solar power and electric vehicles. By understanding their types, design considerations, and selection criteria, you can prevent overheating and extend system lifespan. At KingKa Tech, we specialize in high-quality inverter heat sinks, leveraging over 15 years of expertise in thermal management and CNC machining. Our customized solutions, including extruded and pin fin designs, cater to photovoltaic and EV applications, ensuring optimal performance. Contact us at sales2@kingkatech.com or +86 (769) 87636775 to enhance your inverter’s thermal management.
