Is your high-performance PC pushing its thermal limits while demanding ultimate aesthetics? A monoblock water cooling solution is a single, integrated unit designed to cool both your Central Processing Unit (CPU) and vital Voltage Regulator Modules (VRMs) on your motherboard, ensuring stable performance and a sleek, unified look for high-end systems.
I still remember the satisfaction of building my first custom liquid cooling loop. The silence, the low temperatures — it felt like magic. As I explored further, I found these incredibly elegant, seamless cooling solutions that went beyond just the CPU. They integrated directly with the motherboard, redefining what I thought was possible for integrated PC cooling.
The pursuit of lower temperatures and cleaner aesthetics often leads PC builders to custom liquid cooling. While standard CPU water blocks are excellent, a monoblock takes that concept a significant step further.

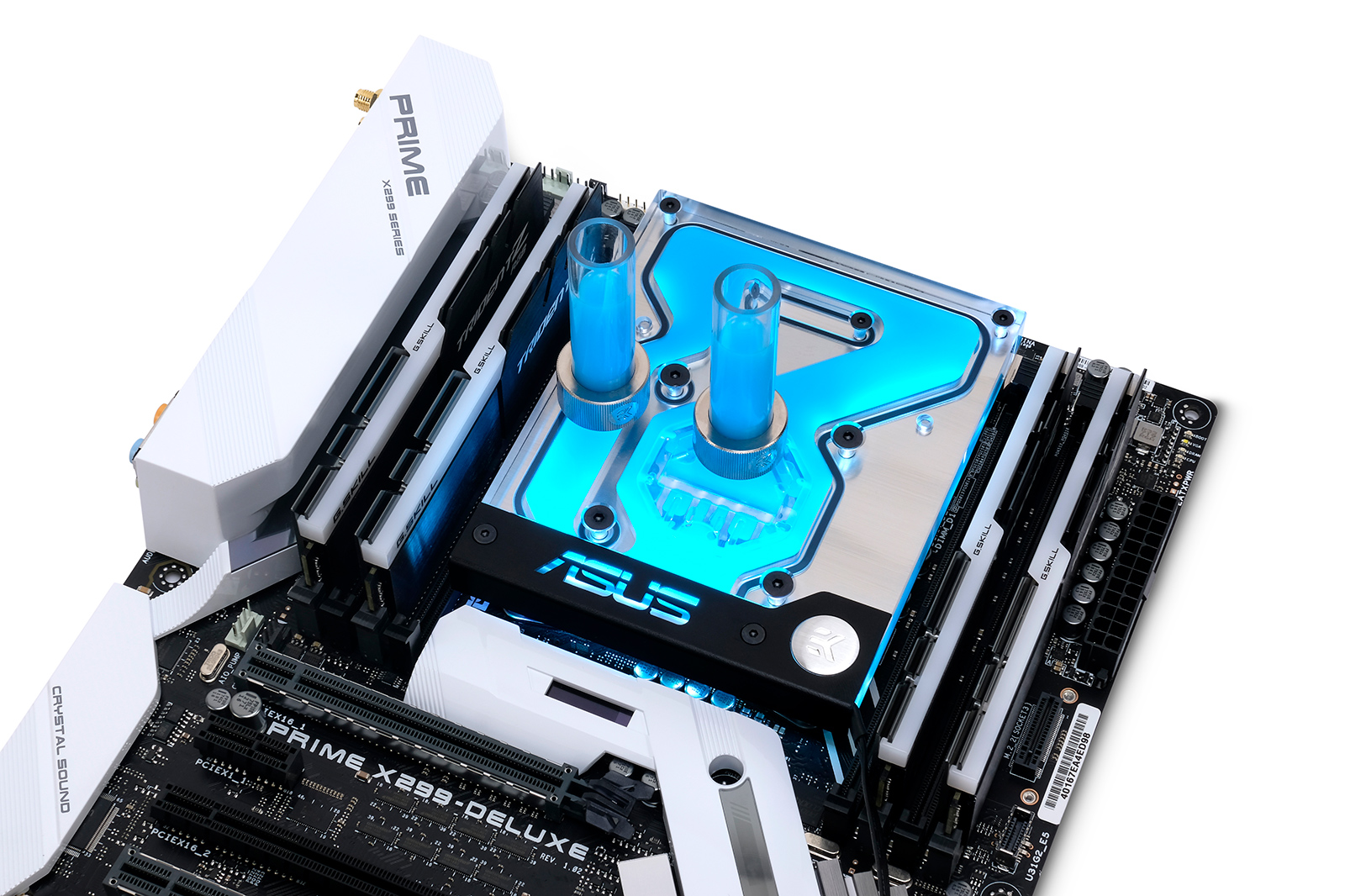

A monoblock in PC liquid cooling is an integrated water block meticulously engineered to simultaneously cool your Central Processing Unit (CPU) and the Voltage Regulator Modules (VRMs) on your motherboard. It achieves this by extending its cold plate and internal channels to cover both heat-generating areas as a single, cohesive unit.
Let's delve into how this specialized component manages to cool two distinct, yet interconnected, areas of your motherboard.
A monoblock uses the same heat transfer principles as a standalone CPU water block. Heat is absorbed from the hot component into a highly conductive metal base, typically copper. This base is precision-machined with internal micro-channels or fins. Liquid coolant then flows through these channels, picking up the absorbed heat.
The crucial difference: the monoblock's cold plate and flow paths are laid out to also contact the VRMs surrounding the CPU socket. This means a single coolant loop effectively removes heat from both your processor and its power delivery components.
Example 1: Overclocking Stability. When I pushed my high-core-count CPU with aggressive overclocking, my system sometimes became unstable despite a good CPU-only block. VRM temperatures would soar, often exceeding 90°C. A monoblock designed for my motherboard brought these VRM temps down significantly, often by 20-30°C, leading to rock-solid stability under extreme stress.
Example 2: High-Power CPUs. Modern CPUs draw immense power, especially during demanding tasks. This stresses the motherboard's VRMs, causing significant heat. A monoblock helps keep these critical power delivery components within safe operating temperatures, preventing CPU throttling and ensuring consistent power.
By integrating both cooling points into one unit, a monoblock provides a comprehensive thermal solution for the most crucial and often hottest section of your motherboard.
Both monoblocks and standard CPU water blocks cool your processor with liquid. However, their design, compatibility, and scope of cooling differ significantly.
The primary distinction lies in their cooling coverage: a standard CPU water block cools only the Central Processing Unit, whereas a monoblock provides integrated cooling for both the CPU and the motherboard's Voltage Regulator Modules (VRMs), resulting in vastly different compatibility requirements and aesthetic impacts.
Let's break down these core differences.
A standard CPU water block is designed to efficiently transfer heat from your CPU's integrated heat spreader (IHS) to the liquid coolant. These blocks are generally universal across a given CPU socket type (e.g., any LGA 1700 CPU block fits any LGA 1700 motherboard).
They are optimized solely for the concentrated heat output of the CPU die. While highly effective for CPU cooling, they do not extend to cool any other motherboard components, leaving VRMs to rely on passive heatsinks or case airflow.

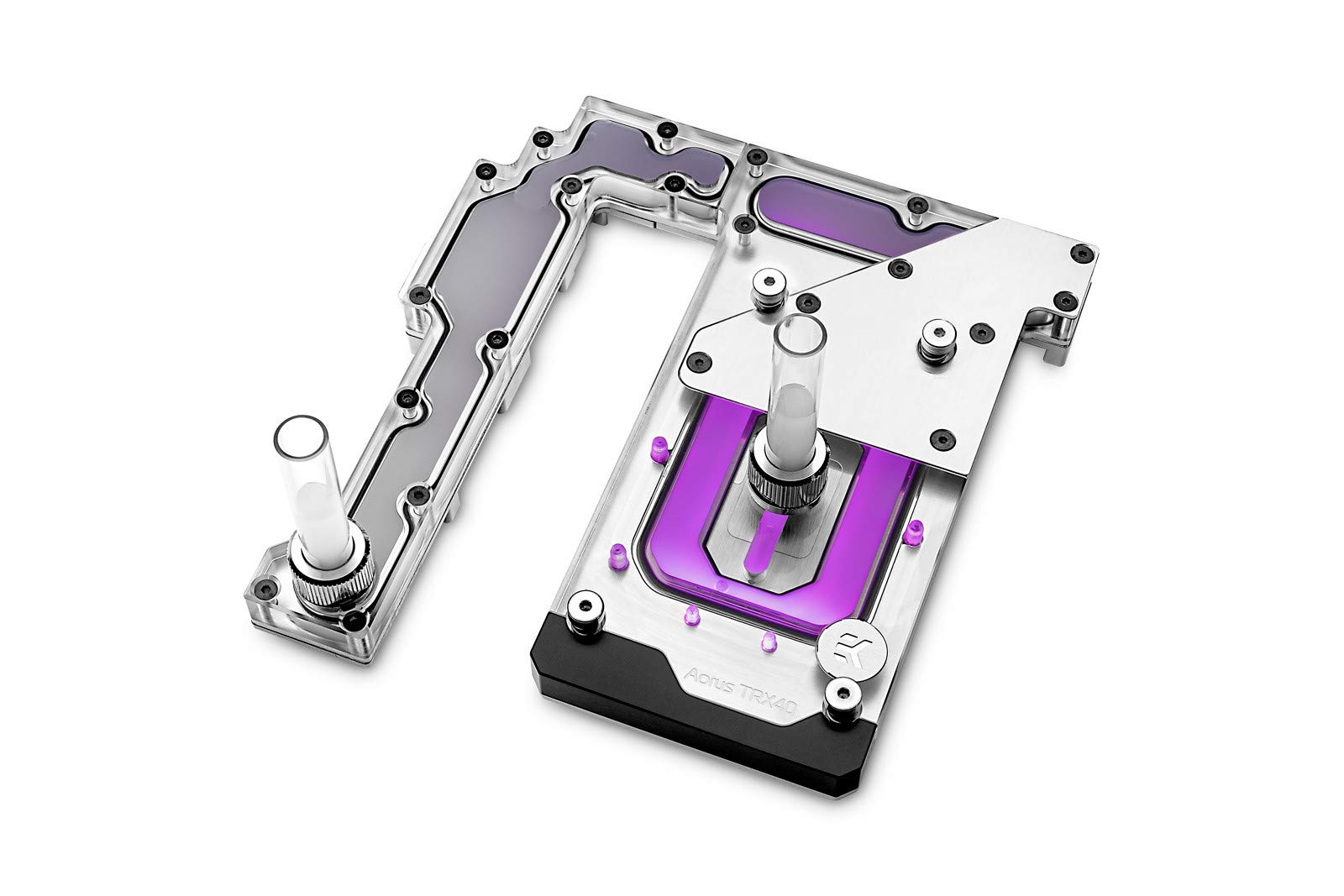

The defining feature of a monoblock is its extended cold plate and housing, precisely shaped to cover both the CPU and adjacent motherboard VRMs. VRMs convert power for your CPU. Under heavy loads or overclocking, they generate significant heat, potentially leading to instability or reduced CPU performance.
A monoblock provides active liquid cooling to these crucial VRMs. This integrated design removes the need for separate VRM heatsinks or reliance solely on ambient airflow.
Monoblocks are highly motherboard-specific. They are precisely molded to fit the VRM layout, screw holes, and sometimes other chipset components of a particular motherboard model. This means a monoblock for one Z790 board likely won't fit another Z790 board from a different manufacturer. This is crucial for future upgrades; if you change your motherboard, you'll almost certainly need a new monoblock.
Monoblocks offer unparalleled visual integration. They replace the motherboard's stock VRM heatsinks and CPU cooler with a single, often larger, and more elaborate block. This creates an incredibly clean, streamlined, and premium look around the CPU area, often becoming the focal point of a showcase PC build.
The appeal of a monoblock goes beyond simply cooling your CPU. It offers a unique set of advantages for performance enthusiasts and those seeking the ultimate in PC aesthetics.
The key benefits of selecting a monoblock include enhanced thermal management for motherboard VRMs, leading to greater system stability under heavy loads, a visually striking and integrated aesthetic that streamlines your build, and potentially simplified tubing runs around the CPU area.
Let's explore why a monoblock might be the perfect fit for your next high-performance rig.
Voltage Regulator Modules (VRMs) regulate the voltage delivered to your CPU. Under heavy loads or overclocking, these VRMs work tirelessly, generating significant heat. If VRMs get too hot, they can become less efficient, unstable, or even throttle power delivery to your CPU, affecting performance or leading to crashes.
A monoblock directly provides active liquid cooling to these crucial components. Instead of relying on passive heatsinks, the monoblock's cold plate actively draws heat from the VRMs into the liquid coolant. This significantly lowers VRM temperatures, enhancing system stability and ensuring your CPU receives consistent power. During benchmarking or extended stress tests, I've seen VRM temperatures drop from 80°C with stock heatsinks to below 50°C with a monoblock.
For many enthusiasts, PC build aesthetics are as important as performance. Monoblocks excel here. They replace both the CPU cooler and stock VRM heatsinks with a single, often beautifully crafted block. This creates an incredibly clean, uncluttered, and integrated look around the CPU socket.
Imagine a motherboard where the CPU area flows seamlessly into the power delivery section, all covered by a single block showcasing the coolant. This unified design eliminates visual clutter, making the motherboard area a stunning centerpiece. Many monoblocks also integrate RGB lighting, further enhancing their visual impact.
While custom liquid cooling can be complex, a monoblock can sometimes simplify tubing runs around the CPU area. Instead of separate tubes to a CPU block and separate smaller blocks for VRMs, the monoblock integrates both.
This means you only have one set of inlet and outlet ports for the CPU/VRM section, potentially reducing the number of bends or fittings needed. This can contribute to a cleaner, more direct tubing path, especially for compact builds.
Monoblocks offer compelling benefits, especially in aesthetics and VRM cooling for extreme scenarios. However, they also have specific trade-offs, making them a niche product rather than a universal recommendation.
While monoblocks deliver superior VRM cooling and unmatched aesthetics, their higher cost, motherboard-specific compatibility, and often marginal performance gain for typical users mean they are primarily a premium, enthusiast-focused solution rather than a necessity for most standard or even moderately overclocked PC builds.
Let's delve into the practicalities of owning a monoblock.
Monoblocks are generally more expensive than buying a high-performance CPU water block and relying on your motherboard's stock VRM heatsinks. The specialized design, larger material volume, and lower production scale contribute to their higher price. If your budget is tight, funds might be better allocated towards a larger radiator or a higher-quality pump for broader thermal benefits.
This is arguably the biggest practical drawback. Monoblocks are motherboard-specific. They are precisely molded to fit the VRM layout, screw holes, and sometimes other chipset components of a particular motherboard model. This means:
No Reusability: If you upgrade your motherboard, your monoblock will almost certainly not be compatible with the new board, even if it uses the same CPU socket. This forces a new monoblock purchase or a switch to a standard CPU block.
Limited Selection: Not every motherboard has a monoblock available. Typically, only high-end, popular enthusiast motherboards receive monoblock support.
While monoblocks undeniably cool VRMs better than passive heatsinks, "how much does it actually matter?" is a common question.
Excellent Stock VRM Cooling: For most users, even with moderate overclocks, modern high-end motherboards often have excellent passive VRM heatsinks that are sufficient.
Marginal Gains for Average Use: Unless you're pushing extreme overclocks, performing heavy, sustained workstation loads, or have specific VRM overheating scenarios, the practical performance gain from a monoblock might be marginal. Your CPU's temperature is often the primary limiting factor, which a standard CPU block handles effectively.
Adding Heat to the Loop: Cooling VRMs also adds more heat into your overall liquid cooling loop. Ensure your radiator capacity is sufficient to handle the combined heat output of your CPU, GPU (if water-cooled), and now the VRMs.
Ultimately, a monoblock is often a "luxury" or "enthusiast" item. It's a fantastic choice for those who prioritize ultimate integrated aesthetics, plan for extreme overclocking, or simply want the best possible cooling for every part of their system.
Selecting the ideal monoblock is a critical step for a high-performance, aesthetically pleasing liquid-cooled PC. Because of their specialized nature, it requires even more attention to detail.
Choosing the right monoblock for your build primarily hinges on absolute motherboard compatibility, followed by considering the cold plate and top cover materials for performance and aesthetics, the internal flow design for efficient cooling, and the reputation of the manufacturer for quality and support.
Here's how to make an informed decision for your integrated cooling solution.
This cannot be stressed enough: monoblocks are motherboard-specific, not just socket-specific. You must verify the exact model of your motherboard against the monoblock manufacturer's compatibility list. Do not assume a block for a "Z790" chipset will fit all Z790 motherboards. The VRM layout, screw holes, and component spacing vary significantly.
Just like with standard water blocks, materials and internal design influence thermal performance and durability.
Cold Plate Material: The base that contacts both the CPU and VRMs should be copper. Many high-end monoblocks feature nickel-plated copper for aesthetics and corrosion resistance. Ensure all metal components in contact with the coolant are compatible to prevent galvanic corrosion.
Top Cover Material: Monoblock tops are typically acrylic (Plexiglas) for showing coolant and RGB, or opaque acetal (POM) for a robust look. Choose based on your desired aesthetic.
Internal Flow Design: Manufacturers use various internal designs (micro-fins, jet plates) to optimize heat transfer from both CPU and VRM sections. Reputable brands ensure efficient flow paths for effective cooling across the entire surface area.
Since aesthetics are a major driving force for monoblocks, consider how it will look in your build.
Do you prefer a clear top to showcase coolant color and flow?
Do you want integrated RGB lighting that syncs with other components?
What color scheme or material finish (e.g., clear, black acetal, brushed metal) best complements your PC theme?
By carefully considering these factors, you can select a monoblock that not only provides exceptional cooling but also serves as a stunning visual centerpiece for your custom liquid-cooled PC.
A monoblock water cooling solution represents the pinnacle of integrated thermal management for high-performance PCs. By combining CPU and motherboard VRM cooling into a single, elegant unit, it offers enhanced stability for power-hungry components and unmatched aesthetic appeal. While they demand precise motherboard compatibility and come with a premium price tag, for enthusiasts pushing overclocking limits or simply desiring the cleanest, most unified look for their custom liquid-cooled build, a monoblock stands as an unparalleled choice. It transforms the heart of your PC into a cohesive, high-efficiency cooling powerhouse.
