What Is the Heat Flux Limit of Deep Machining Liquid Cold Plates?

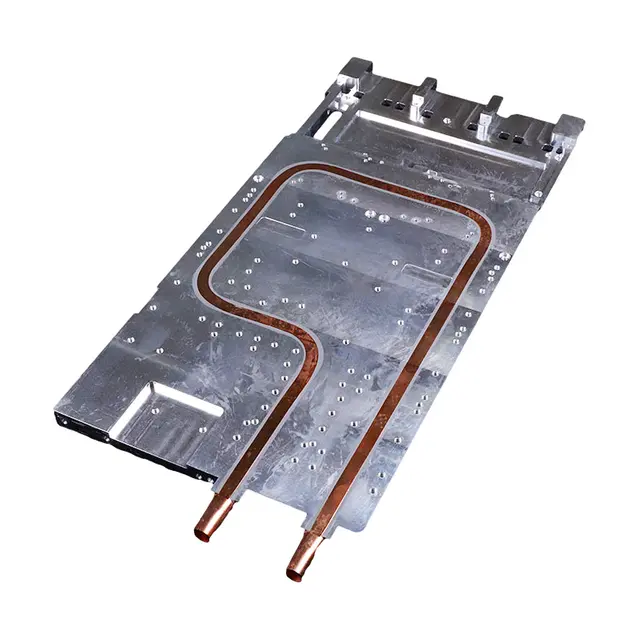

In the rapidly evolving landscape of power electronics, thermal management is often the primary bottleneck defining a system's maximum performance. As engineers transition from air cooling to liquid cooling to handle rising power densities, the deep machining liquid cold plate has emerged as a highly reliable, cost-effective standard. However, a critical question frequently arises during the design phase: what is the actual heat flux limit of these cold plates?

While there is no single magical number that applies to every configuration, understanding the engineering boundaries of a deep machined structure is vital for making sound B2B procurement decisions. Over-specifying a cooling system with expensive micro-channels can ruin a project's budget, while under-specifying can lead to catastrophic thermal failure. This comprehensive guide explores the physical capabilities, structural advantages, and natural thermal limits of CNC machined cold plates, helping you decide exactly when to use them and when to upgrade to a custom liquid cooling solution.

Table of Contents

1. How Does the One-Piece Structure Influence Heat Flux Capacity?

2. What Are the Engineering Boundaries for Aluminum and Copper Base Materials?

3. At What Point Do Deep Machined Plates Experience Thermal Bottlenecks?

4. Why Are These Cold Plates the Preferred Choice for Industrial and EV Systems?

5. How Does High-Density Computing Expose the Structural Constraints?

6. How Can Custom Liquid Cooling Solutions Extend System Capabilities?

1. How Does the One-Piece Structure Influence Heat Flux Capacity?

To understand the heat flux limitations of a deep machining liquid cold plate, one must first understand its manufacturing architecture. Unlike brazed or friction stir welded (FSW) cold plates that join multiple pieces of metal together, a deep machined plate is created through a subtractive process. Precision CNC machines use specialized long drill bits to bore parallel intersecting channels directly into a solid block of metal. The entry points are then securely sealed with high-grade metal plugs.

This one-piece aluminum construction fundamentally defines its thermal behavior. Because there are no welding interfaces or brazing layers between the heat source and the cooling fluid, there are no "thermal boundary issues"—meaning heat transfers through pure, continuous metal. This eliminates the localized mechanical stress and thermal resistance often introduced by joining different metal components.

Furthermore, the smooth, cylindrical nature of the drilled channels provides highly predictable fluid dynamics. This streamlined flow excels at minimizing pressure loss across the system. For applications with a steady, moderate heat flux, this structure allows the coolant to sweep away heat efficiently without requiring massive, energy-hungry pumps.

2. What Are the Engineering Boundaries for Aluminum and Copper Base Materials?

The ultimate heat flux capacity of any cold plate is heavily dictated by its base material. In the realm of deep machining, engineers typically work with two primary metals, each offering distinct thermal conductivity parameters.

• Aluminum (approx. 200 W/m·K): An aluminum liquid cooling plate is the industry standard for most deep machined applications. It is lightweight, cost-effective, and highly machinable. Aluminum excels at managing low to mid-high heat fluxes, spreading the heat evenly across the solid block before transferring it to the fluid.

• Copper (approx. 400 W/m·K): When a specific application demands a high heat flux cold plate but still requires the reliability of deep machining, custom copper variants are utilized. Copper's superior thermal conductivity allows it to absorb and spread concentrated heat much faster, pushing the heat flux limit higher than standard aluminum plates.

However, the physical limit is not just about the metal's conductivity; it is about the internal surface area. Because gun-drilled channels have smooth walls, they inherently possess less wetted surface area than skived fins or micro-channels. Therefore, while materials like copper can delay thermal saturation, the geometry of the drilled channels eventually dictates the absolute maximum heat flux the plate can safely dissipate.

3. At What Point Do Deep Machined Plates Experience Thermal Bottlenecks?

A heat flux liquid cold plate relies on a balance between the heat entering the metal and the fluid carrying it away. While deep machined plates are incredibly stable under continuous, moderate thermal loads, they possess a natural physical threshold.

As power densities escalate, the straight-line geometry of drilled channels eventually faces physics-based restrictions. To better understand these operational thresholds, thermal engineers must carefully analyze when deep machining cold plates reach their limits under continuous heavy loads. In such scenarios, if the heat flux continues to rise without an increase in internal surface area, several distinct symptoms emerge. First, localized hot spots begin to form directly beneath the concentrated heat sources, as the smooth channel walls cannot transfer heat into the fluid fast enough. Second, the cooling uniformity drops, causing significant temperature gradients across the module. Finally, attempting to force more liquid through the channels to compensate will cause the system's pressure drop to spike dramatically.

Table: Comparison of Liquid Cold Plate Architectures

4. Why Are These Cold Plates the Preferred Choice for Industrial and EV Systems?

If deep machining has a lower peak heat flux limit than micro-channels, why is it so widely utilized? The answer lies in B2B procurement logic: enterprise clients rarely base their decisions purely on maximum cooling performance. They buy reliability, cost-control, and consistency.

Industrial Power Systems:

In industrial power environments, a CNC machined cold plate is frequently used to cool IGBT modules, industrial inverters, and power converters. These systems generate a steady, mid-level heat flux. The deep machined plate is preferred because its single-piece structure provides exceptional flatness. High flatness ensures maximum contact with the heavy IGBT modules, minimizing the need for thick thermal interface materials. Furthermore, the absence of welding fatigue means these plates can endure years of continuous, vibration-heavy industrial operation without failing.

Electric Vehicle (EV) Auxiliary Systems:

In the EV sector, thermal management extends beyond the main drive motor. Deep machining is highly favored for Battery Management Systems (BMS), DC-DC converters, and low-power battery cooling circuits. In these applications, automotive engineers are hyper-focused on cost control, batch manufacturing consistency, and zero-leakage guarantees. Because deep machined plates do not rely on fragile brazed seams, the leakage risk is drastically reduced, making them the safest and most economically viable choice for mass automotive production.

5. How Does High-Density Computing Expose the Structural Constraints?

While deep machined plates dominate the industrial and automotive sectors, they are deliberately kept out of certain extreme environments. The contrast is sharpest in the realm of advanced microprocessors and modern data centers.

To fully grasp the geometric and fluid dynamic limitations of one-piece designs, it is essential to examine why deep machining cold plates struggle in high-density GPU cooling environments. In these extreme AI and supercomputing applications, the heat flux is so intensely concentrated (often exceeding hundreds of watts per square centimeter) that straight, smooth-walled channels cannot physically keep up. Only ultra-fine micro-channels or skived fin structures can provide the massive internal surface area necessary to prevent immediate thermal throttling of the silicon die.

For a deep machined plate in this scenario, the fluid would simply pass right by the hotspot without having enough time or surface interaction to extract the severe heat, resulting in localized component failure.

6. How Can Custom Liquid Cooling Solutions Extend System Capabilities?

When your system's heat load begins to approach the theoretical heat flux limits of a standard deep machined design, it is time to shift from an off-the-shelf mindset to a specialized engineering approach. If you find your project experiencing uneven cooling, unacceptable pressure drops, or persistent hot spots, you need a higher heat flux capability beyond standard configurations.

At Kingka, we understand that industrial clients prioritize safety, long-term reliability, and precise manufacturing consistency. While standard deep machining has its boundaries, a custom liquid cooling solution can push those limits significantly. By tailoring the design to your exact specifications, we can optimize:

• Flow Path Geometry: Customizing the internal routing to target fluid directly beneath specific hotspots.

• Material Selection: Upgrading from standard aluminum to copper bases for enhanced thermal spreading.

• Interface Precision: Utilizing advanced CNC capabilities to achieve extreme surface flatness, maximizing thermal transfer from the component to the plate.

Do not let thermal bottlenecks dictate your product's performance. Whether you need to navigate strict space limitations, manage specific pressure drop requirements, or adapt to unique coolant types, partnering with a manufacturer that provides end-to-end custom thermal solutions ensures your equipment runs safely, efficiently, and reliably.

Frequently Asked Questions (FAQs)

Q1: What exactly defines a "high heat flux" in liquid cooling?

A: Heat flux is the amount of heat energy transferred per unit area (typically measured in W/cm²). "High heat flux" generally refers to highly concentrated heat loads, such as those produced by advanced laser diodes or AI processors, which require specialized, high-surface-area cooling structures.

Q2: Why is the leakage risk so low in deep machined cold plates?

A: Unlike brazed or welded plates that join two or more pieces of metal together (creating seams that can fail under pressure or vibration), deep machined plates are drilled into a single, solid block of metal. The only openings are the exterior drill points, which are easily and securely sealed.

Q3: Can an aluminum liquid cooling plate handle industrial IGBT modules?

A: Yes. Aluminum deep machined cold plates are the industry standard for IGBTs. IGBTs typically produce a continuous, mid-level heat flux across a relatively large surface area, which perfectly matches aluminum's thermal conductivity and the plate's robust, flat structure.

Q4: How does pressure drop affect my cooling system's performance?

A: Pressure drop is the resistance the fluid faces as it travels through the cold plate. A high pressure drop means you need a larger, more powerful (and more expensive) pump to maintain adequate flow. Deep machined plates have smooth, straight channels that keep pressure drop to a minimum.

Q5: If I need more cooling, should I just increase the coolant flow rate?

A: Only up to a point. While increasing flow rate can improve cooling, it also increases pressure drop. In a deep machined plate, eventually, the smooth walls of the channels become the bottleneck; no matter how fast the fluid moves, it cannot absorb heat any faster due to limited surface area.

Q6: What is the benefit of a copper deep machined cold plate over an aluminum one?

A: Copper has nearly double the thermal conductivity of aluminum (approx. 400 W/m·K vs. 200 W/m·K). A custom copper cold plate will absorb and spread localized heat much faster than aluminum, allowing the deep machined structure to handle a higher heat flux before hot spots form.

Q7: When should I choose a custom liquid cooling solution over a standard one?

A: You should opt for a custom solution when your system has non-standard heat source layouts, strict space or weight limitations, specific pressure drop constraints, or when your component's heat flux exceeds the capacity of standard off-the-shelf plate designs.
