In an era where technology drives innovation, managing heat has become a critical challenge. Cooling accounts for nearly 40% of energy consumption in data centers worldwide, underscoring the need for efficient solutions. Two-phase cooling has emerged as a revolutionary approach, leveraging the power of phase changes to dissipate heat effectively in high-performance systems like electronics, data centers, and electric vehicles. This comprehensive guide answers key questions about two-phase cooling, exploring its mechanics, benefits, applications, and future potential to help you understand why it’s transforming thermal management.
Two-phase cooling is an advanced thermal management technique that uses a fluid’s transition between liquid and vapor phases to transfer heat efficiently. Unlike traditional air or single-phase liquid cooling, which rely on sensible heat (temperature changes without phase shifts), two-phase cooling harnesses the latent heat of vaporization—the energy absorbed or released during phase changes. This allows it to move significantly more heat with less fluid and energy, making it ideal for compact, high-heat applications.
Evaporator: Where the fluid absorbs heat and turns into vapor.
Condenser: Where the vapor releases heat and condenses back to liquid.
Transport Mechanism: Wicks, gravity, or pumps to move the fluid between sections.
Analogy: Think of two-phase cooling like sweat cooling your skin—liquid evaporates to carry away heat, then condenses elsewhere, ready to repeat the cycle.

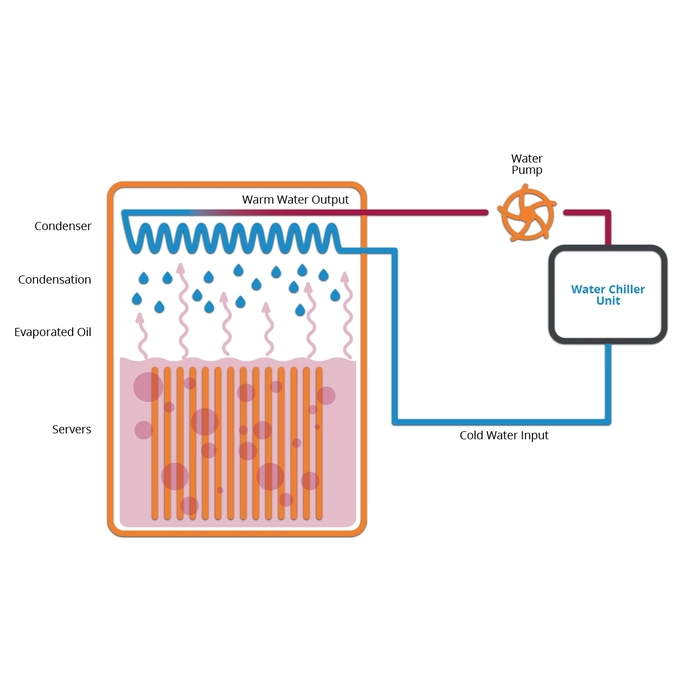

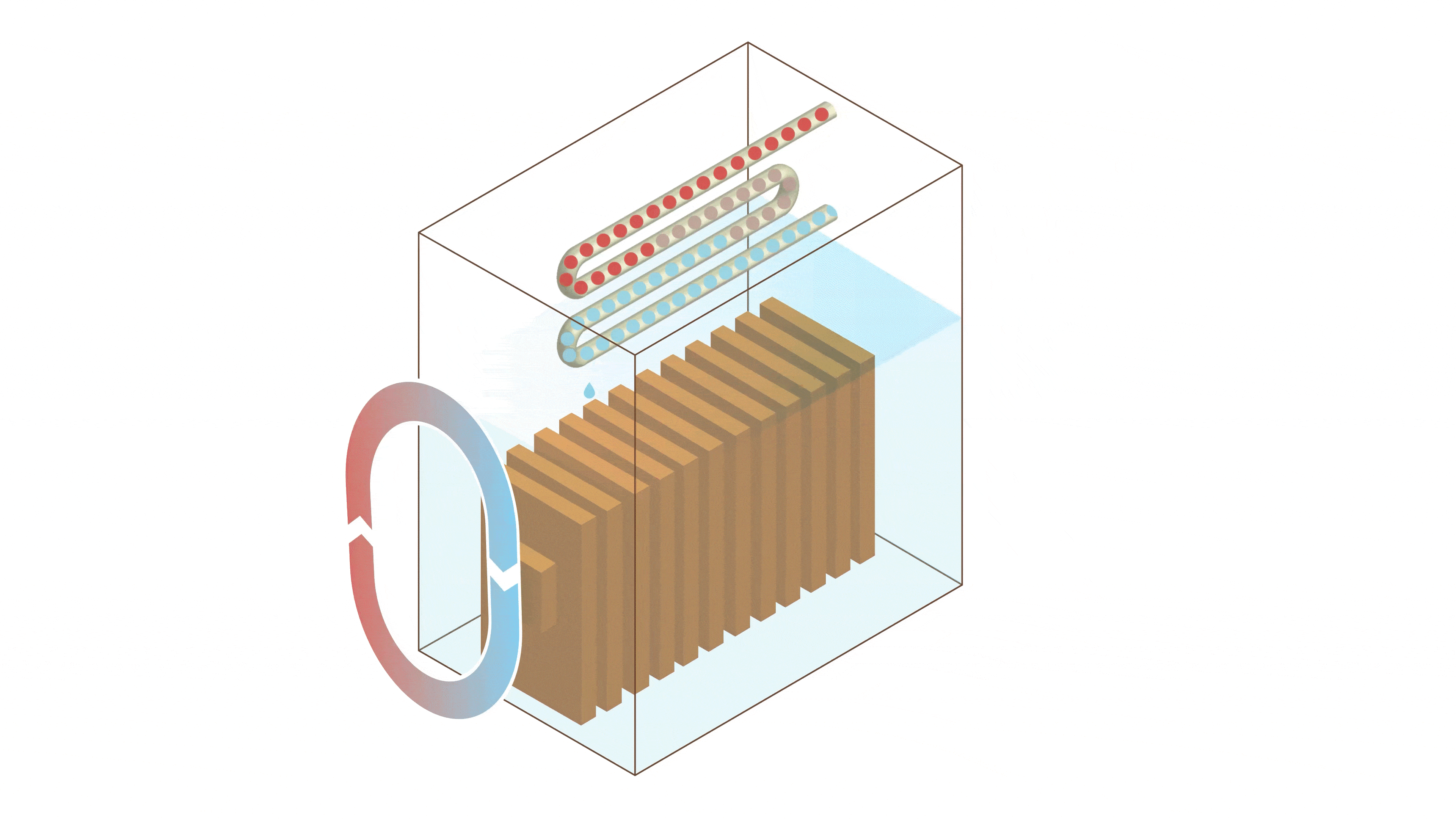

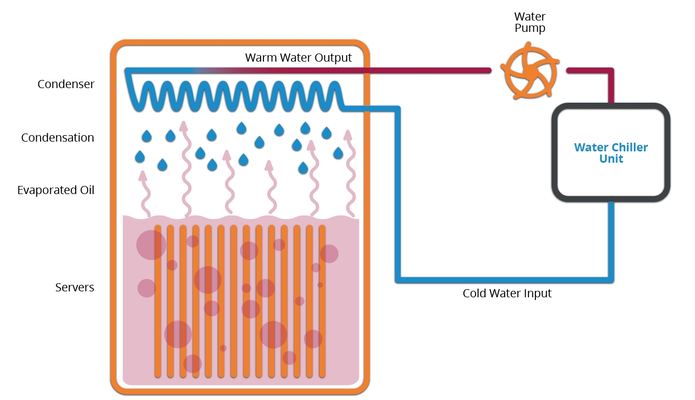

Two-phase cooling operates through a continuous, highly efficient cycle:
Heat Absorption: At the heat source (e.g., a CPU), the working fluid absorbs thermal energy, causing it to evaporate into vapor. This process absorbs a large amount of heat due to the fluid’s latent heat of vaporization.
Vapor Movement: The vapor travels to the condenser section, driven by pressure differences or, in some systems, gravity.
Heat Release: In the condenser, the vapor cools and condenses back into liquid, releasing the absorbed heat to the environment or a secondary cooling system.
Fluid Return: The liquid returns to the evaporator via capillary action (in wicks), gravity, or mechanical pumps, restarting the cycle.
This cycle achieves effective thermal conductivities up to 100,000 W/m·K, far surpassing solid conductors like copper (~400 W/m·K). The minimal temperature gradient between evaporator and condenser ensures rapid, efficient heat transfer.
Two-phase cooling systems vary in design and application, each suited to specific thermal challenges:
Heat Pipes: Passive, sealed tubes with a wick structure that use capillary action to cycle the fluid. Common in laptops and desktops for cooling processors.
Vapor Chambers: Flat, two-dimensional heat pipes that spread heat evenly across a surface, ideal for compact devices like smartphones and GPUs.
Thermosyphons: Wickless systems that rely on gravity to return liquid to the evaporator, effective in vertical setups like industrial heat exchangers.
Pumped Two-Phase Systems: Actively circulate fluid using pumps, designed for high-heat-flux applications such as data center servers or laser systems.
Example: Vapor chambers in gaming smartphones keep processors cool during intense sessions, preventing thermal throttling.
Two-phase cooling outperforms single-phase cooling (e.g., air fans or liquid loops) due to its reliance on phase changes:
Higher Heat Transfer Capacity: The latent heat of vaporization allows a small amount of fluid to move large amounts of heat—up to 100 times more than single-phase systems per unit mass.
Lower Energy Consumption: Passive systems like heat pipes require no external power, and even pumped systems use less energy than air-cooling fans.
Smaller Temperature Gradient: Maintains near-uniform temperatures across the system, reducing thermal stress on components.
Compact Design: Requires less fluid and space, fitting into dense, high-performance devices.
Statistic: Studies show two-phase cooling can reduce data center cooling energy costs by up to 30% compared to traditional air systems.
Two-phase cooling offers compelling advantages for modern applications:
Superior Efficiency: Transfers heat faster and with less energy than air or single-phase liquid cooling.
Scalability: Handles increasing heat loads as devices become more powerful, from microchips to server farms.
Quiet Operation: Passive systems like heat pipes and thermosyphons eliminate fan noise, ideal for consumer electronics.
Compact Footprint: Fits into space-constrained designs, such as ultra-thin laptops or electric vehicle battery packs.
Reliability: No moving parts in passive systems reduce maintenance needs and improve longevity.
Example: In electric vehicles, two-phase cooling ensures batteries operate at optimal temperatures, extending range and lifespan by up to 20%.
Two-phase cooling is transforming thermal management across diverse industries:
Electronics: Powers cooling for CPUs, GPUs, and mobile devices, ensuring performance in gaming PCs, laptops, and wearables.
Data Centers: Manages server heat to reduce energy costs and prevent downtime, critical for cloud computing and AI workloads.
Automotive: Optimizes electric vehicle battery packs and power electronics, improving efficiency and safety.
Manufacturing: Supports high-heat processes like metal forging, laser cutting, and semiconductor production.
Aerospace: Maintains stable temperatures in satellites and avionics under extreme conditions.
Case Study: Companies like NVIDIA use vapor chambers in high-end GPUs to maintain performance during intensive rendering tasks, reducing temperatures by up to 15°C compared to air cooling.
While powerful, two-phase cooling has some limitations:
Initial Cost: Complex systems, like pumped two-phase setups, have higher upfront costs than air or basic liquid cooling.
Design Complexity: Requires precise engineering to prevent leaks, ensure fluid compatibility, and optimize phase-change efficiency.
Fluid Selection: The working fluid (e.g., water, ammonia, refrigerants) must match the temperature range and material compatibility, adding design considerations.
Maintenance: Active systems with pumps may require periodic upkeep, unlike passive systems.
Advancement: Innovations like leak-proof seals and advanced refrigerants are addressing these challenges, making two-phase cooling more accessible.
The future of two-phase cooling is bright, driven by technological and environmental trends:
Cost Reduction: Advances in manufacturing are lowering the cost of complex systems, broadening adoption.
Sustainability: Energy-efficient designs align with global efforts to reduce carbon footprints, especially in data centers.
Hybrid Systems: Combining two-phase cooling with air or liquid methods offers versatile solutions for dynamic heat loads.
AI Integration: AI-driven controls optimize fluid flow and heat transfer in real time, enhancing performance.
Vision: Researchers are exploring nanofluids and microchannel designs to push two-phase cooling’s efficiency even further, potentially revolutionizing compact electronics.
Two-phase cooling is a transformative technology that delivers unmatched efficiency, scalability, and reliability for managing heat in high-performance systems. From powering the next generation of smartphones to slashing energy costs in data centers, it’s a cornerstone of modern thermal management. As industries demand smarter cooling solutions, two-phase cooling stands ready to meet the challenge.
