High-power electronics fail when thermal interface resistance traps heat at the base. Ignoring this bottleneck leads to severe throttling and premature component death. A Skiving Fin Heat Sink solves this by utilizing a monolithic fin-to-base construction, completely eliminating joint resistance to ensure maximum conduction efficiency.
As power densities in modern EV inverters and server racks continue to escalate, standard extruded aluminum components simply cannot keep up with the heat flux. In our thermal solutions business at Kingka Tech, we have repeatedly seen engineering teams hit a thermal wall. When standard geometries fail, it is time to look at the manufacturing physics of precision skiving to protect your hardware investment.
Traditional cooling modules rely on bonding or brazing fins to a base plate. This introduces microscopic gaps and filler materials that actively resist heat transfer, choking performance in compact, high-flux designs.

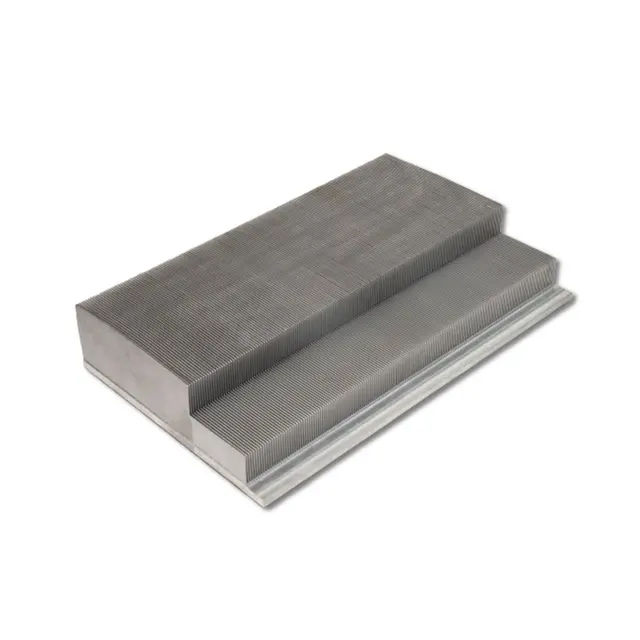

A Skiving Fin Heat Sink eliminates thermal interface resistance entirely because the fins and base are manufactured from a single, continuous block of metal. This monolithic construction creates an uninterrupted thermal path, drastically improving conduction efficiency compared to bonded or extruded alternatives.
When analyzing the thermal path of high-power electronics, every material boundary is a liability. In bonded fin solutions, engineers must use thermal epoxy or solder to attach the fins. Even the highest-grade thermal interface materials (TIMs) possess a fraction of the thermal conductivity of pure copper or aluminum.
Consider two common applications where this becomes a failure point:
High-Density Server CPUs: As TDP (Thermal Design Power) exceeds 400W, the spreading resistance at the base joint of a bonded heat sink prevents heat from reaching the outer fins fast enough, causing immediate silicon throttling.
Industrial Laser Diodes: These components generate extreme localized heat. A bonded joint struggles to transfer this transient heat spike, leading to optical degradation.
From a theoretical perspective, Fourier’s law of heat conduction highlights that thermal resistance increases with the thickness of the interface material. By utilizing a skiving process, we bypass this completely. The fin is literally carved and bent up from the base block.
Key advantages of monolithic conduction:
Zero Interface Material: No epoxy or solder to impede heat flow.
Rapid Heat Spreading: Immediate transfer from the heat source into the vertical fins.
No Degradation: Adhesives dry out and crack over time; solid metal does not.
If you are dealing with concentrated heat sources, eliminating this bottleneck is the first step toward thermal stability.
When chassis space is strictly constrained, you cannot increase the overall volume of your cooling module. The only engineering solution is to pack more heat-dissipating surface area into the exact same footprint.
By slicing directly into the base material, skiving technology can increase fin surface area by up to 3× compared to traditional extruded heat sinks. This allows for significantly higher convective heat dissipation without requiring any increase in the overall module volume.
In convective cooling, Newton’s law of cooling dictates that the rate of heat loss is directly proportional to the exposed surface area. If you cannot make the heat sink wider or taller due to chassis limits, you must increase the fin density. Extrusion dies cannot physically push metal through microscopic gaps without breaking, limiting their surface area potential.
We see this constraint frequently in:
1U Telecom Servers: With a maximum vertical clearance of roughly 40 mm, engineers need massive surface area in a very flat profile to leverage the high-velocity system fans.
Compact Motor Drives: Industrial automation equipment often lacks active cooling fans, relying heavily on natural convection surface area within tight, sealed enclosures.
Through precision skiving, Kingka Tech can manufacture fins that are paper-thin and tightly packed.
Surface Area Comparison Matrix:
If your system is starving for cooling surface area but locked into a specific form factor, send us your dimensional constraints to see how much area a custom skived profile can yield.
Standard extrusion dies will physically break if forced to produce excessively thin or tall fins. Skiving bypasses these mechanical limits entirely, allowing engineers to design aggressive cooling geometries that were previously unmanufacturable.
Advanced skived fins can be produced with a fin thickness as small as 0.05 mm and aspect ratios greater than 50:1. These extreme geometries drive superior heat transfer efficiency in both forced-air and natural convection systems by maximizing fluid contact.
The "aspect ratio" (fin height divided by fin gap) is the primary indicator of a heat sink's cooling potential. While standard extrusions struggle to surpass a 15:1 ratio, skiving opens the door to ratios exceeding 50:1. This means you can have incredibly tall fins packed tightly together.
Practical applications for extreme aspect ratios include:
GPU Thermal Modules: High-end graphics processing units require dense fin arrays to interface with high-static-pressure blower fans. A 0.05 mm fin thickness minimizes airflow blockage while maximizing wetted surface area.
Air-Cooled IGBT Cold Plates: In power conversion, large base plates with extremely tall skived fins can replace liquid cooling loops in certain environments, reducing system complexity.
There is a multi-angle engineering trade-off to consider here. While extreme fin density maximizes surface area, it also increases hydraulic resistance (pressure drop). Our engineering team routinely balances these variables, tailoring the fin pitch to your specific fan curve.
Geometry Optimization Checklist:
Fin Thickness: Tuned for structural integrity vs. weight reduction.
Fin Pitch: Optimized based on available fan static pressure.
Aspect Ratio: Maximized to utilize every millimeter of vertical Z-height.
Material purity directly dictates your baseline thermal conductivity. While die-casting and extrusion require specific alloy compositions for manufacturability, skiving utilizes pure metal blocks to ensure the highest possible heat transfer rates.
Compared to die-cast heat sinks, skived designs have shown up to ~72% higher effective thermal performance. This massive gain is driven by the combination of high-purity base materials, increased surface area, and the total elimination of base-to-fin thermal resistance.
When evaluating thermal performance, you must account for the material's internal structure. Die-casting often introduces microscopic porosity (air bubbles) into the metal and relies on silicon-heavy aluminum alloys (like ADC12) that flow easily but conduct heat poorly (approx. 90-100 W/mK). Extrusion utilizes better alloys (like 6063 at approx. 200 W/mK) but remains constrained by geometry.
Skiving, however, utilizes solid blocks of pure AL1060 (approx. 230 W/mK) or pure C1100 Copper (approx. 390 W/mK).
We have replaced underperforming parts in several industries:
Medical Imaging Electronics: MRI and CT scanning equipment require rapid heat dissipation without the risk of porous metal failure.
5G Base Stations: Telecom units exposed to solar loading and high internal compute heat see immediate performance gains when swapping from die-cast housings to skived copper inserts.
The theoretical basis is simple: purer metal transfers heat faster. By eliminating both the geometric limits of extrusion and the material impurities of die-casting, a Skiving Fin Heat Sink represents the ceiling of air-cooled thermal performance.
High-power electronics do not just get hot; they rapidly heat up and cool down. This thermal cycling creates stress that can degrade bonded joints and cause mechanical failures over time.
The continuous thermal path of a skived fin heat sink ensures exceptional mechanical stability under severe vibration and thermal cycling. Unlike bonded fins that can loosen or degrade, the monolithic structure maintains permanent structural integrity throughout the product's lifespan.
Reliability engineering demands that components survive not just optimal conditions, but edge-case environments. In a bonded fin heat sink, the base plate and the fins often heat up at different rates. This mismatch in the Coefficient of Thermal Expansion (CTE) places immense shear stress on the thermal epoxy or solder joint. Over thousands of cycles, micro-cracks form, instantly destroying the thermal path.
Monolithic skived parts are immune to this specific failure mode.
Automotive Under-Hood Components: Engine control units face extreme vibration and temperature swings from freezing to over 125°C. Skived fins cannot rattle loose because they are rooted in the base metal.
Railway Traction Converters: Constant mechanical shock on rail lines destroys fragile assemblies, making monolithic skived solutions a necessity for long-term safety.
From a reliability standpoint, fewer parts mean fewer failure points.
Key Mechanical Benefits:
Immunity to CTE mismatch at the fin base.
High resistance to harmonic vibration loosening.
Zero degradation of thermal adhesives over decades of use.
Waiting weeks for custom extrusion dies delays product launches and inflates R&D budgets. Agile hardware development requires a manufacturing process that can adapt instantly to thermal design changes without financial penalties.
Skived fin production completely eliminates costly molds and tooling, enabling rapid prototyping within days rather than weeks. This manufacturing flexibility allows for precise control of fin height, thickness, and spacing, making it highly cost-effective for low-volume production runs and rapid custom configurations.
In modern hardware development, the ability to iterate quickly is a massive competitive advantage. If thermal testing reveals that an extruded heat sink design falls short by 3°C, ordering a new extrusion die costs thousands of dollars and wastes a month of development time.
Because skiving is a subtractive CNC process utilizing specialized cutting blades, there are zero Non-Recurring Engineering (NRE) tooling fees for the fin profile.
This is incredibly valuable for:
Custom Power Electronics Startups: Launching a new product often requires small-batch initial runs (50-200 units). Skiving keeps unit economics viable without amortizing expensive molds.
Specialized Aerospace Equipment: Projects requiring unique, one-off thermal footprints can be machined and delivered immediately based on CAD data.
Cost vs. Volume Analysis:
If your time-to-market is tight, skiving allows you to bypass the tooling phase entirely.
Theoretical data must translate into real-world performance. In the automotive sector, managing extreme heat directly correlates with extended vehicle range, component lifespan, and critical safety metrics under peak load conditions.
A tier-1 electric vehicle OEM utilized a custom copper Skiving Fin Heat Sink to replace failing extruded models in their inverter modules. This optimization resulted in operating temperature reductions of up to 18–20% under peak load conditions, significantly improving thermal headroom.
A major electric vehicle OEM approached Kingka Tech facing severe thermal challenges in their inverter and battery management systems (BMS). As power density increased to extend driving range, the packaging space shrank. Their traditional extruded aluminum heat sinks could not maintain safe junction temperatures under extended highway driving loads, leading to system throttling and reduced reliability.
Our engineering team analyzed the constrained form factor and transitioned the design to a custom copper skived fin heat sink. Copper provided the absolute highest thermal conductivity, while the skiving process delivered the extreme fin density required for their liquid cooling loop interface.
The operational results were definitive:
Thermal Headroom: Operating temperatures dropped by 18–20% under peak load conditions, completely eliminating the throttling issue.
Warranty Reduction: By reducing thermal stress on the inverter components, the OEM lowered warranty return rates associated with overheating failures.
Extended Lifespan: Better temperature control extended the overall component lifespan, which is crucial in automotive environments subjected to frequent thermal cycling.
This case underscores how custom skiving, when properly engineered for density and material selection, provides meaningful performance gains in mission-critical systems without compromising cost efficiency.
Whether you are designing EV inverters, 1U telecom servers, or industrial automation drives, you cannot afford to let thermal interface resistance throttle your system. A Skiving Fin Heat Sink provides the monolithic structure, the 3x surface area increase, and the mechanical stability required to manage extreme heat fluxes reliably. Furthermore, the absence of tooling costs ensures your engineering team can move from rapid prototype to small-batch production without hesitation.
Would you like me to review your current CAD model to see if transitioning to a skived fin architecture can lower your component operating temperatures? Reach out to our engineering team at Kingka Tech for a comprehensive design and manufacturability assessment.
