Comparative Analysis of Heat Sink Materials: Aluminum, Copper, Graphite And Mixed Compositions

Introduction

Heat Sinks play a vital role in various applications, such as automotive engines, industrial machinery, etc., by dissipating excess heat to maintain optimal operating temperatures. The efficiency and service life of radiators depends mainly on the materials used. Therefore, this article will introduce four critical Heat sink materials: aluminium, copper, graphite, and mixed compositions, and conduct a comprehensive comparison. Knowing each material's characteristics, advantages, and disadvantages will help you choose the most suitable radiator for specific needs and applications.

Radiator Function and Importance

Heat sinks play a key role in thermal management systems; they effectively cool the entire system by transferring heat from the fluid inside the heat sink to the outside air.

The choice of heat sink material affects critical performance indicators such as heat transfer efficiency, durability, weight, and corrosion resistance.

Aluminum, copper, graphite, and hybrid materials (such as aluminum copper alloys) are commonly used to make heat sinks. Each has its own unique advantages and disadvantages.

Correctly selecting the heat sink material suitable for a specific application scenario is crucial to achieving optimal heat dissipation and ensuring long-term reliable operation of the system.

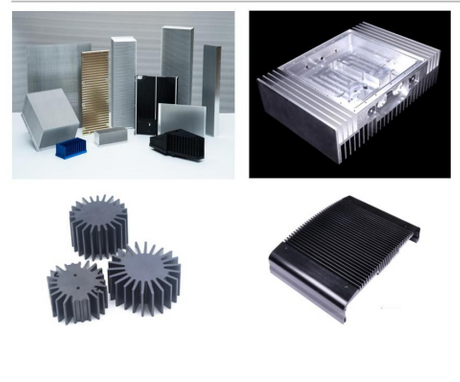

Aluminum radiator

Aluminum heat sinks are the most commonly used electronic cooling solution on the market. They are widely used in the cooling systems of electronic products such as CPUs, GPUs, power supplies, and LEDs. They are essential for achieving efficient heat dissipation and extending component life.

Characteristics of aluminum radiators

· Lightweight: Aluminum is a light metal, making it ideal for applications where weight reduction is required.

· High Thermal Conductivity: Aluminum's excellent thermal conductivity ensures efficient heat transfer.

· Corrosion resistance: Aluminum forms a protective oxide layer that increases its resistance to corrosion.

Advantages of Aluminum Radiators

· Cost-effective: Aluminum heat sinks are generally cheaper than copper or graphite heat sinks. According to research by MarketsandMarkets, the average cost of aluminum is about $1,800 per metric ton, much lower than copper's $6,500.

· Easy to manufacture and form: Aluminum's ductility makes it easy to manufacture and design various heat sinks.

· Good heat dissipation: High thermal conductivity ensures effective heat dissipation, enhancing cooling performance.

Disadvantages of Aluminum Radiators

· The thermal conductivity of aluminum is slightly worse than that of copper: Although aluminum's thermal conductivity is better than that of steel, it is still slightly inferior to that of copper, and its heat dissipation efficiency is lower than that of copper.

· Prone to galvanic corrosion: Aluminum is prone to galvanic corrosion when in contact with other metals.

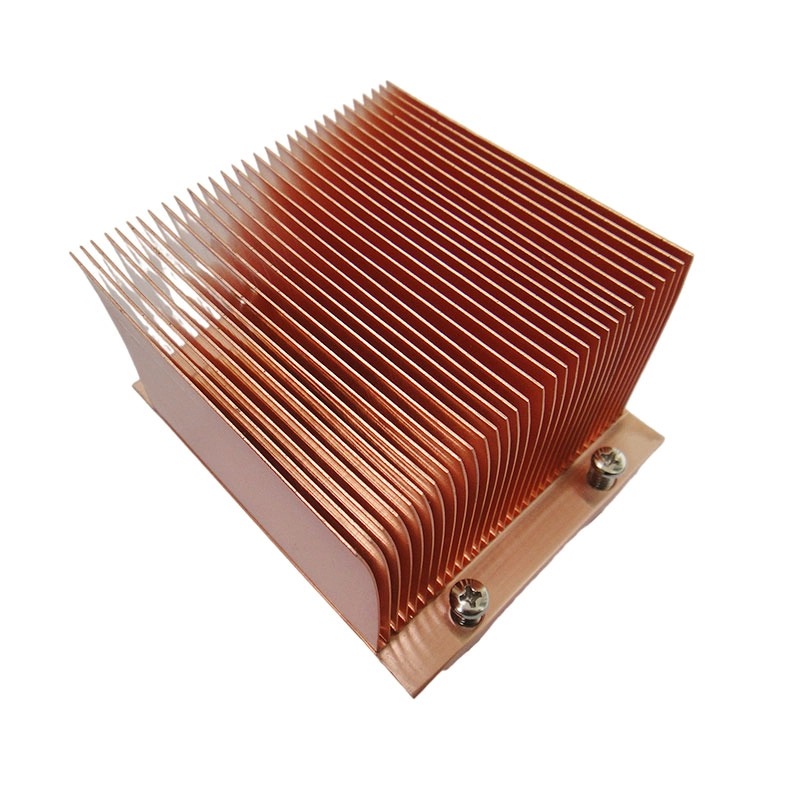

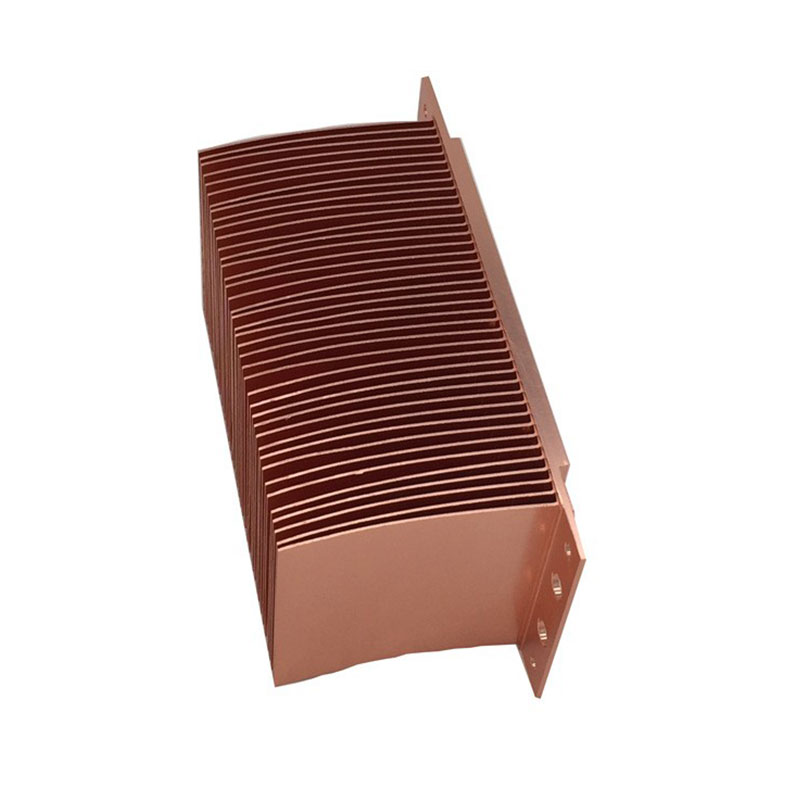

Copper radiator

Copper heat sink is a high-quality heat dissipation solution with the following features:

Characteristics of copper heat sink

· Excellent thermal conductivity: Copper is an excellent thermal conductive material with higher thermal conductivity than aluminum and steel. It can conduct and dissipate heat quickly and efficiently, with higher heat dissipation efficiency.

· High corrosion resistance: Copper is an inert metal with good anti-corrosion and anti-oxidation properties. Therefore, an anti-corrosion layer inside the radiator is not needed, which prolongs its service life.

· Durable and strong: Copper has a high pressure-bearing capacity, which can increase the radiator's working pressure. Copper radiators are sturdy and durable and have a long service life.

Advantages of Copper Radiators

· Excellent heat transfer efficiency: Copper heat sinks provide excellent heat dissipation performance and are suitable for high-performance applications. Research by the International Copper Association shows that copper heat sinks have 50% higher thermal performance than aluminum.

· Longer Lifespan: Copper radiators last longer due to their durability and corrosion resistance.

· Performs better under high-pressure conditions: Copper heat sinks can withstand higher pressures, making them ideal for industrial applications.

Disadvantages of Copper Radiators

· Higher cost: Copper is more expensive than materials such as aluminum, resulting in higher manufacturing costs.

· Copper heat sinks are heavier than aluminum, which can be a disadvantage in applications where weight is a concern.

· More difficult to manufacture and form: Copper is less malleable than aluminum, making it more difficult to process.

Graphite radiator

As a new type of heat-dissipation material, graphite has the following characteristics:

Characteristics of graphite heat sink

· High thermal conductivity: The thermal conductivity of graphite in the XY axis direction is as high as 300~1900W/(m·K), which is better than copper and aluminum and can conduct and dissipate heat quickly and efficiently.

· Lightweight: Graphite has a low specific gravity, and the heat sink made of it is light, which helps to reduce the overall system's weight.

· Chemical inertness: Graphite has good chemical stability and corrosion resistance and has a longer service life.

Advantages of graphite heat sink

· Excellent heat dissipation: Graphite’s high thermal conductivity ensures efficient cooling. Research by the American Institute of Chemical Engineers shows that graphite’s thermal conductivity can reach 400 W/mK, comparable to copper.

· Non-corrosive: Graphite does not corrode, extending its service life in various environments.

· Reducing weight can improve efficiency in certain applications, such as the automotive and aerospace sectors.

Disadvantages of graphite heat sink

· Expensive: Graphite is more costly than aluminum and copper, resulting in higher manufacturing costs and expensive prices.

· Fragile and easily damaged: Graphite is brittle, making it easily damaged under mechanical stress.

· Limited supply and complex manufacturing: Due to their material properties, graphite heat sinks are more challenging to supply and manufacture.

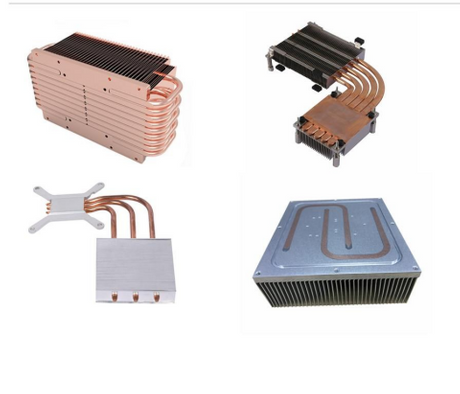

Hybrid heat sink (aluminum and copper)

A hybrid heat sink (aluminum and copper) is a new heat dissipation solution that combines the advantages of two metal materials and has the following characteristics:

characteristic

· Combining the light weight of aluminum with the high thermal conductivity of copper: The hybrid heat sink is composed of two materials, aluminum, and copper, and is designed to balance the advantages of both - the light weight of aluminum and the excellent thermal conductivity of copper.

· Designed to optimize performance and cost, this hybrid design aims to provide high thermal performance similar to that of copper heat sinks at a lower manufacturing cost.

advantage

· Balanced Thermal Performance: Hybrid radiators provide a good balance between heat dissipation and weight. The latest automotive research data shows that, due to their reduced weight, hybrid radiators can improve fuel efficiency by 20%.

· Lighter than all-copper radiators: They are lighter than pure copper radiators, enhancing efficiency.

· Potential cost savings: By using less copper, hybrid heat sinks may be more economical.

shortcoming

· Complex Manufacturing Process: Combining two different metals requires complex manufacturing techniques.

· Risk of Galvanic Corrosion: The use of dissimilar metals may result in galvanic corrosion if not appropriately handled.

· Precise design is required to maximize the advantages: Careful design is needed to fully utilize the benefits of both materials.

Comparative summary of the four materials

In general, aluminum heat sinks are light and low-cost but have average thermal conductivity; copper heat sinks have excellent thermal conductivity but are heavy and costly; graphite heat sinks have excellent thermal conductivity and are light but are expensive and difficult to manufacture; and hybrid heat sinks seek a balance between performance and cost, but the manufacturing process is complex. Heat sinks made of different materials have their advantages and disadvantages, and the appropriate solution needs to be selected according to the specific application scenario.

in conclusion

Selecting the suitable heat sink material is critical to achieving optimal performance and long service life. Different materials have their advantages and disadvantages, which need to be weighed according to the specific application scenario:

lAluminum radiators are low-cost and lightweight, making them suitable for applications such as automobiles and residential buildings.

lCopper heat sinks have excellent thermal conductivity and strong corrosion resistance, making them ideal for industrial and high-performance applications.

lGraphite heat sinks have excellent thermal conductivity and are not prone to corrosion. They perform well in high-tech and professional applications, but they are more expensive.

lHybrid heat sinks (aluminum and copper) strike a balance between performance and cost for automotive and industrial applications.

KingKa Technology Industrial Co., Ltd. provides a variety of radiators. Please feel free to contact our professional team to customize the most suitable radiator for your company to meet your needs.

In the future, the development trend of heat sink materials may focus on further improving thermal efficiency, reducing weight, and developing cost-effective manufacturing technologies. Innovations in materials science are expected to give rise to new composite materials and alloys that are expected to provide better heat dissipation performance. As a professional provider of thermal management solutions, KingKa will continue to be committed to launching more advanced and efficient heat dissipation products to meet the needs of different industries and application scenarios.
