Radiators are vital in thermal management systems, ensuring that various devices and machinery operate at optimal temperatures. With the advancement of technology, the need for efficient cooling solutions has become increasingly urgent. Heat pipe technology is one important technology that has revolutionized radiator design. This article will explore the principles, advantages, and diverse applications of heat pipe technology, demonstrating its importance in modern thermal management.

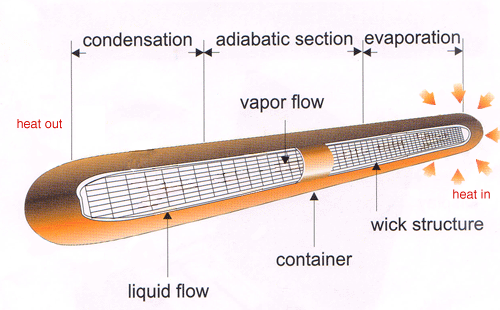

A heat pipe is a heat transfer device that efficiently manages heat by combining the principles of heat conduction and phase change. Its working principle involves three main processes: evaporation, condensation, and capillary action.
1. Evaporation section: The working fluid inside the heat pipe absorbs heat at high temperatures and evaporates into steam.
2. Steam Flow: Due to the pressure difference caused by evaporation, steam flows from the high-temperature end to the low-temperature end.
3. Condensation section: The vapour releases latent heat at the low-temperature end and condenses into liquid.
4. Liquid Reflux: The condensed liquid returns to the evaporation section through the capillary structure or capillary force, forming a cycle.
A heat pipe consists of three main parts:
· Shell: A sealed metal container with a vacuum environment inside.
· Working fluid: Select an appropriate working liquid, such as water, ammonia, or acetone, according to the working temperature.
· Capillary core: Porous material lining, using capillary action to allow liquid to flow back.
Heat pipes transfer heat from one location to another with minimal temperature loss. The process begins with evaporation at the heat source, where the working fluid absorbs heat and turns it into vapour. The vapour moves to the cold end of the heat pipe, where it condenses and releases heat. The liquid returns to the heat source through a capillary structure, completing the cycle.
Heat pipes use the latent heat of phase change of the working fluid to achieve efficient heat transfer. Their heat transfer performance is much higher than that of solid thermal conductivity, which is mainly reflected in:
l High thermal conductivity: The equivalent thermal conductivity of heat pipes can reach hundreds of times that of solid metals.
l Good temperature uniformity: The temperature gradient inside the heat pipe is small, allowing for a high degree of isothermal control
.
l The heat flux density can be changed by adjusting the evaporation/condensation area:
l It has a compact structure and no need for external power: it can work passively by ensuring the temperature difference at the ends.
1. Highly efficient heat transfer performance:
Heat pipes use the latent heat of the working fluid phase change to transfer heat at an extraordinary speed, and their equivalent thermal conductivity can be hundreds of times that of solid metal. This high-efficiency heat transfer performance ensures critical components maintain a stable temperature in a rapidly changing environment.
2. Compact structure and small size:
The heat pipe does not require complicated moving parts, and its structure is simple and compact, which makes it easy to achieve miniaturization and integrated design. No matter the space's size, the heat pipe can be customized in different shapes and sizes according to needs, showing muscular design flexibility.
3. No external power required, high reliability:
As a passive heat dissipation device, the heat pipe only needs a temperature difference without additional external power input. Its sealing design prevents working fluid loss and contamination. The heat pipe ensures a long service life and extremely high reliability, reducing maintenance requirements to a minimum.
4. Good temperature uniformity:
The temperature gradient inside the heat pipe is minimal, which can achieve highly uniform temperature control and meet application scenarios with extremely high-temperature uniformity requirements.
5. The heat flux can be changed:
By simply adjusting the evaporation/condensation area, the heat pipe can quickly achieve the conversion of input and output heat flux density to meet the needs of different environments.
It is widely used in the heat dissipation of high-heat-density electronic components such as CPUs and GPUs, keeping the equipment running stably at the optimal operating temperature and thereby improving performance and reliability. It achieves effective thermal management in dense electronic environments such as telecommunications base stations and data centres and reliably prevents overheating failures.
Heat pipe radiators play a key role in controlling the temperature of electric vehicle power battery packs, ensuring the safe and efficient operation of batteries. They are also used to cool key automotive components such as drive motors, providing reliable thermal management solutions for new energy vehicles.
Heat pipe radiators control heat loads precisely and meet strict temperature requirements for aerospace equipment such as spacecraft and satellites. They play an indispensable role in these critical areas, ensuring the safe operation of spacecraft in extreme environments.
In solar thermal collectors, heat pipe radiators use their efficient heat transfer characteristics to improve heat collection efficiency, making an essential contribution to developing renewable energy systems. They are also used in other renewable energy systems to improve the overall energy conversion efficiency and positively contribute to environmental protection.
Emerging materials have higher thermal conductivity and improved structural integrity, significantly improving heat transfer efficiency and durability of heat pipes. Introducing these materials, like a fresh stream, has brought new hope and possibilities to developing heat pipes.
The heat transfer capacity of heat pipes can be further improved by continuously optimizing their internal structure design, such as improving the capillary core. This continuous innovation and progress makes heat pipes more capable of dealing with complex thermal management problems.
Heat pipe technology is gradually combined with advanced active cooling technologies such as liquid and phase change materials to form a composite high-efficiency cooling system. This fusion will improve cooling efficiency and provide better thermal management solutions for the next generation of high-heat-load electronic devices, which excites us.
Future innovations will focus on improving the energy efficiency of heat pipe manufacturing and use processes and reducing environmental impact. We actively explore using renewable, environmentally friendly materials and manufacturing processes to create more sustainable heat pipe cooling solutions. This unremitting effort will help realize the pursuit of environmental protection and energy saving in modern thermal management systems and bring a better future for our planet.
Heat pipe technology has revolutionized the thermal management landscape, providing unparalleled efficiency and versatility. From enhancing electronic device performance to supporting critical applications in the automotive and aerospace industries, heat pipe heat sinks are indispensable. As technology advances, the future will bring more innovative and sustainable solutions, solidifying the role of heat pipes in the evolution of thermal management systems.
