Choosing between aluminum and copper for liquid cold plates is a critical decision impacting thermal performance, cost, and weight in high-power applications. While copper boasts superior thermal conductivity for maximum heat transfer, aluminum offers a lightweight, cost-effective alternative with excellent machinability. This guide provides a focused comparison, analyzing the thermal, mechanical, and economic trade-offs of each material to help you determine which is best suited for your specific heat load, space constraints, and budget, ensuring optimal cooling for your critical components.
When designing a liquid cooling system for high-power electronics, batteries, or industrial equipment, one of the most fundamental decisions you'll face is the material for your liquid cold plate. The choice often boils down to two primary contenders: aluminum and copper. Both are excellent thermal conductors, but they come with distinct advantages and disadvantages that significantly impact a cold plate's performance, cost, and suitability for various applications. You're likely asking: Aluminum vs. Copper Liquid Cold Plates: Which Material Is Best for Thermal Performance? The answer isn't a simple one-size-fits-all. This guide will delve into a detailed comparison, helping you understand the nuances of each material so you can make an informed decision for your specific thermal management needs.

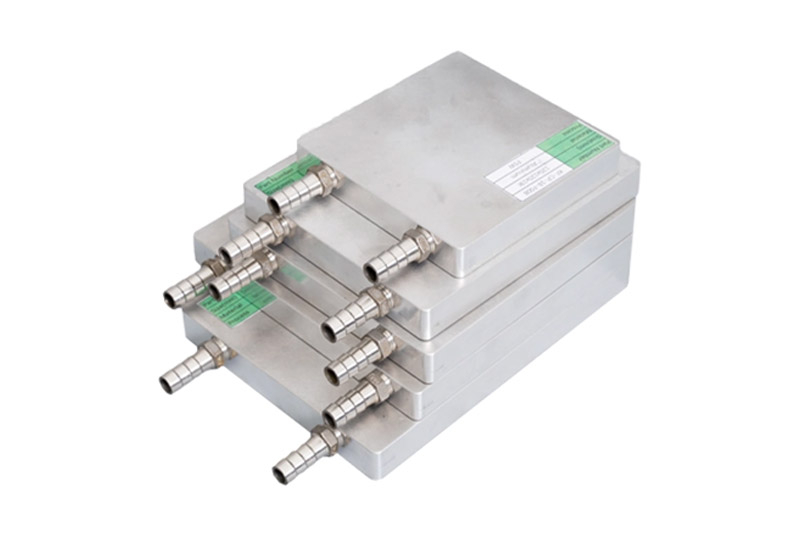

Aluminum Liquid Cold Plates: The Lightweight, Cost-Effective Solution
Comparative Analysis: Thermal Conductivity and Heat Spreading
Before comparing materials, let's clarify what "thermal performance" means for liquid cold plates.
Thermal performance in liquid cold plates is primarily defined by their ability to efficiently transfer heat from a source to a circulating coolant, quantified by thermal resistance (Rth). This efficiency is heavily influenced by the material's thermal conductivity, the cold plate's internal channel design (which maximizes wetted surface area), and the effectiveness of heat spreading from the component's hot spot across the cold plate's base. Optimizing these factors is crucial for achieving low Rth and ensuring stable operating temperatures for high-power components.
It's not just about how fast heat moves through the material, but how effectively the entire system works.
Thermal Conductivity (k): Material's intrinsic ability to conduct heat (W/(m·K)). Higher 'k' means easier heat movement.
Heat Spreading: Cold plate's ability to distribute heat from a concentrated source over a larger area, utilizing all channels.
Internal Channel Design: Geometry and density of coolant channels, increasing wetted surface area and heat transfer. KingKa Tech offers deep-machined, brazed, and FSW cold plates with optimized channel designs.
Coolant Flow Rate and Properties: Type, flow rate, and thermal properties of the coolant.
Thermal Interface Material (TIM): Material between heat source and cold plate, minimizing contact resistance.
The ultimate goal is the lowest possible thermal resistance (Rth) from heat source to coolant, ensuring component junction temperature remains safe. Both aluminum and copper cold plates aim for this through different strengths.
When maximum heat transfer is the priority, copper liquid cold plates often lead the way.
Copper liquid cold plates are renowned for their superior thermal conductivity, typically around 380-400 W/(m·K), making them the champion for applications demanding the absolute lowest thermal resistance and efficient heat spreading from high-power density components. This material excels in rapidly dissipating intense heat loads, ensuring critical components remain cool. While heavier and more expensive than aluminum, copper cold plates are ideal for high-performance computing, power electronics, and laser systems where thermal performance is paramount and cost/weight are secondary considerations.
Copper is the go-to material when you need to move a lot of heat, fast.
Superior Thermal Conductivity: Approx. 380-400 W/(m·K), nearly twice aluminum's. Results in lower Rth and cooler component temperatures.
Excellent Heat Spreading: Rapidly spreads heat from concentrated hot spots, reducing localized temperatures and ensuring uniform heat transfer.
High Power Density Applications: Ideal for high-end CPUs, GPUs, laser diodes, and IGBT modules.
Example: Cooling a 500W GPU where every degree Celsius is critical.
Corrosion Resistance: Good natural resistance with proper coolant.
Ductility: Suitable for various manufacturing processes like brazing and deep-machining.
Higher Cost: Significantly more expensive than aluminum.
Higher Density/Weight: Approx. 3.3 times denser than aluminum, impacting weight-sensitive applications.
Machinability: Softer and gummier than aluminum, potentially increasing machining time.
Galvanic Corrosion Risk: Requires careful management when mixed with dissimilar metals in a cooling loop.
KingKa Tech's Expertise: We specialize in manufacturing high-performance copper liquid cold plates using deep-machining and brazing techniques, ensuring optimal thermal transfer for your most demanding applications.
For a balance of performance, weight, and cost, aluminum liquid cold plates are often the preferred choice.
Aluminum liquid cold plates offer an excellent balance of thermal performance, lightweight construction, and cost-effectiveness, making them a versatile choice for a wide range of applications. With thermal conductivity typically around 180-220 W/(m·K), aluminum provides efficient heat transfer, while its low density and superior machinability contribute to lower manufacturing costs and lighter systems. Aluminum cold plates are ideal for applications where weight and budget are significant considerations, such as automotive, general electronics, and industrial automation, without compromising essential cooling capabilities.
Aluminum provides a robust and efficient solution without the premium cost or weight of copper.
Good Thermal Conductivity: 180-220 W/(m·K) for alloys like 6061, sufficient for most liquid cooling needs.
Lightweight: Significantly lighter than copper, crucial for weight-sensitive applications (e.g., EVs, aerospace).
Cost-Effective: Lower raw material and manufacturing costs than copper.
Excellent Machinability: Easy to machine, allowing for complex channel designs and efficient manufacturing. KingKa Tech leverages its 35 sets of high-end CNC machines for precision aluminum cold plates.
Corrosion Resistance: Good natural resistance with proper coolants and inhibitors.
Versatile Manufacturing: Compatible with deep-machining, brazing, and Friction Stir Welding (FSW).
Lower Thermal Conductivity (than copper): May require larger cold plates or more aggressive designs for extremely high heat flux.
Galvanic Corrosion Risk: Care needed when mixing with dissimilar metals in a cooling loop.
KingKa Tech's Expertise: We are a leading manufacturer of aluminum liquid cold plates, utilizing deep-machining, brazing, and FSW technologies to deliver high-quality, cost-effective, and lightweight thermal solutions for diverse industries.
The core difference between aluminum and copper liquid cold plates lies in their ability to conduct and spread heat.
In a direct comparison, copper's thermal conductivity (380-400 W/m·K) is nearly double that of aluminum (180-220 W/m·K), making copper superior for rapid heat transfer and efficient heat spreading from concentrated hot spots. This translates to lower thermal resistance and cooler component temperatures for a given cold plate size. While aluminum is effective, copper's advantage in heat spreading means it can more uniformly distribute heat across the cold plate's wetted surface, maximizing the efficiency of the internal coolant channels, especially for high-power density applications.
This is where the "best for thermal performance" question truly gets answered.
Copper: ~380-400 W/(m·K)
Aluminum (e.g., 6061): ~180-220 W/(m·K)
Interpretation: Copper conducts heat roughly twice as fast as aluminum, leading to more efficient heat transfer to coolant channels.
Copper: Excels at spreading heat from small, concentrated hot spots across the entire cold plate base, ensuring uniform utilization of coolant channels. Reduces localized hot spots.
Aluminum: Less efficient at heat spreading than copper. May require a thicker base or more aggressive channel design to compensate, potentially leading to slightly higher localized temperatures.
Copper: Generally achieves lower Rth for a given size and heat load, allowing for smaller cold plates or cooler components.
Aluminum: Can achieve good Rth, but might require a larger cold plate or more complex design to match copper's performance.
KingKa Tech's Expertise: Our thermal engineers utilize advanced simulation software to model heat spreading and thermal resistance for both aluminum and copper cold plates, helping you predict and optimize performance for your specific application.
Beyond thermal performance, the mechanical properties of aluminum and copper liquid cold plates are crucial for durability and safety.
The mechanical properties of aluminum and copper significantly influence a liquid cold plate's structural integrity and pressure resistance. Copper, being denser and stronger, generally offers superior pressure resistance and robustness, making it ideal for high-pressure systems. Aluminum, while lighter and more ductile, can also achieve excellent pressure resistance, especially when manufactured using Friction Stir Welding (FSW) or robust brazing techniques. The choice depends on the required operating pressure, potential for thermal cycling, and the overall system's structural demands.
A cold plate must not only cool effectively but also withstand the rigors of its operating environment.
Copper: Generally stronger and harder than common aluminum alloys. More resistant to deformation under pressure.
Aluminum (e.g., 6061-T6): Good strength, but typically lower than copper. Can be more susceptible to deformation in very high-pressure applications if not properly designed.
Copper Cold Plates: Often withstand higher internal fluid pressures due to inherent strength and ductility.
Example: Industrial applications with high-pressure pumps.
Aluminum Cold Plates: Can achieve excellent pressure resistance, especially with robust welding like FSW or vacuum brazing.
Example: KingKa Tech's FSW aluminum cold plates offer superior weld strength for high-pressure battery cooling.
Copper: CTE ~17 x 10⁻⁶ /°C.
Aluminum: CTE ~23 x 10⁻⁶ /°C.
Practical Impact: Aluminum expands and contracts more with temperature changes, which can induce stress or affect TIM reliability when mounted to dissimilar materials.
Deep-Machining: Sealing method (welding, FSW, brazing) is critical for pressure resistance.
Brazing: Creates strong metallurgical bonds.
FSW: Creates exceptionally strong, low-distortion welds for aluminum, ideal for high-pressure applications.
KingKa Tech's Expertise: We rigorously test our liquid cold plates for pressure resistance and structural integrity, ensuring they meet the demanding mechanical requirements of your application. Our FSW technology is particularly suited for high-strength aluminum cold plates.
Beyond pure thermal performance, aluminum and copper liquid cold plates present significant trade-offs in terms of weight, cost, and manufacturing feasibility.
Aluminum liquid cold plates offer a significant advantage in weight and cost due to aluminum's lower density and raw material price, coupled with its excellent machinability. This makes aluminum ideal for weight-sensitive or budget-constrained applications. Copper, while thermally superior, is considerably heavier and more expensive. Manufacturing processes like deep-machining, brazing, and FSW are compatible with both, but aluminum often allows for faster machining and more cost-effective high-volume production, especially with FSW for robust, lightweight designs.
These practical considerations often drive the final material selection.
Copper: Density ~8.96 g/cm³.
Aluminum: Density ~2.7 g/cm³.
Practical Impact: Copper cold plates are ~3.3 times heavier, critical for aerospace, EVs, portable devices, and robotics.
Raw Material Cost: Copper is significantly more expensive per kilogram.
Manufacturing Cost: Aluminum is generally easier and faster to machine, leading to lower costs. FSW is also cost-effective for high-strength aluminum welds. Overall, aluminum cold plates are typically more economical.
Machinability: Aluminum is excellent for intricate designs and efficient manufacturing. Copper is machinable but can be gummier, potentially increasing time/cost. KingKa Tech's CNC machines are optimized for aluminum.
Welding/Brazing: Aluminum is compatible with TIG/Laser welding, brazing, and FSW. Copper is compatible with TIG/Laser welding and brazing.
Surface Finish: Both can achieve excellent surface finishes.
KingKa Tech's Expertise: We provide comprehensive manufacturing services for both aluminum and copper liquid cold plates, offering cost-effective solutions tailored to your volume and performance requirements. Our expertise in deep-machining, brazing, and FSW ensures optimal production efficiency.
Understanding the corrosion characteristics and fluid compatibility of aluminum and copper liquid cold plates is vital for long-term reliability.
Corrosion and fluid compatibility are critical for the longevity of liquid cold plates. Aluminum is susceptible to galvanic corrosion when in contact with dissimilar metals in a conductive fluid, requiring careful system design and inhibited coolants. Copper, while more noble, can also corrode if the coolant is not properly maintained. Both materials necessitate the use of specific, inhibited coolants (e.g., deionized water with corrosion inhibitors or glycol-water mixtures) to prevent degradation, maintain thermal performance, and ensure system reliability over time.
A cold plate that corrodes will eventually leak and fail, regardless of its thermal performance.
The Risk: Occurs when dissimilar metals are in electrical contact in a conductive fluid, causing the less noble metal to corrode.
Aluminum: More susceptible to galvanic corrosion, especially with copper or stainless steel in the loop. Requires careful system design and inhibited coolants.
Copper: More noble than aluminum; can accelerate aluminum corrosion if paired.
Deionized Water with Inhibitors: Best for thermal performance, but must contain inhibitors specific to all metals in the loop.
Glycol-Water Mixtures: Provide freeze protection and often include inhibitors. Reduces thermal performance but offers essential protection.
Dielectric Fluids: Used in specialized applications; compatibility with cold plate materials must be verified.
Material Selection: Use compatible metals throughout the loop.
Coolant Selection: Use high-quality, inhibited coolants.
Coolant Maintenance: Monitor and replace coolant regularly.
Isolation: Electrically isolate dissimilar metals.
Surface Treatment: Anodizing aluminum can add protection.
KingKa Tech's Expertise: We can advise on material selection and recommend suitable coolants and corrosion prevention strategies to ensure the long-term reliability of your liquid cold plates, regardless of material.
The "best" material for liquid cold plates is ultimately determined by the specific demands of your application.
Matching the liquid cold plate material to the application is crucial for optimizing performance, cost, and reliability. Copper is best suited for high-power density applications where maximum thermal performance is paramount and weight/cost are secondary. Aluminum is ideal for applications where lightweight construction, cost-effectiveness, and good thermal performance are key, such as in automotive, general electronics, and battery cooling. The choice hinges on balancing heat load, space constraints, budget, and system-level considerations like weight and corrosion risk.
Here's a breakdown of where each material typically excels:
High-Performance Computing (HPC): CPUs, GPUs, FPGAs where lowest Rth is critical.
Power Electronics: IGBTs, MOSFETs in high-power inverters with high heat flux.
Lasers and Optics: High-power laser diodes requiring precise temperature control.
Medical Imaging: MRI, CT scanners with high heat loads in compact spaces.
Applications with Small Footprint, High Heat: Cooling very hot components in minimal space.
Electric Vehicle (EV) Battery Cooling: Lightweight, cost-effective for large packs, good thermal performance (especially FSW).
Automotive Electronics: Power steering, infotainment, onboard chargers where weight and cost are key.
General Industrial Electronics: PLCs, motor controllers, power supplies needing good thermal performance.
Telecommunications Equipment: Base stations, network infrastructure where weight and cost are important.
Renewable Energy Systems: Inverters for solar and wind power.
Applications with Weight Constraints: Aerospace, drones, portable equipment.
Combining copper inserts (for hot spots) with an aluminum base (for weight/cost) can offer optimized performance. KingKa Tech can design and manufacture such custom solutions.
KingKa Tech's Expertise: Our experienced team works closely with you to understand your application's unique requirements, providing tailored recommendations and manufacturing solutions for both aluminum and copper liquid cold plates, ensuring optimal thermal management.
The decision between aluminum and copper liquid cold plates is a strategic one, balancing multiple critical factors.
In conclusion, the choice between aluminum and copper liquid cold plates hinges on a careful evaluation of your application's specific needs. Copper offers superior thermal conductivity and heat spreading, making it ideal for the highest heat flux and performance-critical applications where weight and cost are secondary. Aluminum provides an excellent balance of good thermal performance, lightweight construction, and cost-effectiveness, making it the preferred choice for a broader range of applications, especially those sensitive to weight and budget. Ultimately, the "best" material is the one that optimally meets your thermal, mechanical, and economic requirements, ensuring reliable and efficient cooling for your critical components.
To summarize:
Choose Copper when:
Absolute lowest thermal resistance is required.
Extremely high heat flux components are present.
Weight and cost are secondary to peak thermal performance.
Superior heat spreading from a small hot spot is needed.
Choose Aluminum when:
Weight is a critical constraint.
Cost-effectiveness is a primary driver.
Good thermal performance is sufficient for your heat load.
Excellent machinability for complex designs is desired.
Robust, lightweight solutions (e.g., FSW aluminum) are required.
KingKa Tech is your trusted partner for both aluminum and copper liquid cold plates, offering deep-machined, brazed, and FSW solutions tailored to your exact specifications. Our 15+ years of experience, advanced manufacturing capabilities, and dedicated R&D team ensure you receive a high-quality, optimized thermal solution.
Ready to optimize your liquid cooling system? Contact KingKa Tech today for expert consultation, thermal analysis, and precision manufacturing of custom aluminum or copper liquid cold plates. Let us help you make the best material choice for your application's thermal performance and long-term reliability!
