CPU heat sinks have become essential in an era where computing power is increasing at an astonishing pace. Whether you are building a desktop PC for work or a specialized industrial machine, the right heat sink can make or break your CPU's performance. A well-optimized cooler ensures stable operation, prevents overheating, and lengthens component lifespan. But with multiple options on the market—and more advanced designs hitting the shelves every year—selecting the right solution can be overwhelming.
In this comprehensive guide, you'll learn the basics of CPU heat sinks, why they matter, the different designs available, and how to make the perfect choice based on your system's requirements. We will also highlight key maintenance practices to ensure your CPU cooler operates at top efficiency for years to come.
In simple terms, a CPU heat sink is a specialized component designed to draw heat away from the central processing unit. At the heart of every computer system—desktop, server, or industrial controller—the CPU handles countless tasks at lightning speed. All this computation produces heat, and if the heat isn't removed effectively, it builds up, impairing performance and damaging the processor over time.
1. Extended Lifespan: Electronic components degrade more quickly at elevated temperatures. A well-chosen heat sink can significantly prolong the life of the CPU.
2. Consistent Performance: Thermal throttling occurs when a CPU runs too hot and automatically reduces its clock speed to cool down. With adequate cooling, your system can sustain peak performance longer.
3. Stable Operation: Overheated systems can crash, freeze, or cause data corruption. Effective cooling is key to maintaining stability, especially in mission-critical applications.
Think of it this way: Just as a car needs a radiator to prevent the engine from overheating, your CPU needs the right heat sink to keep it from overheating. It's a direct line of defense against potential hardware failures and suboptimal performance.
A heat sink's effectiveness depends on how well it can absorb, transfer, and dissipate heat. Designing for optimal cooling typically involves three core elements: material, structure, and specialized enhancements like heat pipes.
1. Aluminum: Often the material of choice in consumer-level heat sinks, aluminum is lightweight, relatively inexpensive, and good at conducting heat—though less effectively than copper.

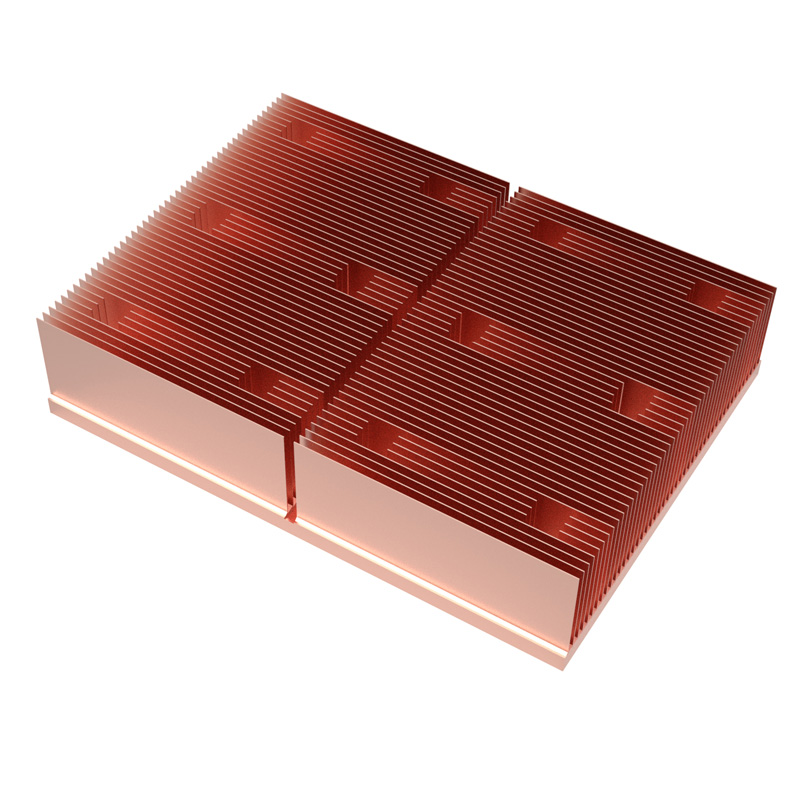

2. Copper: More thermally conductive than aluminum, copper is often used in high-performance CPU heat sinks or in hybrid designs where copper cores interface with the CPU, while aluminum fins disperse heat into the air.
1. Baseplate: This part makes direct contact with the CPU's integrated heat spreader, typically machined for a precise fit.
2. Fins: Fins increase the surface area exposed to air, accelerating heat dissipation. CNC-milled fins deliver consistent thickness and density, optimizing airflow.

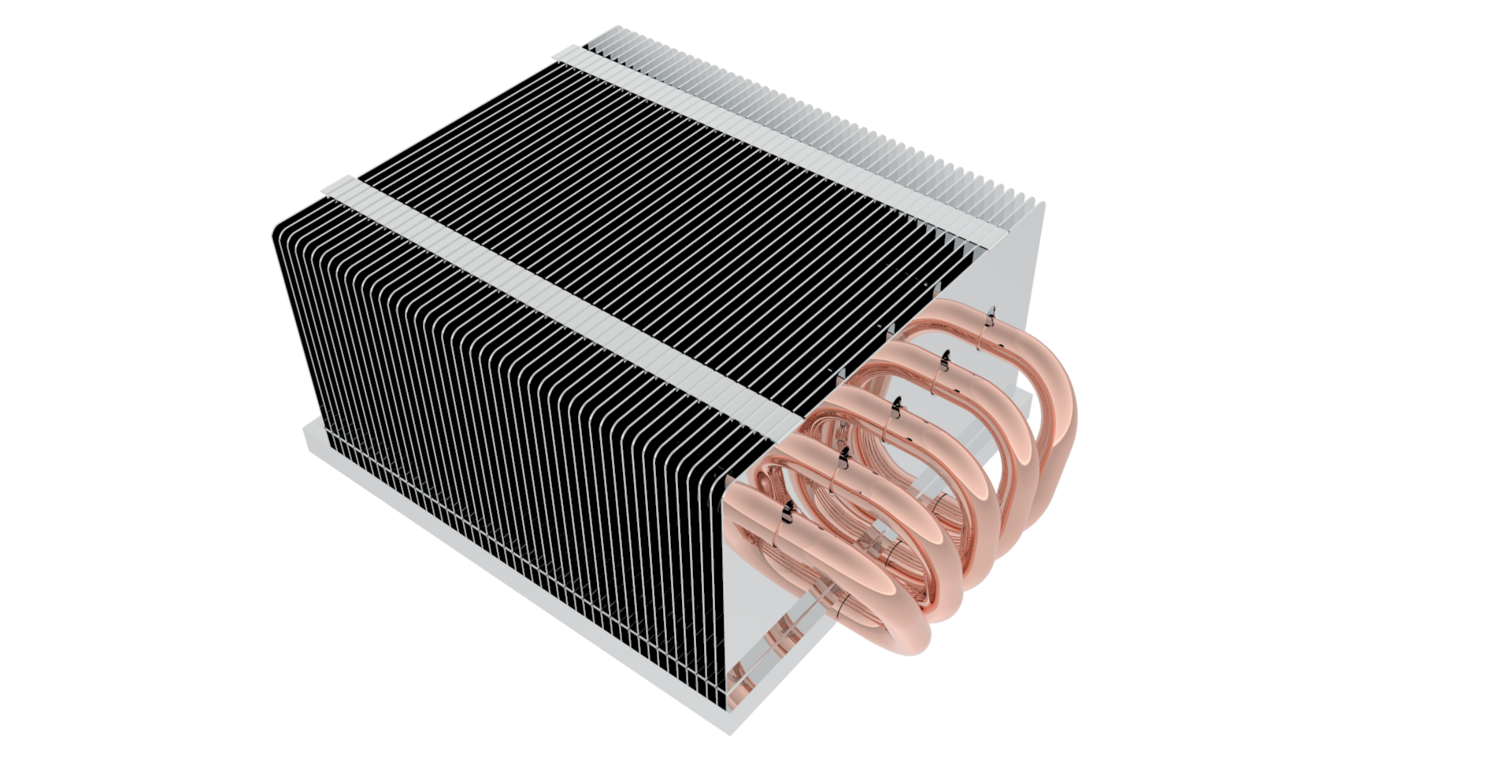

3. Heat Pipes: These sealed pipes contain a small amount of fluid that transfers heat from the baseplate to the fins. The fluid evaporates near the CPU, then condenses as it cools, transporting heat away.
1. CNC Machining: Delivers precise shapes and tight tolerances to ensure optimal contact and fluid channels in advanced heat sink designs.
2. Cold Forging: Useful for complex fin structures.
3. Bonded-Fin Construction: Joins fins to a base using various bonding methods, producing dense fin arrays.
The marketplace offers an extensive range of CPU heat sink configurations. Selecting the right type goes beyond looking at cost; it's about evaluating performance needs, system constraints, and personal preferences.
These are made by pushing hot metal (often aluminum) through a die to create a desired profile. They are cost-effective and suitable for moderate workloads, though not always sufficient for very high TDP (Thermal Design Power) CPUs.
Fin assemblies are bonded to the base, creating a denser set of fins. More fins equate to larger surface area and better heat dissipation.
Vapor chambers improve heat spreading across a wider area before heat reaches the fins. They work on similar principles to heat pipes but distribute heat more uniformly for top-tier cooling performance.
Some modern designs include built-in liquid channels or microfluidic features for partial liquid cooling. This approach is often reserved for high-performance CPUs in servers or specialized workstations.
Selecting the best CPU heat sink need not be a challenge—so long as you consider these critical factors:
Almost every processor comes with a rated TDP, measured in watts, indicating how much heat it can generate under load. Match your heat sink's capacity to or beyond that TDP to ensure sufficient cooling overhead.
Check your motherboard's CPU socket type and any constraints imposed by your computer case. Some large heat sinks may collide with tall RAM sticks or side panels. Always verify dimensions and mounting bracket compatibility.
Big heat sinks often rely on large fans operating at slower RPM, reducing overall noise. Alternatively, smaller heat sinks may require high-RPM fans to achieve comparable cooling performance, leading to more noise.
While high-end heat sinks or hybrid designs can deliver unbeatable performance, they are also pricier. Decide how much you're willing to invest based on your system's performance objectives.
In especially dusty or humid environments, consider sealed or specialized designs. Regular air-cooled fins can clog with dust, cutting cooling efficiency and forcing more frequent cleaning.
Your heat sink is only as effective as its installation allows. Here are some essential pointers to maximize performance:
A thin, even layer of premium thermal compound filling microscopic gaps between the CPU and the heat sink base can dramatically improve heat transfer.
Some CPU sockets require a backplate. Verify that you have the correct hardware and follow the manufacturer's recommended tightening sequence. Uneven mounting can create hot spots on the CPU.
No matter how adept the heat sink, if hot air lingers inside the case, you'll face diminishing returns. Arrange case fans to maintain a front-to-back or bottom-to-top airflow pattern.
Dust accumulation can choke airflow around your CPU heat sink. Periodically clean fins and fans with compressed air to sustain cooling performance. For industrial settings, more frequent cleaning might be necessary.
1. Overusing Thermal Paste: Slapping on too much thermal compound can trap heat rather than help dissipate it. A pea-sized or small line in the center of the CPU is typically enough.
2. Ignoring the Case's Layout: Installing a large heat sink in a cramped case might hamper airflow and lead to marginal improvements. Sometimes, you might need a better case first.
3. Forgetting Power Requirements: High-performance fans need stable, sufficient power from the power supply. Underrated PSUs may cause voltage fluctuations.
4. Skipping Test Runs: After installation, run a stress test or benchmark to verify that CPU temperatures remain within safe limits under load.
While traditional air-cooled heat sinks remain economical and widespread, the industry continues to innovate. Here's how cutting-edge technology is shaping the next generation of CPU heat sinks:
Rather than strictly relying on air-based fins, some manufacturers now incorporate miniature liquid cooling pipes or micro-channels directly into the heat sink. These designs balance simplicity with the improved thermal transport of liquid cooling.
Research is exploring materials like graphene composites, known for high thermal conductivity. While still nascent, these breakthroughs could drastically shrink the size of heat sinks while improving performance.
With advanced CFD (Computational Fluid Dynamics) software, engineers can simulate airflow patterns, identify hot spots, and refine fin layouts before investing in production. This reduces trial-and-error, shortens development cycles, and helps produce more efficient designs.
1. Is a Bigger Heat Sink Always Better?
Not necessarily. While a bigger heat sink typically offers a larger surface area for heat dissipation, it must fit inside your system case, and the fan layout must complement airflow. Sometimes a moderate-sized heat sink with well-optimized airflow delivers better results.
2. Can I Use a CPU Without a Heat Sink for a Short Time?
Running a CPU without a heat sink, even briefly, is risky. Modern CPUs can generate extraordinary amounts of heat within seconds, potentially causing irreparable damage.
3. How Often Should I Replace the Thermal Paste?
For most scenarios, replacing thermal paste every 1-2 years is sufficient. In high-humidity or extreme-usage situations, checking more frequently can prevent degraded performance from dried-out compound.
4. Do I Need to Delid My CPU for Better Cooling?
Delidding is the process of removing the CPU's integrated heat spreader to replace the thermal interface material inside. This is typically only recommended for overclockers or enthusiasts who are prepared to accept the risks, as delidding can void warranties and damage the CPU if done improperly.
5. Are Passive Heat Sinks Ever a Good Choice?
Pssive heat sinks—those without fans—work best in low-power systems or specialized industrial cases where minimal noise or fewer mechanical parts is a priority. However, they often require ample natural airflow or large fin arrays to match the capabilities of active coolers.
CPU heat sinks come in varying shapes, sizes, and advanced designs, making them a versatile and indispensable hardware component in modern computing. They help maintain stable temperatures, avert performance drops due to thermal throttling, and ensure your valuable processor lives a long and productive life. From budget-friendly extruded models for entry-level PCs to sophisticated vapor chamber coolers for heavy workloads, there's a CPU heat sink out there perfectly suited to your application.
When deciding on a heat sink, weigh factors like TDP, case dimensions, noise tolerance, and your overall budget. Thoughtful planning coupled with proper installation and maintenance goes a long way in optimizing heat dissipation. Even the most extensive overclocking or high-intensity computing tasks can run smoothly when you match your CPU with the right thermal solution.
If you're designing systems that require specialized heat sinks or exploring custom cooling solutions, KINGKA is ready to help. As a trusted provider of high-quality reusable designs and advanced thermal simulation services, we bring years of expertise in CNC precision machining, custom heat sink manufacturing, and rigorous quality control to the table. Our team can help you refine your application's cooling topology, ensuring the ideal balance of performance, cost, and maintainability.
Ultimately, the key is to treat cooling as an essential design element rather than an afterthought. By investing in a well-built heat sink and giving careful consideration to case airflow and system layout, you'll safeguard your CPU's longevity and get the best performance possible—no matter how demanding your computing tasks may be.
