Heat sinks are essential for preventing overheating in electronics, but even minor design or installation errors can lead to catastrophic failures. Whether you're cooling a server rack or an IoT device, avoiding these common mistakes will save time, and cost, and ensure long-term reliability.
1. Aluminum Heat Sinks:
1. Thermal Conductivity: 205 W/m·K
2. Pros: Lightweight, cost-effective, corrosion-resistant.
3. Cons: Lower efficiency for high-power applications (>100W).
2. Copper Heat Sinks:
1. Thermal Conductivity: 385 W/m·K
2. Pros: Superior heat transfer, ideal for lasers and power electronics.
3. Cons: 3x heavier and 2-3x more expensive than aluminum.
Solution: Match material to the application. For example, use copper for GPU cooling and aluminum for LED lighting.

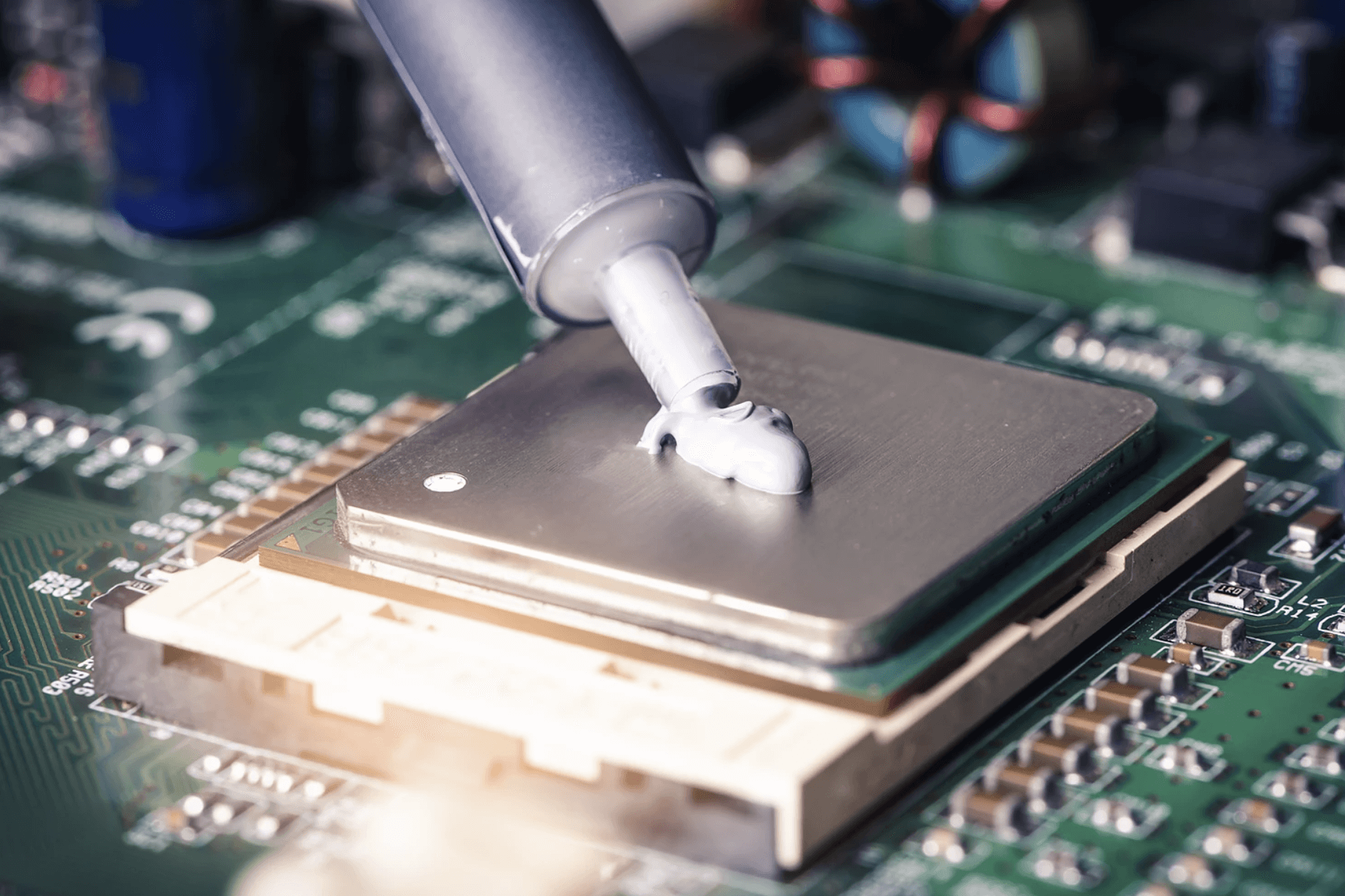

TIM fills microscopic gaps between the heat sink and the component, reducing thermal resistance. Common errors include:
1. Applying too much or too little TIM (ideal thickness: 0.05–0.1 mm).
2. Not cleaning surfaces before application, leading to air pockets.
Impact: Poor TIM application can increase junction temperatures by 15–30°C, shortening component lifespan.
Solution: Use automated dispensing systems for consistent coverage, or opt for pre-applied phase-change materials.
1. Natural Convection: Requires large fin spacing (6–8 mm) and vertical orientation.
2. Forced Convection: Works with tighter fins (3–5 mm) but depends on fan reliability.
1. Dust Accumulation: Clogs fins, reducing efficiency by up to 40%.
2. Humidity/Corrosion: Aluminum oxidizes in salty environments; consider anodizing or coatings.
Solution: Conduct airflow simulations and select IP-rated heat sinks for harsh conditions.
1. Oversized: Wastes space and increases weight (critical for drones).
2. Undersized: Fails to dissipate heat, causing thermal throttling.
1. Fin Density: High-density suits forced convection; low-density works for natural cooling.
2. Fin Height: Taller fins improve the surface area but may require structural support.
Solution: Use thermal simulation tools to model heat sink performance under real-world conditions.
Insufficient mounting pressure creates air gaps, while excessive pressure risks damaging components (e.g., cracking BGA packages).
In automotive or industrial settings, loose screws or clips can cause heat sinks to detach over time.
Solution:
1. Use spring-loaded screws or thermal adhesives for even pressure.
2. Specify torque values (e.g., 0.6–0.8 Nm for aluminum heat sinks).
1. Prototype and Test: Validate designs with thermal imaging and load testing.
2. Leverage Advanced Tools: CFD simulations predict airflow and temperature distribution.
3. Collaborate with Experts: Professional manufacturers offer material selection guides and DFM (Design for Manufacturing) feedback.
For instance, Kingka, a leading heat sink manufacturer, provides end-to-end support—from thermal analysis to custom CNC machining—ensuring heat sinks meet both performance and cost targets. Their solutions have helped electric vehicle OEMs reduce battery cooling system costs by 18% while maintaining safety standards.
Even a well-designed heat sink can underperform if installed or configured incorrectly. By avoiding these five common mistakes—material mismatch, TIM errors, airflow neglect, poor sizing, and faulty mounting—engineers can significantly enhance thermal management efficiency.
For complex projects, partnering with an experienced manufacturer like Kingka ensures access to cutting-edge technologies and industry expertise, turning potential pitfalls into optimized performance. Remember, in thermal management, precision isn't optional—it's essential.
