When developing thermal management systems for high-power applications like electric vehicle (EV) batteries, advanced server racks, or industrial power electronics, engineering teams quickly realize that air cooling is no longer sufficient. Transitioning to liquid cooling is the logical step, but it introduces a new set of complex challenges.
Many projects face setbacks not because the concept of liquid cooling is flawed, but because of specific liquid cold plate design problems. Issues such as uneven temperature distribution, unmanageable pressure drops, and long-term leakage risks often stem from a mismatch between the internal channel design, material selection, and the chosen manufacturing process.

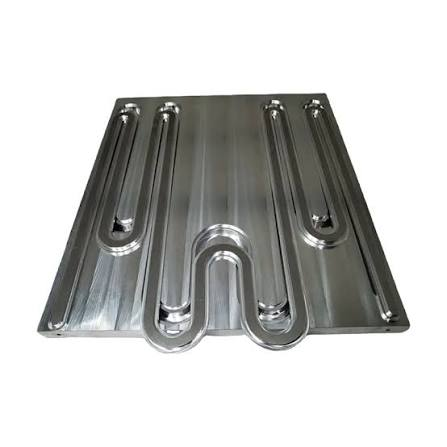

A vacuum brazed liquid cold plate has become the industry standard for resolving these issues, offering high reliability, exceptional sealing, and the ability to support intricate flow paths. However, simply choosing vacuum brazing is not enough; the engineering behind the plate must be sound. This article explores the most common design challenges engineers face and how to navigate them to create a stable, high-efficiency liquid cooling system.
Table of Contents
One of the most frequent issues encountered during prototype testing is uneven cooling performance. When testing a new design, engineers might find that while the overall coolant temperature is acceptable, specific components on the board are dangerously overheating.
This happens because heat generation in modern electronics is rarely uniform. Components like insulated-gate bipolar transistors (IGBTs) or high-performance computing (HPC) chips create localized hotspots with extreme heat flux. If the internal channel layout of the cold plate is not meticulously planned, the coolant will naturally take the path of least resistance. This often results in the fluid bypassing the critical hotspot areas entirely, leading to insufficient heat exchange where it is needed most.
The solution lies in targeted vacuum brazed cold plate design. By optimizing the internal coolant distribution and manipulating the flow path, engineers can force the fluid directly under the areas with the highest thermal loads. Techniques such as varying the channel widths, introducing micro-fin structures under hotspots, and strategically placing inlets and outlets ensure that the coolant effectively absorbs and carries away the heat, maintaining a uniform temperature profile across the entire surface.
To solve the issue of uneven cooling, an engineer might design very narrow, winding channels to force the liquid over a hotspot. However, this fix often creates the next major hurdle: excessive pressure drop.
When the fluid channels are too narrow, too long, or feature abrupt, sharp turns, fluid resistance increases dramatically. This means the system's pump must work much harder to push the required volume of liquid through the plate. A high pressure drop leads to increased energy consumption, demands larger and more expensive pumps, and can ultimately reduce the overall cooling efficiency if the flow rate drops below optimal levels.
Effective liquid cooling system optimization requires a delicate balance. Design teams must weigh the cooling performance against the pressure requirements. By utilizing Computational Fluid Dynamics (CFD) simulation software, engineers can visualize the fluid dynamics before manufacturing begins. CFD analysis allows for the smoothing of channel corners, the adjustment of channel cross-sections, and the optimization of the flow rate. A professional liquid cold plate manufacturer like Kingka uses these simulations to ensure that the enhanced heat transfer capability does not come at the cost of an unmanageable pressure loss.
Once the fluid path is balanced for both temperature and pressure, the design must address the physical realities of long-term operation. High-power systems operate continuously for years, enduring constant coolant pressure, varying flow rates, and relentless temperature cycling.
As the cold plate heats up and cools down, the metal expands and contracts. If the plate is assembled using traditional mechanical fasteners (like screws and O-rings) or standard localized welding, these thermal cycles will eventually weaken the connection points. A compromised joint leads to leaks, which can cause catastrophic damage to the sensitive electronics relying on the cooling system.
This is where liquid cold plate leakage prevention becomes critical, and it is the primary reason why vacuum brazing is selected. The vacuum brazing process occurs in a high-temperature, oxygen-free furnace, allowing a filler metal to melt and bond the top and bottom plates together at a molecular level across the entire contact surface. This eliminates traditional mechanical connection points and creates a highly stable, integrated structure. By reducing the number of potential failure points, a custom vacuum brazed liquid cold plate drastically lowers the long-term risk of leakage.
Even with a leak-proof structure and perfectly balanced fluid dynamics, a cold plate can still fail if the basic materials and dimensions are incorrect. Poor thermal transfer often occurs when the path between the heat source and the cooling fluid is too long or made of the wrong material.
Liquid cold plate thermal performance is heavily dependent on material selection. Aluminum is the most common choice due to its excellent balance of weight, cost, and thermal conductivity, making it ideal for automotive and industrial applications. However, if the heat density is exceptionally high, copper may be required for its superior thermal transfer properties, despite its heavier weight and higher cost.
Additionally, the thickness of the plate matters. If the base plate (the metal between the electronic component and the fluid channel) is too thick, thermal resistance increases, and the heat cannot reach the coolant fast enough. If it is too thin, the plate may warp under pressure or fail to spread the heat laterally. Optimizing the material selection, plate thickness, and contact surface design ensures the thermal energy moves as efficiently as possible into the liquid loop.
Designing the perfect theoretical cold plate on a computer is only half the battle. The final hurdle is manufacturability. Many high-performance devices require multi-zone cooling, extremely compact structures, and intricate micro-channels that are simply impossible to create using standard CNC milling or extrusion techniques.
When designs become this complex, ordinary manufacturing methods impose severe limitations, forcing engineers to compromise on their thermal goals.
Vacuum brazing helps engineering teams turn complex thermal management concepts into manufacturable products. Because vacuum brazing bonds pre-machined layers together, engineers can design multi-layer structures with overlapping channels, highly customized inlet and outlet interfaces, and specialized micro-fin densities. This process allows for the creation of a high performance liquid cooling plate that fits within the strict spatial constraints of modern hardware while delivering the exact thermal performance simulated during the design phase.
To understand the value of overcoming these design problems, we can look at how customized liquid cooling plate solutions perform in real-world scenarios.
Case Study 1: Optimizing Industrial Power Modules
An industrial equipment manufacturer was struggling with power modules operating under continuous high loads. Traditional air cooling took up too much space and allowed temperature fluctuations that affected the stability of the IGBT modules. The core issue was heat concentrating in a specific central zone. By adopting a custom vacuum brazed liquid cold plate, the engineering team could optimize the fluid flow path to aggressively target the hotspot. The result was a stable, low-profile cooling solution that eliminated temperature spikes and improved the lifespan of the power electronics.
Case Study 2: Liquid Cooling Upgrade for High-Compute Equipment
As High-Performance Computing (HPC) and Artificial Intelligence (AI) servers advance, their power densities have exceeded the limits of conventional cooling. A recent data center project required massive heat dissipation within a very compact 1U server chassis. A standard cold plate could not meet the thermal requirements without causing a massive pressure drop. By utilizing vacuum brazing, the team designed a highly complex, multi-layered internal channel structure. This enhanced the heat exchange area significantly, supporting the high-power computing environment while maintaining safe, reliable, and leak-free operation over the long term.
Design Metric | Standard Extruded / Tube-in-Plate | Custom Vacuum Brazed Liquid Cold Plate |
Hotspot Management | Limited (coolant follows straight paths) | Excellent (custom routing targets heat sources) |
Pressure Drop Control | Moderate | Highly optimized via CFD and custom channel sizing |
Leakage Risk | Moderate (relies on tubes and mechanical seals) | Very Low (integrated metallurgical bonding) |
Channel Complexity | Low (straight lines only) | Very High (supports multi-layer, 3D micro-channels) |
Best Use Case | Low-density, uniform heat distribution | High power density, compact HPC and EV systems |
Navigating liquid cold plate design problems requires more than just buying a piece of hardware; it requires a holistic approach to thermal management. Balancing uneven cooling, pressure drops, leakage risks, and manufacturing limitations demands a high level of engineering expertise and a reliable manufacturing process.
For B2B procurement and engineering teams, the goal is to avoid the costs associated with equipment damage, inconsistent mass production, and redesign delays. You need a partner who provides engineering collaboration from the initial prototype all the way to stable mass production.
Share your thermal requirements, and Kingka’s engineers can help evaluate the right vacuum brazed liquid cold plate design for your application. By combining CFD analysis, flow optimization, and structural validation with advanced manufacturing, we ensure your thermal management system performs flawlessly under the most demanding conditions.
1. What exactly is a vacuum brazed liquid cold plate?
It is a thermal management device made by joining two or more precision-machined metal plates inside a high-temperature vacuum furnace. A filler metal melts and bonds the plates together, creating a seamless, highly durable, and leak-resistant cooling component with complex internal fluid channels.
2. How do you fix an excessive pressure drop in a liquid cooling system?
Pressure drop is usually fixed during the design phase by utilizing Computational Fluid Dynamics (CFD) software. Engineers can widen specific channels, smooth out sharp corners, and optimize the overall fluid path to reduce resistance while maintaining adequate cooling performance.
3. Why choose aluminum over copper for a cold plate?
Aluminum is significantly lighter, easier to machine, and more cost-effective than copper, making it the preferred choice for applications like EV batteries and standard industrial equipment. Copper is generally reserved for applications with extreme heat densities, like AI processors, where maximum thermal conductivity is required regardless of weight or cost.
4. How does CFD simulation help in cold plate design?
CFD (Computational Fluid Dynamics) allows engineers to virtually test how liquid will flow through the cold plate and how heat will transfer. It helps identify potential hotspots, dead flow zones, and pressure issues before any physical manufacturing takes place, saving time and prototyping costs.
5. Are vacuum brazed cold plates completely leak-proof?
While no manufactured product is entirely immune to failure, vacuum brazing offers one of the lowest leakage risks available. Because it bonds the metals at a molecular level across the entire surface without mechanical seals or localized welds, it creates an incredibly robust, integrated structure that resists the stresses of thermal cycling and pressure.
