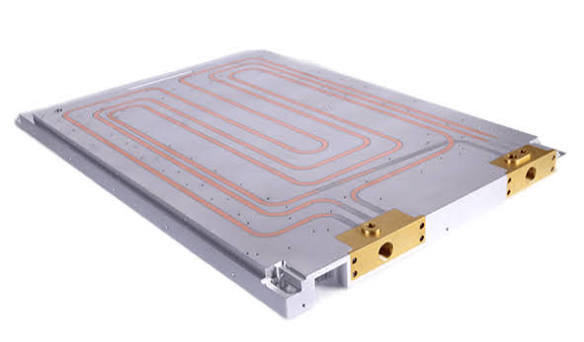

As power densities in modern electronics continue to climb, engineering teams are rapidly shifting from traditional air cooling to advanced liquid cooling systems. Whether managing the heat of a high-density AI server, stabilizing an industrial IGBT power module, or maintaining the safety of an Electric Vehicle (EV) battery pack, liquid cooling is no longer a luxury—it is a system requirement.
However, introducing liquid into a high-voltage electronic environment brings a critical engineering anxiety: what happens if the system fails? A poorly manufactured cold plate can lead to uneven cooling, thermal throttling, or, worst of all, catastrophic coolant leaks. To mitigate these risks, industry leaders are increasingly relying on a specific liquid cold plate manufacturing process to ensure long-term system stability.
Choosing a vacuum brazed liquid cold plate is not simply about adopting an advanced manufacturing technique; it is a strategic decision to prioritize structural integrity, prevent micro-leaks, and maximize thermal efficiency. This article will guide you through the continuous logic of why vacuum brazing has become the standard for high-performance thermal management, how it solves core structural challenges, and what to look for when partnering with an OEM liquid cold plate manufacturer.
Table of Contents
To understand the value of vacuum brazing, we must first look at the harsh realities of high-power thermal management. A high performance liquid cold plate does not operate in a static environment. Over its lifecycle, it is subjected to relentless physical and thermal stress.
As electronic components cycle between full load and idle states, the cold plate experiences constant temperature fluctuations. This leads to continuous thermal expansion and contraction. At the same time, the internal cooling channels must withstand fluctuating fluid pressures from the system's pumps.
When cold plates are manufactured using traditional mechanical assembly (such as rubber O-rings and screws) or localized surface welding, these stresses target the weakest points—the joints. Over time, thermal fatigue can warp mechanically sealed plates, and traditional welds can develop microscopic cracks. For engineering and procurement teams, the primary question is not just "Will it cool the device today?" but rather, "Will it remain sealed and effective after five years of continuous operation?" This pressing need for long-term reliability drives the industry toward more robust bonding methods.
When mechanical seals and localized welds prove insufficient for high-stress environments, engineers turn to a process that unites separate pieces of metal at a molecular level.
Vacuum brazing involves placing precision-machined metal plates (typically aluminum) into a highly controlled vacuum furnace. A thin layer of brazing filler metal is situated between the layers. As the furnace heats up to a precise temperature—high enough to melt the filler but below the melting point of the base metal—the filler liquefies. Driven by capillary action, this molten metal flows into every microscopic crevice between the mating surfaces.
Because the entire assembly is heated evenly in a vacuum environment, the resulting bond is uniform across the entire surface area of the plate, not just along the outer edges. This drastically reduces the presence of oxidation, air pockets, and porosity that plague traditional welding. The result is a unified brazed aluminum cold plate capable of handling intense pressure fluctuations and thermal cycling without compromising its structural integrity.
Securing the mechanical structure is only half the battle; maintaining the health of the internal fluid channels is equally critical.
In many standard brazing processes, a chemical agent known as "flux" is used to remove surface oxides and help the filler metal flow. While effective, flux leaves behind chemical residues. If these residues remain trapped inside the intricate internal channels of a cold plate, they can slowly corrode the base metal over time. Additionally, loose residue can flake off and clog micro-channels, causing pressure spikes that may eventually force a leak.
The vacuum brazing process eliminates this hidden danger. Because the bonding occurs in an oxygen-free vacuum chamber, oxidation cannot occur. Therefore, no chemical flux is required. This "flux-free bonding" ensures that the internal channels remain exceptionally clean and free of corrosive contaminants. By eliminating the root causes of internal corrosion and blockage, a vacuum brazed assembly inherently functions as a highly reliable, leak-proof liquid cold plate.
Once the structural and leakage concerns are addressed, engineering teams can focus on optimizing thermal efficiency. The true cooling power of a custom liquid cooling plate lies in its internal geometry.
High-power devices rarely generate heat evenly; they create intense, localized hotspots. To effectively manage a hotspot, the cooling fluid must be guided directly over the area using complex, winding flow paths or high-density micro-fin structures.
Traditional manufacturing methods struggle to create these intricate internal geometries, especially if the tool paths are restricted. However, because vacuum brazing uses capillary action to bond flat, pre-machined layers together, designers have immense freedom. You can engineer asymmetric channels, multi-inlet/outlet structures, and targeted heat-spreading zones inside the plate before it is sealed.
By reducing contact thermal resistance and optimizing fluid distribution, this manufacturing capability ensures that the thermal management cold plate actively transfers heat away from critical areas rather than just acting as a passive metal block.
Feature / Metric | Vacuum Brazing | Friction Stir Welding (FSW) | Mechanical Assembly (O-Rings) |
Joining Environment | Oxygen-free vacuum furnace | Solid-state mechanical friction | Physical compression |
Internal Cleanliness | Excellent (Flux-free) | Good | Moderate (Debris risk) |
Channel Complexity | Very High (3D micro-routing) | Moderate (Tool path limited) | Low to Moderate |
Leakage Risk (Long-Term) | Extremely Low | Very Low | High (Rubber degradation) |
Suitability for Hotspots | Optimal | Good | Poor |
The theoretical advantages of vacuum brazing translate directly into measurable reliability in the field. B2B buyers do not purchase manufacturing processes; they purchase stable operation for their end products.
Case 1: Optimizing Industrial Power Electronics
A manufacturer of industrial power conversion systems was experiencing temperature fluctuations in their IGBT modules during high-load operations. Traditional cooling methods allowed localized hotspots to form, leading to unstable performance. By partnering with a liquid cooling solution supplier to implement a custom vacuum brazed cold plate, they were able to redesign the internal fluid distribution paths. The new design efficiently targeted the hotspots, enhancing heat exchange and stabilizing the core temperature, thereby securing the system's long-term operational lifespan.
Case 2: Upgrading High-Density AI Server Racks
In the realm of High-Performance Computing (HPC) and data centers, computing density is rising exponentially. Traditional air cooling is physically incapable of managing the heat output of modern AI accelerators in such compact spaces. Utilizing a vacuum brazed cold plate allows hardware architects to fit highly efficient, high-flow liquid cooling structures directly onto the processors. The flux-free, seamless sealing gives data center operators the confidence that the liquid routing will not leak and damage millions of dollars of electronic infrastructure.
Understanding the value of vacuum brazing is important, but executing a design from concept to mass production carries inherent risks. Procurement managers and lead engineers share a common anxiety: "Can the supplier actually turn our thermal design into a reliable, repeatable product?"
Choosing the right partner means looking beyond basic machining capabilities. You need a supplier that provides comprehensive engineering validation. Kingka, a leading OEM liquid cold plate manufacturer, bridges the gap between theoretical design and physical reality through rigorous upfront analysis:
CFD (Computational Fluid Dynamics) Simulation: Before any metal is cut, engineers simulate fluid flow to ensure pressure drops are within acceptable limits and that coolant reaches the necessary zones.
FEA (Finite Element Analysis): Structural analysis verifies that the plate will withstand expected thermal expansion and fluid pressures without deforming.
Prototype Validation to Mass Production: Transitioning a successful prototype into a stable, repeatable mass-production run requires tight quality control and highly consistent furnace operations.
By validating the design digitally and testing prototypes rigorously, this engineering support lowers the implementation risk, ensuring that the final product performs exactly as intended.
When evaluating liquid cooling options, the initial cost of manufacturing is only one piece of the puzzle. The true cost of a thermal management system includes the hidden expenses of potential failures: increased maintenance, system downtime, warranty claims, and damaged brand reputation due to coolant leaks or thermal throttling.
Vacuum brazing directly mitigates these hidden costs. By providing superior structural integrity, flux-free internal channels, and the design freedom to tackle severe hotspots, it minimizes the likelihood of system failure. For applications where reliability is non-negotiable—from aerospace electronics and laser equipment to EV battery packs—investing in a well-engineered vacuum brazed plate is an investment in long-term risk reduction.
Ready to Optimize Your Thermal Management System?
Your high-power electronics require a cooling solution that guarantees stability, performance, and leak-proof operation. Kingka provides customized vacuum brazed liquid cold plates, backed by advanced CFD/FEA engineering support and stable mass-production capabilities. Do not let thermal bottlenecks limit your system's potential.
[Contact Kingka's engineering team today] to submit your drawings, request a thermal analysis, and discover how a custom liquid cooling solution can secure your product's performance.
1. What materials are most commonly used in vacuum brazed cold plates?
Aluminum is the most widely used material due to its excellent balance of thermal conductivity, light weight, and cost-effectiveness. Copper is also used for applications requiring even higher thermal conductivity, though it is heavier and more expensive.
2. How does vacuum brazing affect the pressure drop in a liquid cooling system?
Because vacuum brazing allows for highly customized and smooth internal channel designs, engineers can optimize fluid paths to reduce unnecessary turbulence. This helps maintain a lower pressure drop, which reduces the workload on the system's fluid pumps.
3. Is a vacuum brazed liquid cold plate suitable for deionized water?
Yes. Deionized water is highly sensitive and can easily become contaminated by residual chemicals. Because vacuum brazing is a flux-free process, it leaves no chemical residues inside the cold plate, making it highly compatible with deionized water coolant loops.
4. How do you test a cold plate to ensure it is truly leak-proof?
Reputable manufacturers utilize stringent validation processes, including helium mass spectrometry leak testing and high-pressure burst testing. These methods detect microscopic porosities that standard visual inspections or basic water tests would miss.
5. Can vacuum brazing handle cold plates of different sizes?
Yes, vacuum brazing is highly scalable. It can be used to manufacture small, compact cold plates for individual CPU/GPU cooling, as well as large-format cooling plates utilized in EV battery thermal management systems, provided the vacuum furnace is appropriately sized.
