As rack power densities for artificial intelligence (AI) training and large language model (LLM) clusters surge past hundreds of kilowatts per cabinet, standard 1U and 2U server air cooling hits its physical limit. Traditional forced-air extrusion sinks can no longer maintain safe junction temperatures under high-wattage GPU loads without spinning chassis fans at maximum RPM, destroying server power usage effectiveness (PUE) and acoustic limits. While direct-to-chip liquid cooling loops offer extreme thermal capacity, data center operators face high retrofitting costs, plumbing complexity, and leak liability. Integrating heat pipes data center server cooling provides a passive, high-efficiency middle ground that transports heat from dense processors to remote zipper-fin arrays without water lines. For complete module specifications, review our heat pipe system guide.
Table of Contents

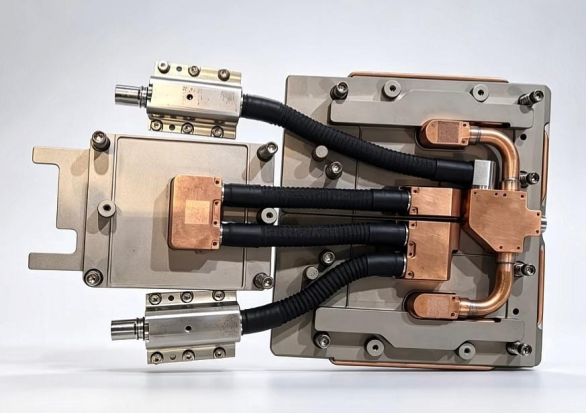

GPU cold plate assembly with copper cold blocks and flexible coolant hoses.
Next-generation AI accelerators and enterprise CPUs pack massive thermal design power (TDP) into tightly constrained semiconductor packages, creating localized heat fluxes that overwhelm solid metal baseplates.
When a GPU or CPU package dissipates hundreds of watts over a few square centimeters, bulk copper conduction alone cannot spread the heat outward to perimeter cooling fins fast enough. The spreading resistance of a solid baseplate creates a sharp temperature drop, pushing junction temperatures dangerously close to thermal throttling limits. Increasing chassis fan speeds to compensate forces auxiliary board power consumption skyward and increases datacenter acoustic noise. To understand how internal phase-change cycles eliminate baseplate bottlenecks, examine how data center heat works via phase change.
Failing to manage high-flux GPU heat loads degrades compute cluster economics:
· Throughput Loss: Processors automatically downclock when junction temperatures breach safety thresholds, reducing floating-point operations per second (FLOPS).
· Parasitic Fan Power: Running high-static-pressure fans at 100% duty cycle consumes kilowatts of rack power that do not contribute to computational output.
· Component Degradation: Sustained high operating temperatures accelerate silicon electromigration and solder joint fatigue, shortening server life spans.
Evaluating heat pipe server cooling against forced-air heatsinks and direct-to-chip liquid loops requires balancing thermal performance, facility modification costs, and maintenance risks.
Data center architects must choose between keeping existing air infrastructure or undertaking facility-wide liquid retrofits. For a fundamental comparison of phase-change transport versus solid conduction, see our analysis of heat pipes vs heat sinks.
Cooling Architecture | Thermal Capacity Limits | Facility Retrofit & Complexity | Risk Profile & Maintenance | Best Data Center Application Fit |
Forced-Air Extruded Sinks | Low-to-moderate (< 350W per socket) | Zero facility changes; uses existing raised floors | Lowest risk; standard fan replacement only | Legacy enterprise servers and general-purpose nodes |
Heat Pipe Thermal Modules | High (supports 500W+ per processor) | Moderate; fits standard 1U/2U air chassis | Low; hermetically sealed passive assemblies | High-density GPU nodes, AI servers, and edge racks |
Direct-to-Chip Liquid Loops | Extreme (> 1000W per accelerator) | High; requires CDUs, facility pipes, and quick-disconnects | High; coolant leak liability and pump maintenance | Mega-scale hyperscale AI training clusters |
While liquid cooling offers the highest raw thermal rejection, retrofitting existing data centers with facility coolant distribution units (CDUs) and overhead piping requires multi-million-dollar capital expenditures. Heat pipe thermal modules drop directly into standard air-cooled 1U and 2U chassis slots, allowing operators to cool high-wattage GPUs without modifying room-level liquid infrastructure. For broader industrial electronics applications, review our guide on high-power electronics cooling.
Copper GPU water block assembly for high-density AI server cooling.
Integrating heat pipes into dense server blades requires careful coordination between PCB keep-out zones, PCIe card placement, and chassis airflow channels.
In a 1U server, vertical Z-height is severely restricted. Thermal engineers use flattened copper heat pipes to extract heat from a low-profile cold block over the GPU and route it horizontally to a remote zipper-fin stack positioned directly in front of the hot-swappable system fans.
Successful server blade integration relies on strict DFM (design for manufacturing) rules:
· Fin Pitch Optimization: Balancing fin density with fan static pressure curves prevents airflow starvation across dense server bays.
· Avoiding Board Interference: Routing multi-axis heat pipe bends around memory slots, VRM chokes, and high-speed data cables without crushing internal vapor cores.
When procurement and facility directors calculate the TCO of a server thermal architecture, they evaluate upfront hardware costs, ongoing fan energy consumption, and field maintenance downtime.
While a custom heat pipe assembly carries a higher initial BOM cost than a simple aluminum extrusion, it slashes total data center operating expenses by lowering fan power requirements and eliminating liquid loop maintenance. Because heat pipes contain no moving parts or mechanical seals, field service technicians can hot-swap server blades without draining coolant manifolds or risking fluid spills on live server motherboards.
Sourcing thermal modules for enterprise server blades requires partnering with a manufacturer capable of rigorous quality verification, automated vacuum charging, and high-volume CNC machining under ISO 9001 and IATF 16949 standards.
Datacenter operators cannot tolerate infant mortality or batch thermal drift. Qualified suppliers enforce a 4-stage inspection workflow, including 100% thermal performance screening (ΔT testing) to catch vacuum leaks and non-condensable gas defects before modules ship. You can review our vertically integrated manufacturing capabilities on Kingka's heat pipe products page.
To get an accurate quote and CFD simulation report quickly, provide these parameters:
· Processor TDP: Max wattage per GPU or CPU and die contact footprint.
· Chassis Envelope: 1U, 2U, or custom blade dimensions and PCIe keep-out zones.
· Airflow Data: System fan P-Q curves, CFM requirements, and maximum allowable pressure drop.
· Volume Targets: Prototype quantities and annual rack deployment volumes.
Deploying heat pipes for data center server cooling bridges the gap between overburdened air sinks and expensive liquid loops, delivering passive, high-wattage thermal transport for dense AI and GPU clusters without facility plumbing modifications. If you send us your server model and airflow map, our engineering team will return a rack-specific heat pipe retrofit plan sized against your PUE target within 24 hours.
To see where these modules sit alongside other sectors, review our broader heat pipe applications.
Heat pipes improve thermal spreading efficiency, allowing servers to maintain lower junction temperatures without running chassis fans at maximum RPM. Reducing fan power consumption directly cuts parasitic electrical load, improving overall data center Power Usage Effectiveness (PUE).
Yes, multi-pipe assemblies combining vapor chambers or copper pedestals with dense zipper-fin stacks can effectively transport and dissipate over 500W of heat within constrained 1U and 2U server height limits by utilizing existing chassis airflow.
No, hermetically sealed heat pipes operate entirely passively with zero moving parts, requiring no fluid refills, pump replacements, or coolant maintenance over their 10-to-20-year service life.
Heat pipe modules drop directly into standard air-cooled server chassis without requiring facility liquid loops, CDUs, or overhead plumbing, making them vastly faster and cheaper to deploy as a retrofit solution.
Heat pipes present zero liquid leak risk to server motherboards because each pipe is an independent, low-volume sealed vessel containing only a trace amount of working fluid, avoiding the large fluid reservoirs and hose fittings of liquid loops.
To receive an accurate quote and CFD thermal simulation, provide your server chassis 3D STEP files, component TDP and die dimensions, maximum allowable junction temperature, fan CFM/static pressure curves, and target annual production volume.
