Designing an electric vehicle (EV) battery pack that sustains 350kW ultra-fast charging without triggering thermal runaway requires maintaining strict cell-to-cell temperature uniformity (ΔT ≤ 3°C). While traditional liquid glycol cold plates dominate large passenger vehicle packs, heavy liquid plumbing adds weight, fluid connection risks, and complex manifold routing. For commercial fleets, electric two-wheelers, energy storage modules, and high-performance prismatic cell arrays, integrating heat pipes EV battery thermal management offers a passive, leak-free alternative that spreads heat rapidly across tight module boundaries. For complete subsystem architectures, review our heat pipe system guide.
Table of Contents
Lithium-ion battery cells generate intense internal Joule heating and electrochemical entropy changes during high C-rate charging and rapid acceleration, creating localized hot spots that accelerate capacity fade.
When drivers plug an EV into an ultra-fast DC charger, current densities surge. If internal heat cannot escape the core of a prismatic or pouch cell quickly, the center of the cell runs significantly hotter than its edges. This temperature gradient causes uneven internal resistance, accelerating lithium plating on the anode and triggering premature cell aging or thermal degradation. To understand how internal phase-change physics can neutralize these gradients, review how heat pipes work.
Failing to maintain uniform temperatures across a battery module compromises both vehicle range and pack safety:
· Capacity Imbalance: Cells running consistently hotter age faster, causing module-level voltage divergence and reducing total usable pack capacity over time.
· Lithium Plating and Short Circuits: Localized over-temperature zones encourage dendrite growth, increasing internal short-circuit risks during subsequent recharge cycles.
· Thermal Runaway Cascades: If a single compromised cell reaches critical failure temperatures, unchecked heat transfer can propagate through adjacent cells unless thermal barriers or phase-change plates isolate the reaction.

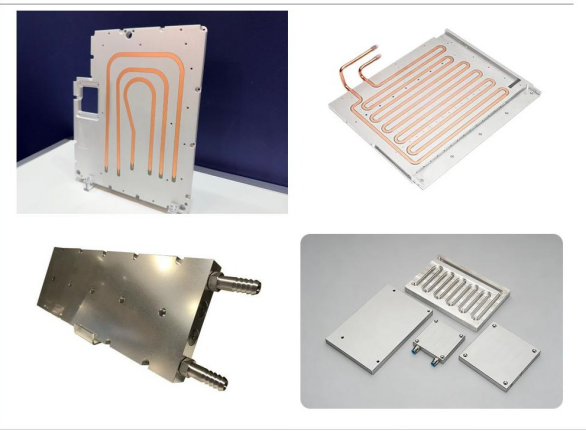

Liquid cold plates with copper tube circuits for EV battery and power electronics cooling.
Evaluating heat pipe EV battery cooling against conventional liquid cold plates and direct refrigerant cooling involves balancing thermal efficiency, mechanical complexity, mass penalties, and leak liability.
Automotive procurement teams must weigh whether active liquid pumping is strictly necessary or if passive phase-change plates can handle the pack's peak heat rejection. For a foundational comparison of phase-change transport versus solid conduction, see our analysis of heat pipes vs heat sinks.
Cooling Technology | Thermal Performance | Mechanical Complexity & Leak Risk | Weight & Packaging Penalty | Best EV Integration Fit |
Liquid Glycol Cold Plate | High continuous heat rejection | High; requires pumps, hoses, o-rings, and manifolds | Heavy aluminum plates and fluid mass | Large passenger EV packs with central chillers |
Heat Pipe Thermal Plate | Very high spreading uniformity | Zero pumps or fluid fittings; hermetically sealed | Lightweight aluminum-copper hybrid plates | Prismatic modules, heavy commercial packs, and 2-wheelers |
Direct Refrigerant Cooling | Extreme low thermal resistance | Very high; refrigerant plumbing inside pack housing | Moderate weight; high safety containment demands | Ultra-fast charging hypercars and luxury platforms |
While liquid cold plates remain the industry standard for large passenger car packs, they introduce complex fluid loop maintenance. A heat pipe thermal plate extracts heat directly from cell faces and conducts it passively to side-rail heat exchangers or external cooling plates, eliminating internal hoses and reducing leak points inside the battery enclosure.
Integrating heat pipes into a battery pack requires matching the thermal plate geometry to the physical format of the lithium-ion cells.
Prismatic cells enclosed in rigid aluminum cans offer flat, stable surfaces ideal for clamping flat-pressed heat pipes between adjacent cells or beneath module baseplates. Pouch cells, by contrast, swell and breathe during charge-discharge cycles, requiring compliant thermal interface materials (TIM) and spring-loaded clamping frames to maintain contact without crushing the thin copper heat pipe walls.
Successful module integration demands rigorous mechanical engineering:
· Electrical Insulation: Because battery modules carry high DC voltages, heat pipes must be electrically isolated from cell housings using anodized coatings, high-dielectric thermal pads, or ceramic-filled epoxies.
· Managing Cell Swelling: Pouch cells expand up to 10% over their lifecycle. Thermal plates must accommodate this movement without delaminating the internal wick or pinching the vapor core.
Can your proposed heat pipe network hold the pack's cell-to-cell ΔT under 350kW fast charge, and can we review your 3D cell layout for a CFD comparison against a cold-plate baseline?
Maintaining a tight temperature spread across 100+ serially connected cells requires high thermal conductivity that solid aluminum shim plates cannot provide. Sintered copper heat pipes embedded in aluminum carrier plates pull heat away from cell faces instantly, stabilizing the entire module during high-current pulses. Furthermore, in the event of thermal runaway, a robust heat pipe plate can act as a localized thermal choke, absorbing and redirecting runaway heat away from neighboring cells.
To ensure your assembly withstands harsh automotive shock and thermal cycling without internal failure, review our engineering protocols on heat pipe failure modes and prevention.
Automotive battery packs face harsh environmental extremes, ranging from sub-zero winter storage at -40°C to high-temperature desert soaking under direct sunlight.
When water inside a heat pipe freezes solid, it expands. Uncontrolled water fill ratios or rigid copper envelopes can rupture during freeze-thaw cycles. Qualified automotive suppliers prevent this by strictly controlling the working fluid fill volume, optimizing sintered wick porosity to cushion ice expansion, or substituting methanol-water fluid blends for low-temperature fleet operations.
Automotive qualification (such as ISO 16750 or LV 124) subjects battery hardware to severe mechanical vibration and thermal shock. Sintered copper wicks provide the structural rigidity needed to survive high-G road impacts without wick delamination or loss of vacuum integrity.
Sourcing custom thermal hardware for an EV program requires auditing the supplier's capacity to deliver tight flatness tolerances, automated vacuum charging, and rigorous quality screening under IATF 16949 standards.
Automotive buyers cannot rely on unverified commercial thermal parts. Partnering with a vertically integrated manufacturer that operates 50+ CNC machines, automated reflow lines, and in-house vacuum brazing ensures that your battery pack thermal plates meet strict vehicle production milestones. You can examine our manufactured module capabilities on Kingka's heat pipe products page.
When preparing your technical data package for quotation, include these core parameters:
· Cell Geometry & Chemistry: Prismatic vs pouch dimensions, nominal voltage, and peak discharge/charge currents (Amps).
· Thermal Targets: Maximum allowable cell core temperature and target cell-to-cell ΔT under fast charge.
· Environmental Profile: Operating and storage temperature extremes, vibration profile, and salt-fog corrosion standards.
· Volume Targets: Prototype quantities and annual vehicle production volumes (EAU).
Integrating heat pipes for EV battery thermal management provides EV engineers and procurement teams with a reliable, passive method to control cell-to-cell temperature gradients and prevent thermal runaway without the weight and leak risks of complex liquid plumbing. By selecting sintered wicks, managing freeze-thaw fluid ratios, and partnering with an IATF 16949-certified manufacturer for DFM and CFD validation, you ensure your battery pack meets demanding automotive safety and performance standards.
To place this EV use case alongside the other nine, see our other heat pipe applications.
Heat pipes offer a distinct safety advantage in minor vehicle impacts because they contain no pressurized liquid loops, glycol reservoirs, or rubber hose fittings that can rupture and leak conductive coolant onto high-voltage busbars. Each heat pipe is an independently sealed, low-volume vapor chamber.
Yes, high-capacity heat pipe plates can rapidly absorb and divert localized thermal energy away from a failing cell toward outer chassis heat sinks, helping to isolate the runaway event and buy critical evacuation time for vehicle occupants.
Manufacturers control the precise deionized water fill ratio during vacuum charging, engineer porous sintered wicks that accommodate ice expansion, or use methanol-water working fluid blends for vehicles deployed in extreme sub-zero climates.
While liquid cold plates remain dominant in large 800V passenger sedan packs due to centralized chiller integration, heat pipes are widely specified for high-performance prismatic modules, commercial delivery vans, electric two-wheelers, and modular energy storage systems where simplicity and weight savings are paramount.
A hybrid aluminum-copper heat pipe plate can reduce thermal assembly weight by 20% to 40% compared to a thick-walled liquid cold plate manifold system by eliminating heavy internal fluid channels, connectors, and mounting brackets.
To receive an accurate quote and CFD thermal simulation, provide your cell 3D STEP files, peak charge/discharge power dissipation, maximum allowable cell temperature, ambient operating limits, vibration profile, and target annual volume.
