As high-power electronic devices continue to evolve, thermal management has shifted from traditional air cooling to highly efficient liquid cooling systems. While liquid cooling offers superior heat dissipation, it introduces a significant concern for engineering teams and procurement managers: the risk of coolant leakage. When mixing liquids with sensitive, high-voltage electronics, even a microscopic drop can lead to catastrophic system failure, expensive downtime, and safety hazards.
To address this critical pain point, engineers rely on advanced manufacturing processes to ensure structural integrity. Among these, the vacuum brazed liquid cold plate stands out as the industry standard for safe, continuous operation. But how exactly does this specific manufacturing method stop leaks before they happen? This comprehensive guide explores the engineering principles, material science, and quality validation processes that make vacuum brazing the ultimate choice for liquid cold plate leakage prevention.
Table of Contents
Before understanding the solution, we must understand the forces that cause liquid cooling systems to fail. A cold plate is not just a passive metal block; it is a dynamic component subjected to constant stress.
During the operation of high-power equipment, the internal channels of a liquid cooling plate face continuous fluid circulation pressure. More importantly, the plate undergoes severe thermal cycling. As the electronic components power up and heat the metal, the plate expands. When the system powers down and cools, the metal contracts. Over months and years of continuous operation, this thermal expansion and contraction create mechanical fatigue.
If a cold plate relies on basic mechanical connections (like rubber O-rings or screws) or standard localized welding, these thermal cycles will eventually weaken the joints. A micro-crack forms, leading to a slow, often unnoticed coolant seep. Because of these intense operational stresses, effective liquid cold plate leakage prevention requires a bonding method that unites the separate metal pieces into a single, uniform structure.

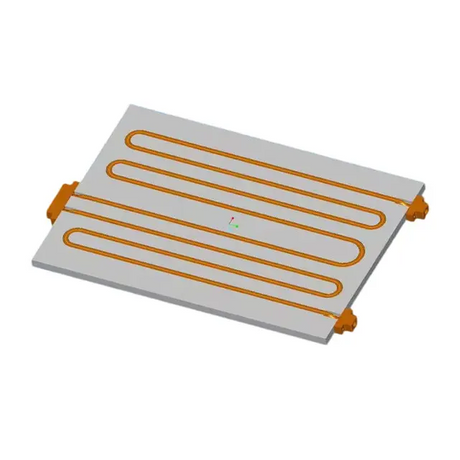

The most effective way to eliminate weak joints is to remove the concept of a "joint" altogether. This is the primary function of a vacuum brazed liquid cold plate.
Vacuum brazing is an advanced metallurgical joining process. Two or more precision-machined metal plates (typically aluminum or copper) are assembled with a thin layer of brazing filler metal placed between them. This assembly is then placed into a highly controlled vacuum furnace. As the furnace temperature rises, the environment is kept entirely free of oxygen.
Once the temperature reaches the melting point of the filler metal (but remains below the melting point of the base plates), the filler turns into a liquid. Through a phenomenon called capillary action, this liquid metal is drawn into every microscopic gap between the mating surfaces. When the furnace cools, the filler solidifies, creating an integrated sealing structure.
Unlike traditional welding, which only melts the outer edges of a component, vacuum brazing bonds the entire internal surface area of the plate. This liquid cold plate sealing technology distributes physical and thermal stress evenly across the entire unit, virtually eliminating the localized stress points where leaks typically begin.
While creating a strong external seal is vital, internal channel health is equally important for long-term leakage prevention.
In many traditional brazing or soldering processes, a chemical agent called "flux" is used to remove surface oxides and help the filler metal flow. However, flux leaves behind a chemical residue. If this residue remains inside the winding internal channels of a cold plate, it can slowly corrode the metal over time. Furthermore, residue can flake off and clog the micro-channels, causing fluid pressure to spike to dangerous levels, which can force a leak.
Because a vacuum brazed liquid cold plate is manufactured in an oxygen-free vacuum chamber, oxidation does not occur. Therefore, the process is entirely flux-free. Flux-free bonding means the internal cooling channels remain exceptionally clean. There are no chemical residues to cause internal corrosion or blockages. This pristine internal environment is a cornerstone of producing a true leak-proof liquid cold plate capable of operating safely for years.
The vacuum furnace performs the final bonding, but a reliable seal actually begins during the design and machining phases. Even the best brazing process cannot fix a poorly designed part.
To ensure the capillary action works perfectly during brazing, the mating surfaces of the metal plates must be perfectly flat. High-quality manufacturers use advanced CNC (Computer Numerical Control) machining to achieve incredibly tight tolerances. If the surfaces are uneven, the filler metal will not flow correctly, leaving microscopic voids that turn into future leak paths.

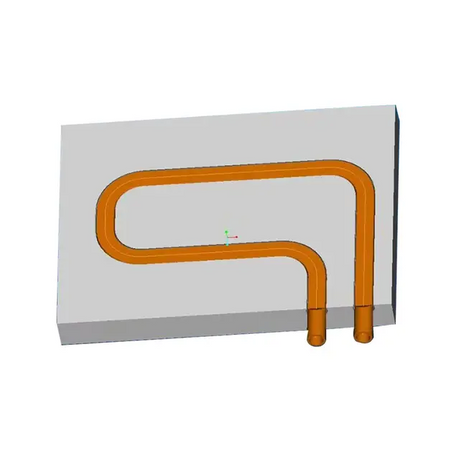

Furthermore, a custom liquid cooling plate must be engineered to manage fluid pressure safely. Experienced engineering teams utilize Computational Fluid Dynamics (CFD) to optimize the channel layout, ensuring smooth fluid flow and minimizing pressure drops. They also use Finite Element Analysis (FEA) to simulate how the materials will react to thermal expansion. By matching the thermal properties of the materials and balancing the internal fluid dynamics, engineers remove the underlying physical pressures that cause leaks to develop.
B2B procurement teams understand that a manufacturer's promise must be backed by empirical data. A high reliability liquid cold plate is proven through a rigorous series of quality validation tests before it ever leaves the factory.
Top-tier suppliers implement multiple testing phases to guarantee safety:
Leak Testing: Often utilizing helium mass spectrometry or high-pressure air submerged in water, this test detects microscopic porosities that are invisible to the human eye.
Pressure Testing (Burst Testing): The plate is subjected to fluid pressures well beyond its normal operating range to ensure the brazed joints do not rupture under unexpected system spikes.
Thermal Performance Validation: The unit undergoes simulated thermal cycling to verify that the integrated sealing structure remains intact after repeated expansion and contraction.
Sealing Technology | Bonding Mechanism | Response to Thermal Cycling | Risk of Internal Corrosion | Overall Leakage Risk |
Mechanical Assembly (O-Rings) | Physical compression | Poor (Rubber degrades over time) | Low | High (Long-term) |
Traditional Welding | Edge melting | Moderate (Prone to edge fatigue) | Moderate | Moderate |
Vacuum Brazing | Full-surface capillary bonding | Excellent (Stress is evenly distributed) | Very Low (Flux-free process) | Extremely Low |
The assurance provided by vacuum brazing has made it the preferred liquid cooling solution for thermal management across several demanding industries.
Case 1: Industrial Power Supply and IGBT Modules
Industrial power equipment and Insulated-Gate Bipolar Transistors (IGBTs) generate massive heat loads and operate continuously in harsh environments. Early cooling designs relying on mechanical seals often suffered from fatigue due to constant thermal cycling. By switching to a brazed cooling plate, engineers reduced the number of connection points and created a solid, uniform block. This eliminated the fatigue risks, ensuring the power systems remained cool and dry during continuous operation.
Case 2: High-Performance Computing (HPC) and AI Servers
Artificial Intelligence servers pack an incredible amount of processing power into highly integrated, space-constrained racks. These dense electronic environments cannot tolerate a single drop of leaked coolant. A vacuum brazed plate allows for complex, compact micro-channel designs that effectively cool centralized heat sources while providing the absolute sealing reliability required to protect expensive data center infrastructure.
When procuring a liquid cooling system, B2B clients are not simply buying a piece of metal; they are investing in a tailored engineering solution designed to protect their equipment. Therefore, choosing a vacuum brazing cold plate manufacturer involves evaluating their end-to-end capabilities.
You need a partner who understands that every project requires specific dimensions, flow rates, interface ports, and heat loads. A premium supplier will offer Design for Manufacturability (DFM) support, ensuring your concept can be reliably mass-produced without introducing leakage risks. They will guide you from initial CFD optimization and prototyping all the way through to rigorous pressure testing and mass production.
Leakage prevention is one of the most important factors when selecting a liquid cold plate supplier. Kingka provides customized vacuum brazed liquid cold plates with optimized channel designs, reliable flux-free bonding technology, and comprehensive engineering support. From prototype development to reliable mass production, Kingka ensures your thermal management system remains highly efficient and completely leak-free.
Q1: What is capillary action in vacuum brazing?
A: Capillary action is the physical process where liquid (in this case, molten filler metal) flows into narrow spaces without the assistance of, or even in opposition to, external forces like gravity. In vacuum brazing, it draws the filler metal into the microscopic gaps between the cold plate layers, creating a solid, uniform seal.
Q2: Why is a vacuum environment necessary for brazing cold plates?
A: A vacuum environment removes all oxygen from the heating chamber. Without oxygen, the metal cannot oxidize (rust or tarnish) when exposed to high temperatures. This allows the metals to bond cleanly without the need for chemical fluxes.
Q3: Can vacuum brazed cold plates handle high fluid pressure?
A: Yes. Because the plates are bonded across their entire internal surface area rather than just at the edges, they possess exceptional structural integrity. They can withstand significantly higher internal fluid pressures compared to mechanically sealed plates.
Q4: How do manufacturers test for microscopic leaks?
A: High-quality manufacturers use advanced methods like Helium Leak Testing. Helium atoms are extremely small and can escape through microscopic porosities that water or air might not immediately penetrate. If a helium detector finds no gas escaping, the plate is considered highly leak-proof.
Q5: Are vacuum brazed cold plates suitable for deionized water coolants?
A: Yes. Deionized water can be highly corrosive to certain metals and chemical residues. Because vacuum brazing is a flux-free process, it leaves no corrosive residues inside the channels, making it highly compatible with deionized water systems, provided the base metal (like aluminum) is properly selected or treated.
Q6: What is the difference between a brazed cold plate and an extruded cold plate?
A: An extruded cold plate is formed by pushing metal through a die to create straight, simple internal channels. A brazed cold plate consists of machined layers bonded together, allowing for highly complex, winding, and customized internal channel designs to target specific heat zones.
