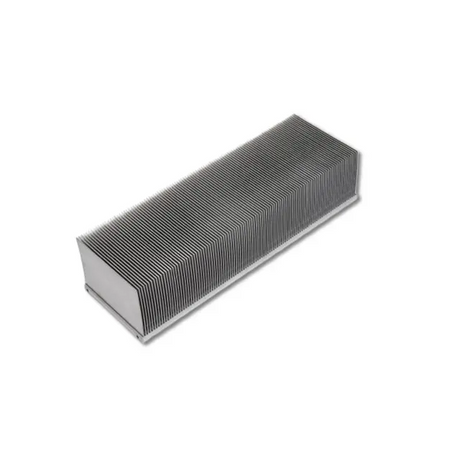

When component power density exceeds 50 W/cm², standard extruded fins often fail, leading to thermal throttling and hardware failure. A Skiving Fin Heat Sink solves this by achieving fin thicknesses down to 0.05 mm, maximizing convective surface area without increasing the module's footprint.
In our thermal solutions business at Kingka Tech, we frequently encounter engineering teams trapped by the physical limits of standard extrusion. When you cannot make a heat sink taller or wider due to packaging constraints, the only mathematical path to lower junction temperatures is packing more fins into the existing volume. However, there is a physical limit to how thin you can slice metal before it loses structural integrity or chokes your airflow. Let’s examine the precise engineering boundaries of skiving technology and how thin you should actually go for your specific application.
Determining the absolute minimum thickness for cooling fins is critical for maximizing surface area. However, the manufacturing capability must align with structural physics to prevent fin collapse under forced airflow.
The minimum practical fin thickness for a Skiving Fin Heat Sinkis 0.05 mm to 0.1 mm. Coupled with a minimum achievable fin pitch of 0.1 mm and maximum heights up to 120 mm, skiving allows for extremely dense, closely packed configurations that multiply heat transfer area.
When managing heat in high-flux environments, the primary goal is maximizing the wetted surface area exposed to the coolant (air or liquid). The skiving process utilizes a precision CNC-controlled blade to shave a thin layer of metal from an extruded block and bend it perfectly upright. Because this is a subtractive mechanical process rather than an extrusion process, the geometric limits are vastly superior.
For instance, in EV inverters and high-density LED arrays, engineers often run out of X and Y footprint. By specifying a fin thickness of 0.1 mm and a pitch of 0.1 mm, Kingka Tech can pack ten times the number of fins into the same base area compared to a standard die-cast heat sink.
Furthermore, the vertical limit is equally impressive. Typical maximum fin heights range up to 100-120 mm, depending heavily on the material alloy and the specific machine's cutting stroke.
Multi-Angle Impact of Extreme Density:
Thermal: Drastic reduction in convection resistance ($R_{conv}$) due to multiplied surface area.
Volumetric: Allows a 1U or 2U form factor to perform like a much larger passive cooler.
Acoustic: Higher surface area often means fans can run at lower RPMs, reducing system noise.
Material density and tensile strength dictate how thin a blade can slice before the metal tears. Engineers must match the alloy to the required thermal load and fin geometry.
For optimal manufacturability and performance, copper skived fins are generally engineered between 0.1 mm and 0.6 mm thick. Aluminum alloys, being softer, typically require a fin thickness between 0.2 mm and 1.2 mm to maintain structural stability during the high-pressure skiving process.
The choice between copper and aluminum fundamentally alters how thin you can push your fin geometry. Copper (such as C11000) possesses excellent ductility and high tensile strength alongside its superior thermal conductivity (~398 W/m·K). This structural integrity allows the skiving blade to shave fins as thin as 0.1 mm without the material buckling or tearing during the bend.
Conversely, standard high-conductivity aluminum alloys (like AL1060 or AL6063) are softer and more prone to tearing if sliced too thin. Therefore, the practical floor for aluminum is slightly thicker, usually starting around 0.2 mm for stable volume manufacturing.
Examples in the field:
High-Power CPUs/GPUs: We recommend pure copper skived blocks utilizing 0.15 mm fins. The superior thermal conductivity offsets the slight weight penalty, instantly spreading the >50 W/cm² heat flux.
Telecom Base Stations: We deploy aluminum skived fins at 0.4 mm thickness. This balances the need for low weight in tower-mounted equipment with a massive increase in surface area.
Table 1: Material and Thickness Guidelines for Skiving
Packing 0.1 mm fins closely together maximizes theoretical surface area, but it completely changes the fluid dynamics of the chassis. Dense fins create significant hydraulic resistance that fans must overcome.
While a Skiving Fin Heat Sink offers massive surface area, ultra-thin fins at a 0.1 mm pitch create high pressure drop. To achieve optimal thermal performance, the fin gap must be meticulously matched to the system's fan curve and static pressure capabilities to prevent airflow stalling.
There is a point of diminishing returns when making fins thinner and packing them tighter. If the fin pitch (the gap between fins) is too narrow, boundary layer interference occurs. The air physically struggles to pass through the micro-channels, causing the airflow to bypass the heat sink entirely.
Forced Air Environments: In 1U server racks equipped with high-static-pressure counter-rotating fans, we can safely push fin pitches down to 0.2 mm or 0.3 mm. The fans have enough raw power to force cold air through the dense array.
Natural Convection Environments: In sealed industrial enclosures or passive LED arrays, a 0.1 mm fin pitch will fail catastrophically. Without a fan to push the air, the tight gaps trap the heat. For passive cooling, we recommend skiving thicker fins (0.5 mm - 1.0 mm) with a much wider pitch (3.0 mm+) to allow buoyancy-driven air to escape.
Practical Advice: Never specify fin geometry in a vacuum. Always overlay the heat sink's calculated pressure drop curve against the P-Q (Pressure-Flow) curve of your chosen blower or axial fan. If the operating point falls too low on the flow axis, you must widen the fin pitch.
Traditional manufacturing hits a hard geometric wall. When forcing hot metal through a steel die, you cannot achieve the extreme aspect ratios required by modern power-dense electronics.
Extrusion is generally limited to an aspect ratio of 15:1. In contrast, the precision slicing of a Skiving Fin Heat Sink routinely achieves aspect ratios greater than 50:1, allowing designers to utilize exceptionally tall and thin fins within constrained footprints where extrusion fails.
The "aspect ratio" is the ratio of fin height to the gap between the fins. In aluminum extrusion, pushing material through a die to create tall, thin, tightly spaced fins creates immense friction. If the aspect ratio exceeds roughly 15:1, the steel tooling breaks, or the aluminum fins warp and collapse as they exit the die.
In high-power electronics, a 15:1 ratio is often insufficient. For example, in power electronics and IGBT modules, you might have 60 mm of vertical space available, but standard extrusion forces you to leave wide gaps between the fins, wasting potential cooling volume.
By transitioning to skiving, the mechanical limitations of extrusion are bypassed. Because we are carving the fins one by one, we can routinely achieve 50:1 aspect ratios. This means a 50 mm tall fin can sit right next to its neighbor with only a 1 mm gap. This geometric freedom is the exact reason skiving is dominating the high-flux cooling market.
Theoretical limits only matter when they solve real-world thermal throttling. Let's examine how shifting from standard extrusion to precision skiving rescued a high-power industrial power conversion module.
An industrial automation client suffered thermal throttling with 1.5 mm extruded fins. We implemented a custom Skiving Fin Heat Sink with 0.1 mm thick fins and a 0.3 mm pitch. This reduced operating temperatures by 8–12 °C under full load, ensuring continuous, stable performance.
A customer in industrial automation approached Kingka Tech needing a cooling solution for a high-power IGBT module used in variable speed drives. Their existing setup utilized extruded aluminum heat sinks with a fin thickness of around 1.5 mm. Under continuous full-load operation, the power density was too high for the available surface area, leading to frequent thermal throttling and system instability.
We engineered a custom skived fin heat sink specifically to break the limits of their old extrusion. The optimized parameters were:
Fin thickness: 0.1 mm
Fin pitch: 0.3 mm
Fin height: 40 mm
Material: High-conductivity aluminum alloy
The Results:
After implementation, the finer fin geometry exponentially increased the effective surface area within the exact same mechanical footprint. The module’s operating temperature dropped by a measurable 8–12 °C across full-load tests. This massive thermal margin enabled stable continuous performance, allowed the system fans to run at a lower speed (reducing acoustic noise), and directly translated into higher reliability and extended service life for the IGBT power module. This result was only achievable through skiving; extrusion could not manufacture the 0.1 mm / 0.3 mm pitch combination.
A common concern with 0.1 mm fins is fragility. Can fins this thin survive the harsh vibrations of an industrial or automotive environment without bending, snapping, or degrading?
Because a Skiving Fin Heat Sink is carved from a single block of metal, the fins share a monolithic base. This zero-joint construction ensures that even ultra-thin 0.05 mm fins maintain exceptional mechanical stability and vibration resistance under severe thermal cycling and physical shock.
When comparing skived arrays to bonded fin heat sinks, the structural differences are stark. Bonded fins rely on thermal epoxy or solder to hold thin sheets of metal into a slotted base. Under heavy vibration—such as in an EV inverter or a railway traction module—these joints experience shear stress. Combined with the rapid expansion and contraction of thermal cycling, bonded joints eventually crack, destroying both the structural integrity and the thermal conduction path.
A skived fin, however, is not attached to the base; it is the base. The cutting tool peels the metal up, meaning the grain structure of the alloy remains continuous from the bottom of the base plate to the tip of the 0.1 mm fin.
Vibration Resistance: The monolithic root of the fin acts as a built-in fillet, preventing harmonic vibration from snapping the blade.
Thermal Shock: Without alternating materials (like base metal vs. solder), there is zero Coefficient of Thermal Expansion (CTE) mismatch at the base joint.
Even at extreme thicknesses of 0.05 mm, a skived copper array will survive physical drop tests and vibration profiles that would instantly shatter a bonded equivalent.
Transitioning a CAD model to a manufacturable part requires aligning your design with machine limits. Proper specification prevents costly revisions and ensures immediate thermal performance upon delivery.
To specify a Skiving Fin Heat Sink, engineers must define the heat load (>50 W/cm²), maximum Z-height (up to 120 mm), available airflow, and material. These parameters allow the manufacturer to calculate the exact fin thickness and pitch required to optimize the thermal path.
At Kingka Tech, we urge procurement managers and thermal engineers to provide comprehensive system data rather than just a standalone 3D model. Because skiving requires no expensive hard tooling (like extrusion dies), we have the flexibility to adjust the fin pitch by fractions of a millimeter during the prototyping phase to dial in the exact performance needed.
Checklist for Specifying a Skived Heat Sink:
Define the Hotspot: Provide the exact dimensions and heat flux (W/cm²) of the chip. Skiving excels at spreading heat from small, intense sources.
Select the Base Material: Choose C1100 Copper for maximum spreading, or AL1060 for lightweight applications.
Provide the Fan Curve: We must know the static pressure limits to safely specify a 0.1 mm or 0.2 mm fin pitch without choking the airflow.
Set the Z-Height Constraint: Knowing the absolute maximum height allows us to maximize the aspect ratio.
By collaborating early on these parameters, we can deliver custom skived fin solutions that require zero tooling investment and transition seamlessly from prototype to mass production.
The engineering boundaries of thermal management are being rewritten by precision subtractive manufacturing. When your component power density exceeds 50 W/cm², standard extrusions and bonded fins become liabilities.
By utilizing a Skiving Fin Heat Sink, engineers can push fin thicknesses down to an astonishing 0.05 mm to 0.1 mm, achieving aspect ratios greater than 50:1. Whether you are cooling a dense EV inverter with pure copper or silencing an industrial drive with high-density aluminum, skiving provides the ultimate combination of maximum surface area, zero interface resistance, and robust mechanical stability.
Ready to push the limits of your thermal design?
Contact Kingka Tech today. Share your chassis constraints and thermal loads, and let our engineering team calculate the optimal fin thickness and pitch for your next generation of power electronics.
1. How thin can a skived fin heat sink actually be made?
Depending on the material and the specific CNC skiving machine, fins can practically be manufactured as thin as 0.05 mm to 0.1 mm.
2. Which material allows for thinner skived fins: copper or aluminum?
Copper allows for thinner, more stable fins (down to 0.05 mm - 0.1 mm) due to its high tensile strength and ductility. Aluminum is softer and is typically skived between 0.2 mm and 1.2 mm.
3. What is the maximum aspect ratio for a skived heat sink?
While traditional extrusion is limited to about 15:1, precision skiving can routinely achieve aspect ratios (fin height to gap width) of 50:1 or greater.
4. How tall can the fins be on a skived heat sink?
The maximum fin height typically ranges between 100 mm to 120 mm, heavily dependent on the alloy used and the cutting stroke of the skiving machinery.
5. Does a 0.1 mm fin block airflow?
The fin thickness itself does not block airflow, but the pitch (gap between fins) does. If fins are pitched at 0.1 mm apart, it creates high hydraulic resistance, requiring a high-static-pressure fan to push air through.
6. Is a skived fin heat sink more fragile than an extruded one?
No. Because the fins and the base are carved from a single, monolithic block of metal, the root of the fin is incredibly strong. They offer superior vibration resistance compared to bonded or brazed fin assemblies.
7. Why use skiving for IGBT modules and EV inverters?
These applications generate heat flux exceeding 50 W/cm². Skiving provides the massive surface area and zero interface resistance needed to extract that heat quickly, preventing component throttling.
8. Do skived heat sinks require expensive tooling?
No. Unlike die-casting or extrusion, skiving is a CNC-controlled subtractive process. It requires no expensive custom dies or molds, making it highly cost-effective for rapid prototyping and low-to-medium volume production.
