As power densities in electric vehicle (EV) inverters, renewable energy systems, and industrial motor drives continue to surge, managing the extreme localized heat flux of Insulated Gate Bipolar Transistors (IGBTs) has become the primary challenge for electrical and thermal engineers.
Traditional air cooling is rapidly reaching its physical limits. To prevent thermal runaway and extend the lifespan of high-voltage IGBTs, transitioning to highly optimized liquid cooling cold plates is no longer optional—it is a design necessity.
Designing an IGBT Liquid Cold Plate?[Upload your CAD/STEP files here]. Kingka's engineering team offers a Free DFM (Design for Manufacturability) review and CFD thermal simulation to ensure your cold plate delivers maximum heat dissipation without flow resistance issues.
IGBTs generate a significant amount of heat during operation, and if not managed properly, it can cause the device to fail. Therefore, thermal management is critical to the performance and reliability of IGBTs. There are several methods available for IGBT cooling, such as air cooling, direct liquid cooling, and microchannel liquid cooling. Each method has its own advantages and disadvantages, depending on the specific application and cooling requirements.
Air cooling is the most commonly used method for IGBT cooling. It is a simple and cost-effective method that uses air as the cooling medium. Air cooling is suitable for low to medium power applications, where the heat dissipation is not very high. In air cooling, a heat sink is used to transfer the heat from the IGBT to the surrounding air. The heat sink is designed to have a large surface area to maximize heat dissipation. However, air cooling has its limitations in terms of cooling capacity, and it may not be sufficient for high-power applications.

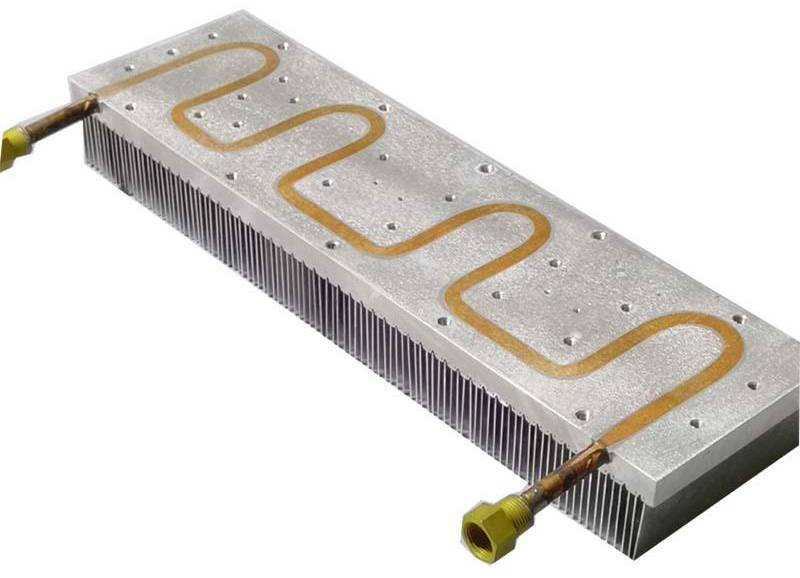

Direct liquid cooling is a more efficient method of cooling IGBTs compared to air cooling. It involves the use of a liquid, such as water or coolant, as the cooling medium. The liquid is circulated through a heat sink, which is in direct contact with the IGBT. Direct liquid cooling provides better cooling performance, as the heat capacity of liquids is higher than that of air. It is also a more compact solution, as liquid cooling systems require less space compared to air cooling systems. However, direct liquid cooling systems can be more complex and expensive to design and maintain.
For ultra-high-power applications, standard liquid cooling falls short. Microchannel liquid cold plates utilize closely spaced, ultra-thin internal fins to exponentially increase the wetted surface area, delivering maximum heat transfer efficiency directly beneath the IGBT hotspots.
How Kingka Manufactures IGBT Cold Plates:Rather than just theoretical designs, Kingka specializes in the actual mass production of complex liquid cooling systems. Our in-house capabilities include:
Precision Skiving & CNC Machining: Creating ultra-dense internal microchannels optimized for specific coolant flow rates and pressure drops.
Friction Stir Welding (FSW) & Vacuum Brazing: Guaranteeing 100% leak-proof sealing and exceptional structural integrity under high burst pressures.
Flatness & Surface Precision: CNC facing the mounting surface to ultra-tight tolerances, ensuring zero air gaps between the IGBT module and the cold plate for minimal thermal resistance.
IGBTs are widely used in power electronics applications, including inverters, converters, power supplies, switch-mode power supplies, and uninterrupted power supplies.
Inverters are devices that convert DC (Direct Current) to AC (Alternating Current) power, which is required for many electrical applications. IGBTs are used in inverters to switch the DC input on and off at high frequencies, producing an AC output. Inverters are used in a variety of applications, such as solar power systems, motor drives, and electric vehicle charging systems.
Converters are used to convert one type of electrical power to another. IGBTs are used in converters to switch the input power on and off, allowing for efficient power conversion. Converters are used in a variety of applications, such as power distribution systems and electric vehicle charging systems.
Power supplies are devices that convert AC or DC power to the required voltage and current levels for electronic devices. IGBTs are used in power supplies to control the output voltage and current, providing a stable power supply to electronic devices.
Switch-mode power supplies are a type of power supply that uses high-frequency switching to regulate the output voltage and current. IGBTs are used in switch-mode power supplies to switch the input power on and off at high frequencies, allowing for efficient power conversion.
Uninterrupted power supplies (UPS) are devices that provide backup power in the event of a power outage. IGBTs are used in UPS systems to switch between the AC input power and the backup power source, ensuring a continuous power supply to critical electronic devices.
Renewable Energy Applications
IGBTs are also widely used in renewable energy applications, such as solar inverters, concentrated photovoltaic receivers (CPVs), and solar-assisted heat pumps.
Solar inverters are devices that convert DC power generated by solar panels into AC power that can be used in homes and businesses. IGBTs are used in solar inverters to switch the DC input on and off at high frequencies, producing an AC output. IGBTs are essential components of solar inverters, as they allow for efficient power conversion.
Concentrated photovoltaic receivers (CPVs) are used in solar power systems to increase the efficiency of solar energy conversion. IGBTs are used in CPVs to switch the input power on and off, allowing for efficient power conversion. CPVs are used in a variety of applications, such as solar power plants and remote power generation systems.
Solar-assisted heat pumps are devices that use solar energy to provide heating and cooling to buildings. IGBTs are used in solar-assisted heat pumps to control the output temperature and maintain the required heating or cooling level. Solar-assisted heat pumps are becoming increasingly popular in residential and commercial buildings, as they provide an efficient and cost-effective heating and cooling solution.
In conclusion, IGBTs are essential components of power electronics, and proper thermal management is critical to their performance and reliability. Liquid cooling solutions, such as direct liquid cooling and microchannel liquid cooling, provide efficient cooling for high-power applications. IGBTs are used in a variety of applications, such as inverters, converters, power supplies, and renewable energy systems. As the demand for efficient and reliable power electronics continues to grow, the importance of IGBTs and their cooling solutions will only increase.
When dealing with megawatt-scale solar inverters or high-voltage EV powertrains, you cannot compromise on your IGBT cooling loop. A single leak or thermal hotspot can lead to catastrophic system failure.At Kingka Tech, we bridge the gap between thermal engineering and precision manufacturing. From rapid prototyping of FSW liquid cold plates to high-volume automated production, we provide the zero-leak assurance your power electronics demand.
