Our smartphones are mini-supercomputers, but power generates heat. This heat can throttle performance, making your device slow and uncomfortable. Vapor chambers are the unsung heroes enabling powerful, yet thin, mobile devices to stay cool under pressure, ensuring sustained performance, user comfort, and device longevity in increasingly compact designs.
Remember that moment when your phone gets uncomfortably hot during a long gaming session? Or when you're recording a 4K video, and suddenly the app lags or warns you about overheating? That's thermal throttling in action, and it's the bane of modern mobile devices. For years, engineers have battled this challenge, trying to cram more power into ever-thinner designs. The solution that's increasingly prevalent in top-tier smartphones is the ingenious vapor chamber.
Our phones are no longer just for calls and texts; they're powerful portable computers. This exponential increase in processing power, coupled with shrinking form factors, creates a significant thermal challenge.
The modern smartphone's dilemma is simple: as devices become thinner and integrate more powerful System-on-Chips (SoCs), 5G modems, and AI capabilities, the heat generated by these components intensifies, demanding highly efficient thermal management to prevent performance-crippling thermal throttling and ensure user comfort.
Let's look at why the heat problem in phones has become so acute and what happens when it's not managed properly.
Today's flagship phones pack desktop-class processing power into incredibly slim bodies. Features like high-refresh-rate displays, sophisticated camera systems, demanding mobile games with console-level graphics, and complex AI processing push the SoC (the phone's main processor) to its limits. All this activity generates significant heat, often concentrated in a very small area within the phone. Think about fast charging, too – that also adds to the internal thermal load.
Without adequate cooling, this concentrated heat leads to several undesirable outcomes:
Thermal Throttling: This is the most common and frustrating consequence. The phone's software detects rising temperatures and automatically reduces the CPU and GPU clock speeds to prevent damage. This results in noticeable lag, stuttering, reduced frame rates in games, and slower app responsiveness. My own phone once became so hot during a recording session that the camera app shut down automatically!
User Discomfort: An overheating phone becomes unpleasantly hot to hold, especially during extended use, impacting the overall user experience.
Battery Degradation: Elevated and sustained high temperatures can significantly shorten the overall lifespan of your phone's battery.
Component Longevity: While designed to withstand certain temperatures, prolonged exposure to excessive heat can put stress on internal electronic components, potentially reducing their lifespan.
Traditional cooling methods, like simple graphite sheets or merely relying on the metal frame for passive conduction, struggle to cope with the intense, localized heat flux generated by modern SoCs. They can spread heat to some extent but lack the rapid and effective transfer capabilities needed for sustained performance. This is where the advanced science of vapor chambers comes in.
The brilliance of a vapor chamber lies in its elegant use of a fundamental physics principle: phase change. It's essentially a highly efficient, two-dimensional heat pipe, specifically engineered to spread heat rapidly.

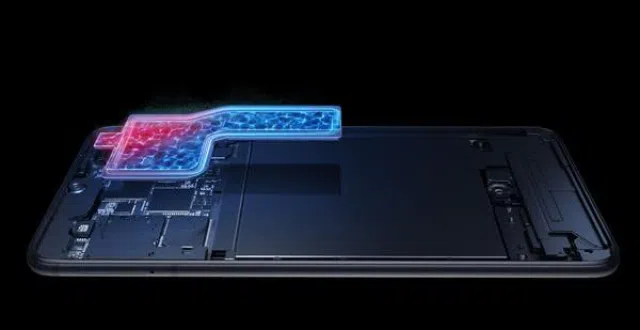

A vapor chamber operates as a miniature thermal engine, utilizing a sealed, flat copper chamber, a small amount of working fluid, and an internal wick structure to rapidly absorb heat at one point via evaporation, quickly spread it as vapor to cooler areas, condense it back to liquid, and then return the liquid to the hot spot through capillary action, creating a continuous and highly efficient cooling cycle.
Let's break down the four key steps in this fascinating process.
Evaporation (The Hot Zone): When a heat-generating component, like your phone's powerful SoC, gets hot, it transfers this heat directly to the flat, copper surface of the vapor chamber. Inside the sealed, vacuumed chamber, a tiny amount of working fluid (usually de-ionized water, chosen for its excellent heat absorption properties) at the hot spot quickly turns into vapor (gas). This process absorbs a large amount of latent heat.
Vapor Movement: The newly formed vapor rapidly expands and rushes through the vacuum space inside the chamber. Because it's a vacuum, there's very little resistance, allowing the vapor to spread almost instantly across the entire internal volume of the chamber, moving towards cooler areas.
Condensation (The Cool Zone): As the vapor reaches the cooler internal surfaces of the vapor chamber (which are in contact with the phone's cooler parts like the frame or other heat spreaders), it releases its absorbed heat and condenses back into liquid droplets. This heat is then passively dissipated to the outside environment through the phone's body.
Liquid Return: The inner walls of the vapor chamber are lined with a fine, porous wick structure (often made of sintered copper powder or a fine mesh). This wick uses capillary action (the same force that allows plants to draw water from the soil) to draw the condensed liquid back to the hot spot where the cycle began, ready to absorb more heat.
For phones, the primary benefit is the vapor chamber's exceptional ability to spread concentrated heat. A tiny SoC can generate immense heat in a very small area. The vapor chamber effectively takes this intense, localized heat (a "hot spot") and rapidly distributes it across its entire flat surface. This significantly reduces the thermal resistance (known as "spreading resistance") that would otherwise occur if heat had to conduct through a solid metal. By turning one intense hot spot into a larger, more uniformly warm area, the phone's chassis can then dissipate the heat much more efficiently, preventing throttling and making the device cooler to the touch. It's like turning a tiny, burning ember into a gently warm plate, allowing the heat to escape more effectively.
While smartphones have used various cooling techniques over the years, vapor chambers have emerged as a superior solution for the demands of modern, high-performance devices.
Vapor chambers fundamentally outperform traditional mobile cooling methods like graphite sheets and even flattened heat pipes due to their significantly larger internal vapor space for rapid 2D heat spreading, allowing them to handle higher heat flux and create more uniform temperature profiles, which is critical for today's powerful, compact mobile processors.
Let's compare vapor chambers to their predecessors and understand their distinct advantages.
Some smartphones, especially those from a few years ago, implemented flattened heat pipes. While they use the same phase-change principle, there's a crucial difference:
Internal Vapor Space: A dedicated vapor chamber is a wide, flat cavity, offering a much larger internal volume for vapor to spread across. A flattened heat pipe, by nature, is still fundamentally a tube squeezed flat, which significantly restricts the cross-sectional area available for vapor flow. This limitation makes a flattened heat pipe less efficient at spreading heat across a broad area compared to a true vapor chamber.
Heat Flux Handling: Vapor chambers are specifically designed to handle very high heat flux (heat concentrated in a tiny area). Modern SoCs are incredibly dense heat sources, making the vapor chamber's ability to absorb and spread this intense heat far more effective. In tests, vapor chambers can be 15-30% more efficient than flattened heat pipes for phone applications.
Historically, and still commonly used, are layers of graphite film or simple metal frames.
Thermal Conductivity: Graphite sheets offer good thermal conductivity (around 200-500 W/m·K, primarily laterally), and metal frames conduct heat well (copper ~400 W/m·K, aluminum ~200 W/m·K). However, a vapor chamber's effective thermal conductivity can range from 5,000 to 20,000 W/m·K – orders of magnitude higher. This means a vapor chamber can move and spread heat far more rapidly and efficiently.
Hot Spot Elimination: Passive conduction methods can spread heat, but they are less effective at making the entire surface truly isothermal (uniform temperature). Vapor chambers excel at this, virtually eliminating localized hot spots by spreading the heat quickly and evenly. This translates directly to a phone that feels cooler to hold.
It's worth noting that internal vapor chambers are often part of a multi-layered thermal solution. Many gaming phones, like the Nubia RedMagic series or ASUS ROG Phones, also incorporate internal fans or support external clip-on coolers. These external solutions complement the internal vapor chamber by helping to dissipate the heat after the vapor chamber has effectively spread it to the phone's exterior. The vapor chamber is the critical component that moves the heat from the SoC to a broader surface, making external cooling more effective.
Vapor chambers are no longer a niche technology; they are a standard in high-performance mobile devices, and their adoption continues to expand across the industry.
Vapor chambers are widely integrated into leading Android flagships, and their anticipated adoption by Apple signals a growing industry-wide necessity for sophisticated thermal solutions driven by increasing computational demands in ever-thinner smartphone designs. Future innovations promise even slimmer and more complex vapor chamber designs.
Let's look at the current landscape and future trends for this crucial technology in phones.
For several years, major Android smartphone manufacturers have been at the forefront of integrating vapor chambers into their high-end devices. Brands like Samsung (especially their Galaxy S series, with rumors of advanced Ultra-Thin Vapor Chambers – UTVCs – for future models like the S25 series), Google (Pixel Pro series), OnePlus, Xiaomi, and Realme consistently highlight vapor chamber cooling as a key feature in their flagship phones. Gaming-focused phones from ASUS ROG and Nubia RedMagic also heavily rely on robust vapor chamber systems to sustain peak performance during intense gaming sessions. This widespread adoption in the Android ecosystem underscores the necessity of vapor chambers for managing the heat from increasingly powerful SoCs.
Perhaps the most significant recent development is the persistent rumor surrounding Apple's potential adoption of vapor chambers for the upcoming iPhone 17 Pro (expected in 2025). Historically, Apple has favored highly optimized graphite sheets and sophisticated internal design for passive heat dissipation. However, with the introduction of increasingly demanding features like "Apple Intelligence" and the continuous push for higher computational power for AI, gaming, and advanced photography, even Apple appears to be reaching the limits of traditional passive cooling. If these rumors prove true, it would signal a major industry-wide shift and validate the vapor chamber as the go-to solution for sustained peak performance in the most premium and compact mobile devices.
The innovation in vapor chamber technology for phones continues:
Ultra-Thin Vapor Chambers (UTVCs): Manufacturers are continuously refining the design to make vapor chambers even slimmer. Some UTVCs are reportedly less than 0.25mm thick, critical for enabling ever-thinner phone designs without compromising cooling performance.
3D Vapor Chambers: Research is exploring more complex, multi-layered, or L-shaped vapor chambers that can conform to irregular internal phone layouts, cooling multiple heat sources simultaneously or weaving around components for optimal heat paths.
Integration with Other Materials: Vapor chambers are rarely standalone. They are often part of a sophisticated "thermal stack" that includes layers of graphite, copper frames, and thermal paste, all working in concert to spread and dissipate heat effectively from the SoC to the phone's exterior.
As mobile technology continues its relentless march towards more power in smaller packages, the role of advanced thermal solutions like vapor chambers will only grow in importance, enabling the next generation of features and performance we expect from our smartphones.
While the technology inside a vapor chamber might seem complex, its benefits for you, the phone user, are tangible and directly impact your daily experience.
For the end-user, vapor chambers translate directly into a superior mobile experience: sustained high performance for demanding apps and games, a cooler and more comfortable phone to hold, faster and safer charging, and ultimately, a longer lifespan for your valuable device.
Let's break down how this advanced cooling technology improves your everyday mobile life.
Sustained Gaming Performance: This is perhaps the most immediate and noticeable benefit. With a vapor chamber, your phone's CPU and GPU can maintain their high clock speeds for much longer during intensive gaming sessions. This means fewer frame drops, less lag, and a smoother, more immersive gaming experience, even in graphically demanding titles. No more sudden performance dips that ruin your killstreak!
Smoother App Usage: Beyond gaming, a cooler processor ensures that all your apps run smoothly. Whether you're editing a video, switching between many demanding applications, or running complex AI tasks, your phone will be less likely to slow down or stutter due to overheating. This leads to a consistently responsive and frustration-free user experience.
Faster Charging/Less Heat: High-speed charging can generate significant heat. A vapor chamber helps dissipate this heat more efficiently, allowing your phone to sustain faster charging speeds for longer periods while keeping the overall device temperature down. This is not only more comfortable but also safer for your phone's battery.
Comfort in Hand: One of the most annoying aspects of an overheating phone is how hot it feels. By rapidly spreading localized heat from the SoC across a larger internal area, a vapor chamber helps distribute that warmth more evenly across the phone's surface. This reduces those intensely hot spots, making your phone much more comfortable to hold, even during extended use.
Longer Device Lifespan: Heat is the enemy of electronics. By consistently keeping crucial components like the SoC at lower operating temperatures, a vapor chamber reduces the thermal stress they endure. This directly contributes to improved reliability and can significantly extend the overall lifespan of your smartphone, protecting your investment.
In essence, the vapor chamber acts as an invisible guardian within your phone, allowing it to work harder and longer without breaking a sweat, ensuring you get the most out of your powerful mobile companion.
Vapor chambers have transitioned from niche components to vital, cutting-edge thermal solutions that quietly enable the powerful, slim smartphones we rely on daily. By efficiently spreading intense, localized heat from compact, high-power processors, they ensure sustained performance, user comfort, and device longevity. As mobile technology continues its relentless march towards more power in smaller packages, vapor chambers will remain indispensable, pushing the boundaries of what's possible in our pockets.
