Is your high-performance PC struggling with heat? A water block is the core component of a liquid cooling system, directly absorbing heat from critical components like your CPU or GPU. It efficiently transfers this heat to a circulating liquid coolant, which then moves away to be cooled, ensuring your system runs stably and at peak performance.
I remember the first time I pushed my gaming PC to its limits. The fans roared like a jet engine, and my frame rates dipped as thermal throttling kicked in. Air cooling just wasn't cutting it anymore. I needed something more efficient, something that could silently tame the heat beast within my machine. My journey led me to discover the powerful world of water cooling, starting with its fundamental component: the water block.
Curious about how a small metal block can manage the intense heat of a modern processor? It all comes down to a fundamental principle of thermodynamics: heat transfer.
A water block works by directly absorbing thermal energy from a hot component, like a CPU or GPU, through a highly conductive metal base. This heat then transfers to a circulating liquid coolant flowing through intricate internal channels, which carries the heat away from the component to a radiator for dissipation.
Let's break down the process into its key stages, from direct contact to efficient heat removal.
The process begins when a water block, properly mounted, makes direct contact with the surface of the component it's cooling. To ensure maximum heat transfer, a thin layer of thermal paste (Thermal Interface Material, or TIM) is applied between the component's heat spreader and the water block's base.
This paste fills microscopic imperfections and air gaps, which are poor heat conductors, creating an efficient pathway for thermal energy. The heat then rapidly conducts through the highly conductive material of the water block's base, typically copper, which excels at drawing heat away.
Example 1: CPU Cooling. A CPU water block's copper base directly contacts the CPU's integrated heat spreader (IHS). As the CPU generates heat during calculations, this heat quickly conducts into the copper base of the water block. Without this efficient conduction, heat would accumulate on the CPU, causing it to slow down or even shut off.
Example 2: GPU Cooling. Full-cover GPU water blocks are designed to contact not just the GPU chip itself, but also other heat-generating components like the VRAM (video RAM) modules and VRMs (Voltage Regulator Modules) on the graphics card. This ensures comprehensive cooling for all critical areas, as heat from these auxiliary components also conducts into the water block's large surface area.
Once the heat is absorbed by the water block's base, it needs to be carried away. This is where the magic of convection comes into play. Inside the water block, there’s a precisely engineered network of micro-channels, fins, or pins. These structures dramatically increase the internal surface area exposed to the liquid coolant.
As the coolant flows through these channels, it absorbs the heat from the metal. Water is significantly more effective at absorbing and transferring heat than air due to its higher specific heat capacity and thermal conductivity. This hot liquid then exits the water block and travels through tubing to a radiator, where the heat is finally dissipated into the ambient air by fans.
The continuous flow of the liquid coolant, driven by a pump in the loop, ensures that cool liquid constantly enters the water block to pick up more heat, creating a highly efficient and stable cooling cycle.

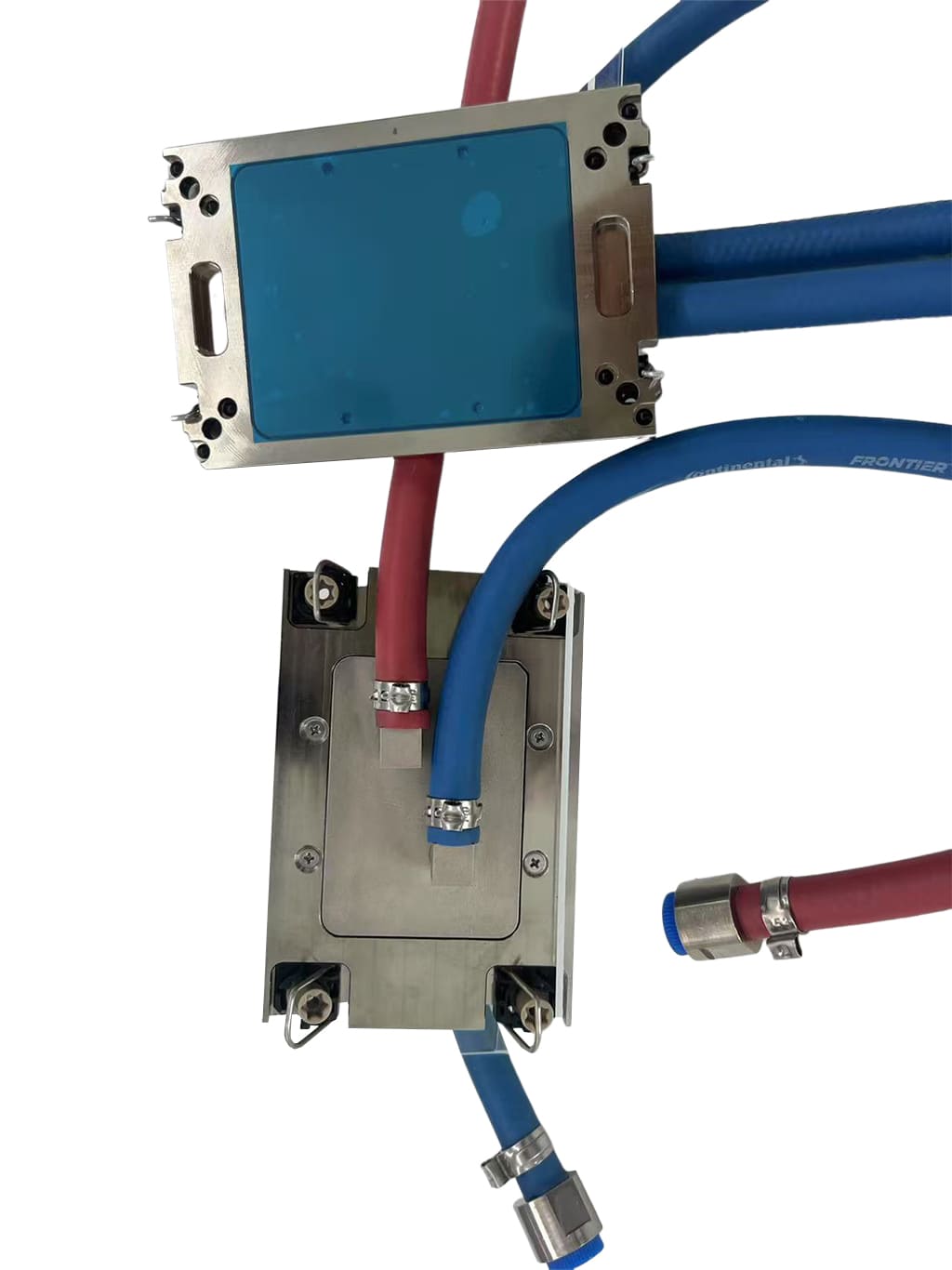

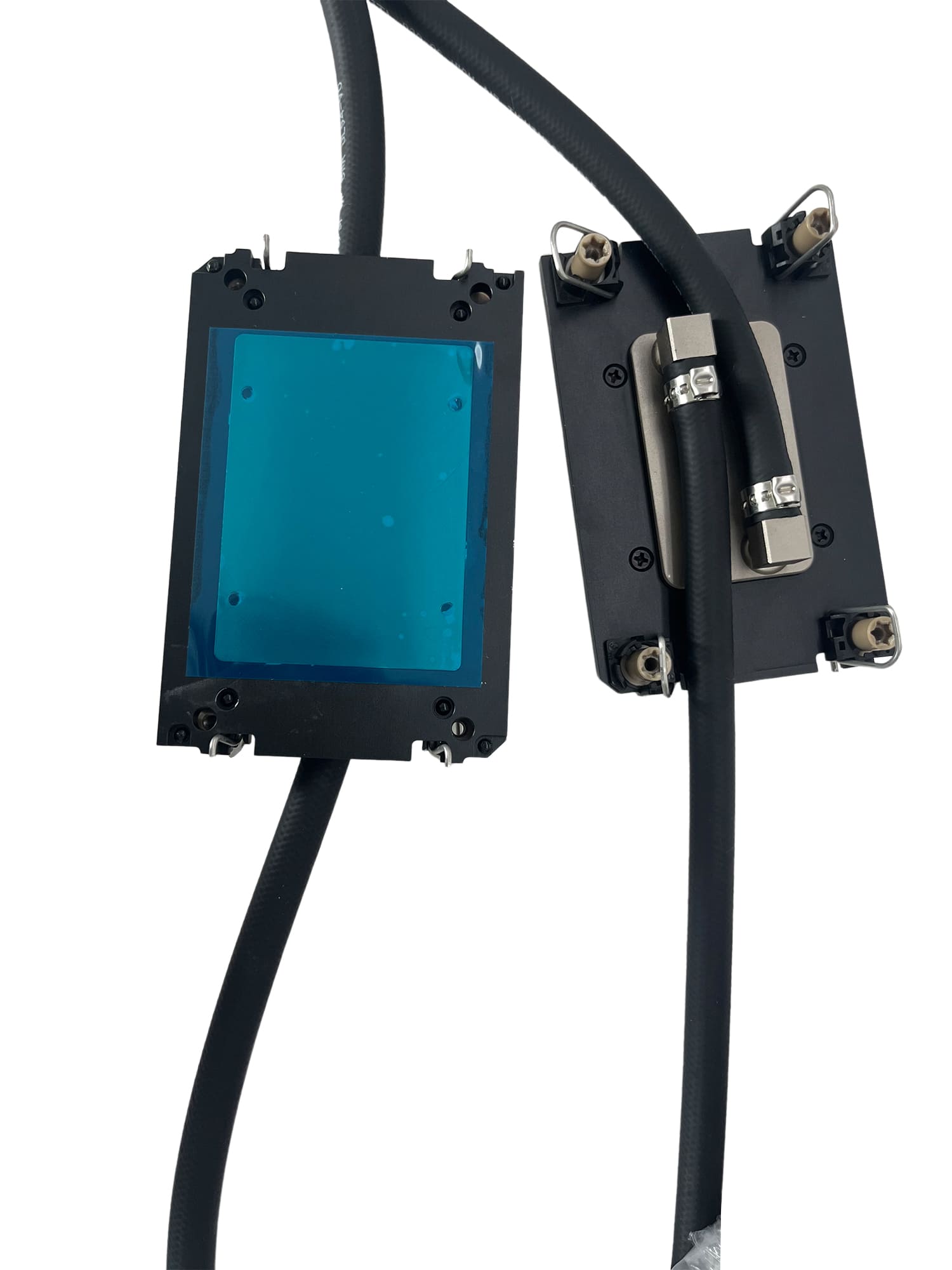

A water block might seem like a simple piece of metal, but it's a precision-engineered device composed of several key parts working in harmony to manage heat. Understanding these components helps you appreciate the design and the importance of quality in thermal solutions.
A typical water block comprises a highly conductive metal base plate that contacts the heat source, a top cover that seals the liquid channels, and often an internal jet plate or micro-fin array that maximizes heat transfer to the circulating coolant, ensuring efficient thermal dissipation.
Let's dissect the main elements you'll find in almost any modern water block.
This is the most critical part of the water block. The cold plate is the flat, often mirror-polished metal surface that directly touches the CPU's IHS (Integrated Heat Spreader) or the GPU die. Its primary function is to quickly draw heat away from the component.
Material Quality: The vast majority of high-performance cold plates are made from copper (C1100) due to its exceptional thermal conductivity (around 388textW/m⋅K). Copper absorbs and transfers heat very rapidly. Some manufacturers may use nickel plating over the copper. This plating doesn't significantly change thermal performance, but it provides a durable, corrosion-resistant, and aesthetically pleasing finish, preventing the copper from oxidizing.
Internal Structure: The underside of the cold plate (the side facing the liquid) is typically machined with intricate patterns. These can be micro-fins, pin arrays, or jet plate designs. The goal of these structures is to increase the surface area available for heat exchange with the liquid and often to induce turbulence in the coolant flow. Increased surface area means more contact points for heat transfer, while turbulence ensures that "fresh," cooler liquid is constantly exposed to the heated surface, preventing stagnant hot spots.
The top cover acts as the sealed housing for the coolant, containing the liquid and directing its flow over the cold plate's internal structures. It also features the threaded ports where fittings connect, allowing the water block to integrate into the liquid cooling loop.
Material Variety: Top covers are commonly made from acrylic (Plexiglas), acetal (POM), or sometimes metal (like brass).
Acrylic tops are transparent, allowing you to see the coolant flow and enabling RGB lighting effects. However, they can be more susceptible to cracking if overtightened or exposed to certain chemicals.
Acetal tops are opaque and offer greater durability and resistance to chemicals, making them a popular choice for robustness and an understated aesthetic.
Metal tops provide maximum durability and a premium feel, though they don't allow for coolant visibility or lighting.
Design and Flow Paths: The internal design of the top cover, along with the cold plate, defines the coolant's flow path. Some designs feature a "jet plate" that directs a concentrated stream of coolant onto the hottest part of the cold plate, while others use a more diffused flow.
Securing the water block firmly and evenly to the component is paramount for optimal thermal transfer. The mounting hardware ensures consistent pressure across the entire contact surface.
Components: This typically includes a universal backplate (for CPUs), mounting screws, springs (to provide even pressure), and standoffs.
Installation Impact: Incorrect or uneven mounting can leave gaps between the CPU/GPU and the water block, severely hindering thermal performance. My own experience taught me this when I first installed a water block—I had to re-seat it three times before my temperatures dropped to where they should be! It's a precise but crucial step.
While the core principle of a water block remains the same, its design and application vary widely depending on the component it's meant to cool. Selecting the right type is crucial for effective thermal management and system compatibility.
Water blocks are categorized by the specific component they cool, such as CPUs, GPUs, VRMs, or RAM, with designs optimized for each component's heat profile, size, and mounting requirements, ranging from simple CPU blocks to comprehensive full-cover GPU blocks.
Let's explore the most common types you'll encounter in custom liquid cooling loops.
These are arguably the most common type, designed to sit directly on top of your CPU. They are generally simpler in design compared to GPU blocks because CPUs have a more standardized shape and heat output.
Design Focus: CPU water blocks prioritize efficient heat transfer from a single, relatively small, high-heat-density source. They feature highly optimized internal micro-channels or jet plates specifically engineered to maximize contact with the flowing coolant over the CPU die area.
Examples:
"Standard" CPU Block: Most modern CPU blocks, like the EK-Quantum Velocity or Corsair Hydro X Series XC7/XC9, use a combination of a micro-fin array and a jet plate. Coolant typically enters from the top, is forced through a small nozzle over the micro-fins directly above the CPU's core, and then exits. This creates high turbulence and effective heat removal from the hottest spot.
Monoblocks: These are specialized CPU water blocks that extend beyond the CPU socket to also cool the motherboard's VRMs (Voltage Regulator Modules). VRMs supply stable power to the CPU and can generate significant heat, especially during overclocking. A monoblock provides integrated cooling for both the CPU and its power delivery system, simplifying the loop and offering superior stability for extreme builds.
Compatibility: CPU blocks are socket-specific (e.g., LGA 1700 for Intel, AM5 for AMD) and come with mounting hardware tailored for those sockets.
Graphics cards are often the single hottest component in a gaming PC, and a GPU water block is designed to cool the entire card, not just the main GPU chip.
Full-Cover Design: Unlike CPU blocks, GPU water blocks are almost always "full-cover" designs. This means they are custom-designed for specific graphics card models (e.g., an "NVIDIA GeForce RTX 4090 Founders Edition" block won't fit an "ASUS ROG Strix RTX 4080"). Even minor variations in the PCB can render a block incompatible. You must verify the exact model number of your graphics card against the water block manufacturer's compatibility list. I learned this the hard way once when I assumed an RTX 3070 block would fit any 3070 – it didn't!
Heat Distribution: The internal channels of a GPU block are engineered to distribute coolant flow effectively across the longer, more complex surface area of a graphics card's components, ensuring all hot spots are addressed.
Examples:
Vector Series (EKWB): EKWB's Vector series of GPU blocks are prime examples of full-cover designs, often incorporating both micro-fins over the GPU die and dedicated flow paths for VRAM and VRMs, sometimes even allowing for active backplate cooling on the reverse side of the PCB for extremely demanding GPUs.
Hydro X Series XG7 (Corsair): Similar to EKWB, Corsair offers specific GPU blocks for various RTX and Radeon cards, covering the entire PCB for comprehensive cooling.
Compatibility: GPU blocks are highly specific to the exact model and PCB layout of your graphics card, making careful compatibility checks essential.
While CPU and GPU blocks are the most common, water cooling can extend to other heat-generating components:
RAM Water Blocks: Designed to cool RAM modules, usually requiring special heat spreaders or modules.
Chipset Water Blocks: For cooling the motherboard's northbridge or southbridge chipset, more common in older or enthusiast motherboards.
SSD Water Blocks: Increasingly seen for high-performance NVMe M.2 SSDs, which can throttle under sustained load.
Switching to water cooling, with a water block at its heart, offers compelling advantages over traditional air cooling, especially for high-performance systems. It's more than just aesthetics; it's about pushing the boundaries of what your PC can do.
The primary benefits of using a water block include significantly lower and more stable component temperatures, enabling higher performance and overclocking potential, greatly reduced system noise compared to air cooling, and a cleaner, more aesthetically pleasing PC build with less internal dust.
Let's dive into why water blocks have become a staple for enthusiasts.
Water is simply a better medium for transferring heat than air. This is due to its higher specific heat capacity (its ability to store heat) and thermal conductivity (its ability to transfer heat).
Lower Temperatures: A well-designed water block can achieve significantly lower temperatures for your CPU and GPU under load compared to even the best air coolers. For example, where an air cooler might keep a CPU at $75^\\circ\\text{C}$ under heavy load, a water block could bring that down to $55-65^\\circ\\text{C}$. This direct and efficient heat transfer means your components stay cooler, longer.
Stable Performance: Cooler components are less likely to thermal throttle. Thermal throttling is when your CPU or GPU automatically reduces its clock speed to prevent overheating, leading to performance dips. By keeping temperatures consistently low, water blocks allow your components to run at their maximum boost clocks without interruption, ensuring stable and reliable performance during demanding tasks like gaming, video rendering, or scientific simulations. I personally found my frame rates became far more consistent in graphically intense games after making the switch.
One of the most noticeable benefits of liquid cooling is the drastic reduction in system noise.
Why Quieter? While liquid cooling loops still use fans (on the radiator) and a pump, the much greater efficiency of water in moving heat means that these fans don't need to spin as fast or as loudly to dissipate the same amount of heat as air cooler fans. Air coolers often require high RPM fans directly on the CPU/GPU heatsink, which can become very loud under load. With a water block, the heat is transported away from the noise source (the component itself) to a radiator, which can be placed in a more optimal location for airflow and noise management. My home office became a much more peaceful place after my loud gaming rig became whisper-quiet even during intense gaming sessions.
For enthusiasts who want to extract every last bit of performance from their hardware, water blocks are almost a prerequisite.
Pushing Limits: Overclocking involves increasing the clock speed and often the voltage of your CPU or GPU beyond factory specifications. This generates significantly more heat. A water block's superior cooling capacity allows you to safely push these limits further, achieving higher stable overclocks than would be possible with air cooling. This translates directly to more frames per second in games or faster computation times in applications.
Beyond performance, water blocks contribute significantly to the visual appeal of a custom PC build.
Clean Look: By removing bulky air coolers, water blocks (especially with clear acrylic tops) allow for a much cleaner and more open interior, showcasing other components like the motherboard, RAM, and RGB lighting.
Reduced Dust: Since the cooling happens via a sealed liquid loop, there are fewer turbulent fans directly on hot components. This means less air is pulled directly through dense fin stacks, which can help reduce the amount of dust accumulation on the components themselves, leading to easier maintenance over time.
Selecting the ideal water block isn't just about picking the coolest-looking one; it requires careful consideration of compatibility, performance needs, and personal preferences to ensure it integrates seamlessly into your liquid cooling loop.
Choosing the right water block involves matching it precisely to your specific CPU socket or GPU model, considering the materials for optimal thermal performance and durability, and evaluating internal flow designs based on your desired balance of cooling efficiency and flow restriction within your loop.
Here's how to navigate the options and make an informed decision.
This is the absolute first step. A water block must be precisely compatible with the component it's meant to cool.
CPU Water Blocks: These are designed for specific CPU sockets. For instance, an Intel LGA 1700 CPU requires a water block designed for LGA 1700. An AMD AM5 CPU needs an AM5-compatible block. The mounting holes and pressure system are tailored to these specific designs. Always check the manufacturer's compatibility list for your motherboard's socket.
GPU Water Blocks: These are far more specific than CPU blocks. A "full-cover" GPU water block is designed for a particular model and PCB layout of a graphics card (e.g., an "NVIDIA GeForce RTX 4090 Founders Edition" block won't fit an "ASUS ROG Strix RTX 4080"). Even minor variations in the PCB can render a block incompatible. You must verify the exact model number of your graphics card against the water block manufacturer's compatibility list. I learned this the hard way once when I assumed an RTX 3070 block would fit any 3070 – it didn't!
The materials used in a water block directly impact its thermal performance, durability, and aesthetics.
Cold Plate Material: As discussed, copper is the standard for high-performance cold plates due to its excellent thermal conductivity. Some blocks are nickel-plated copper, offering corrosion resistance and a different look. Avoid mixing metals like aluminum and copper in a single loop, as this can lead to galvanic corrosion over time, degrading your components and coolant.
Top Cover Material:
Acrylic (Plexiglas): Offers transparency for RGB lighting and coolant visibility. Can be prone to cracking if overtightened or exposed to certain chemicals.
Acetal (POM): Opaque, very durable, and resistant to chemicals. A solid choice for a robust, no-frills look.
Metal (e.g., Anodized Aluminum, Brass): Extremely durable and premium feel, but typically opaque.
Manufacturing Quality: Precision machining is vital. A perfectly flat, smooth cold plate is essential for optimal contact with the component. Look for reputable brands known for their manufacturing quality, as even tiny imperfections can impact performance.
The internal design of the water block's cold plate dictates how effectively heat is transferred to the coolant.
Micro-Fins vs. Jet Plates vs. Pin Fins: These designs each offer different trade-offs between thermal performance and flow restriction. Micro-fin designs provide excellent surface area but can be more restrictive to coolant flow, potentially requiring a more powerful pump. Jet plate designs are highly efficient at transferring heat from concentrated areas but also add some flow restriction. Pin-fin designs offer a good balance.
Performance vs. Flow: Some water blocks are designed for maximum thermal performance at the expense of slightly higher flow restriction, while others prioritize lower restriction for multi-block loops. Generally, the more intricate the internal fin structure, the better the heat transfer, but the higher the flow resistance. Most modern blocks strike a good balance.
The water block stands as the foundational component in any liquid cooling system, transforming heat management from a noisy, air-based struggle into a silent, highly efficient, and often visually stunning process. By directly drawing heat from your CPU, GPU, or other vital components and transferring it to a circulating liquid, water blocks enable lower, more stable temperatures. This not only unlocks greater performance and overclocking potential but also significantly reduces noise levels and contributes to a cleaner, more durable PC build. Choosing the right water block involves careful consideration of compatibility, materials, and internal design, but the benefits for a high-performance system are undeniable.
