Is your electronic device overheating, or are your building insulation efforts falling short? The answer often lies in understanding thermal resistance. Thermal resistance is a measure of a material's or a system's opposition to the flow of heat, indicating how effectively it insulates or impedes thermal energy transfer. This article will delve into its definition, calculation, importance in various applications, factors influencing it, and strategies to minimize it for optimal thermal management.
Thermal resistance is a quantitative measure of how much a material or component resists the flow of heat. It is the reciprocal of thermal conductance, which signifies a material's ability to transfer heat.
Expressed in units of Kelvins per Watt (K/W) or degrees Celsius per Watt (°C/W), thermal resistance quantifies the temperature difference required to transfer a specific amount of heat energy through a material or system. A higher thermal resistance value indicates a poorer heat conductor or a better insulator, meaning more temperature difference is needed to push the same amount of heat through it. Conversely, materials with low thermal resistance readily allow heat to pass through. This concept is crucial for designing systems that either aim to retain heat (insulation) or dissipate it efficiently (cooling).
Thermal resistance can be applied to:
Materials: Intrinsic property of a specific material (e.g., fiberglass insulation has high thermal resistance). This is often related to "specific thermal resistance" or R-value.
Components/Assemblies: The resistance of a specific quantity or shape of material, or even interfaces between materials (e.g., the thermal resistance of a CPU package or a thermal interface material). This is commonly referred to as "absolute thermal resistance."
Systems: The cumulative resistance of an entire heat path, from a heat source to the ambient environment.
Understanding this fundamental concept is vital across diverse fields, from architectural insulation to advanced electronics cooling.

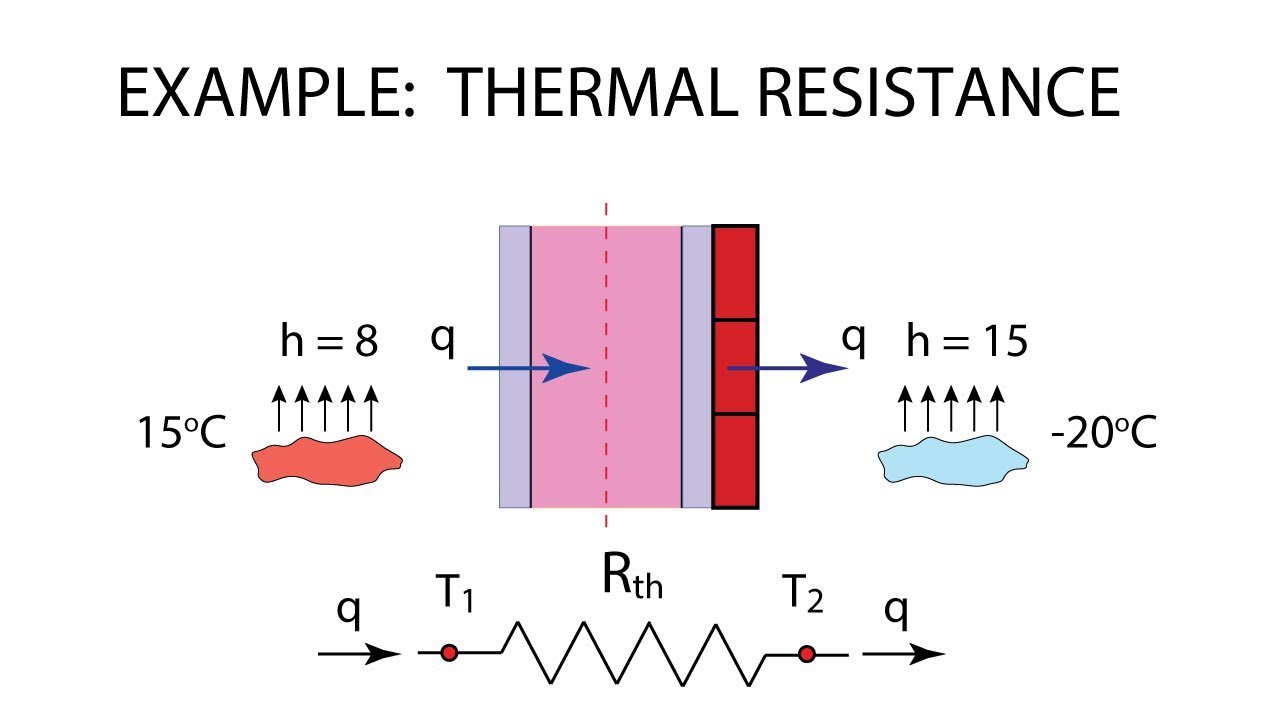

Thermal resistance is calculated by dividing the temperature difference across a material or system by the rate of heat flow through it. This relationship mirrors Ohm's Law in electrical circuits, where voltage (temperature difference) drives current (heat flow) against resistance.
The general formula for absolute thermal resistance (Rθ) is:
R_θ=DeltaT/Q
Where:
R_θ = Thermal Resistance (K/W or °C/W)
DeltaT = Temperature Difference across the material or system (K or °C)
Q = Rate of Heat Flow (Watts)
For conductive thermal resistance through a flat material layer, the calculation involves its thickness, thermal conductivity, and cross-sectional area:
R_cond=L/(kcdotA)
Where:
L = Thickness of the material (meters)
k = Thermal Conductivity of the material (W/m·K)
A = Cross-sectional Area perpendicular to heat flow (m²)
This formula highlights that a thicker material, or one with lower thermal conductivity, will have higher thermal resistance. In practical applications, the total thermal resistance of a system often involves a series of individual resistances, including:
Conductive Resistance: Within solid materials.
Convective Resistance: Between a surface and a fluid (e.g., air, liquid).
Radiative Resistance: Between surfaces through electromagnetic waves.
Contact Resistance: At the interface between two contacting surfaces.
Engineers sum these individual resistances to determine the overall thermal resistance of a complex system, such as a CPU, its thermal interface material, a heatsink, and the ambient air.
Thermal resistance is paramount in electronics cooling because it directly determines a component's operating temperature, which impacts performance, reliability, and lifespan. High thermal resistance can lead to device failure.
In electronics, components like CPUs, GPUs, and power transistors generate significant heat. If this heat isn't effectively dissipated, the component's internal temperature (junction temperature) rises. Manufacturers specify a maximum safe operating temperature for electronic components. Exceeding this limit can cause:
Thermal Throttling: The component automatically reduces its clock speed or power draw to lower its temperature, leading to a significant drop in performance.
Reduced Reliability: High temperatures accelerate material degradation, leading to premature component failure.
Shortened Lifespan: Every 10°C increase in operating temperature can halve the lifespan of a semiconductor device.
To ensure reliable and sustained performance, engineers must design cooling systems that maintain the component's junction temperature below its maximum limit. This is achieved by minimizing the total thermal resistance from the heat-generating junction to the ambient environment. For example, a CPU cooler's efficiency is often quantified by its thermal resistance (e.g., °C/W), indicating how many degrees the CPU will rise above ambient per watt of heat dissipated. Lower thermal resistance means better cooling and, thus, better performance and longevity for the electronic device.
Thermal resistance is influenced by a combination of material properties, geometric considerations, surface characteristics, and environmental conditions, each playing a crucial role in impeding heat flow.
Understanding these factors is key to designing effective thermal management solutions for various applications.
Material Properties:
Thermal Conductivity (k): This is the most direct factor. Materials with high thermal conductivity (e.g., copper, aluminum) have low thermal resistance, making them ideal for heat sinks. Materials with low thermal conductivity (e.g., fiberglass, foam) have high thermal resistance, making them excellent insulators.
Specific Heat Capacity: While not directly in the thermal resistance formula, a material's ability to store heat influences its transient thermal behavior.
Geometry:
Thickness (L): For conductive heat transfer, a thicker material layer increases thermal resistance.
Cross-sectional Area (A): A larger area perpendicular to heat flow decreases thermal resistance. This is why heat sinks use fins to maximize surface area.
Shape and Orientation: The overall shape and how a component is oriented can affect convective and radiative heat transfer paths, thereby influencing overall thermal resistance.
Surface Characteristics:
Surface Roughness: When two surfaces are in contact (e.g., CPU and heatsink), microscopic air gaps exist due to roughness. Air is a poor thermal conductor, leading to thermal contact resistance. Smoother surfaces reduce these gaps.
Emissivity: For radiative heat transfer, a surface's emissivity (its ability to emit thermal radiation) plays a role. Higher emissivity can reduce radiative thermal resistance.
Environmental Conditions:
Ambient Temperature: The temperature of the surrounding air or fluid affects the temperature difference driving heat transfer.
Fluid Properties (for convection): For convective heat transfer, the fluid's properties (e.g., viscosity, density, specific heat) and its velocity (e.g., fan speed) significantly impact thermal resistance. Faster airflow or more conductive fluids (like water in liquid cooling) reduce convective resistance.
Pressure: Can influence the density of gases and thus convective heat transfer.
The interplay of these factors determines the overall thermal resistance, guiding engineers in material selection, component design, and system integration for optimized thermal performance.
Reducing thermal resistance is paramount for improving heat dissipation in systems ranging from microelectronics to buildings. Strategies focus on enhancing conduction, convection, and minimizing interface losses.
By targeting specific points in the heat transfer path, engineers can significantly lower the overall thermal resistance and improve thermal performance.
Here are key strategies to reduce thermal resistance:
Enhance Conductive Resistance (within materials):
Use High Thermal Conductivity Materials: Employ materials like copper or aluminum for heat sinks and heat spreaders instead of less conductive metals or plastics.
Increase Cross-sectional Area: Design components with larger areas for heat flow, such as thicker heat sink bases or wider heat spreaders.
Reduce Thickness: Minimize the thickness of any heat-conducting layers where possible.
Minimize Thermal Contact Resistance (at interfaces): This is often the largest single resistance in a cooling path.
Improve Surface Smoothness: Ensure mating surfaces are highly polished and flat to reduce air gaps.
Increase Contact Pressure: Higher mounting pressure between components (e.g., CPU and heatsink) helps flatten surfaces and reduce air voids.
Apply Thermal Interface Materials (TIMs): Use thermal grease, thermal pads, or liquid metal between contacting surfaces (e.g., CPU IHS and heatsink base). TIMs fill microscopic air gaps, replacing them with a more thermally conductive medium.
Enhance Convective Resistance (between surface and fluid):
Increase Surface Area: Use extended surfaces like fins (in heat sinks) to maximize the contact area with the cooling fluid (air or liquid).
Increase Fluid Velocity: Employ fans for forced air convection or pumps for liquid cooling to increase the speed of the cooling fluid over the hot surfaces.
Improve Fluid Properties: Use fluids with higher specific heat and thermal conductivity (e.g., water in liquid cooling is superior to air).
Utilize Phase-Change Devices:
Heat Pipes and Vapor Chambers: These devices drastically reduce effective thermal resistance by using evaporation and condensation to rapidly transport or spread heat across a surface, often outperforming solid metal conductors by orders of magnitude.
Optimize Radiative Resistance (for high-temperature applications):
Surface Emissivity: For hotter components, applying coatings with high emissivity can improve heat transfer via radiation to the surroundings.
Implementing these strategies, often in combination, allows for a holistic approach to thermal management, ensuring components remain within safe operating temperatures and systems perform optimally.
Thermal resistance and thermal conductivity are inversely related but describe different aspects of heat flow. Thermal conductivity is an intrinsic material property indicating its ability to conduct heat, while thermal resistance quantifies a specific object's or system's opposition to heat flow, considering its geometry and interfaces.
Here's a breakdown of their key distinctions:
In simpler terms, if thermal conductivity tells you how good a material is at conducting heat, thermal resistance tells you how much a specific piece of that material (or a whole system) resists heat flow given its dimensions and any barriers in the path. For example, copper has high thermal conductivity. However, a very thin, small piece of copper might still have a higher thermal resistance than a large, thick piece of aluminum, due to geometry. For cooling engineers, thermal resistance is the more practical metric as it directly relates to temperature rise in a real-world system.
Thermal resistance is a fundamental concept in heat transfer, quantifying a material's or system's opposition to heat flow. It is measured in K/W or °C/W and is inversely related to thermal conductance. Understanding and managing thermal resistance is critical across diverse applications, from enhancing energy efficiency in buildings to preventing thermal throttling and ensuring longevity in high-performance electronics. Factors like material conductivity, component geometry, surface interfaces, and environmental conditions all significantly influence this resistance. By strategically minimizing thermal resistance through material selection, optimized design, and the use of advanced thermal interface materials or phase-change devices, engineers can achieve superior thermal management, allowing systems to operate efficiently and reliably even under demanding thermal loads.
