7 Questions to Ask Before Buying a Custom Liquid Cold Plate

As high-power electronic devices continue to push the boundaries of performance, traditional air cooling is rapidly reaching its physical limits. For engineering and procurement teams, the transition to liquid cooling is no longer optional; it is a necessity. However, sourcing a custom liquid cold plate is vastly different from purchasing standard off-the-shelf components like screws or heat sinks.

Many buyers fall into the trap of focusing solely on unit price or basic dimensional specifications. In reality, a liquid cold plate is a highly customized thermal management component. The manufacturing process, internal fluid routing, material selection, and the supplier's engineering capabilities will fundamentally determine the cooling efficiency and operational lifespan of your entire system.

When your equipment must endure continuous coolant circulation, thermal cycling, and high heat loads, choosing the right liquid cold plate supplier means choosing a long-term thermal solution. To help you navigate this critical procurement process, here are seven essential questions you must ask your supplier before making a decision.

1. Does the Cold Plate Match Your Specific Thermal Requirements?

Every thermal management project begins with heat. The primary objective of any custom liquid cooling plate is to minimize thermal resistance and maximize heat dissipation efficiency. However, simply knowing the total wattage of your system is not enough.

Before committing to a design, you must ensure the supplier can precisely match your specific thermal parameters. This includes analyzing the heat flux density (hotspots), the required coolant flow rate, allowable pressure drop, and the required temperature uniformity across the component surface.

A reliable liquid cooling solution supplier will not just accept a basic drawing; they will offer engineering support. For example, Kingka utilizes advanced Computational Fluid Dynamics (CFD) and Finite Element Analysis (FEA) to simulate how heat transfers from your device into the cooling fluid. By identifying potential thermal bottlenecks early, the supplier can adjust the liquid cold plate design to ensure it maintains stable temperatures under continuous high loads.

2. Can the Supplier Provide Custom Internal Channel Design?

Once the thermal requirements are established, the next logical step is determining how the cold plate will absorb that heat. The secret to a high performance liquid cold plate lies almost entirely in its internal channel geometry.

Performance is dictated by the path the coolant takes. An inexperienced supplier might offer basic, straight channels to save manufacturing costs. However, high heat density devices require complex flow paths. You must ask if the supplier can customize the channel shapes, fin densities, inlet and outlet positions, and flow distribution networks to target your specific heat sources.

For instance, in high-performance computing (HPC) servers where localized hotspots are a major issue, the internal channels must be engineered to force coolant directly over the hottest areas while maintaining an acceptable pressure drop. A supplier capable of customizing these micro-channels ensures that the cooling fluid covers the target area efficiently, maximizing heat transfer.

3. Which Manufacturing Process Is Suitable for Your Application?

If the internal channel design is complex, the next question must address how the supplier plans to physically build it. The manufacturing process you choose will dictate what kind of channel geometries are possible and how strong the final product will be.

Different applications require different manufacturing technologies. Two of the most common and effective methods are Vacuum Brazing and Friction Stir Welding (FSW).

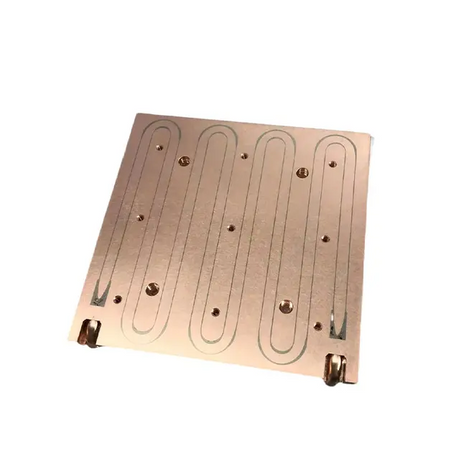

• Vacuum Brazing: This process bonds metal parts in a high-temperature vacuum furnace without the use of corrosive fluxes. It allows for incredibly complex, winding internal channels and high-density fin structures. A vacuum brazed liquid cold plate is ideal for high-power density applications where thermal resistance must be kept to an absolute minimum.

• Friction Stir Welding (FSW): This solid-state joining process uses mechanical friction to weld metal together without melting it. It provides exceptional structural strength and is highly suited for large-area cooling structures, though it offers slightly less freedom for intricate internal geometries.

Table: Vacuum Brazing vs. FSW for Custom Cold Plates

Kingka provides both vacuum brazing and FSW solutions, allowing engineering teams to select the exact process that balances their thermal performance needs with structural requirements.

4. What Materials Are Available for Your Cooling Plate?

The manufacturing process is deeply tied to the materials being used. The choice of base material affects thermal conductivity, overall weight, environmental resistance, and unit cost. You must ask your liquid cold plate manufacturer what materials they can reliably process.

The most common materials in liquid cooling thermal management are:

• Aluminum: Lightweight, cost-effective, and easy to machine. Aluminum is the industry standard for the majority of cooling plates, particularly in automotive and industrial electronics where weight and cost are significant factors.

• Copper: Offering nearly double the thermal conductivity of aluminum, copper is used for extreme heat flux applications where rapid heat spreading is required, such as AI processors or specialized laser diodes. However, it is heavier and more expensive.

• Stainless Steel: Used primarily when the cooling fluid is highly corrosive or when the system operates in harsh environments where aluminum or copper would degrade.

A capable OEM liquid cold plate partner will guide you in selecting the right material not just for thermal conductivity, but for long-term fluid compatibility.

5. How Does the Manufacturer Control Leakage Risk?

Once the material and internal channels are selected, you must address the single biggest risk in liquid cooling: leakage. When liquids circulate near high-voltage electronics, a compromised seal can lead to catastrophic system failure.

You must ask the supplier detailed questions about their sealing technology and quality control processes. How do they ensure the plate will not leak after thousands of thermal expansion and contraction cycles?

A high-quality vacuum brazed liquid cold plate inherently reduces leakage risks because the metallurgical bond creates a unified, integrated structure rather than relying on mechanical gaskets or localized welds. Furthermore, a professional manufacturer will have a strict testing protocol. You should expect rigorous validation procedures, including helium leak testing, high-pressure burst testing, and thermal cycling tests to ensure the unit remains completely sealed throughout its operational lifespan.

6. Can They Support Your Project from Prototype to Mass Production?

Passing a leak test on a single prototype is a great milestone, but the real challenge for procurement teams is scale. Can the supplier produce 10,000 units with the exact same quality as the first sample?

A top-tier supplier does more than just machine parts; they provide end-to-end engineering support. You need to know if they offer Design for Manufacturability (DFM) feedback during the early stages to prevent costly production issues later.

Kingka supports clients through the entire product lifecycle—from initial thermal design and prototype verification to stable batch production. Transitioning from prototype to mass production requires strict process control, advanced CNC machining capabilities, and robust supply chain management to guarantee batch consistency and on-time delivery.

7. Does the Supplier Understand Your Industry's Unique Challenges?

Finally, the success of your custom liquid cold plate heavily depends on whether the supplier understands the specific operational environment of your industry. A cooling plate designed for a data center behaves differently than one designed for a moving vehicle.

Consider these different real-world applications:

• New Energy Vehicles (EV Batteries): An EV battery liquid cooling plate must handle long-term operation, maintain strict temperature uniformity across large surface areas to prevent battery degradation, and withstand constant road vibration without leaking.

• High-Performance Computing (HPC): AI servers and computing equipment require incredibly compact structures with massive heat transfer capabilities. Traditional cooling fails here, making highly customized vacuum brazed plates essential for keeping processors from thermal throttling.

A supplier whose experience spans power electronics, EV, HPC, aerospace, and laser equipment brings a wealth of cross-industry knowledge to your project. By understanding these specific challenges, they can design a thermal management system that is truly fit for purpose.

Conclusion: Partnering for Reliable Thermal Management

Procuring a liquid cooling component is not a simple transactional purchase. For your equipment to operate safely and efficiently, you need a custom-engineered solution that balances thermal performance, manufacturing stability, and rigorous quality control.

Choosing the right custom liquid cold plate supplier requires more than comparing prices. It requires finding an engineering partner. Kingka provides customized vacuum brazed liquid cold plates and FSW cooling solutions with optimized cooling channels, reliable manufacturing processes, and engineering support from prototype development to mass production.

Are you ready to optimize your system's thermal management? Contact our engineering team today with your thermal requirements or design drawings, and let us help you develop a high-performance, leak-proof liquid cooling solution tailored to your application. Send an inquiry now to get started.

Frequently Asked Questions (FAQs)

1. What information do I need to provide to get a custom liquid cold plate quote?

To receive an accurate quote, it is best to provide a 3D CAD drawing, required dimensions, the total heat load (wattage), the maximum allowable temperature, the type of coolant being used, and your required flow rate and pressure drop limits.

2. Why is vacuum brazing recommended for high-power electronics?

Vacuum brazing allows for the creation of very intricate internal flow channels without using corrosive chemical fluxes. This results in a highly efficient, clean, and reliable cold plate capable of dissipating extreme heat fluxes safely.

3. How long does it take to manufacture a prototype custom cold plate?

Lead times vary depending on the complexity of the design and the selected manufacturing process. Generally, after the design and thermal analysis (CFD/FEA) are approved, producing a custom prototype can take anywhere from 3 to 6 weeks.

4. Can I use water as a coolant in an aluminum liquid cold plate?

Using plain water in an aluminum cold plate can lead to corrosion over time. It is highly recommended to use a mixture of water and a specialized glycol (like ethylene or propylene glycol) containing anti-corrosion inhibitors to protect the internal channels.

5. What is pressure drop, and why is it important in cold plate design?

Pressure drop is the resistance the fluid encounters as it flows through the cold plate's internal channels. A high pressure drop requires a larger, more powerful pump to push the liquid through the system. A good design balances high heat transfer with an acceptable pressure drop.
