Heat Pipe Design Guide

Introduction

In the world of thermal management, heat pipes play a critical role in efficiently transferring heat from one area to another. Their versatility makes them indispensable across numerous industries, including electronics, telecommunications, and medical devices. At KingKa, a leader in manufacturing heat sinks and precision metal products, we specialize in providing top-quality heat pipe solutions that meet the evolving needs of our clients. This guide will walk you through the essentials of heat pipe design, helping you make informed decisions for your specific application.

1. Understanding Heat Pipes

Definition and Functionality

A heat pipe is a highly effective heat transfer device that uses the phase change of a working fluid (commonly water) to transport heat. Inside the heat pipe, the liquid absorbs heat at the evaporator section, turns it into vapor, and travels to the condenser section, where it releases heat and condenses back into a liquid. This cycle continues, facilitating rapid thermal transport with minimal temperature difference between the heat source and heat sink.

Applications of Heat Pipes

Heat pipes are used across industries where reliable thermal management is paramount:

· Electronics Cooling: From CPUs to GPUs, heat pipes efficiently dissipate heat in high-performance devices.

· Telecommunications: Ensuring optimal operating temperatures in densely packed electronic components.

· Medical Equipment: Maintaining consistent temperatures in sensitive medical diagnostic tools.

2. Key Design Considerations

Wick Structure Selection

The wick structure inside a heat pipe facilitates the return of the working fluid from the condenser to the evaporator. The choice of wick structure depends on performance requirements:

· Sintered Powder: Offers high capillary action, ideal for high-performance applications.

· Grooved: Lower capillary action but higher heat transfer rates, making it suitable for applications with lower heat flux.

· Mesh: Strikes a balance between capillary action and performance, often used in general-purpose designs.

Material Choices

Material selection is crucial in determining a heat pipe's effectiveness and longevity:

· Copper: Offers excellent thermal conductivity (up to 400 W/m·K), making it a preferred choice for most applications.

· Aluminum: Lighter than copper, but with lower thermal conductivity, suitable for weight-sensitive applications.

· Stainless Steel: Offers corrosion resistance but has lower thermal performance compared to copper and aluminum.

Working Fluid Selection

Choosing the right working fluid is vital for achieving optimal performance:

· Water: Most common due to its high latent heat and thermal stability. Suitable for temperatures ranging from 30°C to 150°C.

· Ethanol or Methanol: Ideal for low-temperature applications.

· Ammonia: Preferred for very low-temperature applications, but care is required due to its corrosive nature.

3. Performance Metrics

Thermal Conductivity

The thermal conductivity of both the heat pipe material and working fluid greatly influences performance. Measured in watts per meter Kelvin (W/m·K), this metric reflects how efficiently heat can be conducted. Copper's superior thermal conductivity makes it the most commonly used material for heat pipes.

Heat Carrying Capacity

The diameter and length of a heat pipe directly affect its heat-carrying capacity. Larger diameter pipes can carry more heat, but they may be harder to integrate into compact designs. Similarly, shorter heat pipes offer better thermal performance but may not cover larger distances.

4. Design Guidelines for Integration

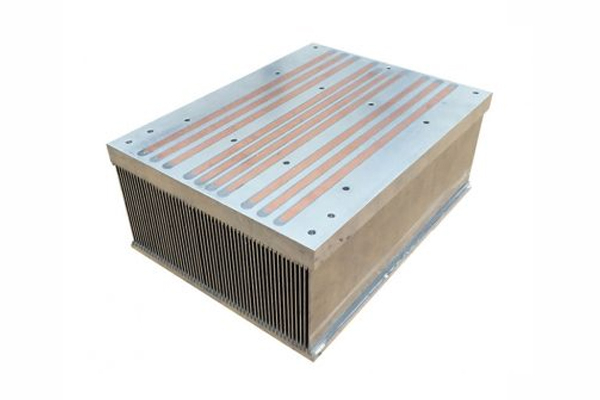

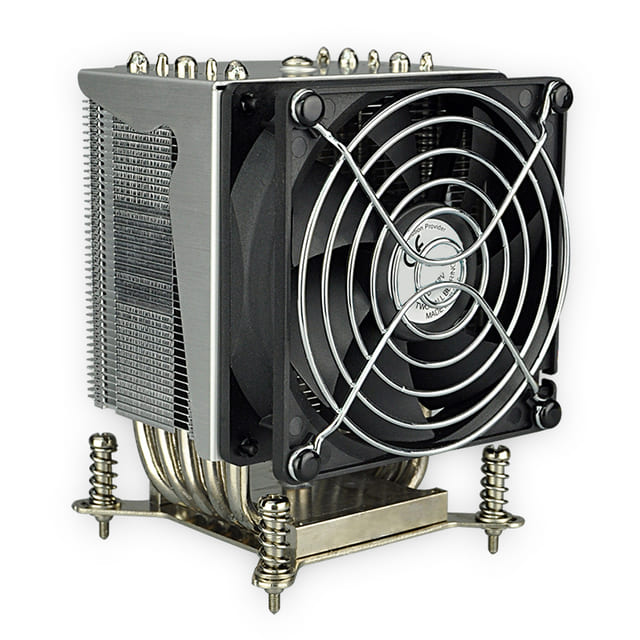

Heat Sink Integration

For optimal performance, heat pipes should be seamlessly integrated with heat sinks. Ensuring direct contact between the heat pipe and the heat sink maximizes heat transfer efficiency. When using multiple heat pipes, it is essential to distribute them evenly across the heat sink to prevent hotspots.

Bending and Flattening Guidelines

Heat pipes can be bent and flattened to fit within tight spaces, but these alterations can impact performance. When bending a heat pipe, it is important to maintain a smooth radius to avoid crimping, which could obstruct fluid flow. Similarly, flattening should be done carefully to prevent damage to the wick structure.

5. Modeling and Simulation

Thermal Simulation Techniques

Thermal simulation is a key step in the heat pipe design process, allowing engineers to predict performance and optimize the design before manufacturing. Advanced software tools can simulate various operating conditions, helping to refine factors such as wick structure, working fluid, and pipe geometry for the best possible results.

6. Common Challenges and Solutions

Addressing Thermal Resistance

One common issue in heat pipe systems is thermal resistance, which can reduce performance. This occurs due to insufficient contact between the heat source and the heat pipe or between the heat pipe and the heat sink. To minimize thermal resistance, ensure precise machining and consider using thermal interface materials (TIMs) to improve contact surfaces.

Maintaining Reliability

To maintain the long-term reliability of heat pipe systems, material selection and proper design are essential. Copper heat pipes, for example, offer excellent durability and corrosion resistance. Additionally, ensuring that the heat pipe is used within its designed temperature range will prevent issues such as dry-out or excessive pressure buildup inside the pipe.

Conclusion

In conclusion, understanding the fundamentals of heat pipe design is essential for achieving effective thermal management. By carefully considering factors such as wick structure, material selection, and working fluid, you can optimize performance and reliability. At KingKa, we specialize in providing custom heat pipe solutions tailored to your specific needs. Contact us today for expert guidance on integrating heat pipes into your designs and to learn more about our high-quality thermal management products.

FAQs

1. What are the advantages of using heat pipes?

Heat pipes provide efficient thermal management by transferring heat with minimal temperature difference. They are passive, reliable, and effective across various industries.

2. How do I choose the right size for my application?

The right size depends on the heat load and available space. Larger diameters carry more heat but may not fit into compact designs. Simulations can help determine the ideal size for your application.

3. What maintenance is required for heat pipes?

Heat pipes require minimal maintenance. As long as they are operating within their designed temperature range and are free from physical damage, they should perform reliably for many years.
