As GPU power density skyrockets past 700W per chip, the margin for thermal error vanishes. Relying solely on copper drives up costs and rack weight, while pure aluminum often fails to meet the heat flux requirements of modern AI clusters. Failing to balance these materials correctly results in thermal throttling, structural strain on server racks, and inflated procurement costs. From an engineering perspective, the solution lies not in choosing one over the other, but in mastering hybrid designs and precision manufacturing to leverage the best properties of both.

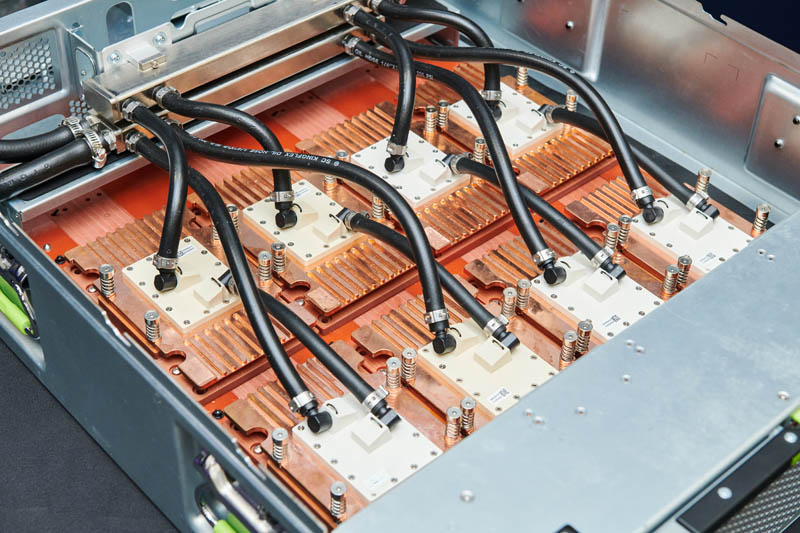

In the race to cool next-generation silicon like the NVIDIA H100 or GB200, procurement managers and engineers are facing a critical dilemma: how to manage the escalating demand for copper without blowing the budget or breaking the floor load limits.
Below, I will break down the technical trade-offs, manufacturing realities, and Kingka Tech’s approach to solving this thermal puzzle.
The Weight Penalty: Why Aluminum is Essential for Rack Density
Manufacturing Precision: CNC Challenges in Micro-Channel Geometry
Why is copper still the dominant choice for the heat source interface?
Copper remains the gold standard for direct-contact cooling because its thermal conductivity (~398 W/m·K) is nearly double that of aluminum (~235 W/m·K). For high-performance GPU cooling, specifically at the die interface where heat flux is most concentrated, copper is non-negotiable to prevent localized hotspots that cause immediate silicon throttling. While copper is significantly more expensive, the cost of downtime or reduced compute performance in an AI data center far outweighs the raw material price difference.
In our engineering analysis at Kingka Tech, we see a clear threshold. When handling GPU power density exceeding 100W/cm², aluminum simply cannot conduct heat away from the source fast enough, regardless of the flow rate.
Copper's Role: It acts as a "thermal spreader," rapidly moving heat from the small silicon die to the wider liquid coolant channels.
The Cost Reality: With copper prices potentially hitting $10,000/ton, using a solid block of copper for the entire cold plate is fiscally irresponsible for large-scale deployments.
Engineering Advice:
Prioritize copper solely for the "wetted area" directly above the GPU and memory modules. For the surrounding manifold and mounting brackets, paying for copper offers diminishing returns.
How does cold plate material affect data center infrastructure?
As server racks approach 100kW+ densities, weight becomes a structural safety issue. Copper is approximately three times denser than aluminum (8.96 g/cm³ vs 2.70 g/cm³), meaning a fully copper liquid cooling loop can add hundreds of kilograms to a single rack. By transitioning non-critical structural components to aluminum, engineers can reduce total cold plate weight by 40-60%, allowing data centers to deploy more compute units per square foot without reinforcing the floor.
We recently consulted on a project involving liquid cooling for data centers where the client initially requested all-copper cold plates.
The Problem: The projected weight of the rack exceeded the raised floor load limit of the facility.
The Solution: We redesigned the assembly. The active cooling micro-channels remained copper, but the manifold cover and mounting frame were machined from high-strength aluminum alloy.
Is it possible to bond copper and aluminum reliably without leaks?
Yes, but it requires specialized manufacturing processes to prevent galvanic corrosion and ensure structural integrity. A hybrid cold plate—featuring a copper core for heat absorption and an aluminum body for fluid distribution—offers the optimal balance of performance, weight, and cost. Kingka Tech utilizes advanced friction stir welding (FSW) and vacuum brazing techniques to create a monolithic-like bond between these dissimilar metals, ensuring long-term durability in high-flow environments.
In a recent engagement for a high-frequency trading server application, the thermal load was extreme.
Design: We engineered a copper insert with Skived Fin technology (high surface area) to sit directly on the ASIC.
Integration: This copper core was embedded into a CNC-machined aluminum chassis.
Result: The solution managed the GPU power density effectively while keeping the individual cold plate weight under 500g, satisfying the vibration and shock testing requirements for shipping populated racks.
Key Consideration: When mixing metals, the coolant chemistry must be carefully controlled with inhibitors, or the metals must be electrically isolated to prevent the aluminum from acting as an anode and corroding away.
How does material choice impact the manufacturing complexity of flow channels?
Creating the internal micro-channels required for efficient heat transfer demands multi-axis CNC precision. Copper is "gummy" and difficult to machine, leading to faster tool wear and longer cycle times, whereas aluminum allows for faster machining speeds and complex manifold geometries. Kingka Tech leverages multi-axis CNC machining centers to produce complex internal flow paths that optimize flow resistance and heat transfer efficiency, regardless of the material chosen.
Designers often overlook the relationship between manufacturing feasibility and fluid dynamics.
Copper: Best for straight, high-density fin structures (0.1mm - 0.3mm gaps) created via skiving or wire EDM.
Aluminum: Ideal for the complex distribution manifolds that route water evenly across the copper fins.
Our facility is equipped to handle both. We often suggest utilizing CNC precision machining to create turbulence-inducing features in the copper base plate, breaking the thermal boundary layer to improve cooling performance by 15-20% compared to smooth channels.
What is the most critical validation step for hybrid liquid cold plates?
The nightmare scenario for any data center operator is a coolant leak. Ensuring reliability requires rigorous 100% helium leak testing and pressure retention testing to validate the integrity of seals, brazed joints, and welded seams. At Kingka Tech, we implement strict airtightness and pressure resistance protocols, testing components well beyond their operating pressure to ensure they withstand the hydraulic shock of pump startups and long-term operation.
We don't just ship metal; we ship validated thermal solutions.
Pressure Test: Typically 1.5x to 2x the operating pressure (e.g., 100-150 psi) for sustained periods.
Helium Sniffing: Detecting microscopic leaks that water testing might miss.
Corrosion Analysis: For hybrid plates, we verify the coating integrity (e.g., Nickel plating on copper) to ensure compatibility with the specific glycol/water mixture used by the client.
This "manufacturing-first" mindset is vital when helping clients transition from air cooling to liquid cooling for data centers.
How do you move from a machined prototype to a volume product?
Transitioning from a functional sample to mass production often requires a change in manufacturing strategy to control costs. While prototyping often relies heavily on full CNC machining, mass production may introduce die-casting for aluminum parts or cold forging for copper bases to reduce cycle time and material waste. Kingka Tech specializes in bridging this gap, helping clients value-engineer their designs for volume manufacturing without sacrificing thermal performance.
Phase 1 (Validation): Full CNC machining of solid copper blocks for a telecom client to validate thermal concepts quickly (Lead time: 7-10 days).
Phase 2 (Pilot): Introduction of a hybrid design (Cu+Al) to reduce weight.
Phase 3 (Volume): Utilization of tooling for the aluminum manifold and automated brazing processes to stabilize quality and lower unit cost by 30% for a 10k/year run.
This ability to provide High-Performance GPU cooling at scale is what differentiates a custom job shop from a strategic manufacturing partner.
How should procurement managers plan for rising copper demands?
With the copper supply deficit widening due to EV and grid infrastructure demands, securing raw material access is crucial. We advise clients to involve their manufacturing partner early in the design phase to lock in material specifications and explore alternative alloys that may offer better price stability. Kingka Tech maintains strong supply chain relationships for high-purity oxygen-free copper and aerospace-grade aluminum to buffer our clients against short-term market volatility.
The choice between copper and aluminum is not binary. It is an optimization problem involving heat flux, weight, fluid dynamics, and budget.
If you are cooling legacy equipment (<300W), aluminum may suffice.
If you are cooling an H100 or GB200 cluster, you need copper—but you must use it intelligently.
At Kingka Tech, we don't just execute drawings; we validate designs. Whether you are building next-gen servers, telecommunications gear, or power energy systems, our team provides the full spectrum of service: from thermal feasibility assessment to CNC precision manufacturing and final assembly testing.
